A-DF-15-LL/Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> A-DF-15-LL/Z

Preview

A-DF-15-LL/Z: Descriptionconn D-sub 15pos female solder; CategoryThe connector; File Size46KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

A-DF-15-LL/Z Overview

conn D-sub 15pos female solder

A-DF-15-LL/Z Parametric

Parameter Name	Attribute value
Datasheets
A-DF15LL-TL-B-R
Product Photos
A-DF15LL-TL-B-R
Standard Package	50
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layou	2 (DA, A)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solder Cu
Features	-
Shell Material, Finish	Steel
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	250V
Current Rating	3A
Housing Material	Polybutylene Terephthalate (PBT)
Col	-
Dynamic Catalog	A-DF and A-DS Series
Mating Products	AE10977-ND - CONN D-SUB MALE 15POS R/A .590AE10976-ND - CONN D-SUB MALE 15POS R/A .318AE10979-ND - CONN D-SUB 15POS MALE VERTAE10978-ND - CONN D-SUB 15POS MALE SOLDERAE10999-ND - CONN D-SUB STACKED M/M 15POS R/AAE10965-ND - CONN D-SUB STACKED F/M 15POS R/AAE10995-ND - CONN D-SUB STACKED M/F 15POS R/AHMU15H-ND - CONN DB15 MALE AU SHELL LO PROHMP15H-ND - CONN DB15 MALE PLASTIC SHELL
Associated Produc	AE11014-ND - CONN HOOD D-SUB 15POS BLK PLASTCAE11013-ND - CONN HOOD D-SUB 15POS METALAE11012-ND - CONN HOOD D-SUB 15POS MET-PLASTAE11015-ND - CONN HOOD D-SUB 15POS PLASTIC
Other Names	A-DF15LL-TL-B-RA-DF15LL-TL-B-R-NDAE10933

Preview

Download Datasheet

View All

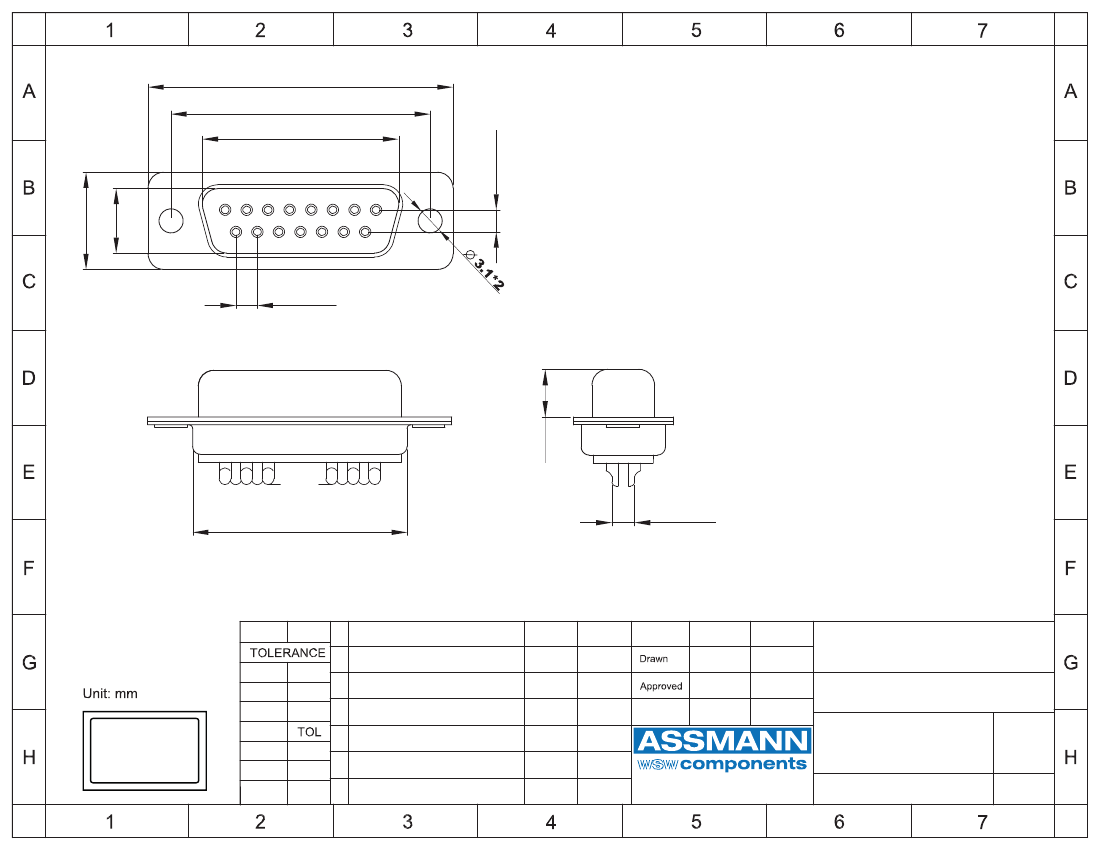

39.2MM

33.3MM

2.84MM

24.6MM

Material:

• Insulator: PBT, rated UL94V-0

• Contacts: Brass

• Shell: Steel

• Contact plating: Gold Flash/Nickel

Electrical:

• Operating voltage: 250V AC max.

• Current rating: 3.0A max.

• Contact resistance: 15M max.

• Insulation resistance: 3,000M min.@500V DC

• Dielectric withstanding voltage: 1,000V AC/minute

• Operating temperature: -55°C ~ +105°C

12.5MM

7.9MM

2.77MM

6.0MM

27.7MM

2.84MM

Scale

X.

X.X

Free

±0.5

±0.3

±0.2

±5°

±X°

TOL

Id.

Modification

Date

Name

Date

16.11.11

Name

Chappell

Title

DSub Stamped connector

ASSMANN WSW-No.

15 pin Female, Solder Cup w/o threaded inserts

A-DF15LL-TL-B-R

Drawing-No.

RoHS

Compliant

X.XX

DIM

X.°

X.X°

Angle

rev00

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

Replace

Sheet

1/1
