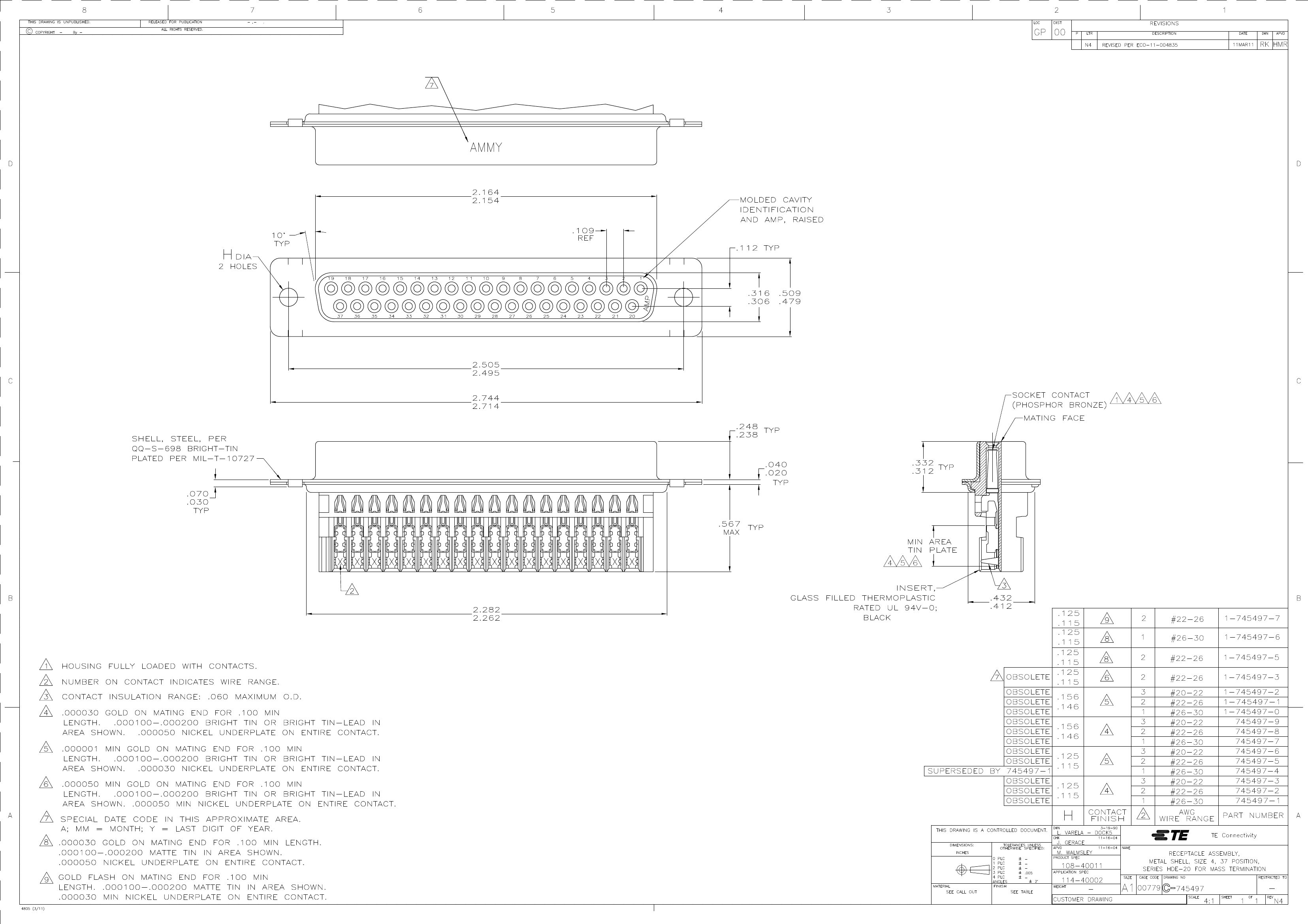

Preview

1-745497-6: Descriptionconn D-sub recpt 37p 26-30awg AU; CategoryThe connector; File Size159KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-745497-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-745497-6	-	-	View	Buy Now

1-745497-6 Overview

conn D-sub recpt 37p 26-30awg AU

1-745497-6 Parametric

Parameter Name	Attribute value
Datasheets
745497
Product Photos
1-745497-6
RoHS Informati
1-745497-6 Statement of Compliance
RoHS 2 Stateme
3D Model
1-745497-6.pdf
Standard Package	56
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layou	4 (DC, C)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)
Terminati	IDC, Discrete Wire
Features	-
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	250V
Current Rating	Varies by Wire Gauge
Housing Material	Thermoplastic, Glass Filled
Col	Black
Dynamic Catalog	AMPLIMITE HDE-20 Series
Mating Products	5205714-7-ND - CONN D-SUB PLUG 37POS VERT T/HA34071-ND - CONN D-SUB PLUG STR 37POS PCB AUA34043-ND - CONN D-SUB PLUG STR 37POS PCB AU1-745498-7-ND - CONN D-SUB PLUG 37P 22-26AWG AUA32506-ND - CONN DSUB PLUG 37POS SLD CUPAMR37B-ND - CONN D-SUB PLUG 37POS GOLDA31972-ND - CONN D-SUB PLUG 37P 26-30AWG AUA31935-ND - CONN D-SUB PLUG 37P 22-26AWG AU6-747843-7-ND - CONN D-SUB PLUG R/A 37POS AU PCB205714-7-ND - CONN D-SUB PLUG 37POS VERT T/HA23145-ND - CONN D-SUB PLUG STR 37POS PCB AUA23181-ND - CONN D-SUB PLUG STR 37POS PCB AU
Associated Produc	5749916-2-ND - CONN BACKSHELL DB37 PLASTICA33669-ND - CONN BACKSHELL DB37 GRAY PLASTICA34175-ND - CONN BACKSHELL DB37 PLASTIC BLCKA23605-ND - CONN BACKSHELL STR DB37 PLASTICA2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON
Other Names	17454976A31981

Preview

Download Datasheet

View All

1-745497-6 Related Products

	1-745497-6	745497-2	745497-1	1-745497-7
Description	conn D-sub recpt 37p 26-30awg AU	conn D-sub recpt 37p 22-26awg AU	conn D-sub recpt 37p 26-30awg AU	conn D-sub rcpt 37pos idc
Standard Package	56	56	56	224
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk	Bulk	Tray
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	37	37	37	37
Number of Rows	2	2	2	2
Shell Size, Connector Layou	4 (DC, C)	4 (DC, C)	4 (DC, C)	4 (DC, C)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Terminati	IDC, Discrete Wire	IDC, Discrete Wire	IDC, Discrete Wire	IDC, Discrete Wire
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	250V	250V	250V	250V
Current Rating	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge
Housing Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Col	Black	Black	Black	Black
Associated Produc	5749916-2-ND - CONN BACKSHELL DB37 PLASTICA33669-ND - CONN BACKSHELL DB37 GRAY PLASTICA34175-ND - CONN BACKSHELL DB37 PLASTIC BLCKA23605-ND - CONN BACKSHELL STR DB37 PLASTICA2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON	A2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON	A2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON	5749916-2-ND - CONN BACKSHELL DB37 PLASTICA33669-ND - CONN BACKSHELL DB37 GRAY PLASTICA34175-ND - CONN BACKSHELL DB37 PLASTIC BLCKA23605-ND - CONN BACKSHELL STR DB37 PLASTICA2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON
Other Names	17454976A31981	A1049	A23105	A35212
