749621-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 749621-8

749621-8: Descriptionconn plug 80pos .050 idc W/cov; CategoryThe connector; File Size201KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

749621-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	749621-8	-	-	View	Buy Now

749621-8 Overview

conn plug 80pos .050 idc W/cov

749621-8 Parametric

Parameter Name	Attribute value
Datasheets
749621
Product Photos
5749621-8
3D Model
749621-8.pdf
Standard Package	180
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Type
Connector Type	Plug, Male Pins
Number of Positions	80
Number of Rows	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	-
Terminati	IDC, Ribbon Cable
Features	Shielded
Shell Material, Finish	Steel, Tin-Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	30V
Current Rating	1A
Housing Material	Thermoplastic
Col	Black
Other Names	749621-8-NDA23693

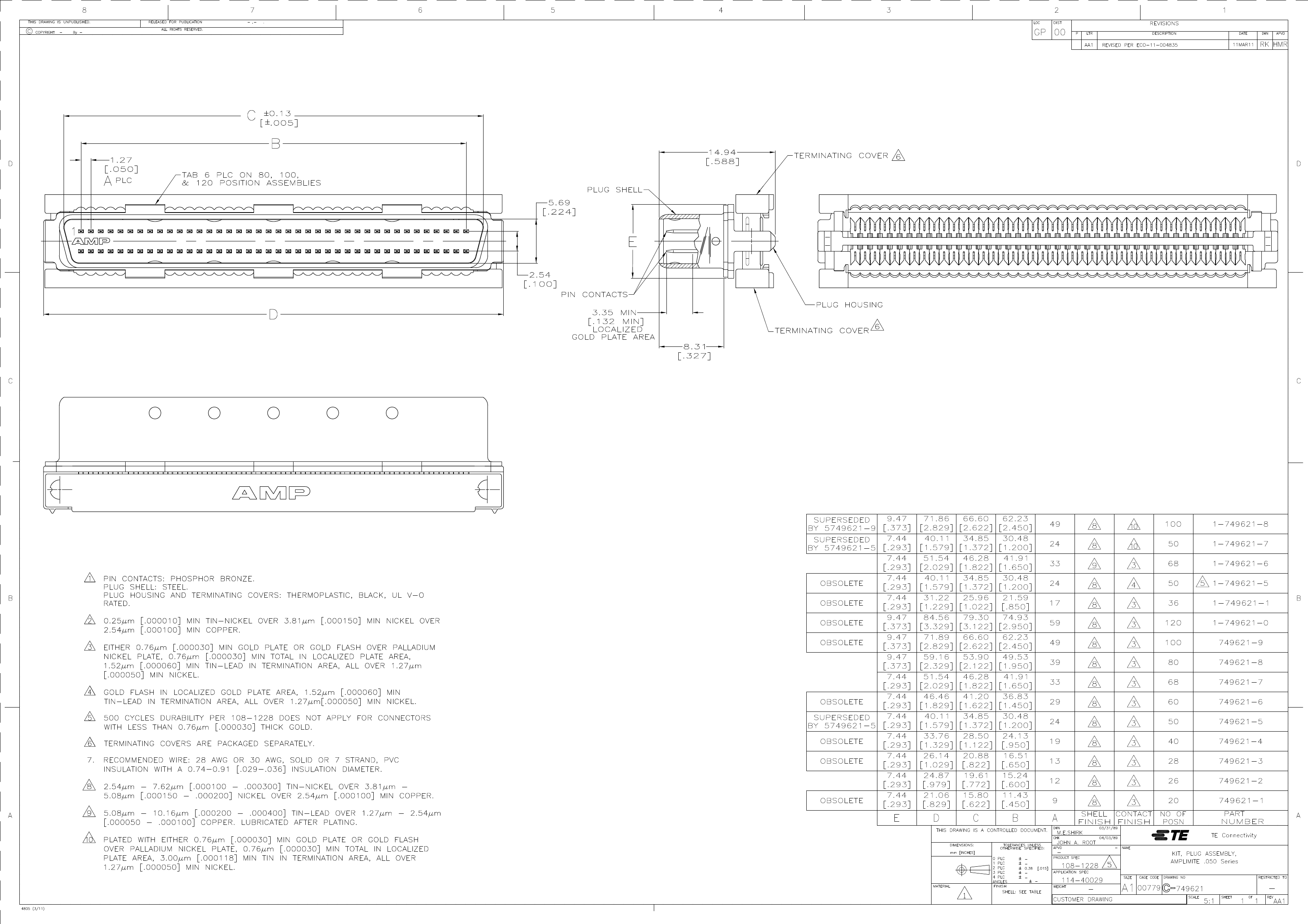

Preview

Download Datasheet

View All

749621-8 Related Products

	749621-8	749621-7	749621-5	749621-9	749621-3
Description	conn plug 80pos .050 idc W/cov	conn plug 68pos .050 idc W/cov	conn plug 50pos .050 idc W/cov	conn plug 100pos .050 idc W/cov	conn plug 28pos .050 idc W/cov
Standard Package	180	200	13	105	160
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Style	D-Type	D-Type	D-Type	D-Type	D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	80	68	50	100	28
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Terminati	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable
Features	Shielded	Shielded	Shielded	Shielded	Shielded
Shell Material, Finish	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	30V	30V	30V	30V	30V
Current Rating	1A	1A	1A	1A	1A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Col	Black	Black	Black	Black	Black
Other Names	749621-8-NDA23693	A3304	A3301	749621-9-NDA23694	749621-3-NDA23691
