26FLZ-SM1-TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26FLZ-SM1-TB

26FLZ-SM1-TB: Descriptionconn ffc/fpc 26pos .5mm R/A smd; CategoryThe connector The connector; File Size125KB，5 Pages; ManufacturerJST

Download Datasheet Parametric View All

26FLZ-SM1-TB Overview

conn ffc/fpc 26pos .5mm R/A smd

26FLZ-SM1-TB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ZIF
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FLZ

CONNECTOR

0.5mm

(.020") pitch

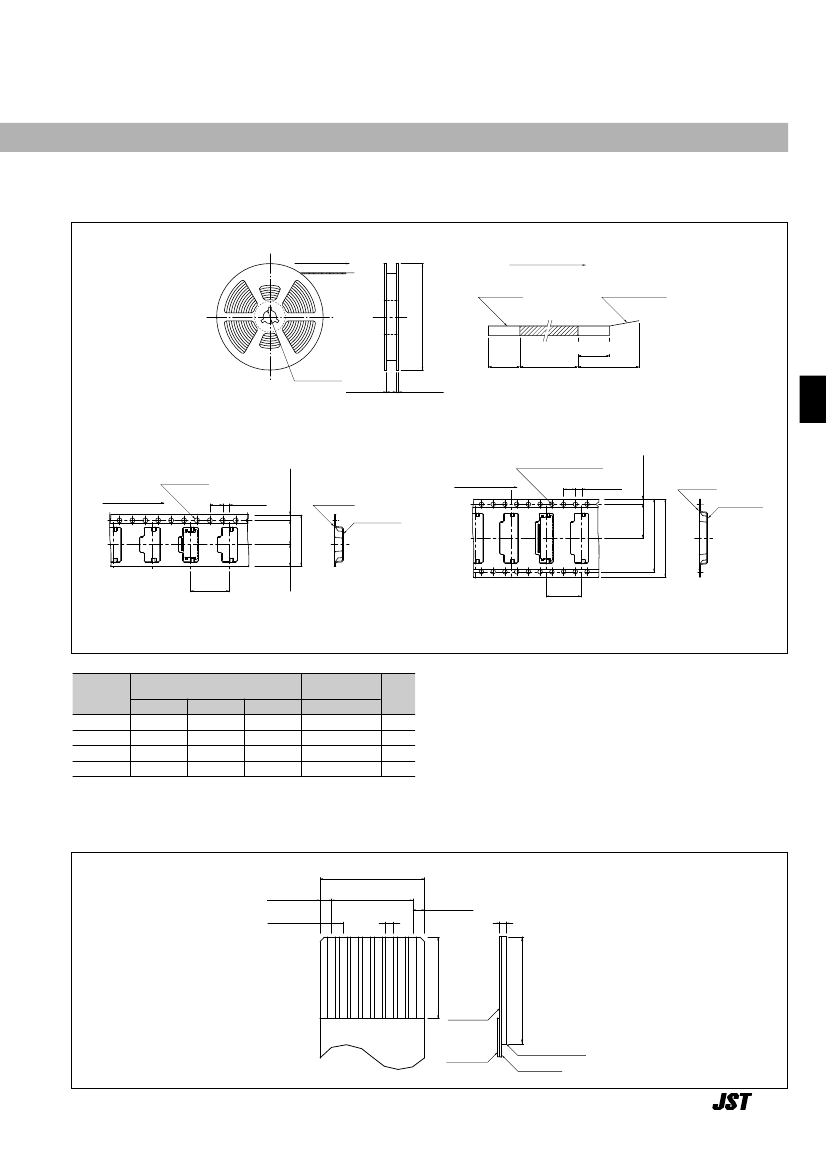

Emboss Tape

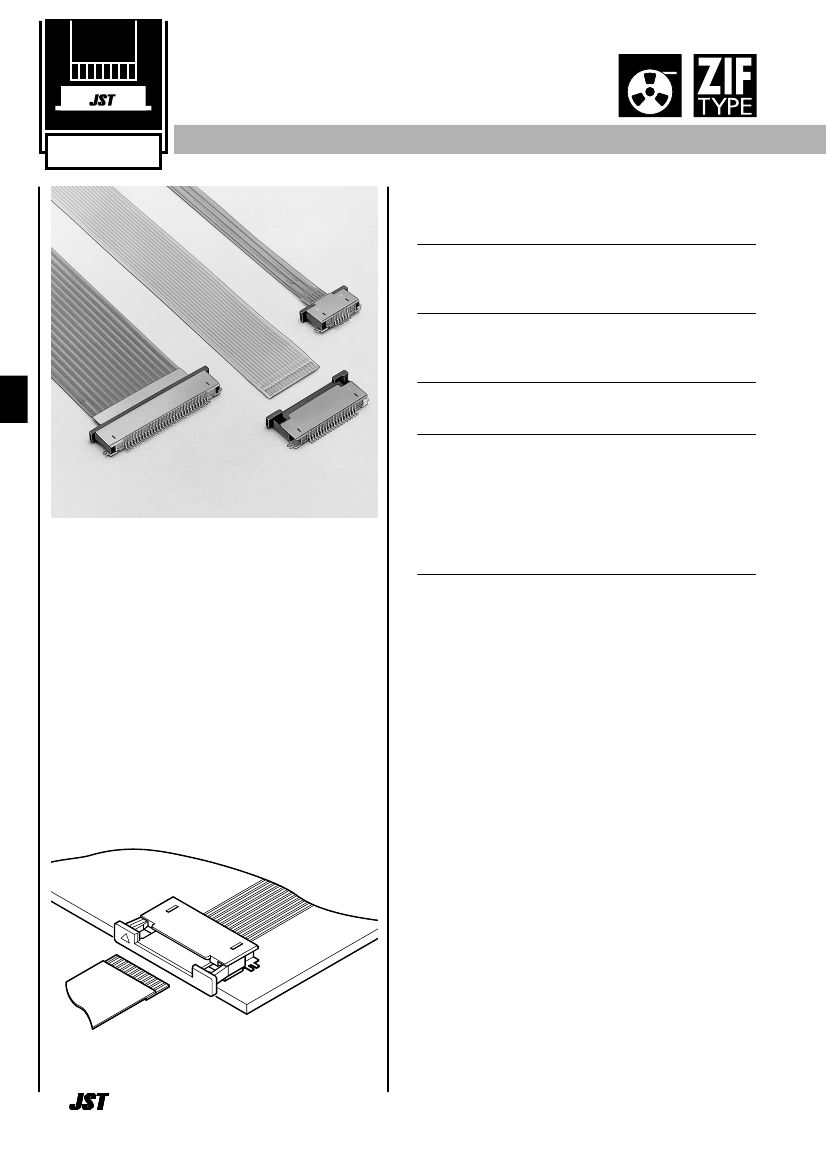

Connectors for FFC and FPC

Features––––––––––––––––––––––––

• Zero insertion force mechanism

A ZIF mechanism increases wear resistance and extends the

connector's mating life.

• Heat resistant design suitable for surface mounting

This housing is made of heat resistant plastic to allow reflow

soldering.

• In-line surface mount tails

Has an in-line surface mount tails for easy inspection.

• Two types of connections

The connector is available in either the normal or reverse

configurations. The FFC/FPC is positioned with its mating

surfaces facing upward for the normal configured connector,

while the reverse configuration requires that the FFC/FPC be

positioned with its mating surfaces facing down. The engineer

This extremely small 0.5mm (.020") pitch

connector with a height of only 2.0mm

(.079") above the PCB surface allows

interconnection in extremely small spaces

and is an example of JST's leading edge

technology.

has greater freedom in designing his circuitry.

• Embossed tape for automatic mounting

The FLZ connector can be packaged in embossed tape for

automatic mounting.

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/40m

Ω

max.

After environmental testing/60m

Ω

max.

• Insulation resistance:

800M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FFC and FPC: Lead pitch/0.5mm(.020")

Lead width/0.35mm(.014")

Mating part thickness/

0.30±0.03mm(.012"

.001")

Note

>FFC and

FPC to be actually used should be checked for applicability.

* Contact JST if Lead-Free product is required.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Recognized E60389

492

Certified LR20812
