Corcom Product Guide
Power Entry Module with Enhanced EMI Filtering
Catalog: 1654001
Issue Date: 06.2011

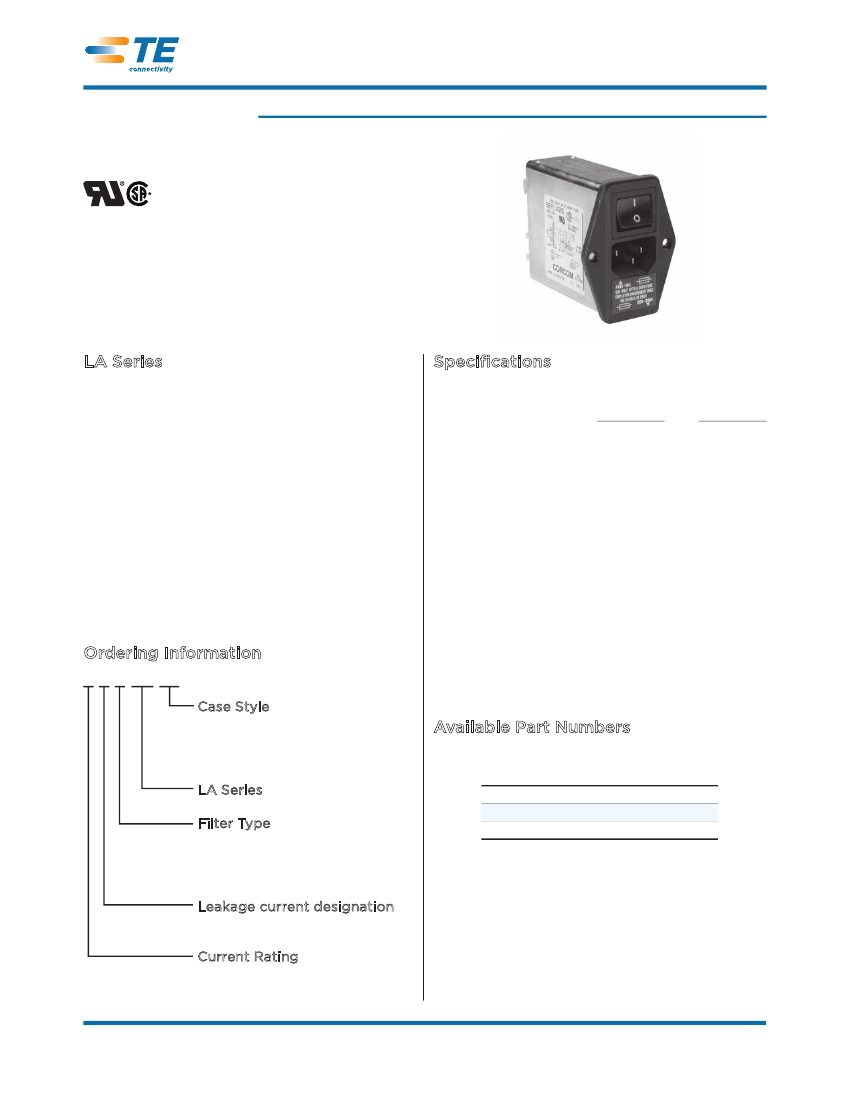

LA Series
UL Recognized
CSA Certified
LA Series
• Power entry module with extended and enhanced
low frequency filters
• North American or dual metric fuse holder options
• DPST on/off switch
• 120/240V voltage selection
• The F version provides basic performance two
element circuit filter
• The X version provides a three element differential
mode circuit with extended EMI attenuation,
suitable for meeting FCC Part 15J, Class B
conducted emissions limits
• The Z version provides a three element differential
mode circuit with enhanced EMI low frequency
attenuation, suitable for meeting EN55022 Level B
as well as FCC Part 15J limits
Specifications
Maximum leakage current each Line to Ground:
XLA or
FLA Model
ZLA Model
@120 VAC 60 Hz:
.25 mA
.30 mA
@250 VAC 50 Hz:
.50 mA
.50 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max.):
Operating Frequency:
Rated Current:
Required Fuse(s):
Switch:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
3 to 5A
one .25 x 1.25”
(not included)
or two 5 x 20mm
(not included)
DPST
10,000 operations at 51A max. inrush
Ordering Information
5 E F LA 2S
Case Style
2S - IEC inlet*, selectable fuse
holder, DPST switch,
spade terminals
LA Series
Filter Type
F – General purpose
X – High performance
Z – Premium performance
Leakage current designation
E – Low Leakage
(<0.5 mA)
Current Rating
3A or 5A
*IEC 60320-1 C14 inlet mates with C13 connector
Available Part Numbers
5EFLA2S
3EXLA2S
3EZLA2S
180
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Power Entry Module with Enhanced EMI Filtering
Catalog: 1654001
Issue Date: 06.2011
(continued)

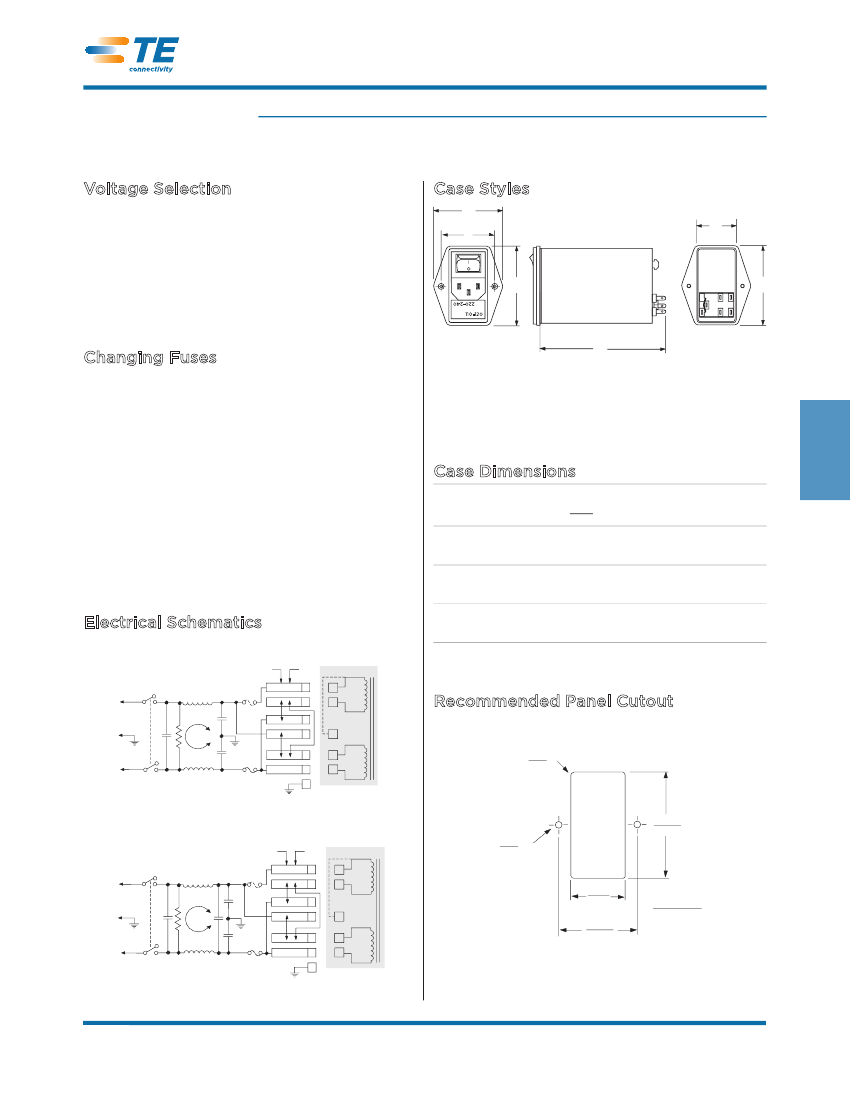

LA Series
Voltage Selection
To change selected voltage: remove the fuse
cartridge using a small blade screwdriver or similar
tool; select the desired voltage by matching the
arrow on the fuse cartridge to the arrow located on
the front of the unit (lower right corner); replace the
fuse cartridge making sure the voltage selection
arrow aligns with the arrow located on the front of
the unit.
Case Styles
A
F
B
C
B
A
D E
C
F
D
Changing Fuses
Remove the fuse cartridge using a small blade screw-
driver or similar tool; for Metric fusing pull out the
sliding fuse covers located at the top of each fuse
compartment; insert desired fuses; push the sliding
fuse covers back in place and insert the fuse
cartridge back into the unit making sure the voltage
selection arrow aligns with the arrow located on the
front of the unit. (Note: Single North American or
Metric fuse placement is always on the side of the
desired voltage selection arrow behind the fuse
symbol; the other compartment may be used as a
spare or be left blank. Dual Metric fusing capability is
available for 220/240 volts only.)
E
½
½
Case Dimensions
A
Part No.
5EFLA2S
3EXLA2S
½
3
B
C
½
D
½
E
½
F
Power Inlet Filters & Power Entry Modules
Electrical Schematics
FLA Model
120V
Power on/off
Neutral
C
Ground
D
E
F
Phase
G
Customer
Transformer
Primaries
D
E
120V
F
240V
A
B
A
B
A or D
120V
3EZLA2S
Recommended Panel Cutout
.093
R
2.36
XLA & ZLA Model
120V
On/Off
Neutral
C
D
E
Hot
F
G
D
E
F
120V
240V
A
B
A or D
A
120V
B
2.42*
61.47
.140
Dia.
3.56
1.19*
30.23
1.57
39.88
*
+.020 - .00
+ 0.5 - .00
Customer
Transformer
Primaries
181
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
Power Entry Module with Enhanced EMI Filtering
(continued)
LA Series
Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
5EFLA2S
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3EXLA2S
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
3EZLA2S
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
182
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
