55DC-132-211-MA datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 55DC-132-211-MA

55DC-132-211-MA: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size310KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

55DC-132-211-MA Overview

Film Capacitor,

55DC-132-211-MA Parametric

Parameter Name	Attribute value
Objectid	1104513356
package instruction	,
Reach Compliance Code	unknown
capacitance	210 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Installation features	STUD MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	1300 V
surface mount	NO
Terminal shape	BINDING POST

55DC-132-211-MA Preview

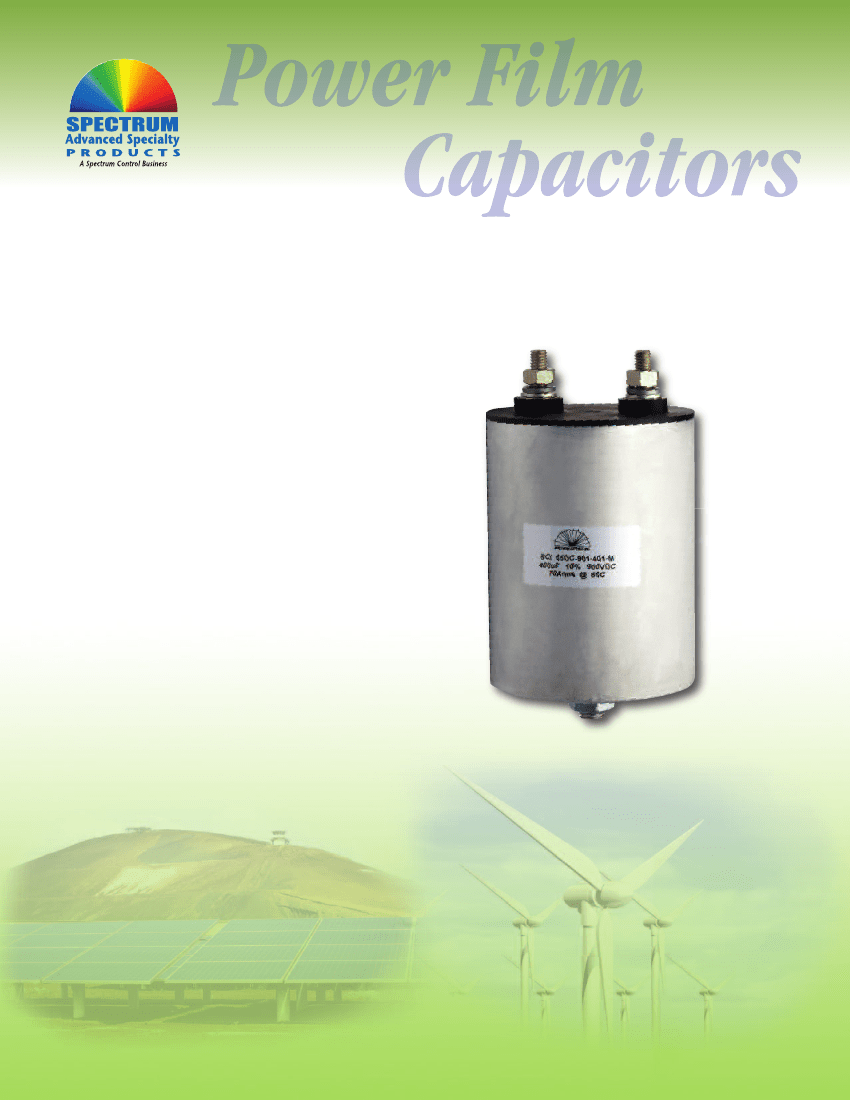

55DC Link Series

High reliability DC link capacitors for power inverter applications which

require superior life expectancy under harsh operating conditions of

wind and photovoltaic installations.

Product Highlights

•

Segmented, self-healing metallized polypropylene

for long life expectancy > 100,000 hours

•

High capacitance density and ripple current

capabilities for replacement of electrolytic capacitors

•

Low ESR and ESL

•

Compact and cost effective design

•

Tested to the environmental specifications

of MIL-STD-202

Specifications

•

Capacitance Range: 160 µF to 680 µF standard

(others available upon request)

•

Capacitance Tolerance: +/- 10% standard

•

Rated Voltage: 900 to 1300 VDC

•

Operating Temperature range: -55°C to +85°C standard

(+105°C upon special request)

•

Test Voltage Between Terminals: 150% rated voltage

for 10 sec

•

Test Voltage Between Terminals and Housing:

5kVDC for 10 sec

•

Enclosure/Construction: aluminum housing,

brass terminals with dry resin, UL 94V-0 encapsulant

•

RoHS Compliant

Spectrum Advanced Specialty Products

8061 Avonia Road • Fairview, Pennsylvania 16415

Phone: 814-474-1571 • Fax: 814-474-3110

www.SpecEMC.com

55DC Link Series

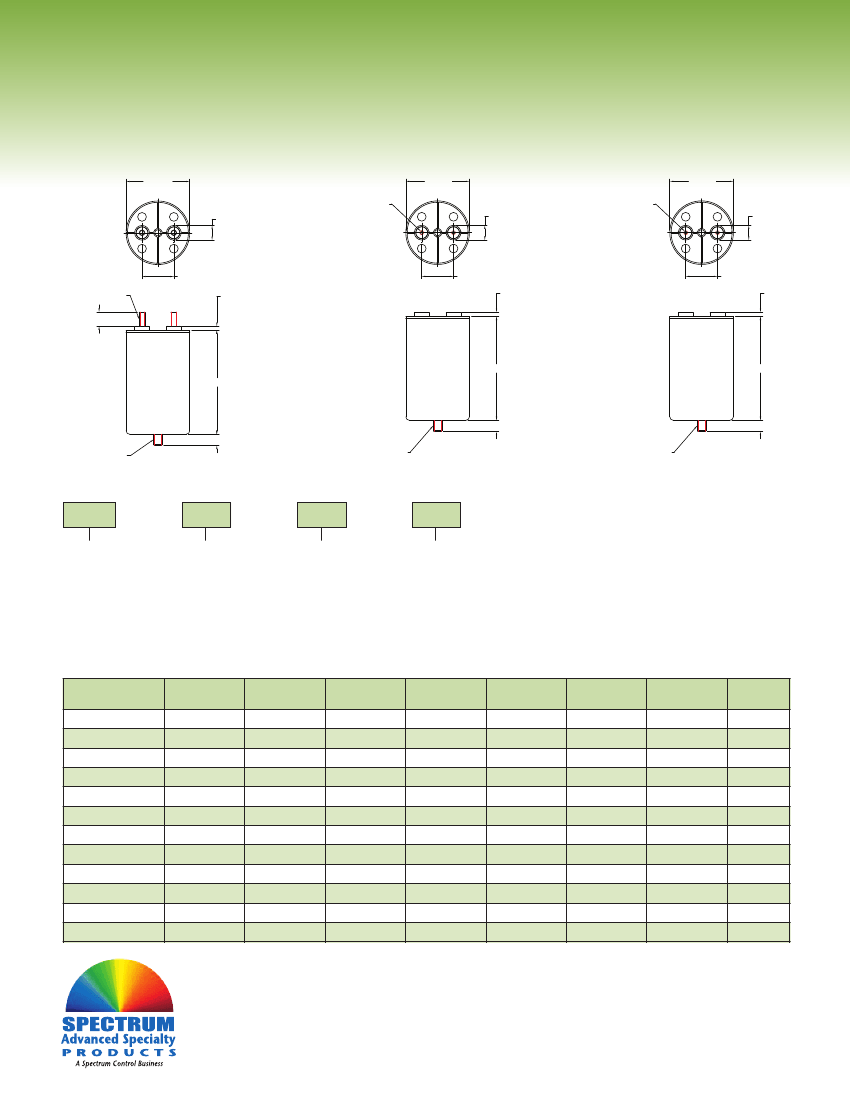

Dimensions

M Configuration

+2 MM

-0

F Configuration

+2 MM

-0

S Configuration

+2 MM

-0

ø20.8 MM

(2 PLCS)

M5 x 0.8 THREAD

5 MM DEEP MIN.

(2 PLCS)

ø20.8 MM

(2 PLCS)

M6 x 1.0 THREAD

10 MM DEEP MIN.

(2 PLCS)

ø20.8 MM

(2 PLCS)

32 or 45 MM

M8 x 1.25 THREAD

(2 PLCS)

±1 MM

(2 PLCS)

32 or 45 MM

±1 MM

(2 PLCS)

32 or 45 MM

±1 MM

(2 PLCS)

±2.00 MM

±2.00MM

±1MM

M12 x 1.75 THREAD

±1MM

55DC Link Series Part Numbering System

55DC

Series

–

901

Voltage

901

= 900 VDC

112

= 1100 VDC

–

321

Capacitance

321

= 320 µF

441

= 440 µF

–

Terminal Code

= M8 External Thread,

45mm center-center

= M5 Internal Thread,

45 mm center-center

= M6 Internal Thread,

45 mm center-center

Height H

(mm)

120

145

170

120

145

170

120

145

170

132

= 1300 VDC

= M8 External Thread,

32mm center-center

= M5 Internal Thread,

32 mm center-center

= M6 Internal Thread,

32 mm center-center

Typ ESL

(nH)

Part

Number

55DC-901-321-XX

55DC-901-441-XX

55DC-901-561-XX

55DC-901-681-XX

55DC-112-221-XX

55DC-112-281-XX

55DC-112-361-XX

55DC-112-421-XX

55DC-132-161-XX

55DC-132-211-XX

55DC-132-251-XX

55DC-132-321-XX

Rated Voltage Capacitance

(VDC)

(µF)

900

1100

1300

320

440

560

680

220

280

360

420

160

210

250

320

D Diameter

(mm)

Typ ESR

(mOhms)

2.1

1.8

2.1

2.5

2.1

1.9

2.3

2.1

1.9

2.5

2.8

Irms Max.

(A) M

Weight

(kg)

0.80

1.00

1.10

1.30

0.90

1.20

1.30

0.80

1.00

1.20

1.30

Spectrum Advanced Specialty Products

8061 Avonia Road • Fairview, Pennsylvania 16415

Phone: 814-474-1571 • Fax: 814-474-3110

www.SpecEMC.com
