747516-2 datasheet, PDF - EEWORLD Datasheet

747516-2: Descriptionconn D-sub rcpt 9pos 22-26awg AU; CategoryThe connector; File Size122KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

747516-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	747516-2	-	-	View	Buy Now

conn D-sub rcpt 9pos 22-26awg AU

Parameter Name	Attribute value

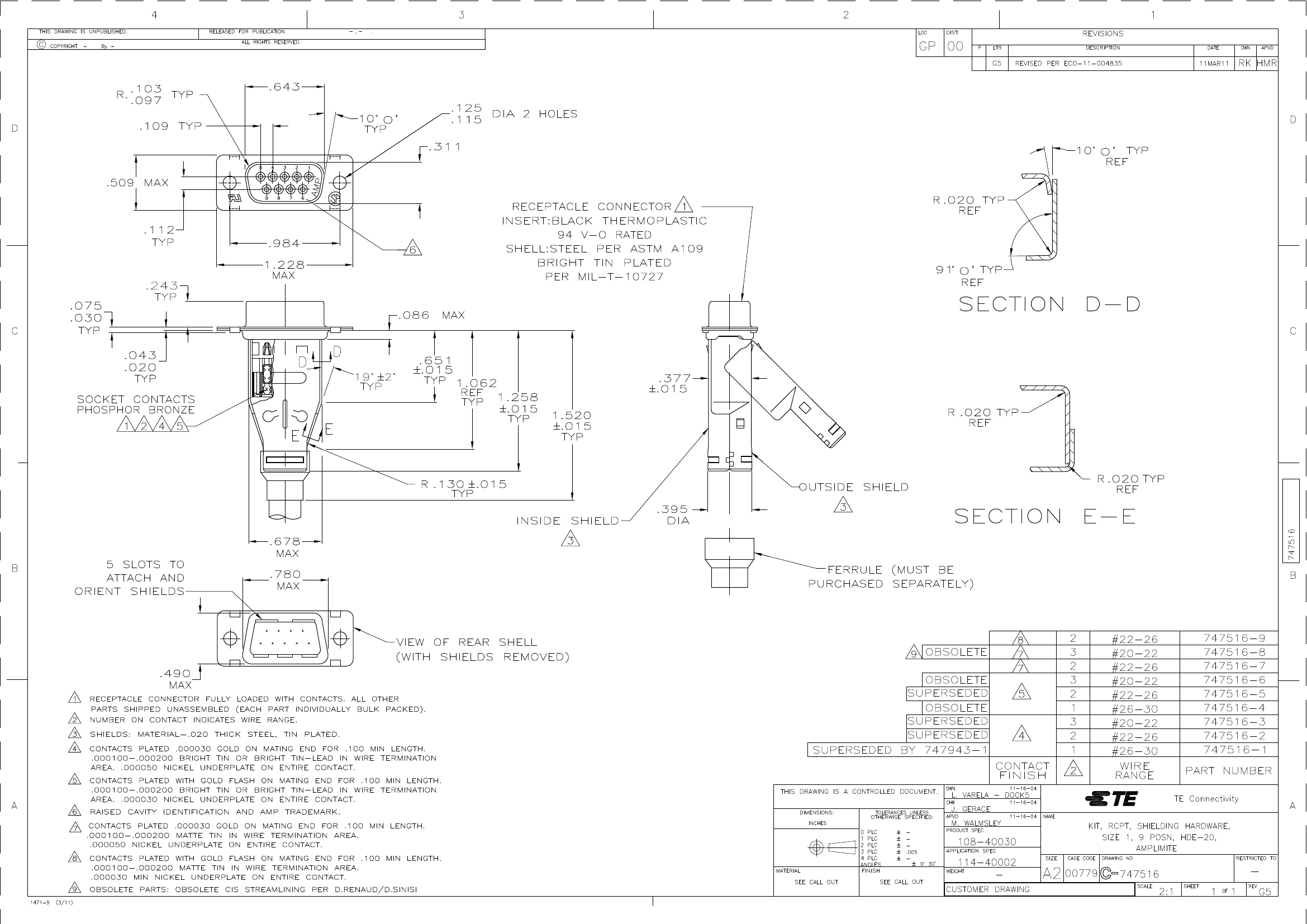

Datasheets
747516
Standard Package	100
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)
Terminati	IDC, Discrete Wire
Features	Backshell, Shielded
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	250V
Current Rating	Varies by Wire Gauge
Housing Material	Thermoplastic
Col	Black
Associated Produc	A2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON
Other Names	A23522

	747516-2	747516-7
Description	conn D-sub rcpt 9pos 22-26awg AU	conn D-sub recept 9P 22-26awg AU
Standard Package	100	1
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	9	9
Number of Rows	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Terminati	IDC, Discrete Wire	IDC, Discrete Wire
Features	Backshell, Shielded	Backshell, Shielded
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	250V	250V
Current Rating	Varies by Wire Gauge	Varies by Wire Gauge
Housing Material	Thermoplastic	Thermoplastic
Col	Black	Black
Associated Produc	A2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON	A2032-ND - HEAD ASSEMBLY TOOL FOR D-SUB CON
Other Names	A23522	7475167A31541
