RF-16 (Rev 20MAY16)
GRF1H–4–0300–1–CA1–S–02SP1
(5.00 mm) .197"
50
W

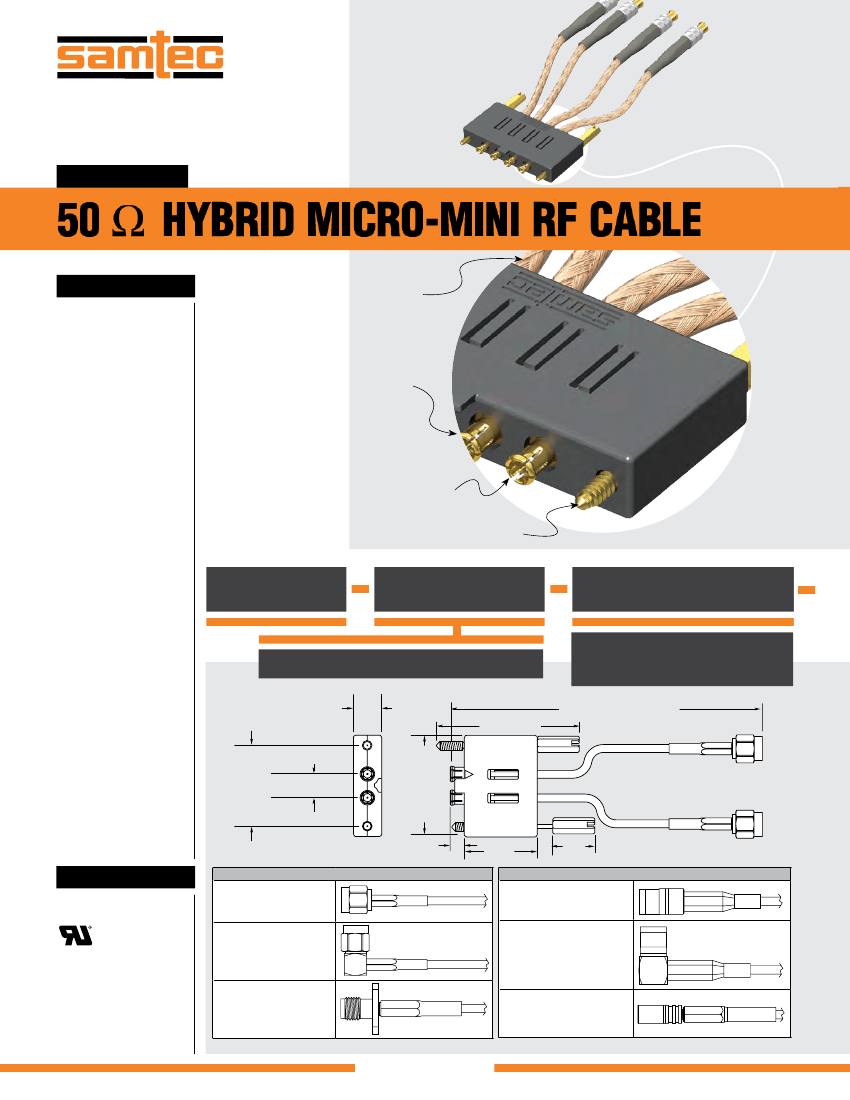

HYBRID MICRO-MINI RF CABLE
SPECIFICATIONS
For complete specifications see
www.samtec.com?GRF1H-C
Mates with:
GRF1-J, SMA,
MCX, SMB5, MMCX,
BNC5, TNC, NTPE
High-performance
26 AWG RG 316
coax cable
RF Connector:
Shell Material:
Brass
(GRF, SMA, MCX, MMCX,
SMB, BNC)
Insulator Material:
PTFE
Contact Material:
Brass
(GRF, SMA, MCX, MMCX,
SMB-J, BNC-P, TNC-P)
Phosphor Bronze
(SMB-P-ST, TNC-J, N Type)
BeCu
(SMB-P-RA)
Copper Alloy
(BNC-J)
Operating Temp Range:
-40 °C to +90 °C
Impedance:
50
W
RoHS Compliant:
Yes
2, 4, 6 or 8
Positions
MMCX-Scale
Connectors
Optional Captive
Panel Screws
RG 316 Cable:
Impedance:
50
W
Capacitance:
96.432 pF/meter
Propagation Delay:
4.83 nsec/meter
Max Attenuation
(cable only):
1.25 dB @ 1 GHz for 1 meter
Conductor Size:
26 AWG,
(0.51 mm) .020" dia.
Conductor Material:
Silver Plated Copper
Insulator Material:
PTFE
Shield Material:
Silver Plated
Copper Clad Steel
Jacket Material:
FEP
Jacket Diameter:
(2.54 mm) .100"
Jacket Color:
Amber
Bend Radius:
12.7 mm
RoHS Compliant:
Yes
GRF1H
NO. OF
POSITIONS
ASSEMBLED
LENGTH
–2, –4, –6, –8
(6.00)
.236
(28.58) 1.125
(No. of
Positions
x
(5.00) (No. of Positions -1)
x (5.00) .197
.197)
+
(7.20)
.283
No.
Positions
x
(5.00)
.197
+
(11.60)
.457
(2.86)
.112
(15.50)
.610
(8.89)
.350
= Assembled Length in millimeters
–0100 (0100 mm) 3.94" minimum
–“XXXX”
Assembled Length = XXXX
–01SP1 END OPTION SHOWN
END OPTIONS
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
END OPTIONS

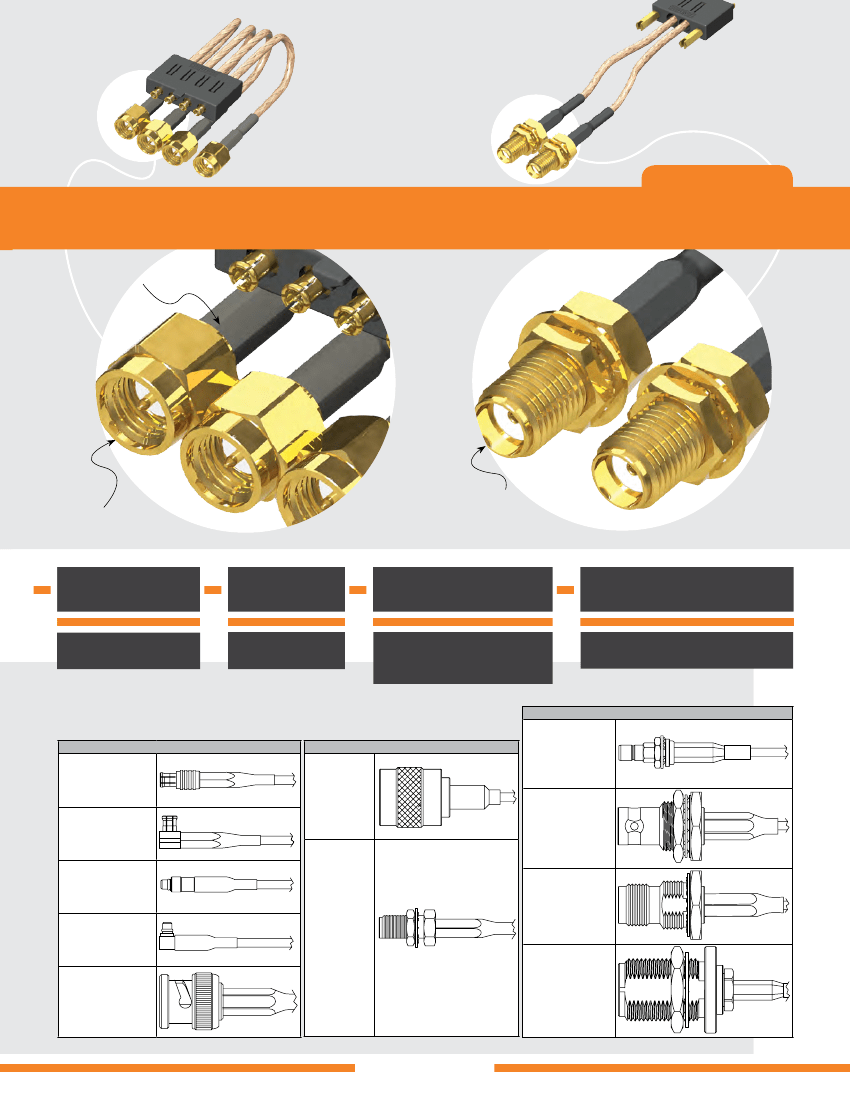

–01SP1 = SMA
Straight Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–01RP1 = SMA
Right-angle Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–01PN1 = SMA
Straight Panel Mount Jack
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–07SP1 = SMB
Straight Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–07RP1 = SMB
Right-angle Plug
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
–02SJ1 = MCX
Straight Jack
(30 µ" (0.76 µm) Gold on Center
Contact, Gold Flash on Shell)
Notes:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
This series is non-standard,
non-returnable.
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
