CAT 6 Data Wiring System Connectors
TM23 Series
■

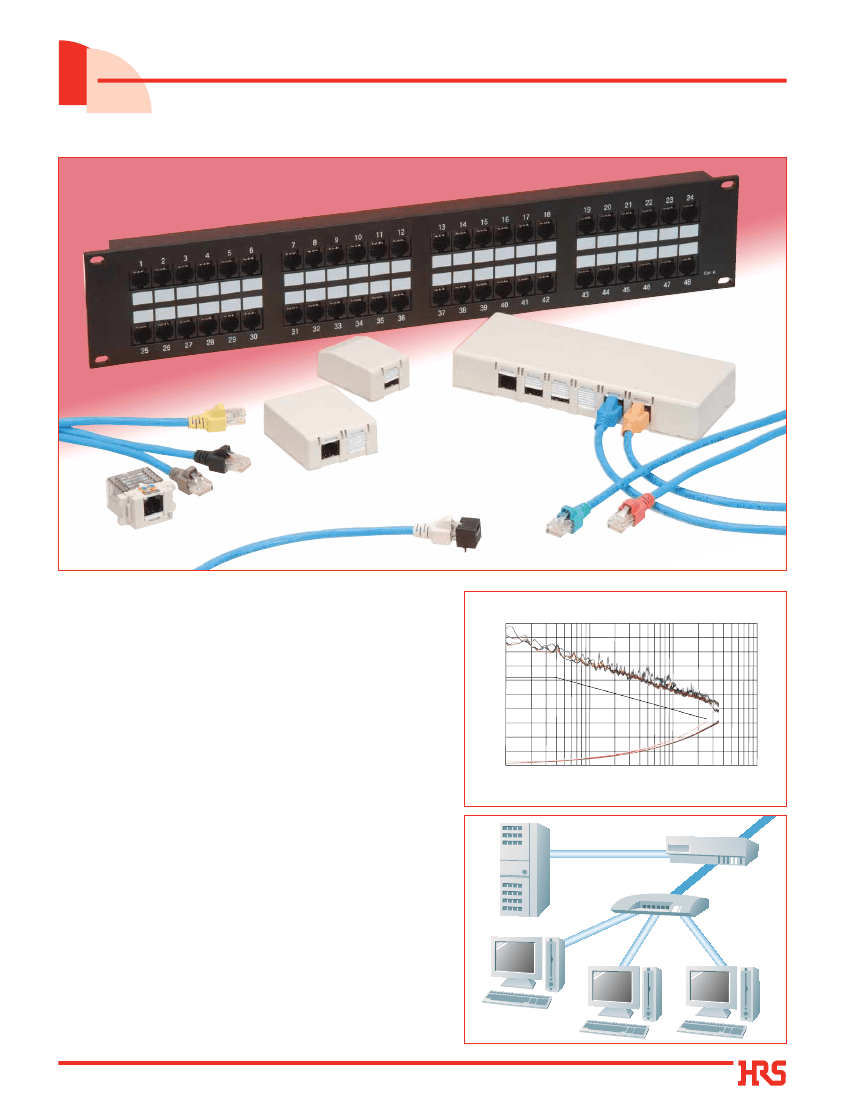

Features
1. High-Speed Data Transfer
Attenuation/PSNEXT (dB)
100
90
80
70
60
50
40
30
20
10
0
Permanent Link PSACR
Conforms to the TIA/EIA-568B.2-1 data Wiring standard,
thereby clears CAT 6 transfer performance requirements.
As such, these products easily support Gigabit Ethernet
(1000BASE-T/1000BASE-TX), which is the next
generation of high-speed applications.
Measured value
CAT 6 PSNEXT standard value
2. A Product Lineup Focused on Building of a
Complete System
In addition to modular plugs, Hirose Electric offers box
type outlets, patch panels, and wall outlets. Systems built
using all components from the same manufacturer will
assure stable data transfer.
CAT 6 Attenuation standard value
1
10
Measured value
100
1000
Frequency (MHz)
3. Support of a Wide Variety of Manufacturers'
CAT 6 Cable
To assure high performance of the system we test and
monitor data transfer using CAT 6 cables manufactured
by different suppliers.
2008.4w
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or
Wiring System Connectors
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
TM23 Series●CAT 6 Data
will be discontinued soon. Please check
■Plugs,
Boots
■Specifications
Rating
Item
Current rating
Voltage rating
1A
125V AC
Operating temperature range -25ç to +60ç (Note)
Specification
100 V DC
500 V AC / one minute
Conditions
1. Insulation resistance 100 M ohms min.
2. Withstanding voltage
No flashover or insulation breakdown.
(between adjacent contacts)
3. Contact resistance
230 m ohms max.
No electrical discontinuity of 5μs min.
4. Vibration
Contact resistance
: 250m ohms max.
No electrical discontinuity of 5μs. min.
5. Shock
Contact resistance
: 250m ohms max.
6. Durability
Contact resistance
: 250m ohms max.
(mating/un-mating)
7. Temperature cycle
Contact resistance
: 250 m ohms max.
Insulation resistance : 100 M ohms min.
100mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
1 octave/min. conduct, 10 cycles to each 3 directions.
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave
waveform, 3 cycles in each of the 6 axes.
200 cycles
Temperature : -55±3ç
➝
+15ç to +35ç
➝
+85±2ç
➝
+15ç to +35ç
Duration (Minutes): 30
+5
➝
2 to 3
➝
30
+5
➝
2 to 3
0
0
5 cycles
500 hours at temperature of 40ç and humidity of 90% to 95%.
5% salt water/48 hours.
Contact resistance: 250 m ohms max.
8. Humidity
Insulation resistance: 1 M ohms min. (High humidity)
Insulation resistance: 100 M ohms min. (Dry state)
9. Salt Spray
Contact resistance: 250 m ohms max.
Note: Includes temperature rise caused by current flow.
■Materials
and Finishes
Plugs
Component
Insulator
Contacts
Strain relief clamp
Material
Polycarbonate
Phosphor bronze
Brass
Finish
Color: Clear
Contact area: Gold plated
Nickel plated
Remarks
UL94V-0
-------------------
-------------------
Boots
Component
Insulator
Material
EPTR
Finish
White (Standard color)
Black, red, blue, yellow, green, orange, gray, light blue
Remarks
UL94V-0
-------------------
■Ordering
Information
●
Plugs
1
Series name
2
Connector type
3
Size
4
Inserted contacts
P
8
: TM23
: Plug
: 8 contacts
TM23 - P - 8 8P
1
2
3
4
8P : 8 contacts
●
Boots
1
Series name
2
Connector type
3
Size
4
BT
P
8
: TM23
: Plug
: 8 contacts
: Boot
TM23 - P - 8 BT
1
2
3
4
●
Jacks
1
Series name
2
Connector type
4
Jack opening code
5
Number of inserted contacts
R
: TM23
: Jack
TM23 R - 5A 8 8
1
2
3
4
5
3
Mounting style/termination type 5A : Right-angle/through hole
8
8
: For 8 contacts
: 8 contacts
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS
TM23
at www.hirose-connectors.com, or contact your Hirose sales representative.
search
Series●CAT 6 Data Wiring System Connectors

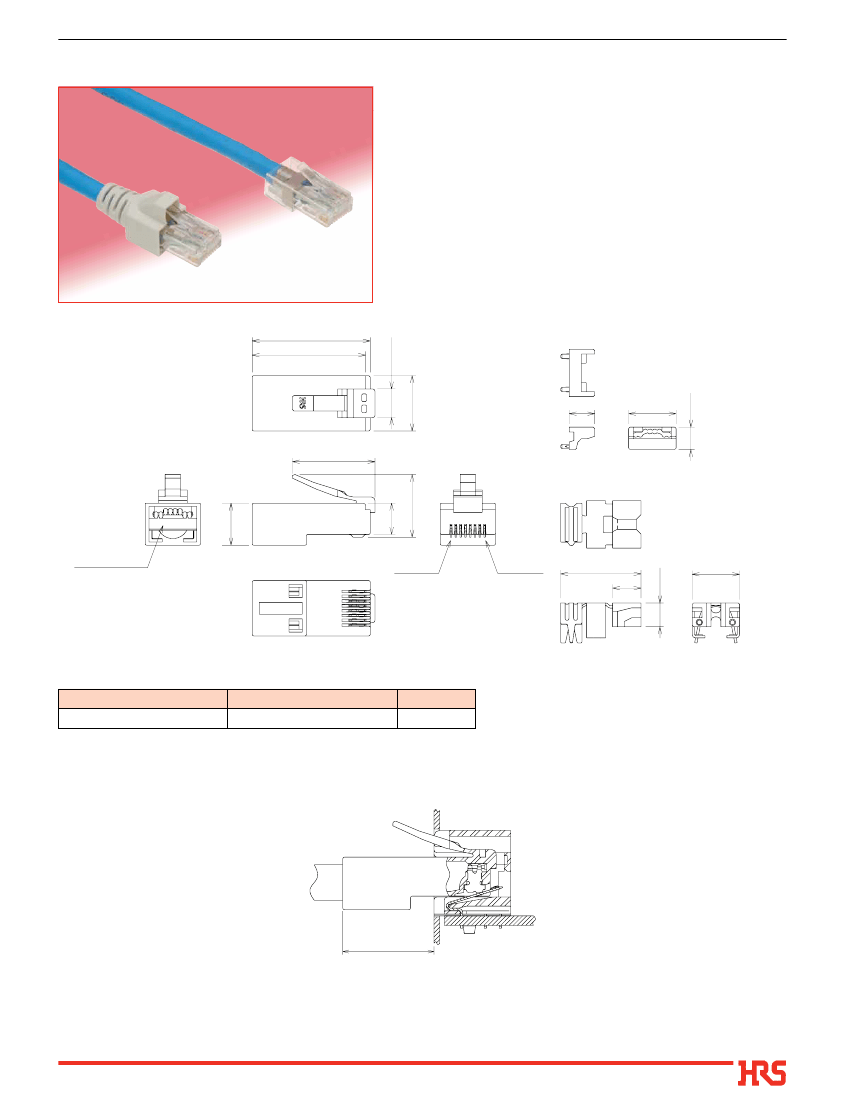

■Plugs
BOverview
. Contact configured for CAT 6 performance.
. 0.5 mm dia. solid wire or AWG #24 stranded wire.
. Use with cables having external diameters of 5.4 mm to 6.8mm.
. Strain relief clamp protects the contact/conductor
termination areas.
Plug body
(25)
6.09
24
Connector guide insert *
11.7
5.4
10.05
(17.5)
Strain relief clamp *
8.9
6.6
(12.9)
Connecter guide insert
(Shown inserted)
Contact No. 1
Contact No. 8
17
6
5.05
4.75
C6
1
10.05
TM23P-88P
Part No.
TM23P-88P
CL No.
222-2916-6
RoHS
YES
BMated
with corresponding receptacle
(Shown for reference only)
(15.45)
* Supplied separately(1bag contains 1pcs.)
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or
Wiring System Connectors
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
TM23 Series●CAT 6 Data
will be discontinued soon. Please check

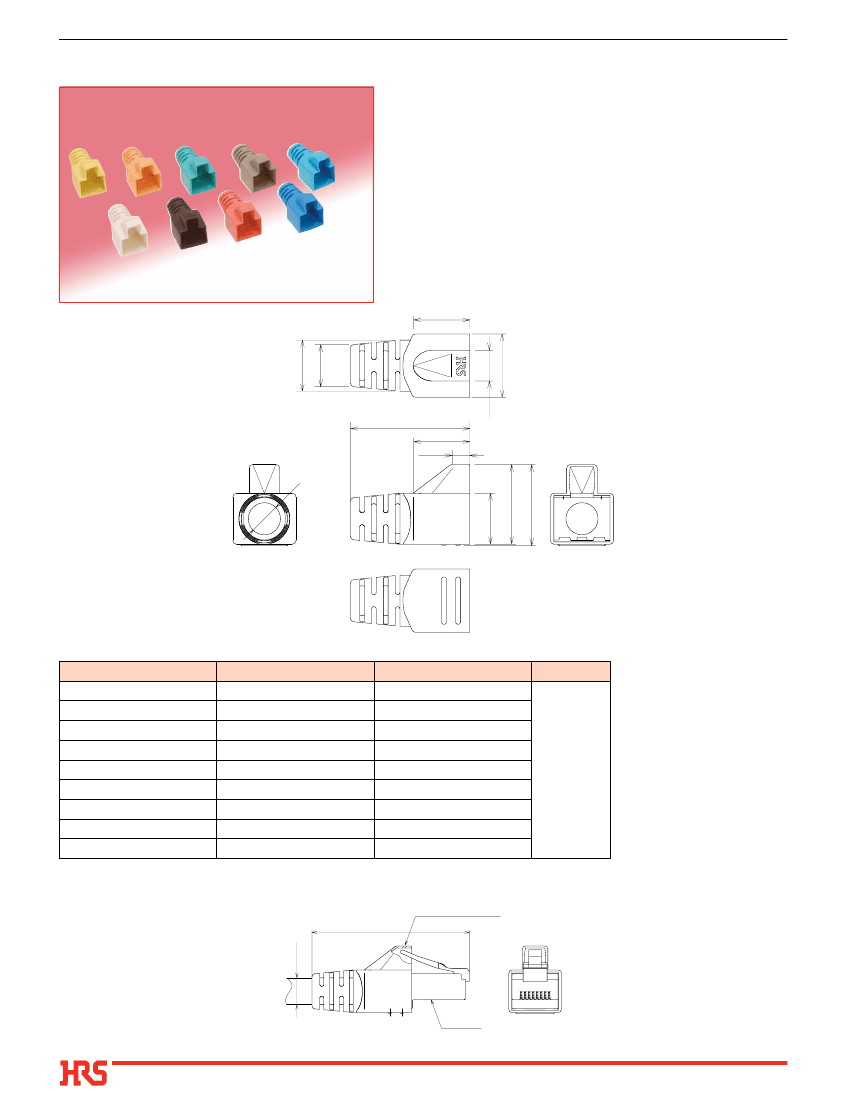

■Boots
BOverview
. Dedicated boots for the TM23P-88P.
. 9 color variations.
. Halogen-free.
. Protects the plug’s lock/release lever.
12
10.8
25.3
(12)
(4)
Ø6
.8
(6.5)
(16.9)
13.4
8.8
Part Number
TM23P-8-BT(01)
TM23P-8-BT(01)
TM23P-8-BT(02)
TM23P-8-BT(03)
TM23P-8-BT(04)
TM23P-8-BT(05)
TM23P-8-BT(06)
TM23P-8-BT(07)
TM23P-8-BT(08)
CL No.
222-2917-9-02
222-2917-9-01
222-2917-9-02
222-2917-9-03
222-2917-9-04
222-2917-9-05
222-2917-9-06
222-2917-9-07
222-2917-9-08
Color
White
Black
Red
Blue
Yellow
Green
Orange
Gray
Light Blue
10.8
(17.2)
TM23P-8-BT
1
RoHS
YES
BBoot
installed
Protected lock/release lever
(40)
Ø6.8MAX
TM23P-88P
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS
TM23
at www.hirose-connectors.com, or contact your Hirose sales representative.
search
Series●CAT 6 Data Wiring System Connectors

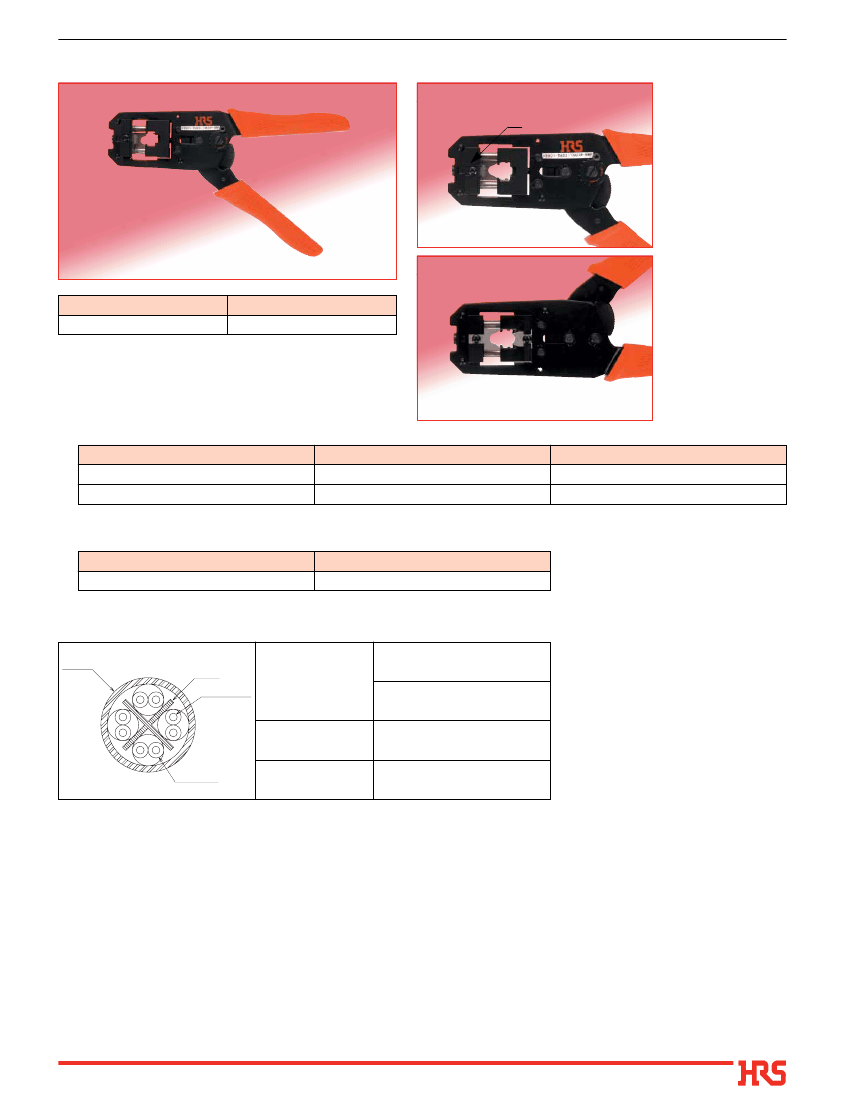

■Manual
Termination Tool
HRS marking side
(For contact/conductor termination)
A
Reverse side
(For cable strain relief clamp crimping)
Part No.
HT601-TM23/22P-88P
CL No.
902-2128-1
* Changing the “A” Assembly parts to TM22 dedicated clamp parts will
allow wiring of Hirose’s TM22P-88P plugs supporting CAT 5e.
