747238-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 747238-2

747238-2: Descriptionconn D-sub plug R/A 25pos pcb AU; CategoryThe connector; File Size178KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

747238-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	747238-2	-	-	View	Buy Now

747238-2 Overview

conn D-sub plug R/A 25pos pcb AU

747238-2 Parametric

Parameter Name	Attribute value
Datasheets
747238
3D Model
747238-2.pdf
Standard Package	65
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	Ground Strap, Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	-
Col	Black
Mating Products	AFR25B-ND - CONN D-SUB RECEPT 25POS 30 GOLD
Other Names	A23271

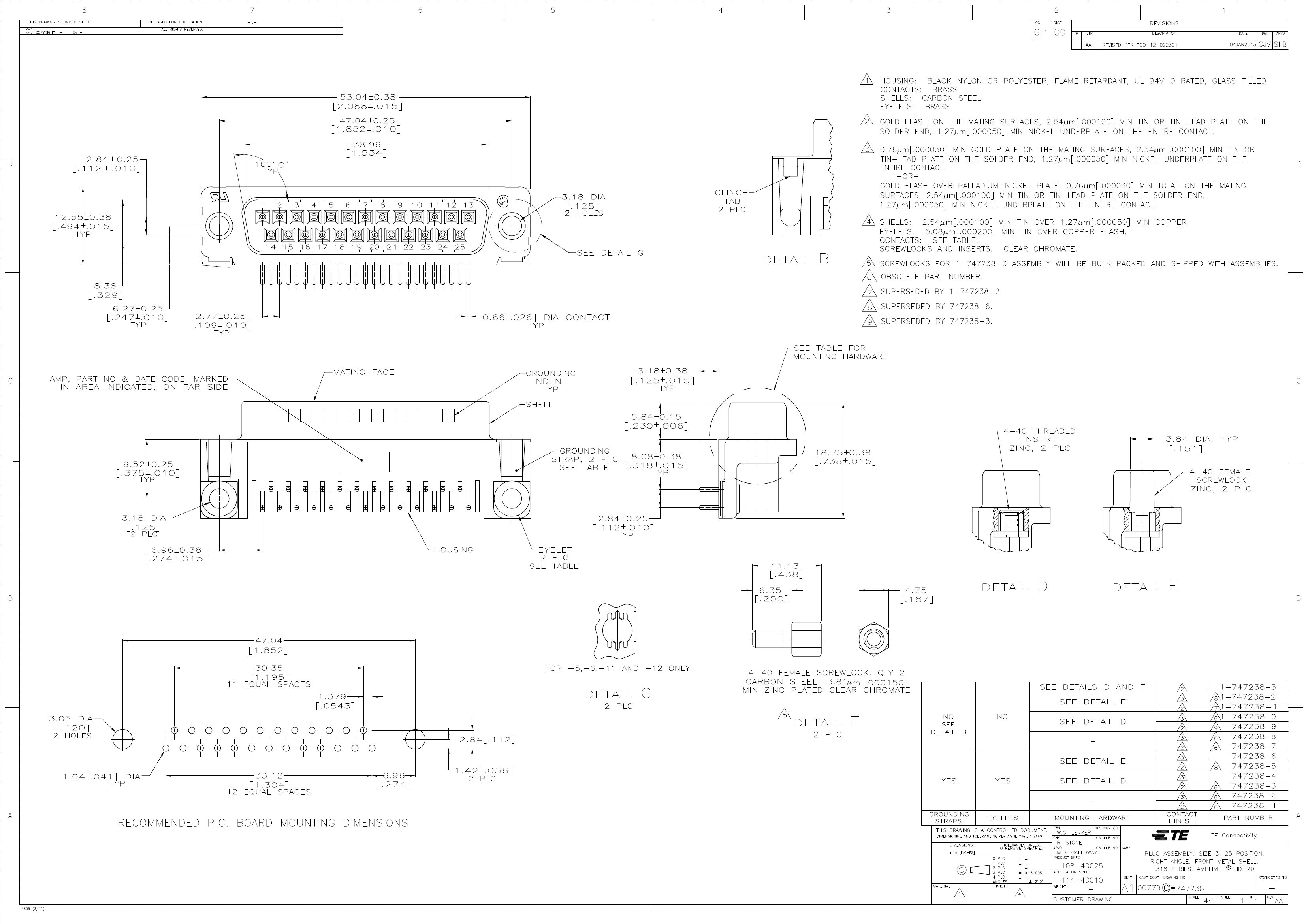

Preview

Download Datasheet

View All

747238-2 Related Products

	747238-2	747238-4	747238-6	747238-3
Description	conn D-sub plug R/A 25pos pcb AU	conn D-sub plug R/A 25pos pcb AU	conn D-sub plug R/A 25pos	conn D-sub plug R/A 25pos
Standard Package	65	65	325	65
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray	Tray	Tray
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	25	25	25	25
Number of Rows	2	2	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (4-40)	Mating Side	Housing/Shell (4-40)
Terminati	Solde	Solde	Solde	Solde
Features	Ground Strap, Grounding Indents	Ground Strap, Grounding Indents	Ground Strap, Grounding Indents	Ground Strap, Grounding Indents
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A
Col	Black	Black	Black	Black
Mating Products	AFR25B-ND - CONN D-SUB RECEPT 25POS 30 GOLD	5746861-2-ND - CONN RECEPT 25 POS GOLD IDCAFL25B-ND - CONN D-SUB RECEPT 25POS 30 GOLD	5746861-2-ND - CONN RECEPT 25 POS GOLD IDCAFL25B-ND - CONN D-SUB RECEPT 25POS 30 GOLD	-
Other Names	A23271	7472384A2098	747238-6-NDA115631	-
