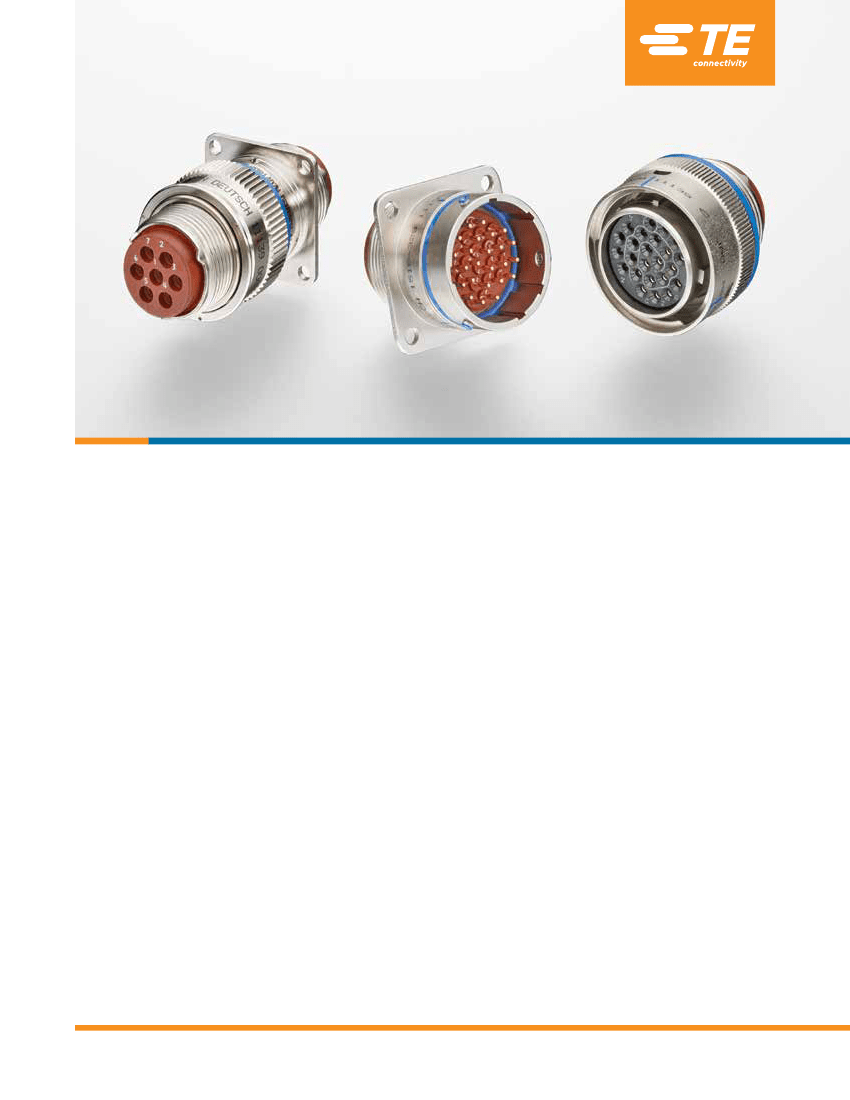

DEUTSCH DL and DBA Series
Connectors
Weight-Saving Connectors Designed for Rugged Use and High Temperatures
DEUTSCH DL Series bayonet coupling and DBA Series
threaded coupling connectors are built to withstand extreme
environmental conditions and are qualified to the
MIL-DTL-83723 Series III standard.
MATERIALS
•
Shell
Class A:
Aluminum shell, black anodized finish
Class R:
Aluminum shell, electroless nickel finish
Class W:
Aluminum shell, olive drab cadmium over nickel base
•
Contacts:
Copper alloy, plated 50
µ
in selective gold
•
Bayonet Pins:
Passivated stainless steel
•
Insulator:
Rigid plastic dielectric
•
Seals:
Silicone-based elastomer
WITHSTAND HARSH
ENVIRONMENTS
• Triple wire sealed for sealing over
a wide range of wire diameters
• Raised moisture barriers
around each pin for individual
contact sealing
ENVIRONMENTAL
•
Temperature:
-65°C to +200°C (Class W -55°C to +175°C)
•
Durability:
500 mating cycles for all bayonet receptacles (M83723/71 through /76)
250 mating cycles for plugs with RFI fingers (M83723/77 and /78)
250 mating cycles for threaded connectors (M83723/82 through /87)
•
Vibration:
Meets performance requirements of MIL-DTL-83723
•
Shock:
Meets performance requirements of MIL-DTL-83723
•
Shielding:
RFI shielding as per MIL-DTL-83723
•
Conductivity (Voltage Drop):
5 mV max. (with RFI shielding)
200 mV max. (without RFI shielding)
•

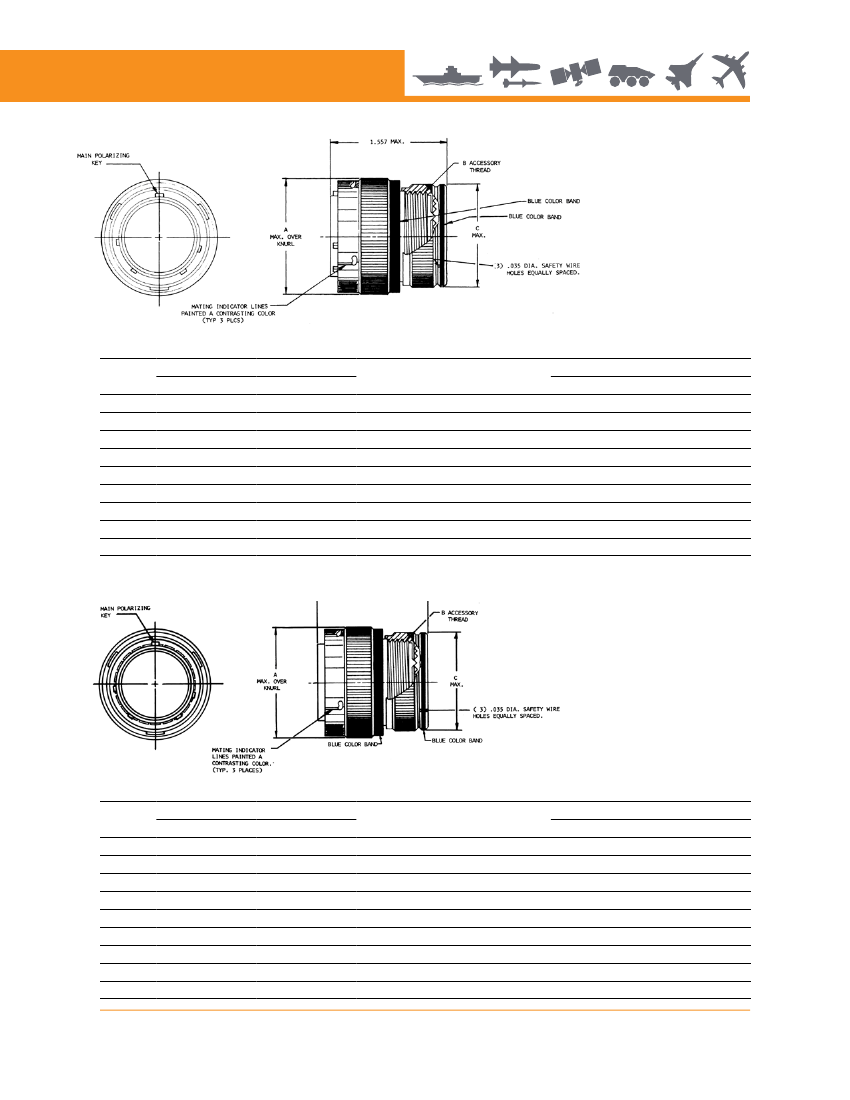

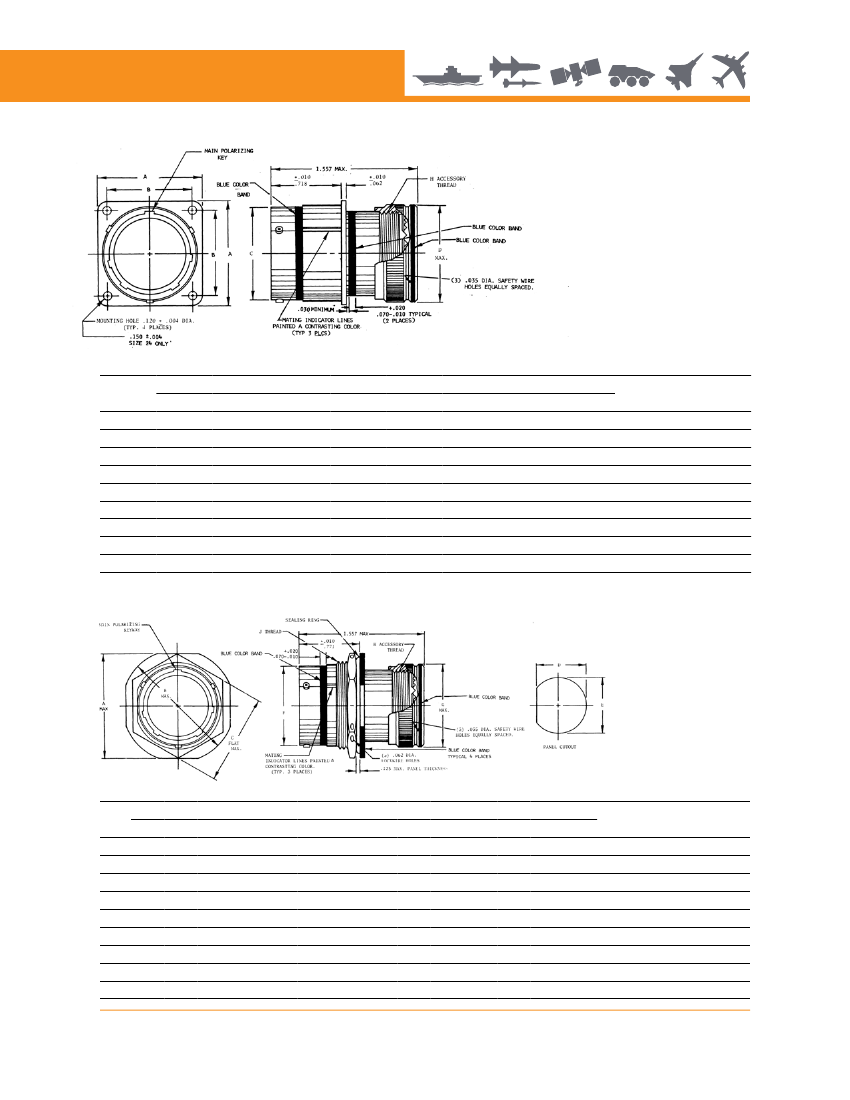

Shell Styles:
Square flange, jam nut, straight plug, and RFI plug (RFI plug
in Bayonet series only)
EASY INSTALLATION
• Bayonet and threaded
coupling options
• Closed-entry socket insert for
positive pin alignment
• Scoop proof
• Rear release crimp contact system
for excellent contact stability
• Visual confirmation
of complete coupling
VOLTAGE RATING
Voltage Rating:
Service Rating 1
600 VAC
RMS
/850
VDC
1500
500
375
200
Service Rating II
900 VAC
RMS
/1250
VDC
2300
750
500
200
Recommended Operating Voltage
@ Sea Level
Test Voltages (V
RMS
)
@ Sea Level
@ 50,000 ft.
@ 70,000 ft.
@ 110,000 ft.
APPLICATIONS
• Military Aircraft
• Commercial Aircraft
• Communications Equipment
• High-Temperature Industrial
Applications
TE Components . . . TE Technology . . . TE Know-how . . .
AMP | AGASTAT | CII | HARTMAN | KILOVAC | MICRODOT | NANONICS | POLAMCO | Raychem | Rochester | DEUTSCH
SEACON Phoenix | Phoenix Optix | SEACON
Empower Engineers to Solve Problems, Moving the World Forward.
AEROSPACE, DEFENSE & MARINE
/// DL AND DBA SERIES CONNECTORS
PAGE 2

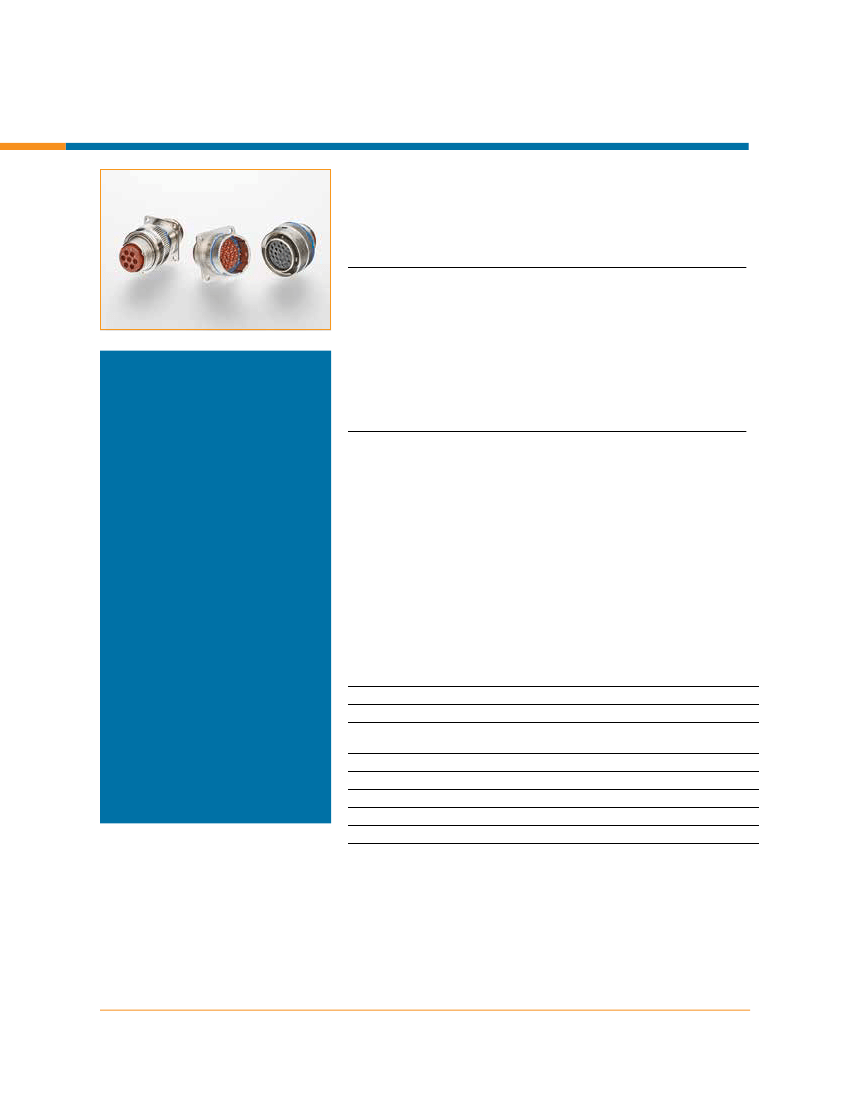

DEUTSCH DL and DBA Series Connectors
Contact Retention
Contact Retention: · Size 20: 20lbs · Size 16: 25lbs · Size 12: 30lbs
Contact Size
20
16
12
Pin Contact
M39029/4-110
M39029/4-111
M39029/4-113
Socket Contact
M39029/5-115
M39029/5-116
M39029/5-118
Sealing Plug
MS27488-20-1
MS27488-16-1
MS27488-12-1
Insertion/
Removal Tool
M81969/14-11
(Red/White)
M81969/14-03
(Blue/White)
M81969/14-04
(Yellow/White)
Contact Size
20
16
12
Wire Range (AWG)
24-20
20-16
14-12
Wire Range
(mm
2
)
0.20-0.52
0.52-1.31
2.08-3.31
Crimp Tool
M22520/1-01 or
M22520/2-01
M22520/1-01
M22520/1-01
Test Current
(Amps)
7.5
13
23
Insert Arrangements For Bayonet Connectors
Inserts are QPL and available in 6, 7, 8, 9, or Y polarization
(Insert 8-3 is not available with Y polarization)
Consult TE for insert arrangements for threaded connectors.
Insert
8-3
10-2
10-5
10-6
10-20
12-3
12-12
14-04
14-07
14-12
9
7
3
12
4
Contact Size
20
3
2
5
6
2
3
16
12
Insert
14-15
16-10
16-24
18-8
18-14
18-31
20-16
20-25
20-28
20-39
19
24
37
2
31
16
6
4
14
24
8
Contact Size
20
15
10
16
12
Insert
20-41
22-12
22-19
22-32
22-39
22-55
24-19
24-43
24-57
24-61
23
55
61
20
2
26
27
55
19
12
19
6
Contact Size
20
41
12
16
12
AEROSPACE, DEFENSE & MARINE
/// DL AND DBA SERIES CONNECTORS
PAGE 3
