Power Entry Modules with Line Filter
www.schurter.com/PG06

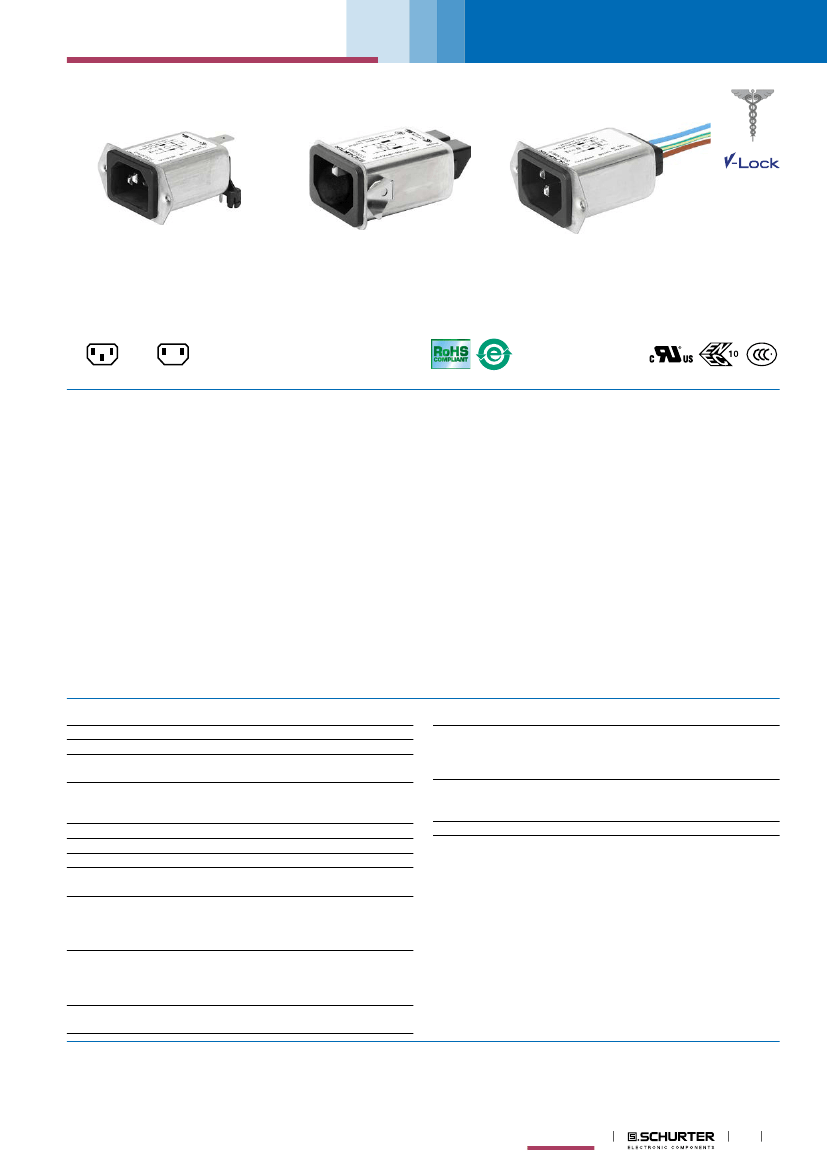

IEC Appliance Inlet C14 or C18 with Filter, ECO design, Front- or Rear Side Mounting
5120
Standard- or Medical-Filter
Screw-on mounting
PCB snap-in version
Snap-in mounting
Quick connect terminals 6.3 x 0.8 mm
Protection class II
Screw-on mounting
with wires (stranded)
C14
70° C
C18
70° C
Description
- Panel Mount:
Screw-on version from front or rear side, snap-in version from front
side, PCB Version from rear side
- 2 Functions:
Appliance Inlet protection class I or II, Line filter in standard and medi-
cal version
- Solder, quick connect or wire (stranded)
- PCB Mounting
- Earth Terminal
Characteristics
- Compact high performance filter
Optimal shielding due to completely closed filter case, unpotted
- Designed for standard and medical applications
Suitable for assembly in metal plated plastic housings
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
-
-
-
-
-
Approvals
- VDE Certificate Number: 40016382
- UL File Number: E72928
- CCC File Number: 2010010204438235
Snap-in for panel thickness >2mm to 3mm
flexible wire with various lenghts
Class X1- and Y1-capacitors for enhanced withstand voltage
Medical version M80
Variant with notch for V-Lock mating Cordsets
References
Weblinks
Alternative: version without line filter
6100-3
pdf-datasheet, html-datasheet, General Product Information, RoHS,
CHINA-RoHS, REACH, Mating Connectors, e-Shop, SCHURTER-
Stock-Check, Distributor-Stock-Check, Accessories, Wire Harnessing
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 15 A @ Ta 40 °C / 250 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Solder terminals
Flexible wire AWG18 (15A AWG16),
150 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 2 mm
(all steps with one variant)
Themoplast / steel tin-plated, black /
metallic, UL 94V-0
Appliance-Inlet/-Outlet
C14 / C18 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 3'000'000 h acc. to MIL-HB-217 F
Line Filter
Allowable Operation Temp.
Climatic Category
Degree of Protection
Protection Class
Terminal
MTBF
Panel Thickness s
Material: Housing
Connectors
1
