0813-1X1T-57-F datasheet, PDF - EEWORLD Datasheet

0813-1X1T-57-F: Descriptionconn magjack 1port 100 base-T; CategoryThe connector; File Size347KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

0813-1X1T-57-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0813-1X1T-57-F	-	-	View	Buy Now

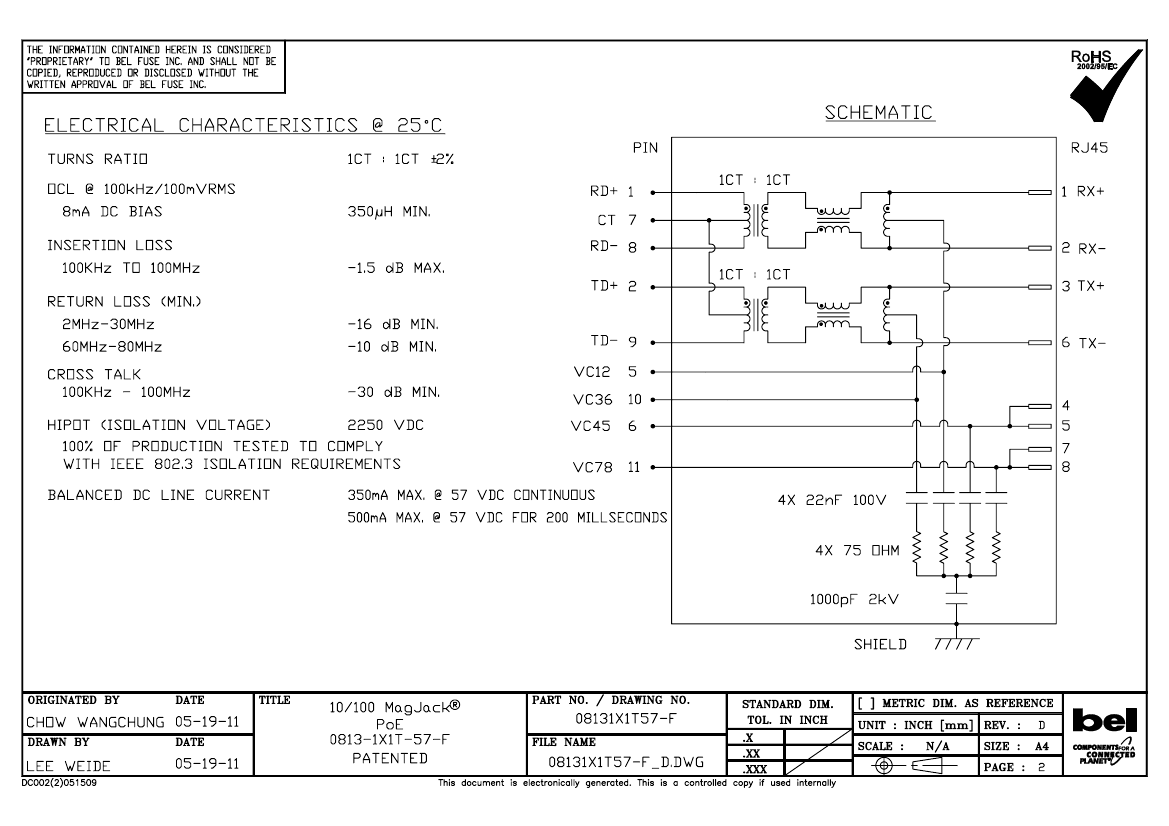

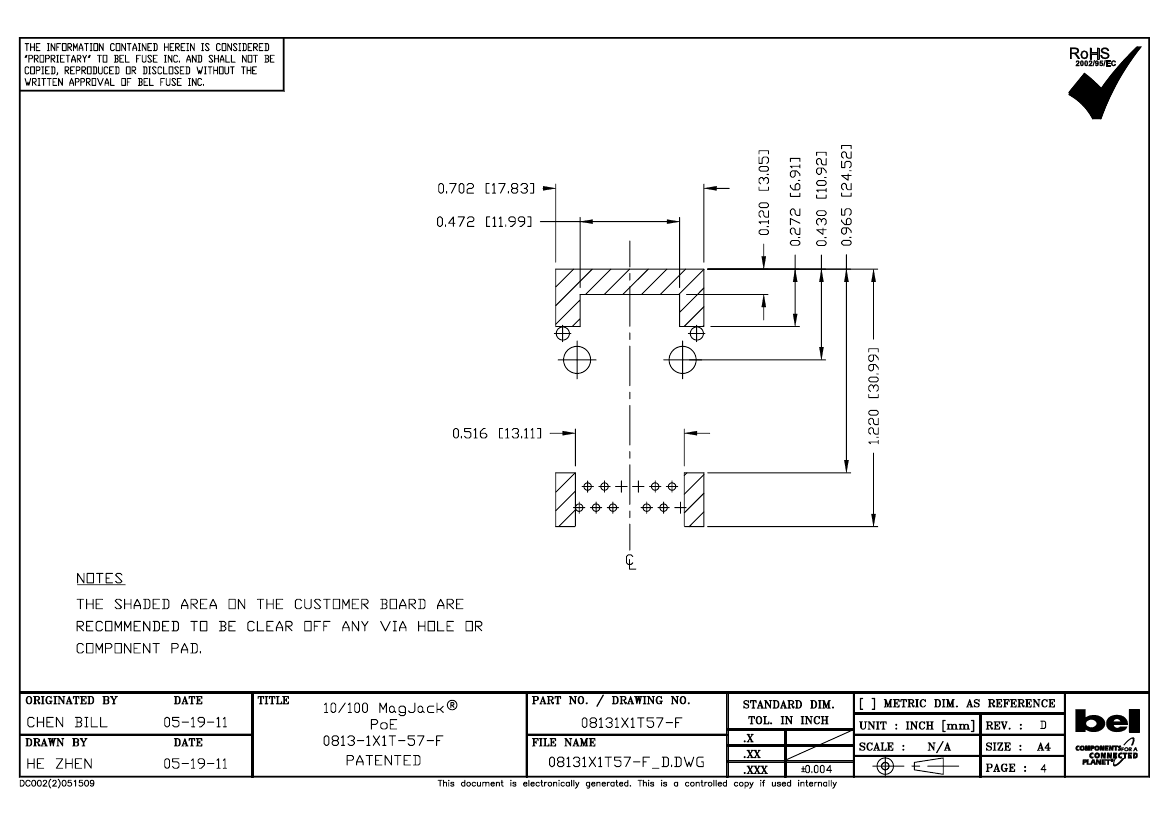

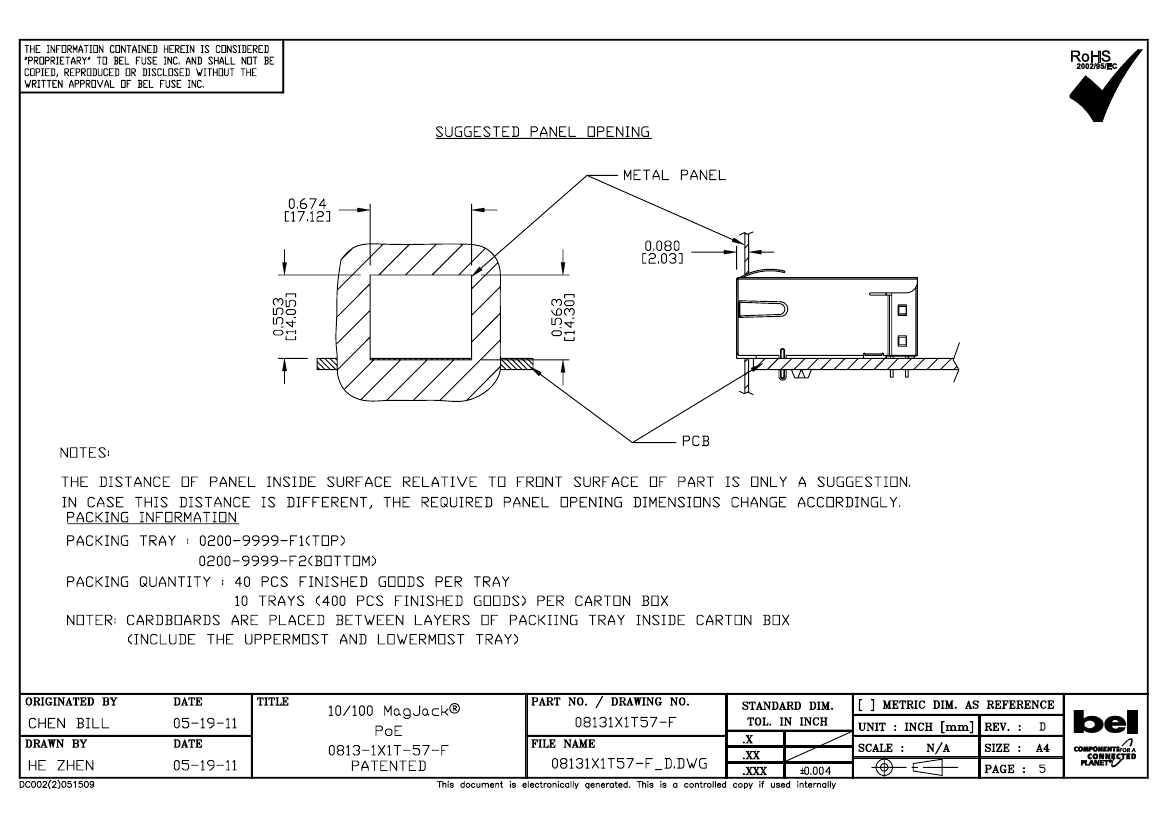

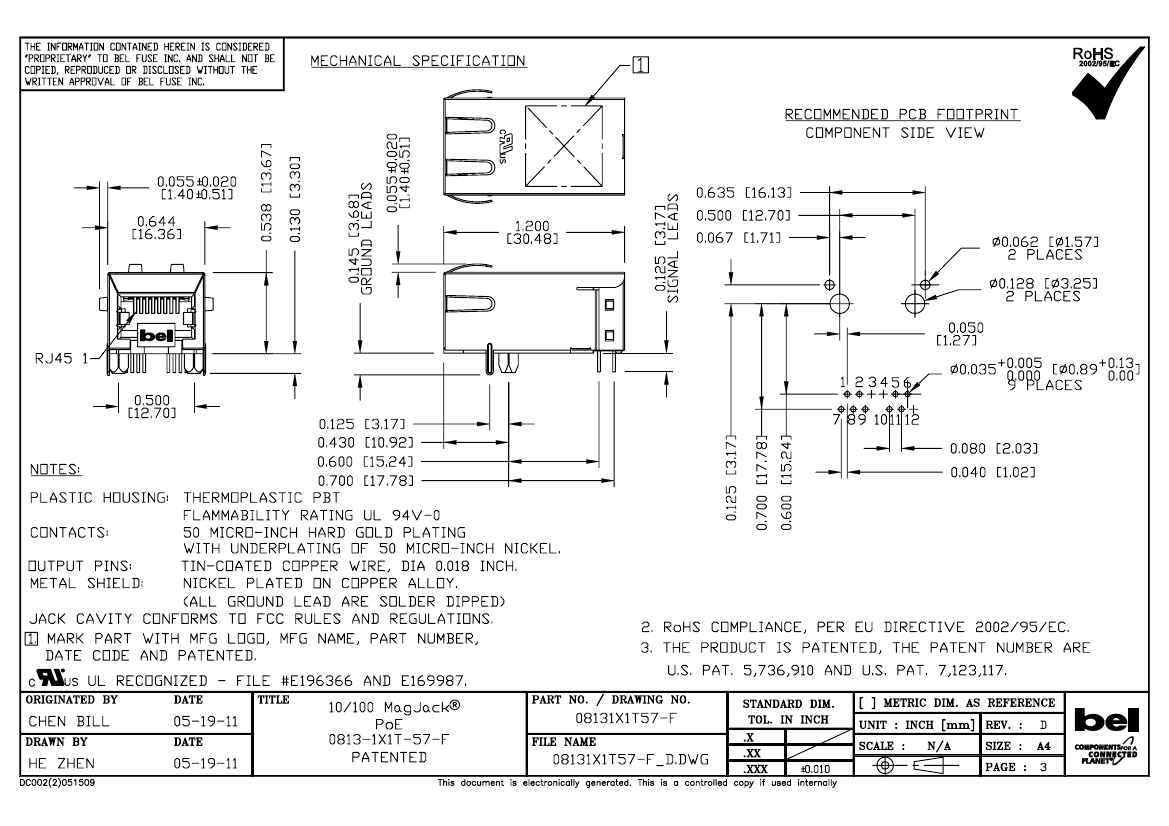

conn magjack 1port 100 base-T

Parameter Name	Attribute value
Datasheets
0813-1X1T-57-F
Product Photos
0813-1X1T-57-F
Product Training Modules
MagJack® Integrated Magnetics Modular Jacks
Catalog Drawings
MagJack ICM
Standard Package	40
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Height Above Board	0.538" (13.66mm)
LED Col	Does Not Contain LED
Number of Cores per Jack	6
Shielding	Shielded, EMI Finge
Features	Board Guide, Voice over Internet Protocol (VoIP)
Tab Directi	Dow
Contact Material	-
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-
Dynamic Catalog	MagJack® Series
Other Names	08131X1T57F507-1421

	0813-1X1T-57-F
Description	conn magjack 1port 100 base-T
Standard Package	40
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Height Above Board	0.538" (13.66mm)
LED Col	Does Not Contain LED
Number of Cores per Jack	6
Shielding	Shielded, EMI Finge
Features	Board Guide, Voice over Internet Protocol (VoIP)
Tab Directi	Dow
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Dynamic Catalog	MagJack® Series
Other Names	08131X1T57F507-1421
