1775015-1

Description
0.8 btb FS 5H plug G/F 12p
CategoryThe connector
File Size118KB,2 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

1775015-1 Online Shopping

Suppliers Part Number Price MOQ In stock
1775015-1 - - View Buy Now

1775015-1 Overview

0.8 btb FS 5H plug G/F 12p

1775015-1 Parametric

Parameter NameAttribute value
Datasheets

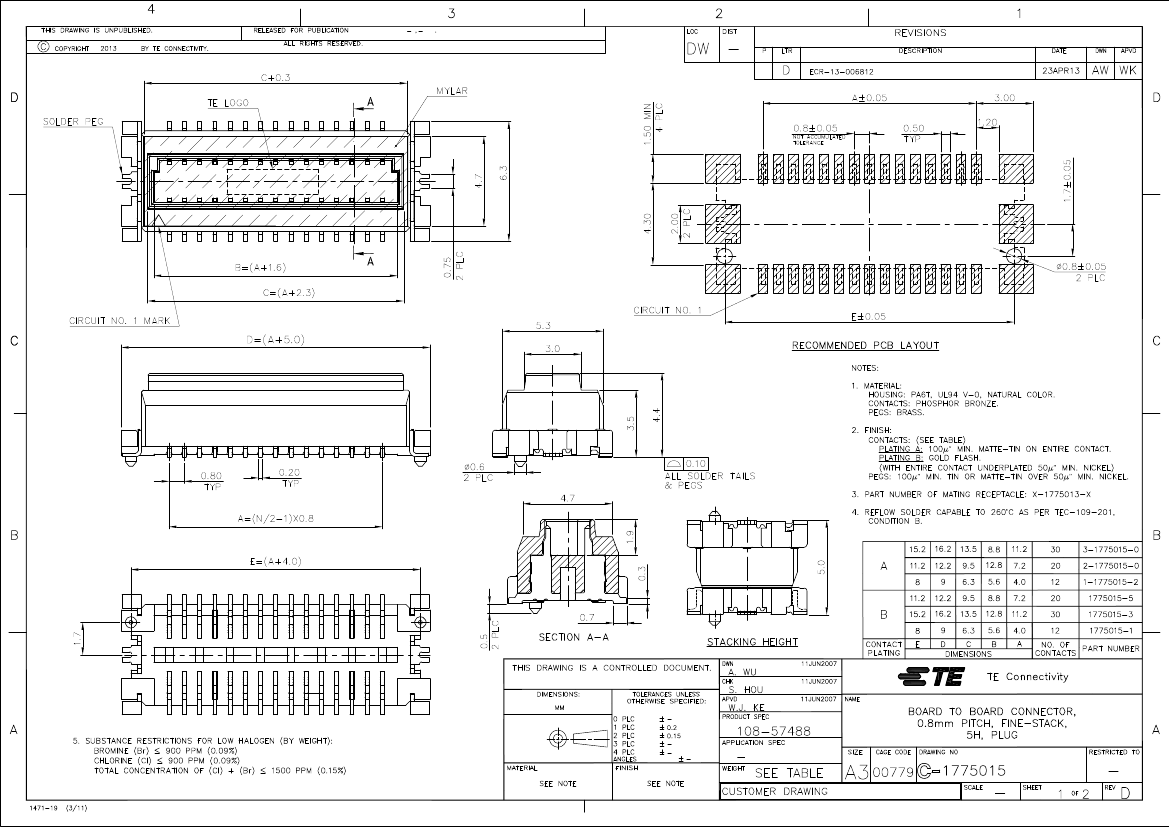

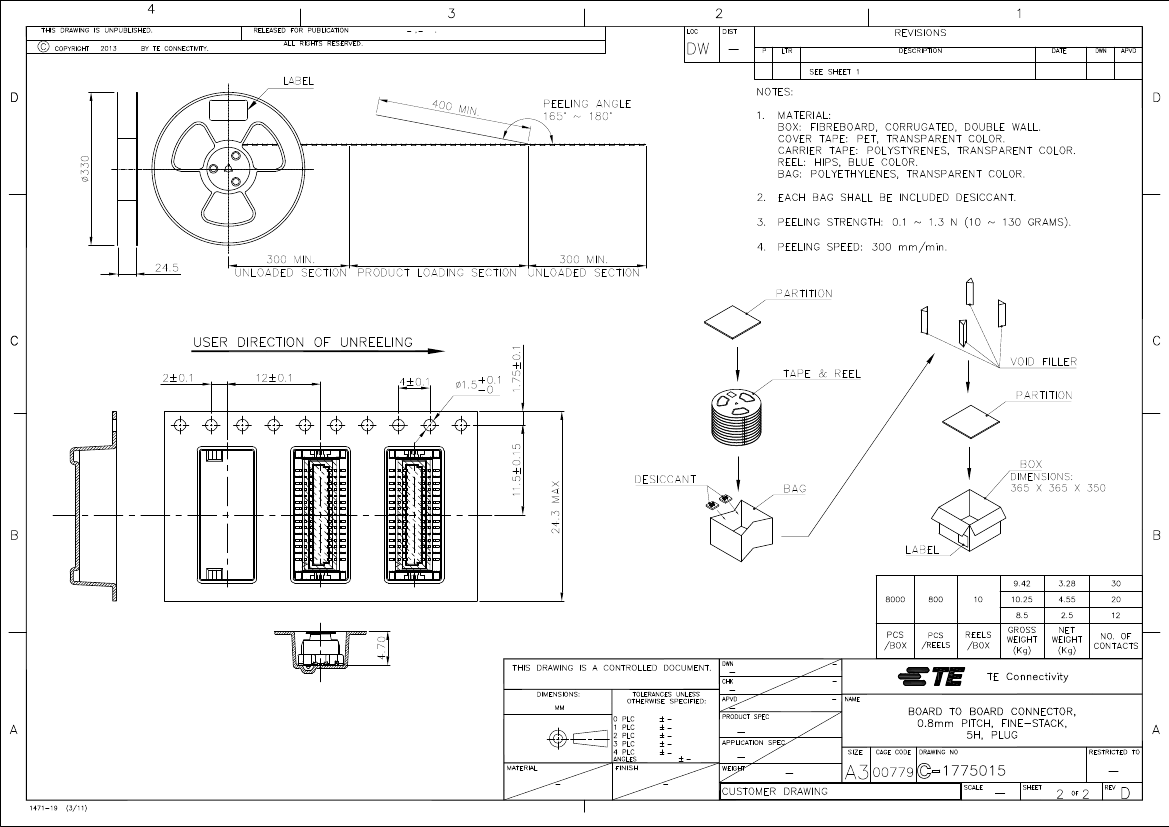

1775015 Drawing
Standard Package1
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
PackagingCut Tape (CT)
Connector TypePlug, Outer Shroud Contacts
Number of Positions12
Pitch0.031" (0.80mm)
Number of Rows2
Mounting TypeSurface Mou
FeaturesBoard Guide, Solder Retenti
Contact FinishGold
Contact Finish ThicknessFlash
Mated Stacking Heights5mm
Height Above Board0.173" (4.40mm)
Other NamesA118069CT

1775015-1 Related Products

1775015-1 1-1775015-2
Description 0.8 btb FS 5H plug G/F 12p 0.8 btb, fine-stack, 5H, plug, 1
Standard Package 1 4,000
Category Connectors, Interconnects Connectors, Interconnects
Family Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging Cut Tape (CT) Tape & Reel (TR)
Connector Type Plug, Outer Shroud Contacts Plug, Outer Shroud Contacts
Number of Positions 12 12
Pitch 0.031" (0.80mm) 0.031" (0.80mm)
Number of Rows 2 2
Mounting Type Surface Mou Surface Mou
Features Board Guide, Solder Retenti Board Guide, Solder Retenti
Contact Finish Gold Ti
Contact Finish Thickness Flash 100µin (2.54µm)
Mated Stacking Heights 5mm 5mm
Height Above Board 0.173" (4.40mm) 0.173" (4.40mm)
Other Names A118069CT A117824TR
