2-5390399-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-5390399-7

2-5390399-7: Descriptionconn rcpt 68pos 30awg gold/flash; CategoryThe connector; File Size144KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-5390399-7 Overview

conn rcpt 68pos 30awg gold/flash

2-5390399-7 Parametric

Parameter Name	Attribute value
Datasheets
5390399
Standard Package	800
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Number of Positions	68
Number of Rows	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Housing/Shell (4-40)
Latchblocks
Terminati	IDC, Ribbon Cable
Features	Feed Through
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	1µin (0.025µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	30V
Current Rating	1A
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Col	Black

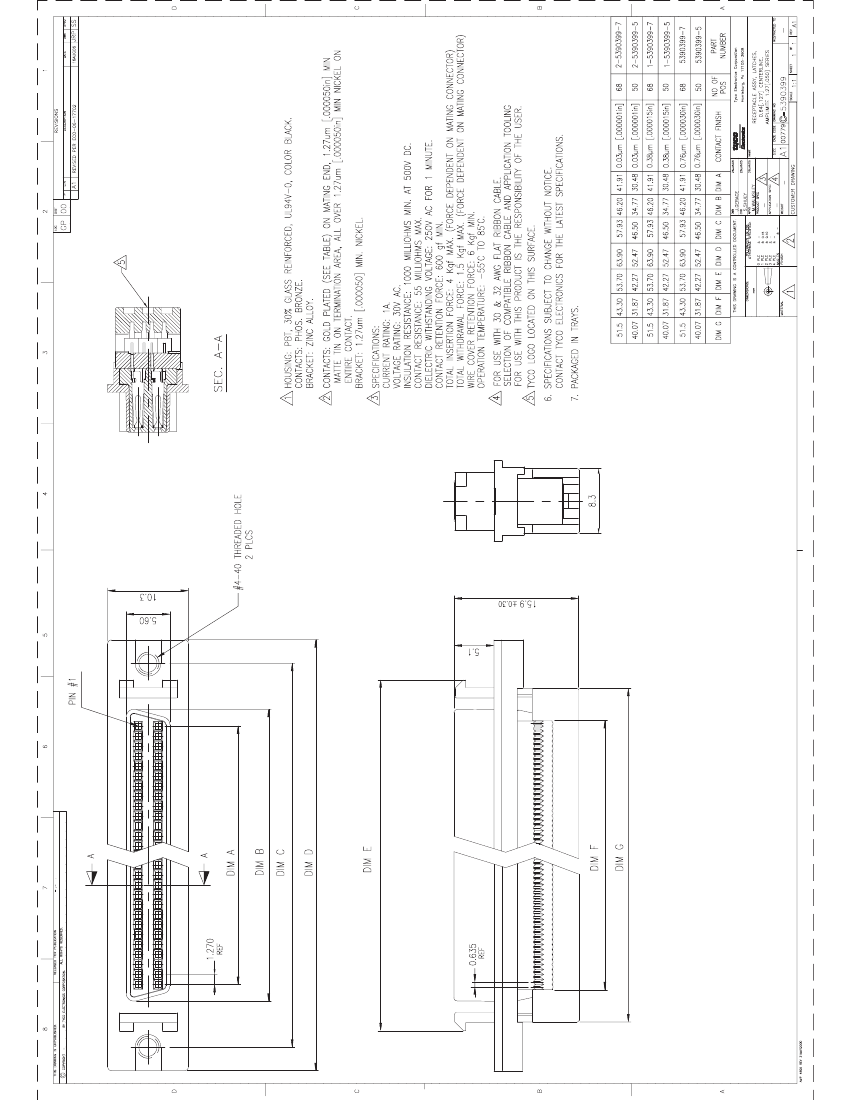

Preview

Download Datasheet

View All

2-5390399-7 Related Products

	2-5390399-7	1-5390399-5	1-5390399-7	2-5390399-5	5390399-7
Description	conn rcpt 68pos 30awg gold/flash	conn rcpt 50pos 30awg 15gold	conn rcpt 68pos 30awg 15gold	conn rcpt 50pos 30awg gold/flash	conn rcpt 68pos 30awg gold
Standard Package	800	960	800	1	800
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray	Tray	Tray	Bulk
Connector Style	D-Type	D-Type	D-Type	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	68	50	68	50	68
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)	Housing/Shell (4-40)	Housing/Shell (4-40)	Housing/Shell (4-40)
Terminati	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable	IDC, Ribbon Cable
Features	Feed Through	Feed Through	Feed Through	-	Feed Through
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	1µin (0.025µm)	15µin (0.38µm)	15µin (0.38µm)	1µin (0.025µm)	30µin (0.76µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	30V	30V	30V	30V	30V
Current Rating	1A	1A	1A	1A	1A
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Thermoplastic	Thermoplastic	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Col	Black	Black	Black	Black	Black
