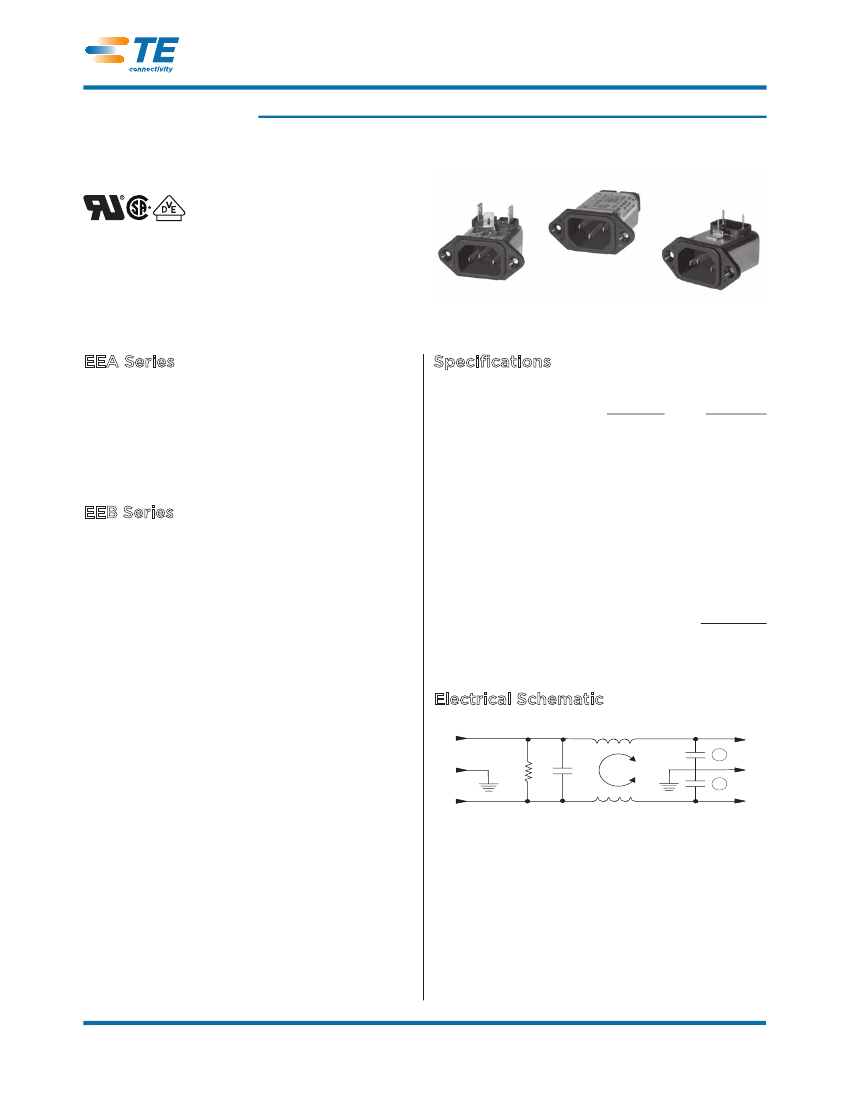

Corcom Product Guide
Cost-effective EMI Power Inlet Filter
Catalog: 1654001
Issue Date: 06.2011
EEA & EEB Series
Including the EAS/EBS and EAH/EBH Models
UL Recognized
CSA Certified
VDE Approved
EEA2 / EEB2
EEA1 / EEB1
EEAP / EEBP
EEA Series
• Compact single stage EMI filter with IEC 60320-1
C14 inlet
• Two element circuit provides basic attenuation
• Same performance as the EF Series
• Available in three terminal configurations
• Supersedes EF Series
Specifications
Maximum leakage current each Line to Ground:
EEA/EEB
EAS/EBS
EAH/EBH
@ 120 VAC 60 Hz:
.22 mA
2
A
@ 250 VAC 50 Hz:
.38 mA
5
A
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max.):
Operating Frequency:
Rated Current:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
1 to 10A
EEB Series
• Compact EMI filter with IEC 60320-1 C14 inlet
• Two element circuit provides extended
attenuation
• Extended differential mode performance
• Available in three terminal configurations
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
EAS & EBS Models
• Same performance as EEA and EEB Series
• Snap–in mounting
• Spade terminals
Electrical Schematic
LINE
LOAD
1
1
EAH & EBH Models
• Same size as EEA and EEB
• Minimal leakage current suitable for medical
applications
• Flange mounted
• Spade terminals
Note 1: Not present in EAH
Note 1: Not present in EAH / EBH versions
/ EBH Versions
148
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Cost-effective EMI Power Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
EEA & EEB Series

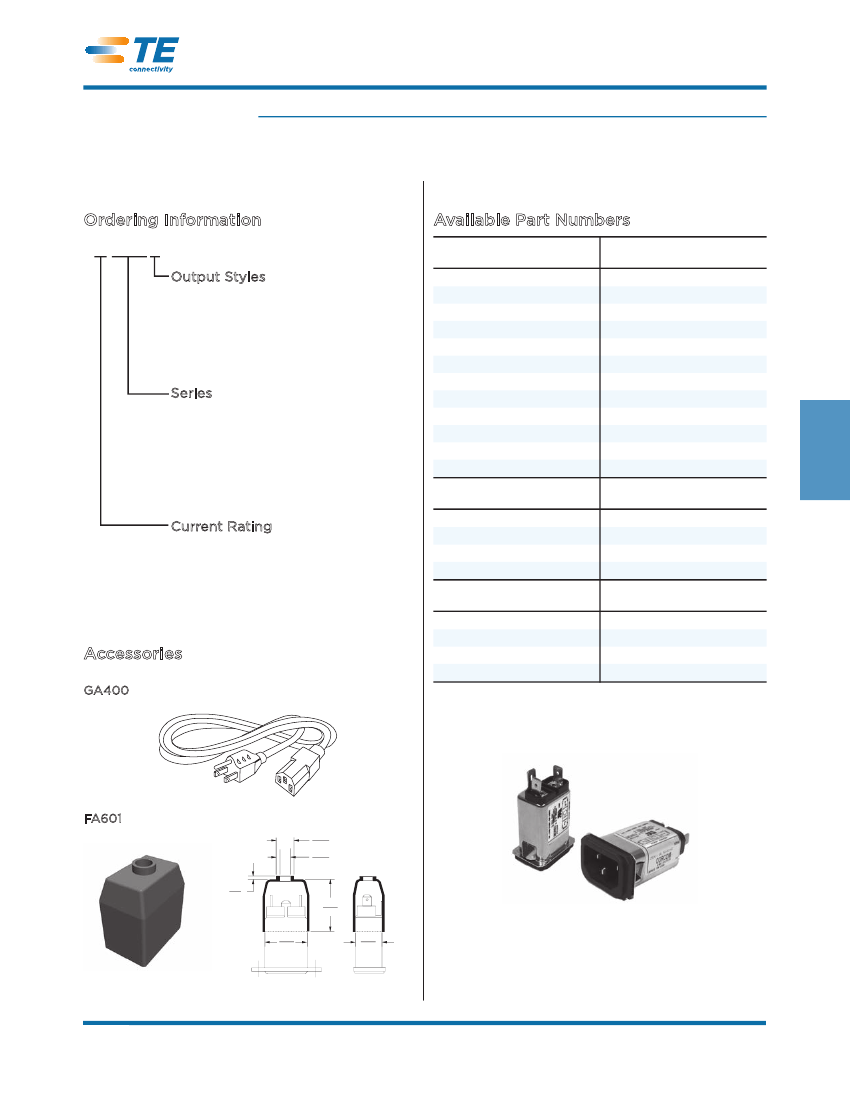

Ordering Information
3 EEB 1
Output Styles
1 – .250 [6.3] spade terminals
(back)
Available Part Numbers
EEA Models
1EEA1
1EEA2
1EEAP
3EEA1
3EEA2
3EEAP
6EEA1
6EEA2
6EEAP
10EEA1
10EEA2
10EEAP
EAS Models
1EAS1
3EAS1
6EAS1
10EAS1
EAH Models
1EAH1
3EAH1
6EAH1
10EAH1
EEB Models
1EEB1
1EEB2
1EEBP
3EEB1
3EEB2
3EEBP
6EEB1
6EEB2
6EEBP
10EEB1
10EEB2
10EEBP
EBS Models
2 – .250 [6.3] spade terminals
(bottom)
P – PC board pins
Series
EEA – Basic Inlet Filter
EAS –
Snap–in EEA Filter
EAH –
Medical EEA Filter
EEB – Extended EMI Performance
EBS –
Snap-in EEB Filter
EBH –
Medical EEB Filter
Current Rating
1, 3, 6, or 10A
3
Power Inlet Filters & Power Entry Modules
1EBS1
3EBS1
6EBS1
10EBS1
EBH Models
1EBH1
3EBH1
6EBH1
10EBH1
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
FA601: Insulating Shroud
.413 Dia.
10.5
.271 Dia.
6.9
.118
3.0
1.39
35.4
EAS / EBS
1.17
29.7
.767
19.5
149
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Cost-effective EMI Power Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
EEA & EEB Series

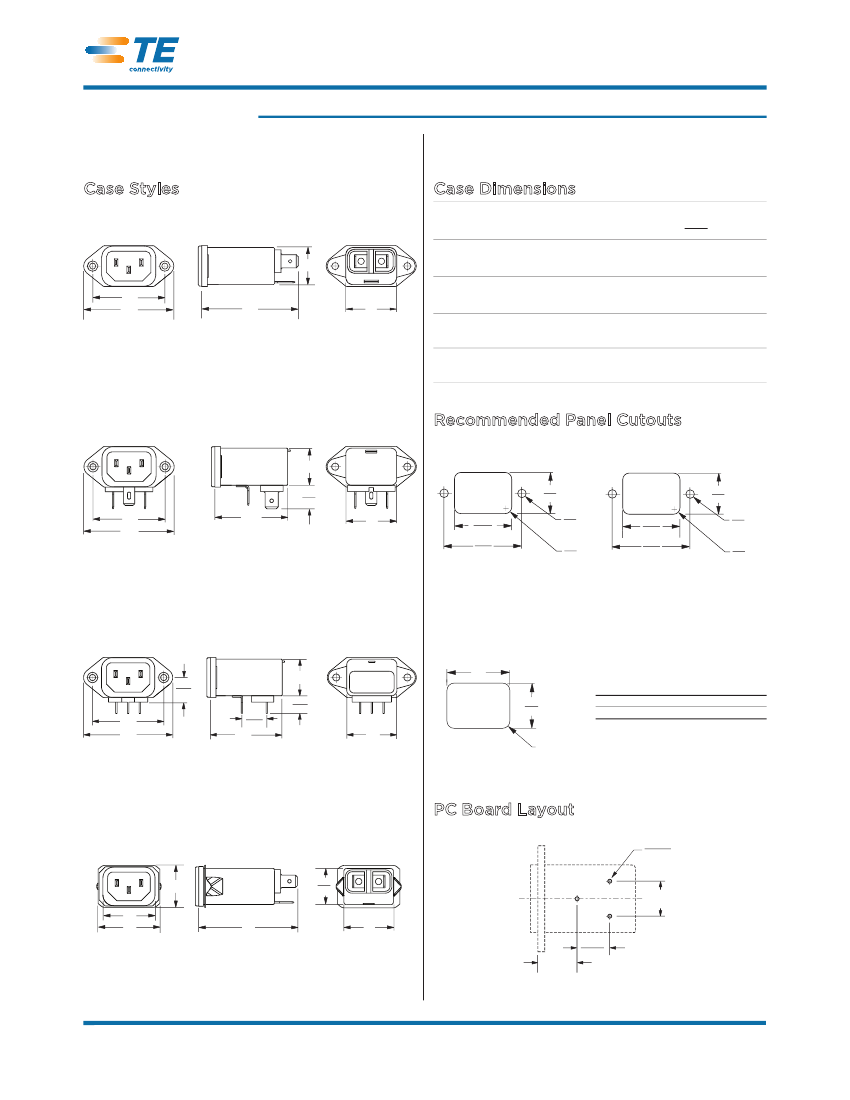

Case Styles
EEA1, EEB1, EAH1 & EBH1
C
Case Dimensions
Part No.
EEA1, EEB1,
EAH1, EBH1
EEA2, EEB2
A
B
A
½
B
½
C
½
D
E
½
½
½
EEAP, EEBP
EAS1, EBS1
D
E
½
EEA2 & EEB2
C
.50
Max
.
12.7
Recommended Panel Cutouts
EEA, EEB, EAH, EBH
Front Mount
.820
20.8
.140
3.56
Back Mount
.900
22.9
.140
3.56
D
E
A
B
1.14*
28.96*
1.575
40.01
*± 0.02 [0.51]
1.200
30.48
1.575
40.01
½
½
½
.12
R.
3.05
Typ.
.234
R.
5.94
Typ.
Tolerances ± .005 [0.13] unless otherwise noted
½
½
EEAP & EEBP
EAS, EBS
G
½
.537
Ref.
13.68
.380
Max.
9.652
D
E
± .010
0.551
13.995
A
½
EAS1 & EBS1
C
D
E
Max
.
.81
20.5
A
½
½
½
150
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
C
B
.815
20.70
R 0.188 [4.78]
(4X)
PC Board Layout
0.075
1.91
∅
0.520
13.21
B
0.551
13.99
.685*
17.40*
*±.015 [0.38]
Corcom Product Guide
Cost-effective EMI Power Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
EEA & EEB Series

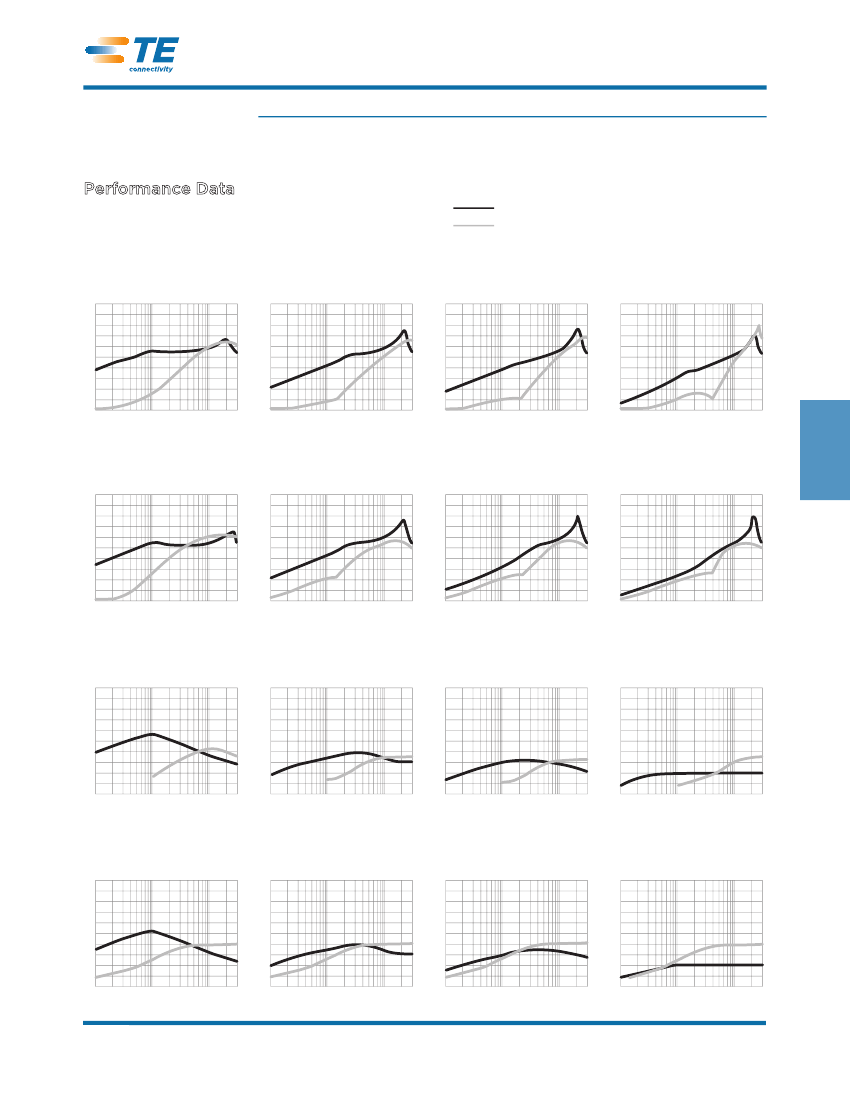

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
EEA, EAS Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
EEB, EBS Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
3
Power Inlet Filters & Power Entry Modules
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
EAH Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
EBH Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
151
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Cost-effective EMI Power Inlet Filter
(continued)
Catalog: 1654001
Issue Date: 06.2011
EEA & EEB Series
Performance Data
(continued)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
152
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
