Preview

5179533-3: Descriptionconn rcpt FH 80pos .050 vert; CategoryThe connector; File Size92KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5179533-3 Overview

conn rcpt FH 80pos .050 vert

5179533-3 Parametric

Parameter Name	Attribute value
Datasheets

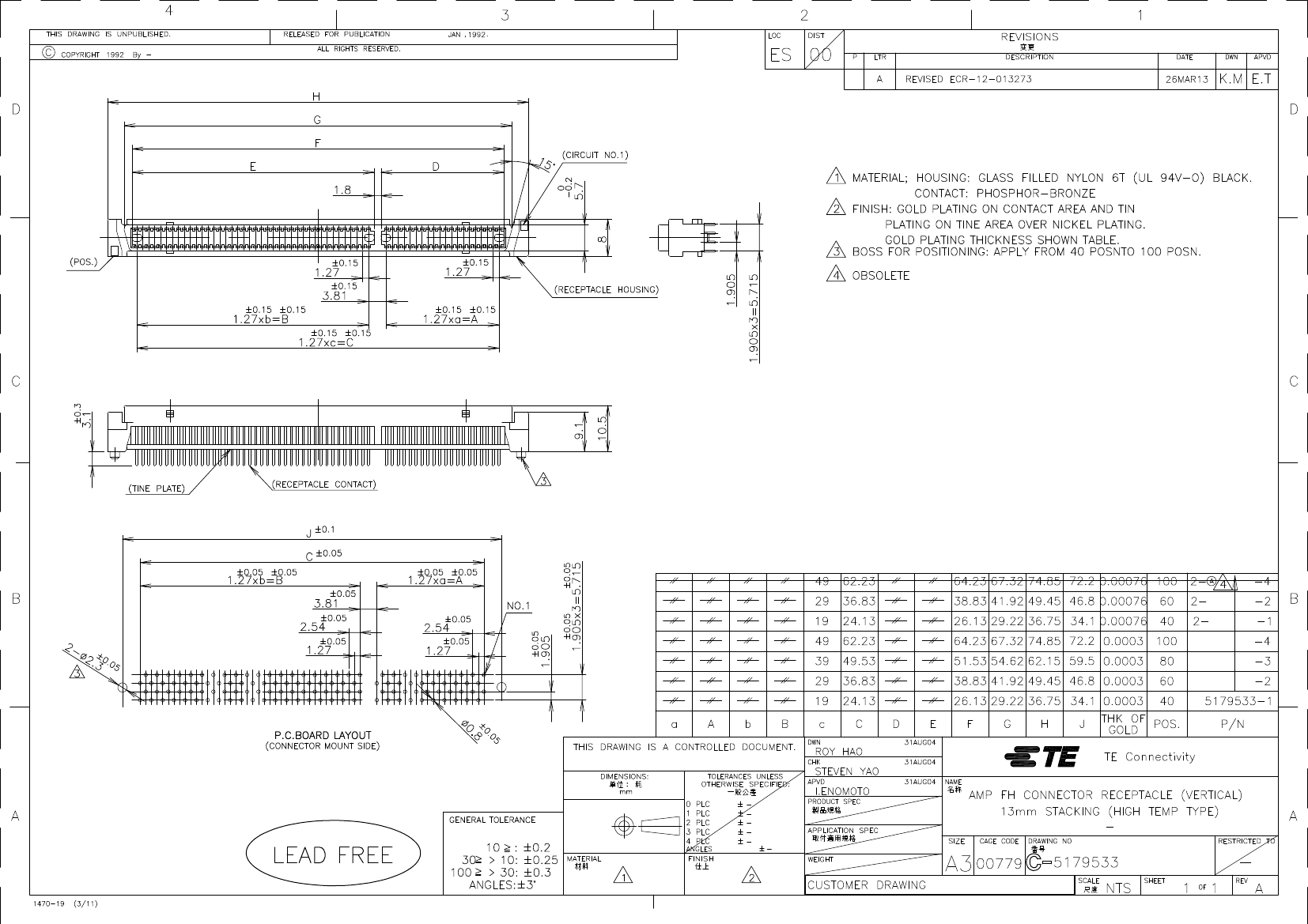

5179533 Drawing
3D Model
5179533-3.pdf
Standard Package	840
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	-
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	12µin (0.30µm)
Mated Stacking Heights	13mm
Height Above Board	0.413" (10.50mm)
Mating Products	5917631-3-ND - CONN PLUG FH 80POS .050 VERT5176381-3-ND - CONN PLUG FH 80POS .050 R/A176381-3-ND - CONN PLUG FH 80POS .050 R/A

Preview

Download Datasheet

View All

5179533-3 Related Products

	5179533-3	2-5179533-2	5179533-1	5179533-2	5179533-4
Description	conn rcpt FH 80pos .050 vert	conn rcpt FH 60pos .050 vert	conn rcpt FH 40pos .050 vert	conn rcpt FH 60pos .050 vert	conn rcpt FH 100pos 050 vert
Standard Package	840	90	130	1,080	60
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	80	60	40	60	100
Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Number of Rows	2	2	2	2	2
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Features	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	12µin (0.30µm)	30µin (0.76µm)	12µin (0.30µm)	12µin (0.30µm)	12µin (0.30µm)
Mated Stacking Heights	13mm	13mm	13mm	13mm	13mm
Height Above Board	0.413" (10.50mm)	0.413" (10.50mm)	0.413" (10.50mm)	0.413" (10.50mm)	0.413" (10.50mm)
Mating Products	5917631-3-ND - CONN PLUG FH 80POS .050 VERT5176381-3-ND - CONN PLUG FH 80POS .050 R/A176381-3-ND - CONN PLUG FH 80POS .050 R/A	5177980-2-ND - CONN PLUG FH 60POS .050 VERTA114071-ND - CONN PLUG FH 60POS .050 VERTA113811-ND - CONN PLUG FREEHGT 60POS .050 VRT179656-2-ND - CONN PLUG FREEHGT 60POS .050 VRT5176381-2-ND - CONN PLUG FH 60POS .050 R/A176381-2-ND - CONN PLUG FH 60POS .050 R/A	A114070-ND - CONN PLUG FH 40POS .050 VERT2-5176381-1-ND - CONN PLUG FH 40POS 050 R/A5176381-1-ND - CONN PLUG FH 40POS .050 R/A176381-1-ND - CONN PLUG FH 40POS .050 R/A	5177980-2-ND - CONN PLUG FH 60POS .050 VERTA114071-ND - CONN PLUG FH 60POS .050 VERTA113811-ND - CONN PLUG FREEHGT 60POS .050 VRT179656-2-ND - CONN PLUG FREEHGT 60POS .050 VRT5176381-2-ND - CONN PLUG FH 60POS .050 R/A176381-2-ND - CONN PLUG FH 60POS .050 R/A	2-5917631-4-ND - CONN PLUG FH 100POS .050 VERTA114072-ND - CONN PLUG FH 100POS .050 VERT2-5179540-4-ND - CONN PLUG FH 100POS 050 VERT2-179540-4-ND - CONN PLUG FH 100POS 050 VERT5176381-4-ND - CONN PLUG FH 100POS .050 R/A176381-4-ND - CONN PLUG FH 100POS .050 R/A
