1368398-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1368398-2

Preview

1368398-2: Descriptionconn magjack 1port 1000 base-T; CategoryThe connector; File Size703KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1368398-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1368398-2	-	-	View	Buy Now

1368398-2 Overview

conn magjack 1port 1000 base-T

1368398-2 Parametric

Parameter Name	Attribute value
Datasheets
1368398 Drawing
Product Training Modules
Integrated Connector Module
Standard Package	120
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics
Packaging	Tape & Reel (TR)
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientati	90° Angle (Right)
Terminati	Solde
Height Above Board	0.445" (11.30mm)
LED Col	Green, Orange - Yellow
Number of Cores per Jack	8
Shielding	Shielded, EMI Finge
Features	Board Guide
Tab Directi	U
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Shield Material	Brass
Housing Material	Polyamide (PA), Nyl
Operating Temperature	0°C ~ 70°C

Preview

Download Datasheet

View All

8

C

COPYRIGHT

TRP connector

7

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

D

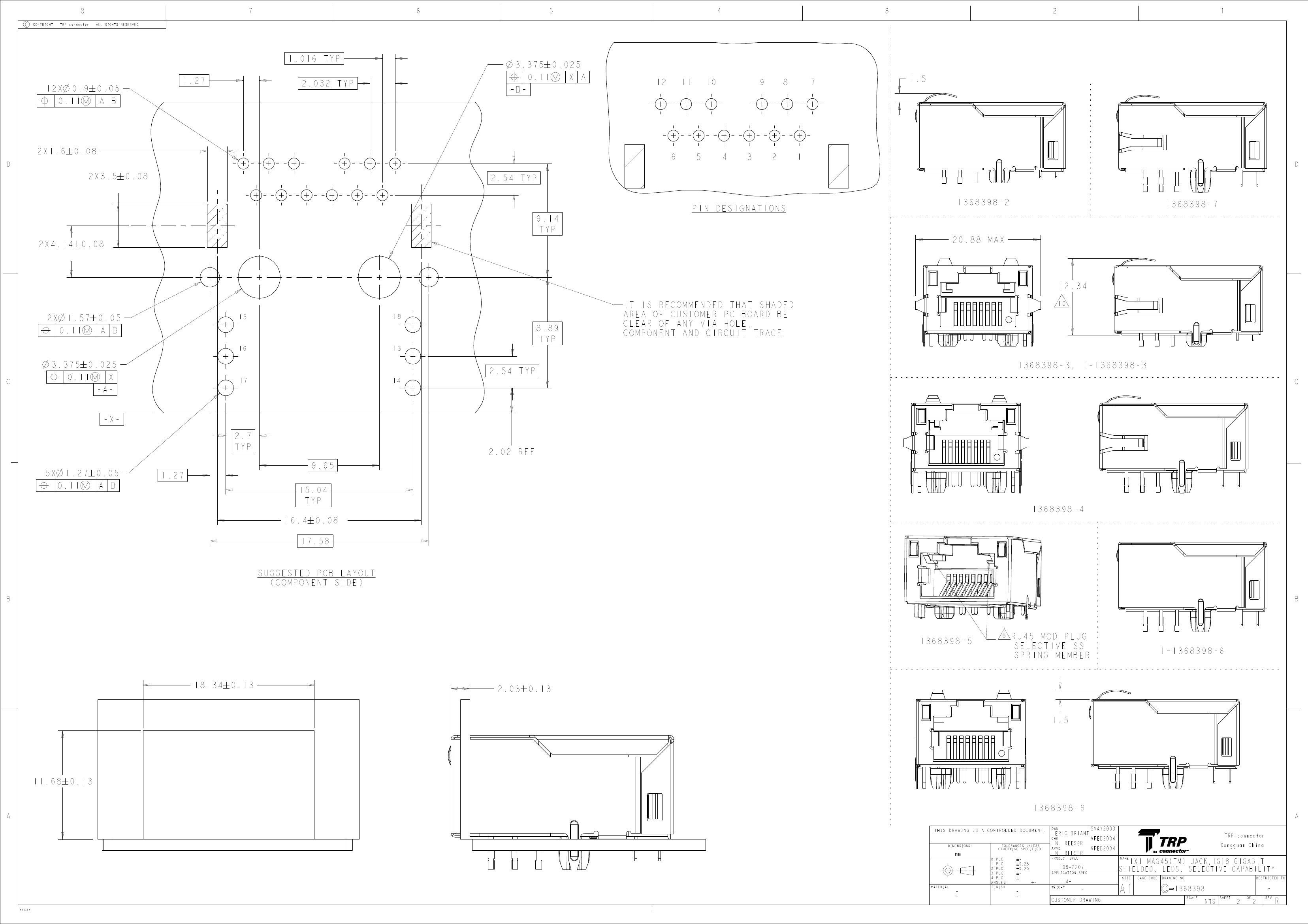

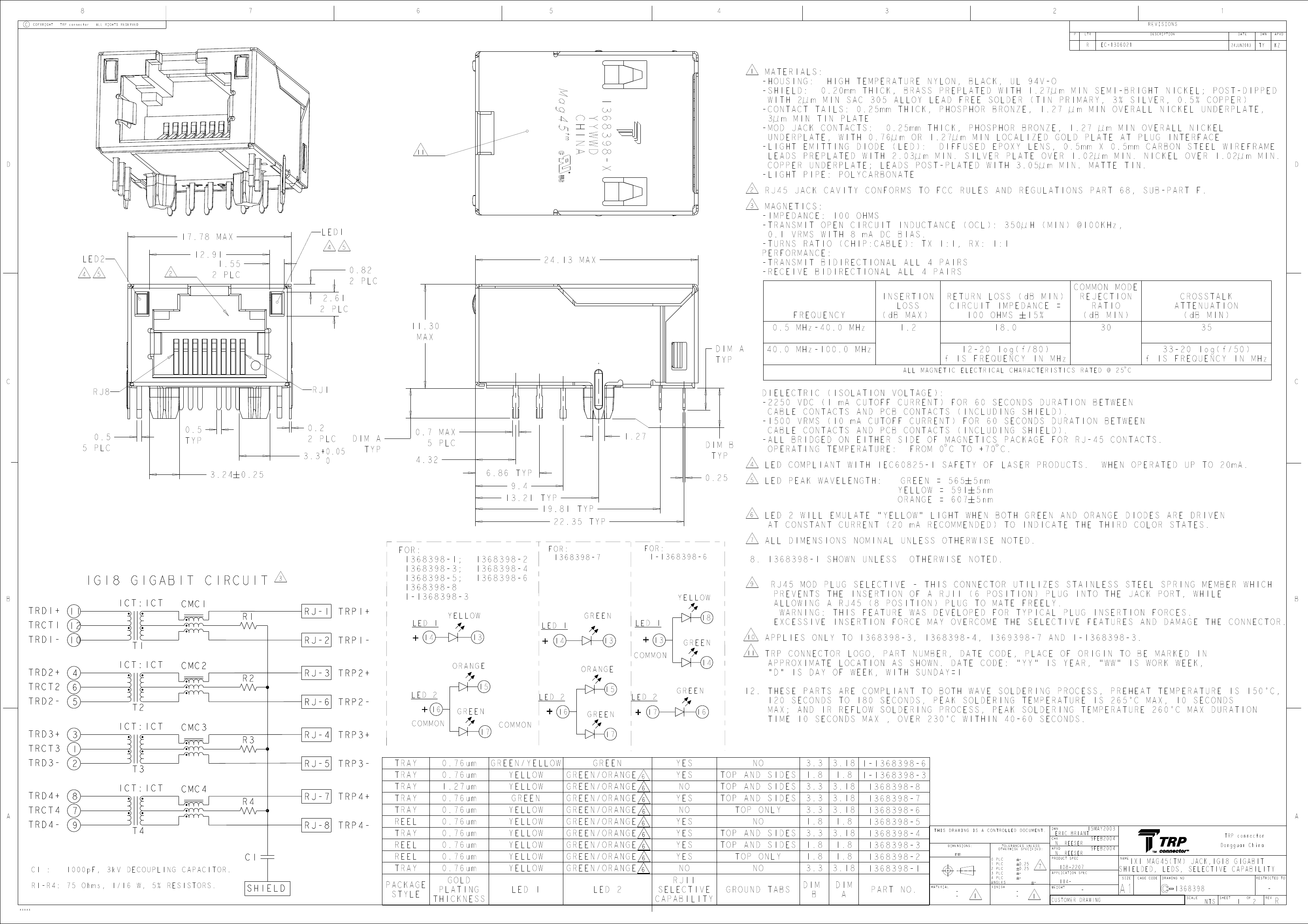

17.78 MAX

12.91

1.55

2 PLC

2.61

2 PLC

11.30

MAX

0.82

2 PLC

24.13 MAX

COMMON MODE

REJECTION

RATIO

(dB MIN)

30

0.5 MHz-40.0 MHz

DIM A

TYP

40.0 MHz-100.0 MHz

FREQUENCY

INSERTION

LOSS

(dB MAX)

1.2

RETURN LOSS

(dB MIN)

CIRCUIT IMPEDANCE =

100 OHMS

15%

18.0

CROSSTALK

ATTENUATION

(dB MIN)

35

ALL MAGNETIC ELECTRICAL CHARACTERISTICS RATED

12-20 log(f/80)

f IS FREQUENCY IN MHz

@ 25 C

33-20 log(f/50)

f IS FREQUENCY IN MHz

C

RJ8

RJ1

0.5

5 PLC

0.5

TYP

0.2

2 PLC

3.3

3.24

0.25

+0.05

0

DIM A

TYP

0.7 MAX

5 PLC

4.32

6.86

TYP

1.27

DIM B

TYP

0.25

9.4

13.21

TYP

19.81

22.35

TYP

FOR:

1-1368398-6

1G18 GIGABIT CIRCUIT

B

TRCT1

TRD1-

TRD2+

TRD1+

12

10

4

11

1CT:1CT

CMC1

FOR:

1368398-1; 1368398-2

1368398-3; 1368398-4

1368398-5; 1368398-6

1368398-8

1-1368398-3

FOR:

1368398-7

YELLOW

LED 1

GREEN

13

ORANGE

LED 2

15

GREEN

17

LED 2

GREEN

16

LED 1

18

GREEN

14

B

R1

RJ-1

RJ-2

TRP1+

TRP1-

TRP2+

TRP2-

TRP3+

TRP3-

TRP4+

TRP4-

T1

1CT:1CT

CMC2

R2

+

14

LED 2

LED 1

YELLOW

13

ORANGE

15

GREEN

17

COMMON

+

14

+

16

COMMON

+

13

TRCT2

TRD2-

TRD3+

TRCT3

TRD3-

TRD4+

6

5

3

1

2

8

7

9

T4

T3

1CT:1CT

CMC4

T2

1CT:1CT

CMC3

RJ-3

RJ-6

RJ-4

RJ-5

RJ-7

RJ-8

COMMON

+

16

+

17

R3

A

TRCT4

TRD4-

R4

C1 :

1000pF, 3kV DECOUPLING CAPACITOR.

C1

SHIELD

TRAY

REEL

TRAY

REEL

TRAY

PACKAGE

STYLE

R1-R4: 75 Ohms, 1/16 W, 5% RESISTORS.

xxxxx

0.76um

1.27um

0.76um

GOLD

PLATING

THICKNESS

GREEN/YELLOW

YELLOW

GREEN

YELLOW

LED 1

GREEN

GREEN/ORANGE

LED 2

YES

NO

YES

NO

YES

NO

RJ11

SELECTIVE

CAPABILITY

NO

TOP AND SIDES

TOP ONLY

NO

TOP AND SIDES

TOP ONLY

NO

GROUND TABS

3.3

1.8

3.3

1.8

3.3

1.8

3.3

DIM

B

3.18

1.8

3.18

1.8

3.18

1.8

3.18

DIM

A

1-1368398-6

1-1368398-3

1368398-8

1368398-7

1368398-6

1368398-5

1368398-4

1368398-3

1368398-2

1368398-1

PART NO.

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

APVD

PRODUCT SPEC

NAME

TRP connector

Dongguan China

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

WEIGHT

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

1368398-2 Related Products

	1368398-2	1368398-4
Description	conn magjack 1port 1000 base-T	conn magjack 1port 1000 base-T
Standard Package	120	40
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics	Modular Connectors - Jacks With Magnetics
Packaging	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	RJ45	RJ45
Number of Ports	1	1
Number of Rows	1	1
Applications	10/100/1000 Base-T, AutoMDIX	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole	Through Hole
Orientati	90° Angle (Right)	90° Angle (Right)
Terminati	Solde	Solde
Height Above Board	0.445" (11.30mm)	0.445" (11.30mm)
LED Col	Green, Orange - Yellow	Green, Orange - Yellow
Number of Cores per Jack	8	8
Shielding	Shielded, EMI Finge	Shielded, EMI Finge
Features	Board Guide	Board Guide
Tab Directi	U	U
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Shield Material	Brass	Brass
Housing Material	Polyamide (PA), Nyl	Polyamide (PA), Nyl
Operating Temperature	0°C ~ 70°C	0°C ~ 70°C
