426-43-204-41-002000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 426-43-204-41-002000

426-43-204-41-002000: DescriptionIC Socket, DIP4, 4 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size263KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

426-43-204-41-002000 Overview

IC Socket, DIP4, 4 Contact(s), ROHS COMPLIANT

426-43-204-41-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP4
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

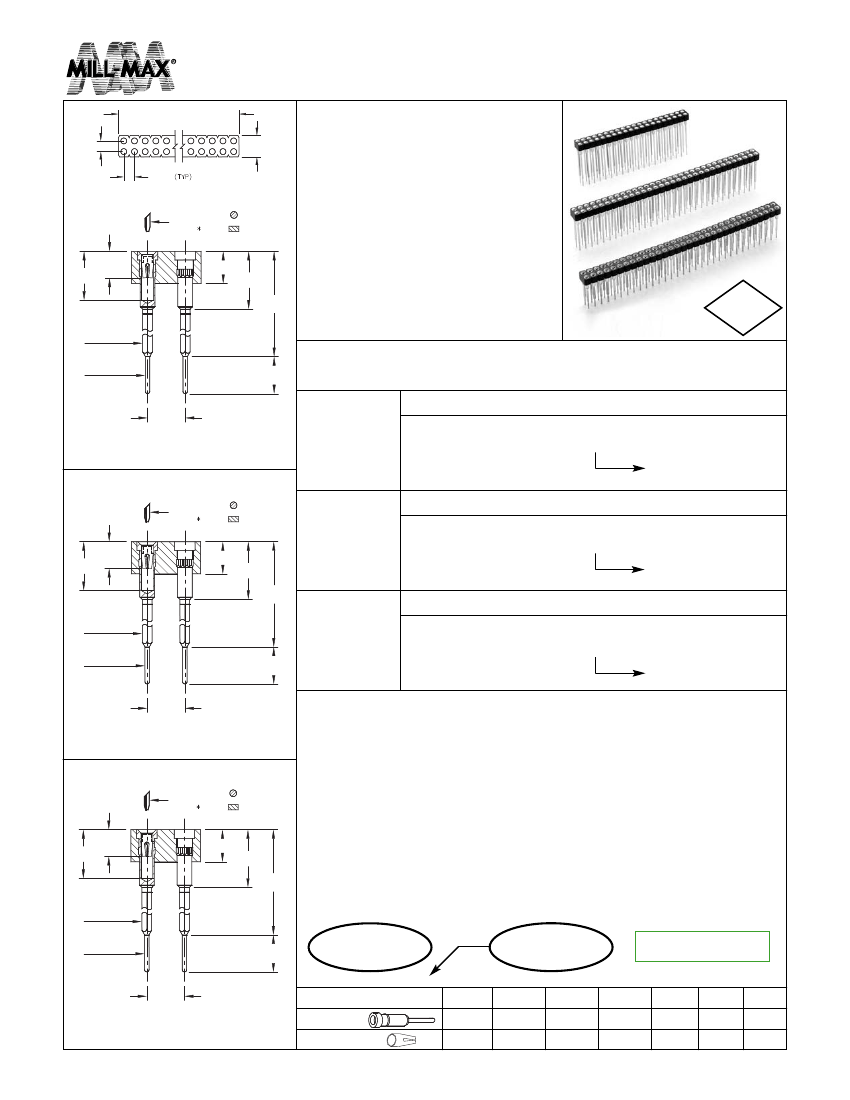

SINGLE-IN-LINE SOCKETS

2,54 Grid Wrapost with Solder Tail

Double Row

Number of Pins X 2,54 / 2

Series 426

2,54

5,08

•

Wrapost / Solder tail combination for

interconnect purposes are available in

3 lengths using pin numbers:

426...001 uses pin # 2601

426...002 uses pin # 2602

426...003 uses pin # 2603

See page 167 for details.

•

Hi-Rel, 4-finger BeCu #30 contact is

rated at 3 amps. See page 218 for details.

2,54

0,38-0,64

0,25 0,46

4,11

2,36

2,79

4,9

10,8

•

Insulators are high temp. thermoplastic.

2002/95/EC

RoHS

0,64

SQUARE

0,46 DIA.

3,2

Ordering Information

Series 426...001

1 Level Wrapost

2,54

Fig. 1

426-XX-2_ _-41-001000

Specify # of pins

Series 426...002

02-64

2 Level Wrapost

0,38-0,64

0,25 0,46

4,11

2,36

Fig. 2

2,79

4,9

13,79

426-XX-2_ _-41-002000

Specify # of pins

Series 426...003

02-64

3 Level Wrapost

0,64

SQUARE

0,46 DIA.

3,2

Fig. 3

426-XX-2_ _-41-003000

Specify # of pins

02-64

2,54

Fig. 2

0,38-0,64

0,25 0,46

4,11

2,36

2,79

4,9

16,79

0,64

SQUARE

0,46 DIA.

3,2

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

2,54

SPECIFY PLATING CODE XX=



0,25µm Au

0,76µm Au

5,08µm Sn/Pb

0,76µm Au



5,08µm Sn

0,76µm Au



Sleeve (Pin)

Fig. 3

Contact (Clip)

w w w. m i l l - m a x . c o m



516-922-6000
