1-1735481-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1-1735481-0

Preview

1-1735481-0: Descriptionconn recept 200pos 0.8mm pcb; CategoryThe connector; File Size115KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1735481-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1735481-0	-	-	View	Buy Now

1-1735481-0 Overview

conn recept 200pos 0.8mm pcb

1-1735481-0 Parametric

Parameter Name	Attribute value
Datasheets

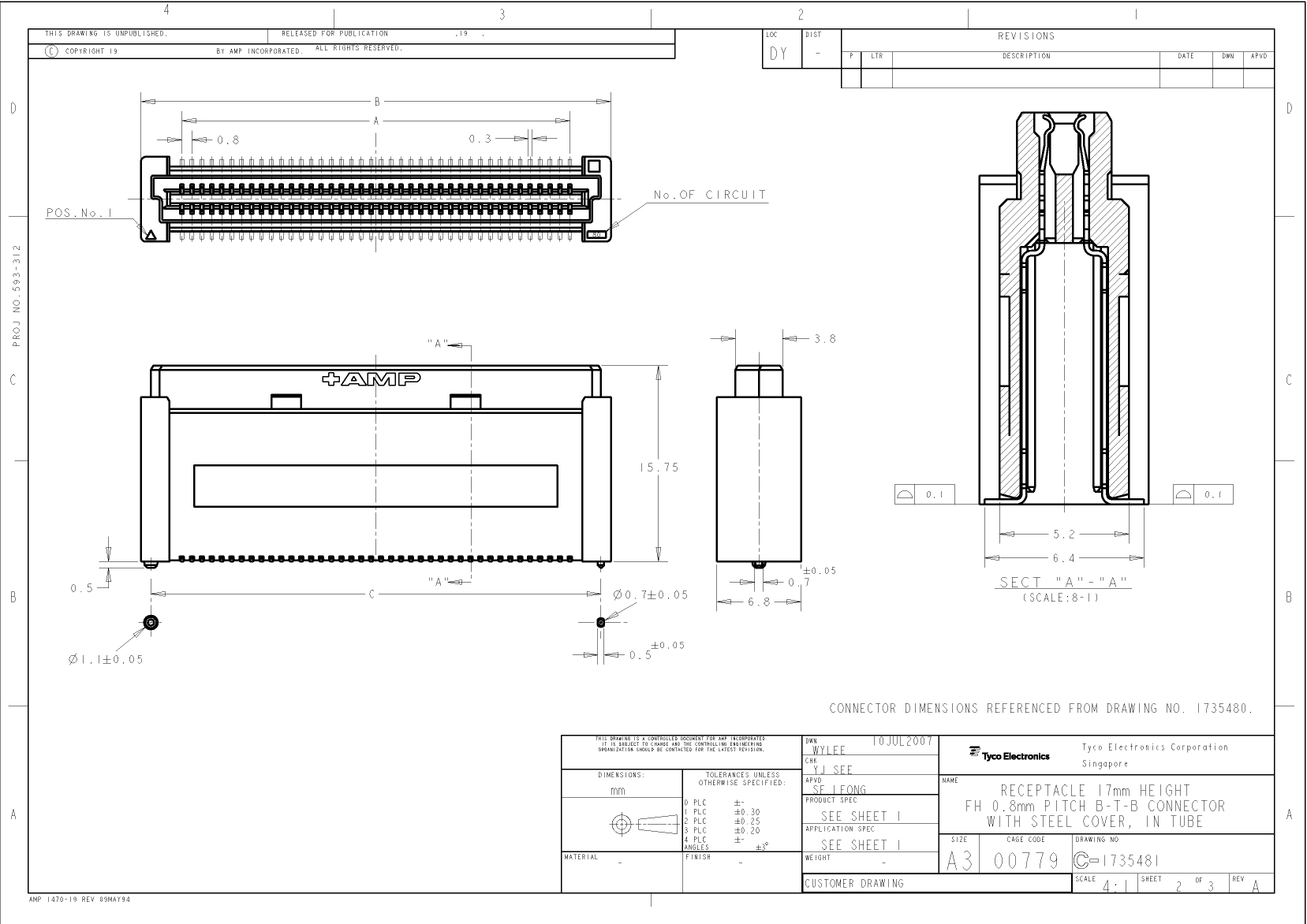

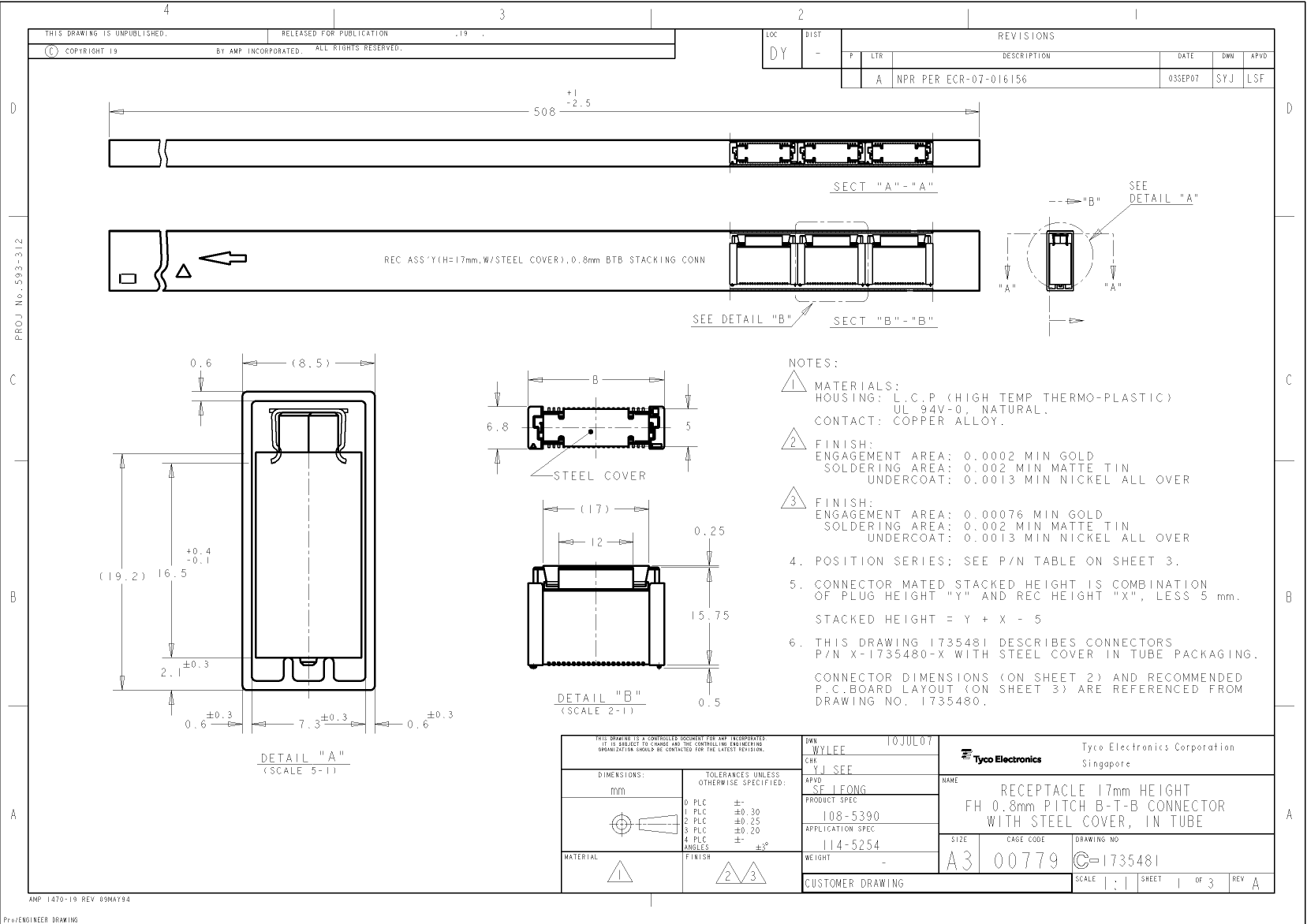

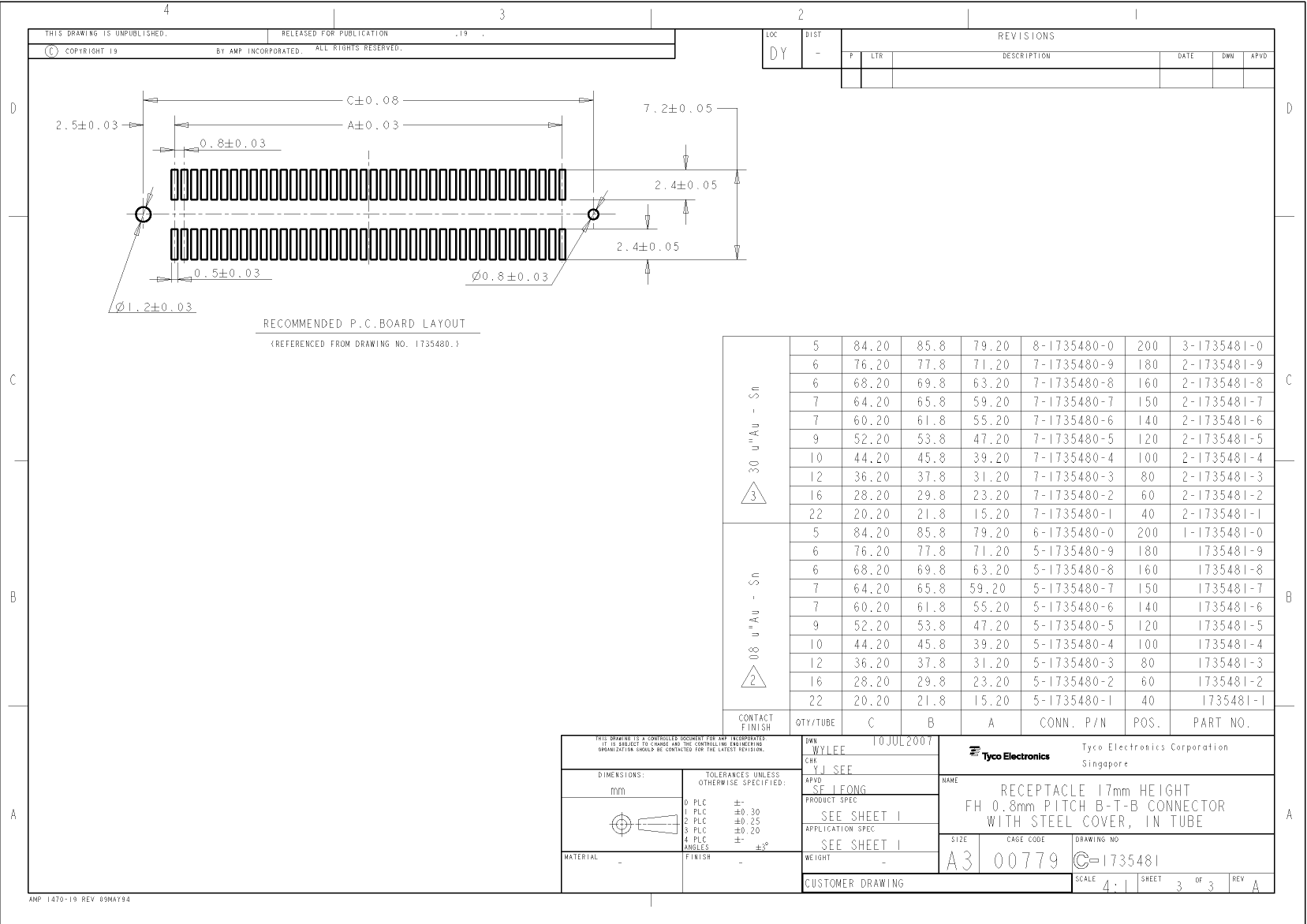

1735481 Drawing
Standard Package	300
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	200
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8µin (0.20µm)
Mated Stacking Heights	17mm
Height Above Board	0.620" (15.75mm)
Other Names	A119234

Preview

Download Datasheet

View All

1-1735481-0 Related Products

	1-1735481-0	1735481-1	1735481-3	1735481-6	1735481-4	1735481-7	2-1735481-7	1735481-9	2-1735481-6
Description	conn recept 200pos 0.8mm pcb	sata backplane rcpt vert smd	sata backplane rcpt vert smd	0.8fh,r17h.5,140,08/SN,TU,SC	sata backplane rcpt vert smd	sata backplane rcpt vert smd	0.8fh r17h.5 140 30/SN TU SC	0.8fh,r17h.5,180,08/SN,TU,SC	0.8fh,r17h.5,140,30/SN,TU,SC
Standard Package	300	1,320	720	7	600	360	1	6	7
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts	Receptacle, Center Strip Contacts
Number of Positions	200	40	80	140	100	150	150	180	140
Pitch	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)
Number of Rows	2	2	2	2	2	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Features	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	30µin (0.76µm)	8µin (0.20µm)	30µin (0.76µm)
Mated Stacking Heights	17mm	17mm	17mm	17mm	17mm	17mm	17mm	17mm	17mm
Height Above Board	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)	0.620" (15.75mm)
Other Names	A119234	A119242	A119243	A118586	A119244	A119245	A119655	A118587	A118685
