BTH-120-01-L-D-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTH-120-01-L-D-A

BTH-120-01-L-D-A: Descriptionconn hdr 240pos 0.5mm smd; CategoryThe connector The connector; File Size492KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTH-120-01-L-D-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BTH-120-01-L-D-A	-	-	View	Buy Now

BTH-120-01-L-D-A Overview

conn hdr 240pos 0.5mm smd

BTH-120-01-L-D-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Factory Lead Time	8 weeks
Other features	E.L.P.
Board mount options	POSITIONING PIN
body width	0.235 inch
subject depth	0.168 inch
body length	2.559 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BTH
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.096 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.25 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

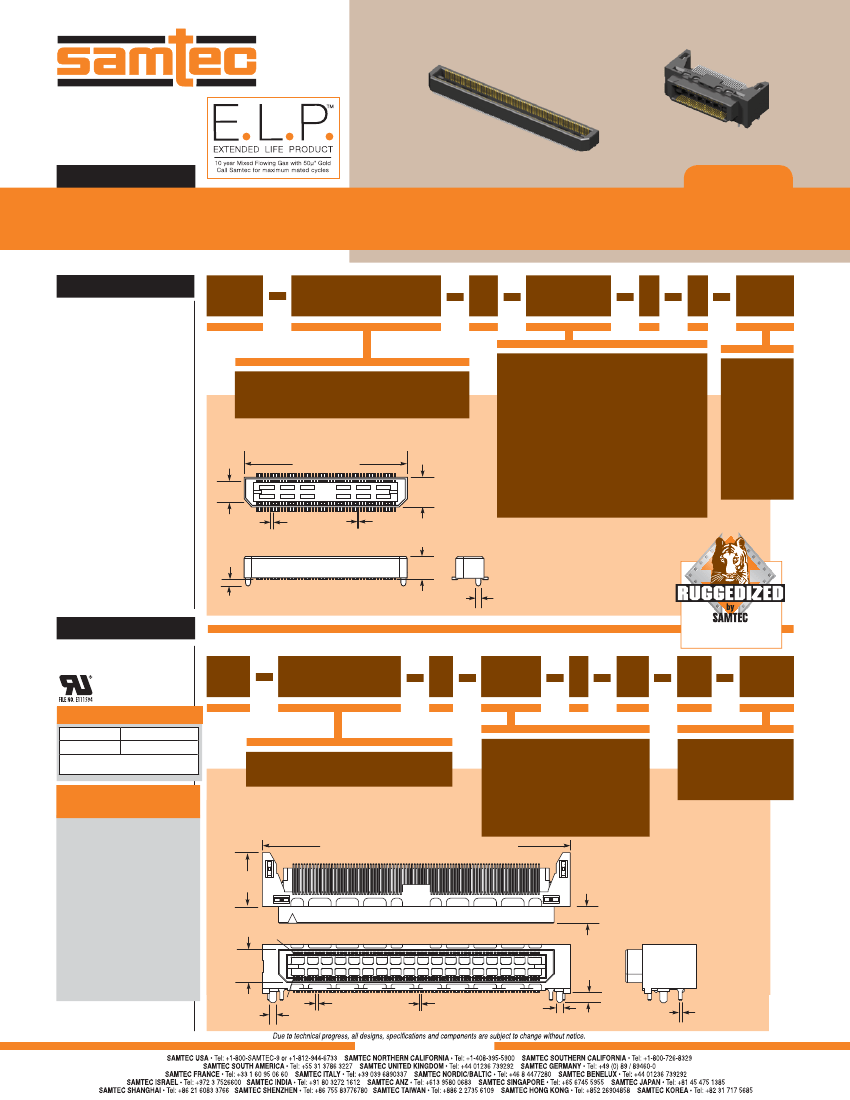

F-214 (Rev 11MAR14)

BTH–030–01–L–D–RA–WT

BTH–090–01–F–D–A

(0,50 mm) .0197"

BTH SERIES

BASIC BLADE & BEAM HEADER

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?BTH

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

2.0 A per pin

(1 pin powered per row)

Flammability Rating:

UL 94 VO

Operating Temp Range:

-55°C to +125°C

Voltage Rating:

275 VAC

Max Cycles:

100

RoHS Compliant:

Yes

BTH

Mates with:

BSH

NO. OF POSITIONS

PER ROW

PLATING

OPTION

OTHER

OPTION

–F

–030, –050, –060,

–090, –120, –150

= Gold Flash on contact, Matte Tin on tail

–K

= (7,00 mm)

.276" DIA

Polyimide Film

Pick

& Place Pad

–L

= 10µ" (0,25 µm) Gold on contact,

Matte Tin on tail

Processing:

No. of Positions x (0,50) .01969

+ (5,00) .197

(3,94)

.155

–C*

(5,97)

.235

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

Vertical=

(0,10 mm) .004" max (030-090)

Vertical=

(0,15 mm) .006" max (120-150)

Right Angle=

(0,15 mm) .006" max (030-090)

Board Stacking:

For applications requiring more

than two connectors per board

or 90 positions or higher, contact

ipg@samtec.com

(0,50)

.01969

(0,20)

.008

= Electro-Polished Selective

50µ" (1,27 µm) min Au over 150µ" (3,81 µm)

Ni on Signal Pins in contact area,

Matte Tin over 50µ" (1,27 µm) min

Ni on all solder tails

*Note:

–C Plating passes 10 year MFG testing

–TR

= Tape & Reel

(120 positions

maximum)

(0,76)

.030

(4,27)

.168

(0,89)

.035

DIA

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

• Passes

10 year MFG

BTH

Mates with:

BSH

NO. OF POSITIONS

PER ROW

PLATING

OPTION

OTHER

OPTION

MATED HEIGHT

LEAD STYLE MATED HEIGHT*

–01

(5,00) .197

*Processing conditions will

affect mated height.

–030, –060, –090

–F

= Gold Flash on contact,

Matte Tin on tail

–K

= (7,00 mm) .276" DIA

Polyimide Film Pick

& Place Pad

ALSO AVAILABLE

(MOQ Required)

• 30µ" (0,76 µm) Gold

• Edge Mount Capability

• 8 mm, 11 mm, 16 mm,

19 mm and 22 mm Stack

Height (Caution: Some

automatic placement/

inspection machines may

have component height

restrictions. Please consult

machinery speciﬁcations.)

(11 mm, 16 mm, 19 mm

and 22 mm not available

with 50 positions)

Contact Samtec.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

–L

= 10µ" (0,25 µm) Gold on contact,

Matte Tin on tail

No. of Positions x (0,50) .01969 + (10,88) .428

(9,78)

.385

(3,05)

.120

(5,97)

.235

(0,71)

.028

(0,50)

.01969

(0,20)

.008

(1,32) (1,10)

.052 x .043

(0,64)

.025

(1,32)

.052

DIA

WWW.SAMTEC.COM

BTH-120-01-L-D-A Related Products

	BTH-120-01-L-D-A	BSH-090-01-L-D-A-TR	BSH-030-01-F-D-A	BSH-120-01-L-D-A-TR	BSH-120-01-L-D-A
Description	conn hdr 240pos 0.5mm smd	conn micro socket 180 pos 0.50mm	conn rcpt 60pos 0.5mm smd	conn micro socket 240 pos 0.50mm	conn rcpt 240pos 0.5mm smd
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compli	compli
Factory Lead Time	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks
Other features	E.L.P.	E.L.P	E.L.P.	E.L.P	E.L.P.
Board mount options	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN
body width	0.235 inch	0.285 inch	0.285 inch	0.285 inch	0.285 inch
subject depth	0.168 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch
body length	2.559 inch	2.019 inch	0.837 inch	2.609 inch	2.609 inch
Body/casing type	RECEPTACLE	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD FLASH OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	6.096 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm
Plating thickness	10u inch	10u inch	FLASH inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	1.25 A	1.25 A	1.25 A	1.25 A	1.25 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	240	180	60	240	240
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
Manufacturer's serial number	BTH	BSH	BSH	-	-
Maker	-	SAMTEC	-	SAMTEC	SAMTEC
Is Samacsys	-	N	-	N	N
