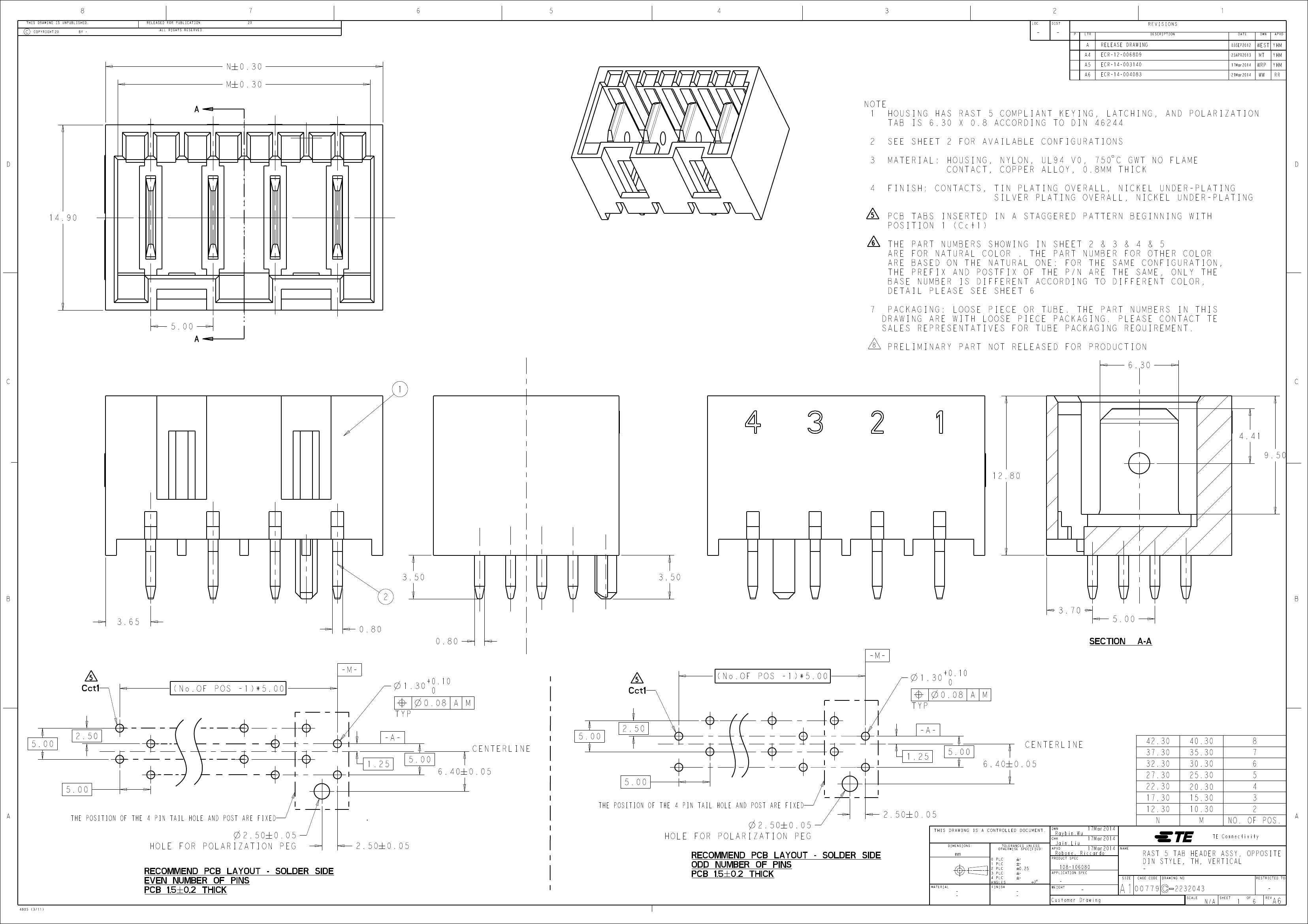

NOTE
1 HOUSING HAS RAST 5 COMPLIANT KEYING, LATCHING, AND POLARIZATION
TAB IS 6.30 X 0.8 ACCORDING TO DIN 46244
2
D
SEE SHEET 2 FOR AVAILABLE CONFIGURATIONS
MATERIAL: HOUSING, NYLON, UL94 V0, 750 $ C GWT NO FLAME
CONTACT, COPPER ALLOY, 0.8MM THICK
FINISH: CONTACTS, TIN PLATING OVERALL, NICKEL UNDER-PLATING
SILVER PLATING OVERALL, NICKEL UNDER-PLATING
PCB TABS INSERTED IN A STAGGERED PATTERN BEGINNING WITH
POSITION 1 (Cct1)
THE PART NUMBERS SHOWING IN SHEET 2
& 3 & 4 & 5
ARE FOR NATURAL COLOR . THE PART NUMBER FOR OTHER COLOR
ARE BASED ON THE NATURAL ONE: FOR THE SAME CONFIGURATION,
THE PREFIX AND POSTFIX OF THE P/N ARE THE SAME, ONLY THE
BASE NUMBER IS DIFFERENT ACCORDING TO DIFFERENT COLOR,
DETAIL PLEASE SEE SHEET 6
PACKAGING: LOOSE PIECE OR TUBE. THE PART NUMBERS IN THIS
DRAWING ARE WITH LOOSE PIECE PACKAGING. PLEASE CONTACT TE
SALES REPRESENTATIVES FOR TUBE PACKAGING REQUIREMENT.
PRELIMINARY PART NOT RELEASED FOR PRODUCTION
6.30
D
3
4
14.90
5
6
7
5.00
8
C
1
C
4.41
9.50
12.80
3.50
B
3.50
3.70
0.80
-M-
+0.10
0
B
2
3.65
0.80
5.00
SECTION
A-A
Cct1
5
-M-
(No.OF POS -1)*5.00
+0.10
1.30
0
TYP
A M
5.00
Cct1
5
(No.OF POS -1)*5.00
1.30
TYP
A M
5.00
2.50
-A-
1.25
5.00
6.40
2.50
-A-
1.25
5.00
CENTERLINE
6.40
0.05
CENTERLINE
5.00
A
5.00
THE POSITION OF THE 4 PIN TAIL HOLE AND POST ARE FIXED
THE POSITION OF THE 4 PIN TAIL HOLE AND POST ARE FIXED
HOLE FOR POLARIZATION PEG
RECOMMEND PCB LAYOUT - SOLDER SIDE
EVEN NUMBER OF PINS
PCB 1.5 # 0.2 THICK
4805 (3/11)
2.50
2.50 0.05
HOLE FOR POLARIZATION PEG
RECOMMEND PCB LAYOUT - SOLDER SIDE
ODD NUMBER OF PINS
PCB 1.5 # 0.2 THICK
2.50
0.05
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
Raybin.Wu
Jain.Liu
17Mar2014
17Mar2014
NAME
42.30
37.30
32.30
27.30
22.30
17.30
12.30
N
40.30
35.30
30.30
25.30
20.30
15.30
10.30
M
8
7
6
5
4
3
2
NO. OF POS.
TE Connectivity
A
mm
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.25
-
-
PRODUCT SPEC
17Mar2014
Robone, Riccardo
108-106080
-
APPLICATION SPEC
2 $
-
-
-
-
WEIGHT
-
Customer Drawing
A1
00779
SIZE
CAGE CODE
RAST 5 TAB HEADER ASSY, OPPOSITE
DIN STYLE, TH, VERTICAL
-
DRAWING NO
RESTRICTED TO
2232043
SCALE
N/A
SHEET
1
OF
6
REV
-
A6
