5-5179009-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-5179009-1

5-5179009-1: Descriptionconn rcpt 40pos DL brd/brd vert; CategoryThe connector; File Size502KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-5179009-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-5179009-1	-	-	View	Buy Now

5-5179009-1 Overview

conn rcpt 40pos DL brd/brd vert

5-5179009-1 Parametric

Parameter Name	Attribute value
Datasheets
5179009 Drawing
RoHS Informati
5-5179009-1 Statement of Compliance
RoHS 2 Stateme
3D Model
5-5179009-1.pdf
Standard Package	22
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	40
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8µin (0.20µm)
Mated Stacking Heights	9mm, 10mm, 11mm, 12mm
Height Above Board	0.305" (7.75mm)
Mating Products	A115335-ND - CONN PLUG 40POS DL BRD/BRD VERT5179030-1-ND - CONN PLUG 40POS FH .8MM BRD-BRDA115326-ND - CONN PLUG 40POS VERT FH .8MM
Other Names	5-5179009-1-NDA115410

Preview

Download Datasheet

View All

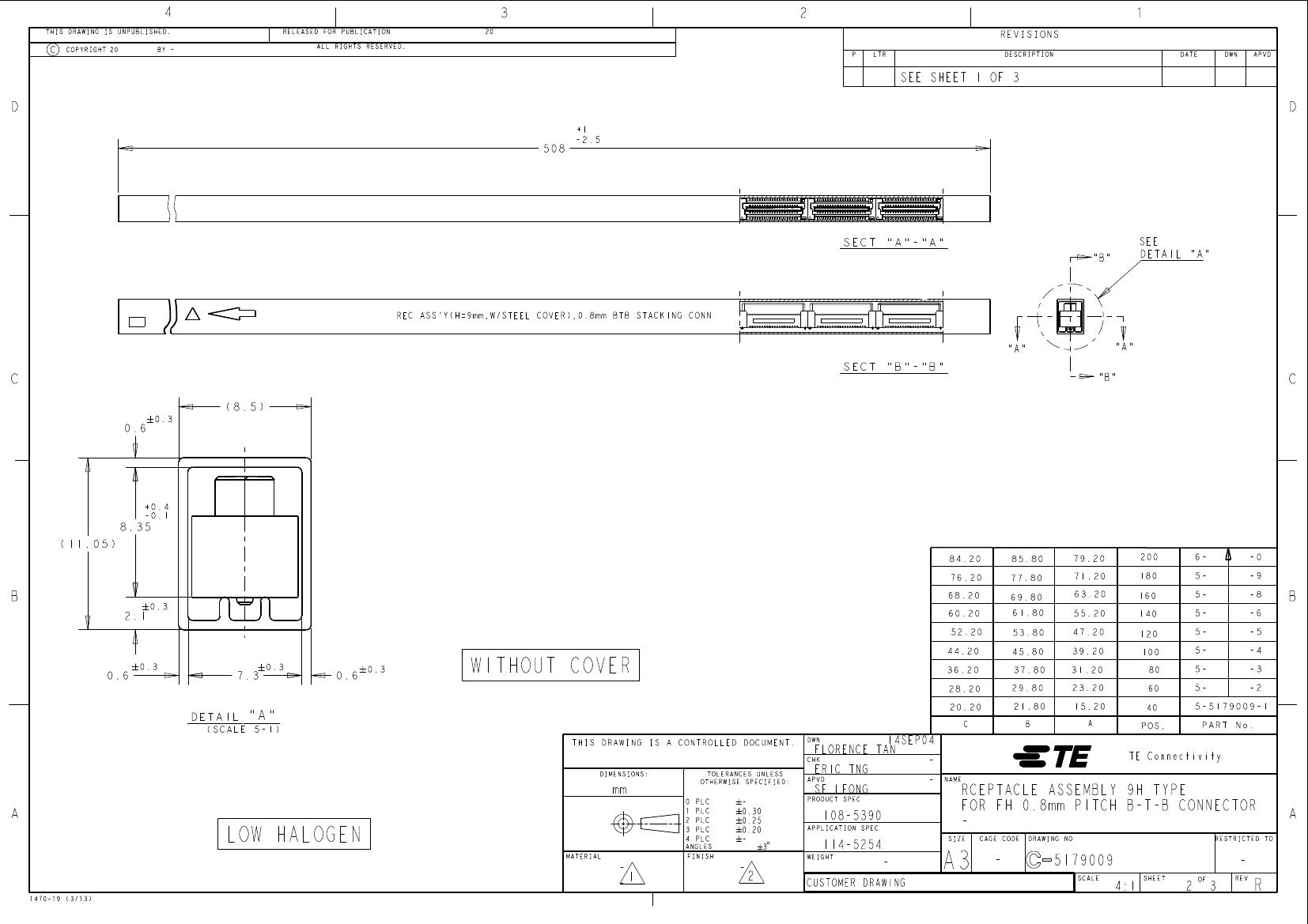

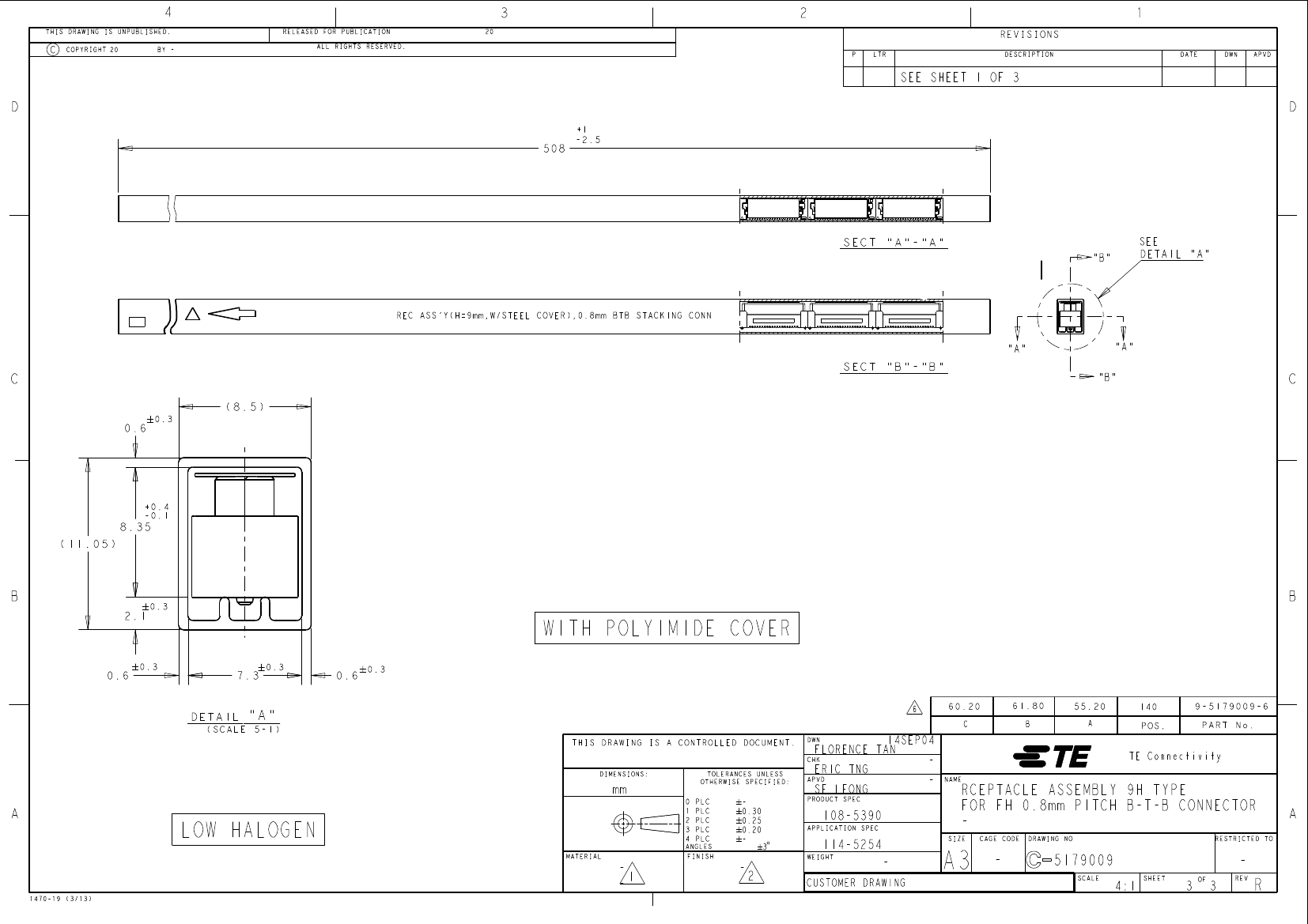

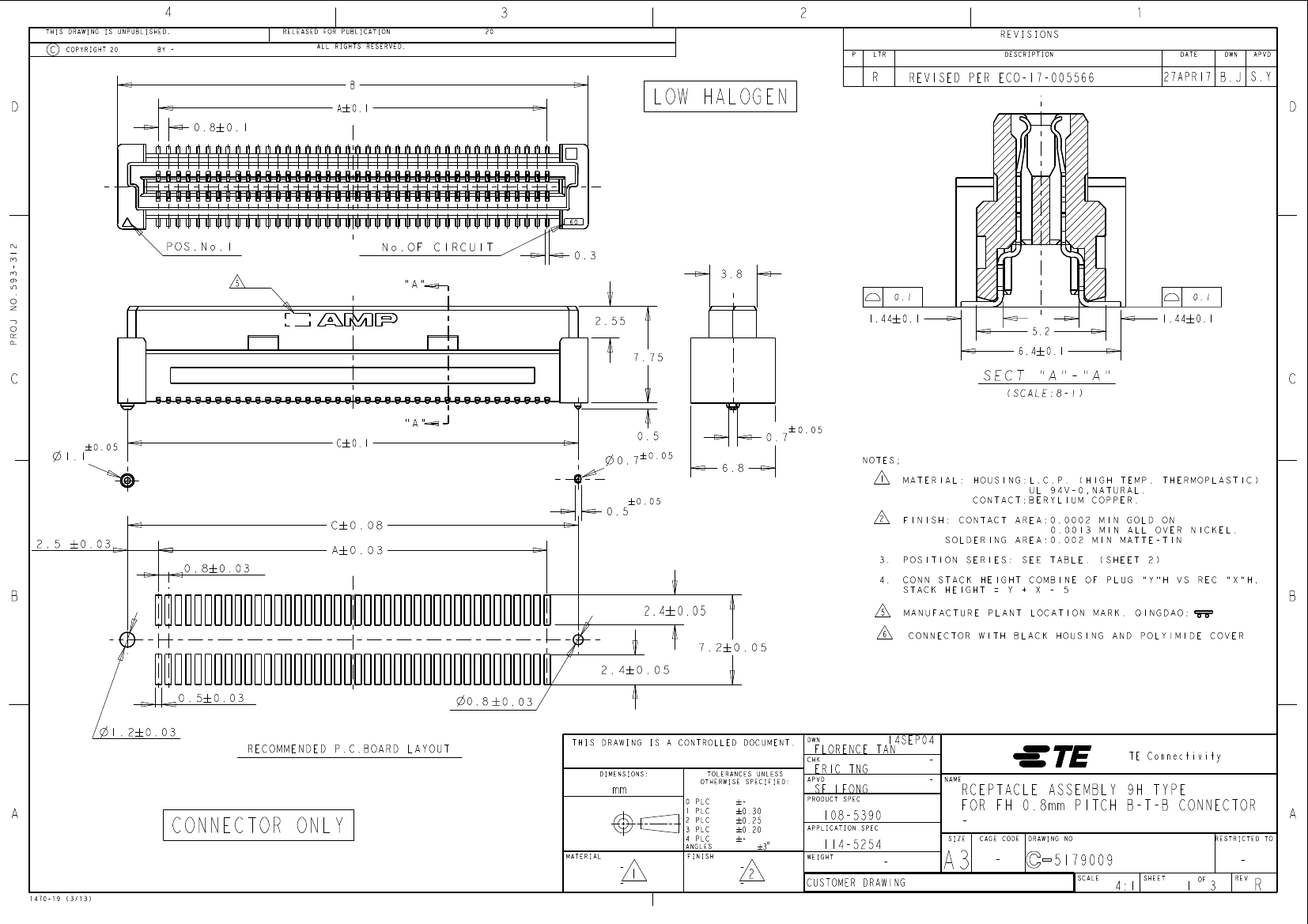

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY -

0.8

LOW HALOGEN

REVISED PER ECO-17-005566

27APR17

B.J S.Y

PROJ NO.593-312

POS.No.1

No.OF CIRCUIT

"A"

0.3

3.8

0.1

2.55

7.75

1.44 # 0.1

5.2

6.4 # 0.1

1.44 # 0.1

"A"

1.1

0.05

SECT "A"-"A"

(SCALE:8-1)

0.5

0.7

0.05

0.7

6.8

0.05

NOTES;

MATERIAL: HOUSING:L.C.P. (HIGH TEMP. THERMOPLASTIC)

UL 94V-0,NATURAL.

CONTACT:BERYLIUM COPPER.

FINISH: CONTACT AREA:0.0002 MIN GOLD ON

0.0013 MIN ALL

OVER NICKEL.

SOLDERING AREA:0.002 MIN MATTE-TIN

POSITION SERIES: SEE TABLE. (SHEET 2)

CONN STACK HEIGHT COMBINE OF PLUG "Y "H VS REC "X"H.

STACK HEIGHT = Y + X - 5

MANUFACTURE PLANT LOCATION MARK. QINGDAO:

CONNECTOR WITH BLACK HOUSING AND POLYIMIDE COVER

C 0.08

2.5

0.03

0.8 0.03

A 0.03

0.5

0.05

2.4 # 0.05

7.2 0.05

2.4 0.05

0.5 0.03

1.2 0.03

0.8

0.03

RECOMMENDED P.C.BOARD LAYOUT

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

CONNECTOR ONLY

MATERIAL

ANGLES

PLC

0.30

0.25

0.20

14SEP04

FLORENCE TAN

CHK

ERIC TNG

APVD

SF LEONG

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

108-5390

114-5254

1470-19 (3/13)

FINISH

3 $

WEIGHT

CUSTOMER DRAWING

SIZE

RCEPTACLE ASSEMBLY 9H TYPE

FOR FH 0.8mm PITCH B-T-B CONNECTOR

CAGE CODE

DRAWING NO

RESTRICTED TO

5179009

SCALE

4:1

SHEET

REV

5-5179009-1 Related Products

	5-5179009-1	5-5179009-2	5-5179009-3	5-5179009-4	5-5179009-8	5-5179009-6	5-5179009-9	6-5179009-0
Description	conn rcpt 40pos DL brd/brd vert	conn recept 60pos dual vert .8mm	conn recept 80pos .8mm AU smd	conn rcpt 100pos .8mm FH 9H gold	conn rcpt 160pos .8mm FH 9H gold	conn recept 140pos .8mm AU smd	conn recept 180pos .8mm AU smd	conn rcpt 200pos .8mm FH 9H gold
Standard Package	22	16	3,600	10	1,800	350	1,800	1,500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	40	60	80	100	160	140	180	200
Pitch	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)
Number of Rows	2	2	2	2	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Features	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)	8µin (0.20µm)
Mated Stacking Heights	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm	9mm, 10mm, 11mm, 12mm
Height Above Board	0.305" (7.75mm)	0.305" (7.75mm)	0.305" (7.75mm)	0.305" (7.75mm)	0.305" (7.75mm)	0.305" (7.75mm)	0.305" (7.75mm)	0.305" (7.75mm)
Mating Products	A115335-ND - CONN PLUG 40POS DL BRD/BRD VERT5179030-1-ND - CONN PLUG 40POS FH .8MM BRD-BRDA115326-ND - CONN PLUG 40POS VERT FH .8MM	A99196DKR-ND - CONN PLUG 60POS .8MM FH 5H GOLD6123002-2-ND - CONN PLUG 60POS VERT BRD/BRDA111363TR-ND - CONN PLUG 60POS .8MM DUAL SMT5-5177986-2-ND - CONN PLUG 60POS FH VERT PCB5084615-2-ND - CONN PLUG 60POS .8MM DUAL SMT5084614-2-ND - CONN PLUG 60POS .8MM DUAL SMTA115336-ND - CONN PLUG 60POS DL BRD/BRD VERT5179030-2-ND - CONN PLUG 60POS FH .8MM BRD-BRD5177984-2-ND - CONN PLUG 60POS VERT FH .8MMA99215CT-ND - CONN PLUG 60POS .8MM FH 8H GOLDA99209CT-ND - CONN PLUG 60POS .8MM FH 7H GOLDA99203CT-ND - CONN PLUG 60POS .8MM FH 6H GOLDA99196CT-ND - CONN PLUG 60POS .8MM FH 5H GOLDA99215TR-ND - CONN PLUG 60POS .8MM FH 8H GOLDA99209TR-ND - CONN PLUG 60POS .8MM FH 7H GOLDA99203TR-ND - CONN PLUG 60POS .8MM FH 6H GOLDA99196TR-ND - CONN PLUG 60POS .8MM FH 5H GOLD1-5179030-2-ND - CONN PLUG 60POS FH .8MM BRD-BRDA115331-ND - CONN PLUG 60POS DUAL VERT .8MM	6123002-3-ND - CONN PLUG 80POS VERT BRD/BRD6123001-3-ND - CONN PLUG 80POS .8MM DUAL SMT5179230-3-ND - CONN PLUG 80POS FH .8MM BRD-BRDA111316TR-ND - CONN PLUG 80POS FH VERT PCB5084614-3-ND - CONN PLUG 80POS .8MM DUAL SMTA115334-ND - CONN PLUG 80POS FH .8MM BRD-BRD5177984-3-ND - CONN PLUG 80POS VERT FH .8MMA115337-ND - CONN PLUG 80POS DUAL VERTA99216CT-ND - CONN PLUG 80POS .8MM FH 8H GOLDA99210CT-ND - CONN PLUG 80POS .8MM FH 7H GOLDA99204CT-ND - CONN PLUG 80POS .8MM FH 6H GOLDA99197CT-ND - CONN PLUG 80POS .8MM FH 5H GOLDA99216TR-ND - CONN PLUG 80POS .8MM FH 8H GOLDA99210TR-ND - CONN PLUG 80POS .8MM FH 7H GOLDA99204TR-ND - CONN PLUG 80POS .8MM FH 6H GOLDA99197TR-ND - CONN PLUG 80POS .8MM FH 5H GOLD2-5179230-3-ND - CONN PLUG 80POS FH .8MM BRD-BRD1-5179030-3-ND - CONN PLUG 80POS FH .8MM BRD-BRD5179029-3-ND - CONN PLUG 80POS DUAL VERT .8MM	A115327-ND - CONN PLUG VERT 100POS NATURALA99217CT-ND - CONN PLUG 100POS .8MM FH 8H GOLDA99211CT-ND - CONN PLUG 100POS .8MM FH 7H GOLDA99205CT-ND - CONN PLUG 100POS .8MM FH 6H GOLDA99198CT-ND - CONN PLUG 100POS .8MM FH 5H GOLDA99217TR-ND - CONN PLUG 100POS .8MM FH 8H GOLDA99211TR-ND - CONN PLUG 100POS .8MM FH 7H GOLDA99205TR-ND - CONN PLUG 100POS .8MM FH 6H GOLDA99198TR-ND - CONN PLUG 100POS .8MM FH 5H GOLD2-5179230-4-ND - CONN PLUG 100POS FH .8MM BRD-BRD1-5179030-4-ND - CONN PLUG 100POS FH .8MM BRD-BRDA115332-ND - CONN PLUG 100POS DUAL VERT .8MM5179031-4-ND - CONN PLUG 100POS DL BRD/BRD VERT5179030-4-ND - CONN PLUG 100POS DL BRD/BRD VERT	179029-8-ND - CONN PLUG 160POS VERT .8MM SMD	6123002-6-ND - CONN PLUG 140POS VERT BRD/BRD6123001-6-ND - CONN PLUG 140POS .8MM DUAL SMT5179030-6-ND - CONN PLUG 140POS FH .8MM BRD-BRD5-5177986-6-ND - CONN PLUG 140POS FH VERT PCB5084615-6-ND - CONN PLUG 140POS .8MM DUAL SMT5084614-6-ND - CONN PLUG 140POS .8MM DUAL SMT5179031-6-ND - CONN PLUG 140POS DL BRD/BRD VERT5179029-6-ND - CONN PLUG 140POS VERT BRD-BRDA115328-ND - CONN PLUG 140POS VERT FH .8MM6-5177986-6-ND - CONN PLUG 140POS FH VERT BRD-BRDA99219CT-ND - CONN PLUG 140POS .8MM FH 8H GOLDA99212CT-ND - CONN PLUG 140POS .8MM FH 7H GOLDA99207CT-ND - CONN PLUG 140POS .8MM FH 6H GOLDA99200CT-ND - CONN PLUG 140POS .8MM FH 5H GOLDA99219TR-ND - CONN PLUG 140POS .8MM FH 8H GOLDA99212TR-ND - CONN PLUG 140POS .8MM FH 7H GOLDA99207TR-ND - CONN PLUG 140POS .8MM FH 6H GOLDA99200TR-ND - CONN PLUG 140POS .8MM FH 5H GOLD1-5179030-6-ND - CONN PLUG 140POS FH .8MM BRD-BRD179029-6-ND - CONN PLUG 140POS VERT .8MM SMD	6123002-9-ND - CONN PLUG 180POS VERT BRD/BRD5179230-9-ND - CONN PLUG 180POS FH .8MM BRD-BRD5179031-9-ND - CONN PLUG 180POS DL BRD/BRD VERT5179029-9-ND - CONN PLUG 180POS .8MM FH 6H GOLDA115329-ND - CONN PLUG 180POS VERT FH .8MM5084615-9-ND - CONN PLUG 180POS .8MM DUAL SMT5179030-9-ND - CONN PLUG VERT 180POS NATURAL2-5179230-9-ND - CONN PLUG 180POS FH .8MM BRD-BRD3-5177986-9-ND - CONN PLUG 180POS FH VERT PCB179029-9-ND - CONN PLUG 180POS VERT .8MM SMD	A99188-ND - CONN PLUG 200POS .8MM FH 5H 8AU1-6123002-0-ND - CONN PLUG 200POS VERT BRD/BRD3-5179230-0-ND - CONN PLUG 200POS FH .8MM BRD-BRD1-5179230-0-ND - CONN PLUG 200POS FH .8MM BRD-BRDA99227-ND - CONN PLUG 200POS DL BRD/BRD VERT3-5179030-0-ND - CONN PLUG 200POS FH .8MM BRD-BRD2-5179030-0-ND - CONN PLUG 200POS FH .8MM BRD-BRDA99226-ND - CONN PLUG 200POS FH .8MM BRD-BRDA99225-ND - CONN PLUG 200POS .8MM FH 6H GOLD2-5084615-0-ND - CONN PLUG 200POS .8MM DUAL SMT1-179029-0-ND - CONN PLUG 200POS VERT .8MM SMD
Other Names	5-5179009-1-NDA115410	5-5179009-2-NDA115411	-	5-5179009-4-NDA115412	A99221	5-5179009-6-NDA115413	-	A99222
