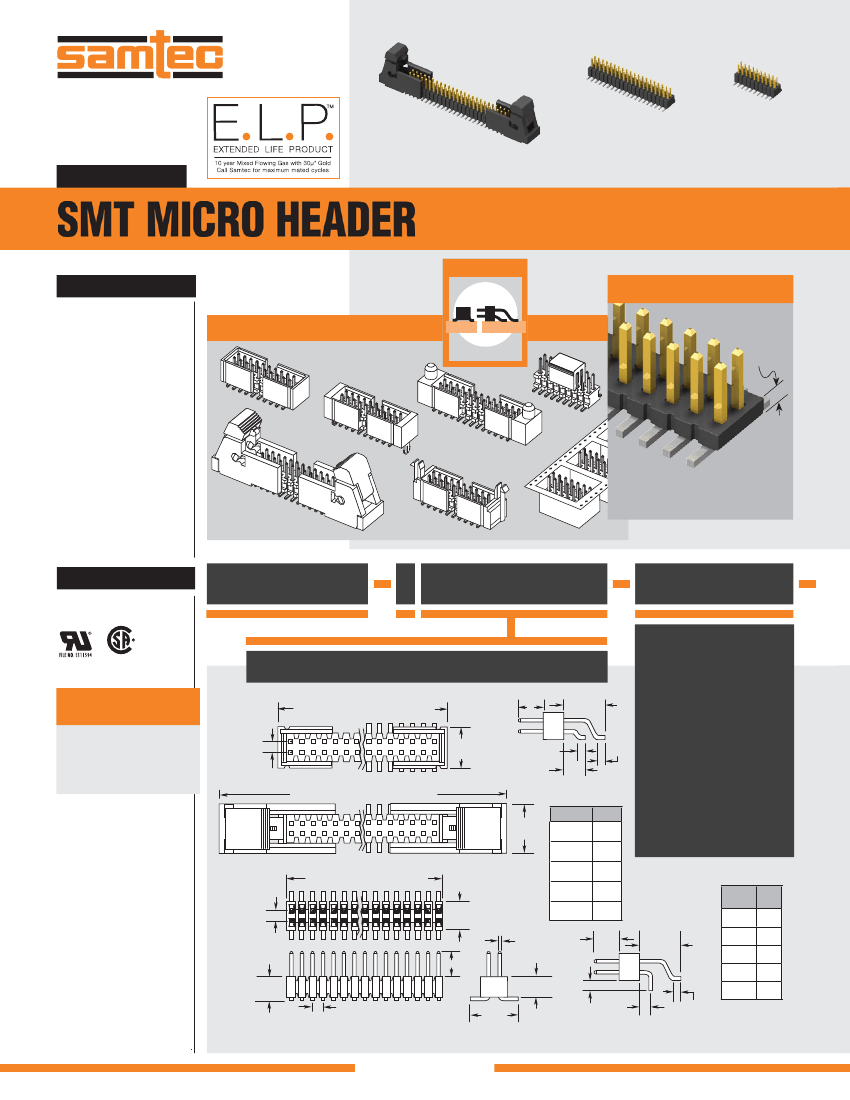

F-215 (Rev 17SEP15)
FTSH–110–01–L–DV
FTSH–120–01–F–DV
FTSH–125–01–L–DV–EJ
(1.27 mm) .050"
SMT MICRO HEADER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?FTSH
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over
50µ" (1.27 µm) Ni
Current Rating (FTSH/CLP):
3.3 A per pin
(1 pin powered per row)
Operating Temp Range:
-55°C to +125°C
RoHS Compliant:
Yes
–ES OPTION
–EC OPTION
Mates with:
FFSD, FFTP, CLP, FLE
APPLICATIONS
OTHER SOLUTIONS
CLP FTSH
OPTIONS
HORIZONTAL
–P OPTION
(1.27 mm)
.050"
–EP OPTION
Processing:
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
–MT & –DV Tail Option:
(0.10 mm) .004" max (02-25)
–MT & –DH Tail Option:
(0.15 mm) .006" max (26-50)
–EJ OPTION
–EL OPTION
–TR OPTION
Ultra-low profile option available.
End Shrouds available.
Call for FTS Series specifications.
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FTSH
1
NO. PINS
PER ROW
LEAD
STYLE
–01
FILE NO: 090871_0_000
02 thru 50
ALSO AVAILABLE
(MOQ Required)
• Molded Pick & Place pads
• Latches
• Other platings
Contact Samtec.
No. of positions x (1.27) .050 +
Z
02
100
= (3.05 mm) .120" Post
(Mates with FFSD, CLP–DH)
–02
A
(5.33)
.210
(0.81)
.032
= (1.91 mm) .075" Post
(Mates with FLE)
(4.78)
.188
(1.27)
.050
01
–EX OPTION SHOWN
99
No. of positions x (1.27) .050 +
Z
–DH
(Styles –01, –02, –04 only)
(5.64)
.222
(0.51)
.020
(2.29)
.090
–03
= (1.65 mm) .065" Post
(Mates with CLP–D)
–04
= (3.81 mm) .150" Post
OPTION
– ES
–EJ
Z
(2.57)
.101
(15.77)
.621
(3.33)
.131
(5.87)
.231
(6.53)
.257
–05
= (4.32 mm) .170" Post
(Mates with CLP–BE)
–EJ OPTION SHOWN
No. of positions x (1.27) .050
02
100
–EC
–EP
(3.43)
.135
–EL
(0.40)
.016
SQ
LEAD
STYLE
– 01
(5.08)
.200
A
(3.05)
.120
(1.91)
.075
(1.65)
.065
(3.81)
.150
(4.32)
.170
(1.27)
.050
01
99
A
– 02
– 03
– 04
– 05
A
(2.92)
.115
(2.51)
.099
(1.27) .050
(5.84)
.230
–DV
(1.27)
(0.81)
(2.29) .050
.032
.090
–MT
(Styles –01, –02 & –04 only)
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Note:
See SFM/TFM for
positive alignment feature.
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.

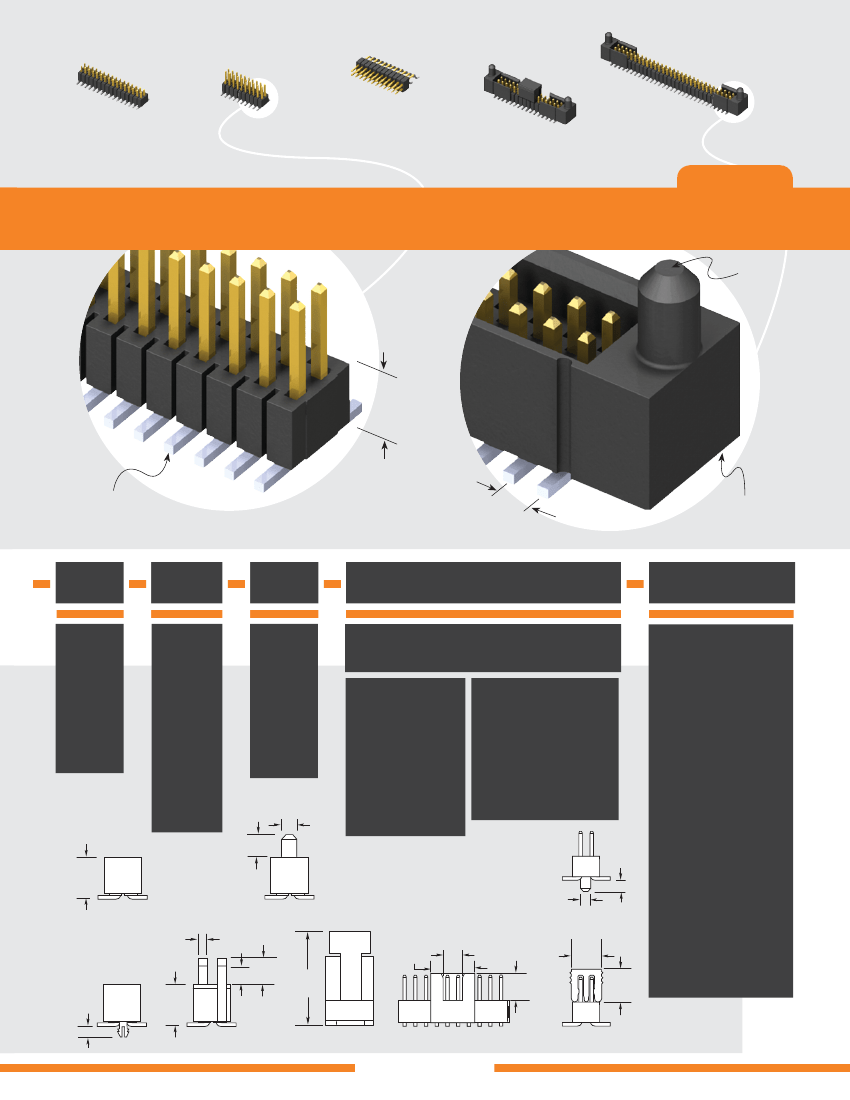

FTSH–112–02–L–DH
FTSH–130–02–L–DV–EP
FTSH–116–02–L–DV
FTSH–110–01–F–DV
FTSH–116–03–L–DV–EP–P
FTSH SERIES
Optional
guide
post
(2.92 mm)
.115"
Surface mount
(1.27 mm) .050"
micro pitch
Optional end
shrouds and
ejector shrouds
PLATING
OPTION
TAIL
OPTION
OPTION
FLEX SHROUD
OPTIONS
OTHER
OPTIONS
–F
= Gold flash
on post,
Matte Tin
on tail
–DV
= Double
Vertical
Leave Blank
for -DH & -MT
(Style –02 & –03 only, –DH & –MT not available)
9 pins/row minimum
(Other positions available. Call Samtec.)
–K
= Keying Shroud
(For mating with FFSD
Style –01 only and
05, 08, 10, 13, 17, 20 & 25
pins/row only. 13, 17, 20 & 25
pins/row only with –EJ option)
(–DV only)
–DH
= Double
Horizontal
(Styles
–01, –02 &
–04 only)
–“XXX”
= Polarized
Position
(Specify
position of
omitted pin)
(Not available
with -EX
options)
–L
= 10µ"
(0.25 µm)
Gold on post,
Matte Tin
on tail
–ES
= End Shroud
–EL
= End Shroud with Board Lock
(Boards are positively locked
and cannot be unmated)
–EC
= End Shroud
with Locking Clip
(Manual placement
required)
–MT
= Mixed
Technology
(Styles
–01, –02 &
–04 only)
–EP
(3.05)
.120
(1.91)
.075
DIA
= End Shroud
with Guide Post
= Ejector Shroud
(Style –01 only)
–DH & –MT not available
10 pins/row minimum
25 pins/row maximum
–EJ
–A
= Alignment Pin
(–DV 3 positions min.)
(–DH 5 positions min.)
(Metal or plastic at
Samtec discretion)
–C
= (5.00 mm) .197" DIA
Polyimide film
Pick & Place Pad
(–DH only)
(0.89)
.035
DIA
(4.83)
.190
–P
–A
(0.86)
.034
–ES
(1.17)
.046
(3.05)
.120
(1.22)
.048
(4.83)
.190
(2.29)
.090
–EP
= Pick & Place Pad
(–DV 4 positions min.)
(–DH & –MT not available)
(5.08)
.200
(11.18)
.440
(2.16)
.085
(3.20)
.126
(3.30)
.130
x
(5.08)
.200
–TR
(4.10)
.160
= Tape & Reel Packaging
(Flex Shroud options not
available except –ES & –EJ)
–EL
– EC
–EJ
–K
–P
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
