SMH102-LPSE-D07-SP-BK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> SMH102-LPSE-D07-SP-BK

Preview

SMH102-LPSE-D07-SP-BK: Descriptionconn header 14pos 1mm DL AU smd; CategoryThe connector; File Size267KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

SMH102-LPSE-D07-SP-BK Overview

conn header 14pos 1mm DL AU smd

SMH102-LPSE-D07-SP-BK Parametric

Parameter Name	Attribute value
Datasheets
SMH10x-LPxE-Dyy-Sz-BK
Product Photos
smh102-lpse-d07-sp-bk
Product Training Modules
1mm Header Series
Catalog Drawings
Header 1mm Male Dual SMD
Featured Produc
1.0 mm Headers
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tube
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	14
Number of Positions Loaded	All
Pitch	0.039" (1.00mm)
Number of Rows	2
Row Spacing	0.039" (1.00mm)
Contact Mating Length	0.075" (1.90mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10µin (0.25µm)
Col	Black
Dynamic Catalog	SMH Series
Mating Products	S9282-ND - CONN HDR FMAL 14PS 1MM DL AU SMDS9276-ND - CONN HDR FMAL 14PS 1MM DL AU T/HS9269-ND - CONN HDR FMAL 14PS 1MM DL AU SMD
Other Names	S9228

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

REVISIONS

REV.

C

D

F

ECO. NO

3121

3460

DESCRIPTION

UPDATE 'S' PLATING DESCRIPTION

UPDATE FLATNESS TOLERANCE AND WARPING

TOLERANCE

DATE

12/31/2014

06/02/2016

BY

LH

F

B

E

1.00 .039

3.10 .122

A

D

1.00 .039

0.30 .012

1.00 .039

'D'

1.00 .039

C

1.30 .051

5.20 .205

A

C

.10 [.004]

02-30 POSITIONS

.12 [.005]

31-50 POSITIONS

2X

0.60±0.10 .024±.004

C

OPTIONAL

C

02-30, 0.10mm MAX.

31-50, 0.20mm MAX.

B

1.00 .039

+0.10

+.004

0.90

.035

0.00

- .000

1.00 .039

DRAWN

6.00 .236

B

A

NOTES:

1. INSULATOR MATERIAL: L.C.P, UL 94V-0, COLOR: BLACK

2. CONTACT MATERIAL: PHOSPHOR BRONZE

3. CONTACT PLATING: SEE PART NUMBER CODING

4. CURRENT RATING: 1 AMP

5. INSULATOR RESISTANCE: 1000 MEGA OHMS MIN

6. CONTACT RESISTANCE: 20 MILLI OHMS MAX

7. DIELECTRIC WITHSTANDING: 300 V AC

8. OPERATING TEMPERATURE: -40°C TO +125°C

9. PROCESSING TEMP.: 260°C MAX FOR 10 SECONDS.

(INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR. HIGHER PROCESSING

TEMPERATURES MAY BE USED, PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND

INSULATOR DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.)

8

7

6

5

2X

RECOMMENDED PCB LAYOUT

DATE

2/19/2013

NAME

LH

0.60 .024

Pb

RoHS

COMPLIANT

4

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MM [INCH]

TOLERANCES:

ANGULAR:

.X= .3 [.012]

.XX= .20 [.008]

.XXX= .100 [.0040]

3

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

PART NUMBER

SIZE

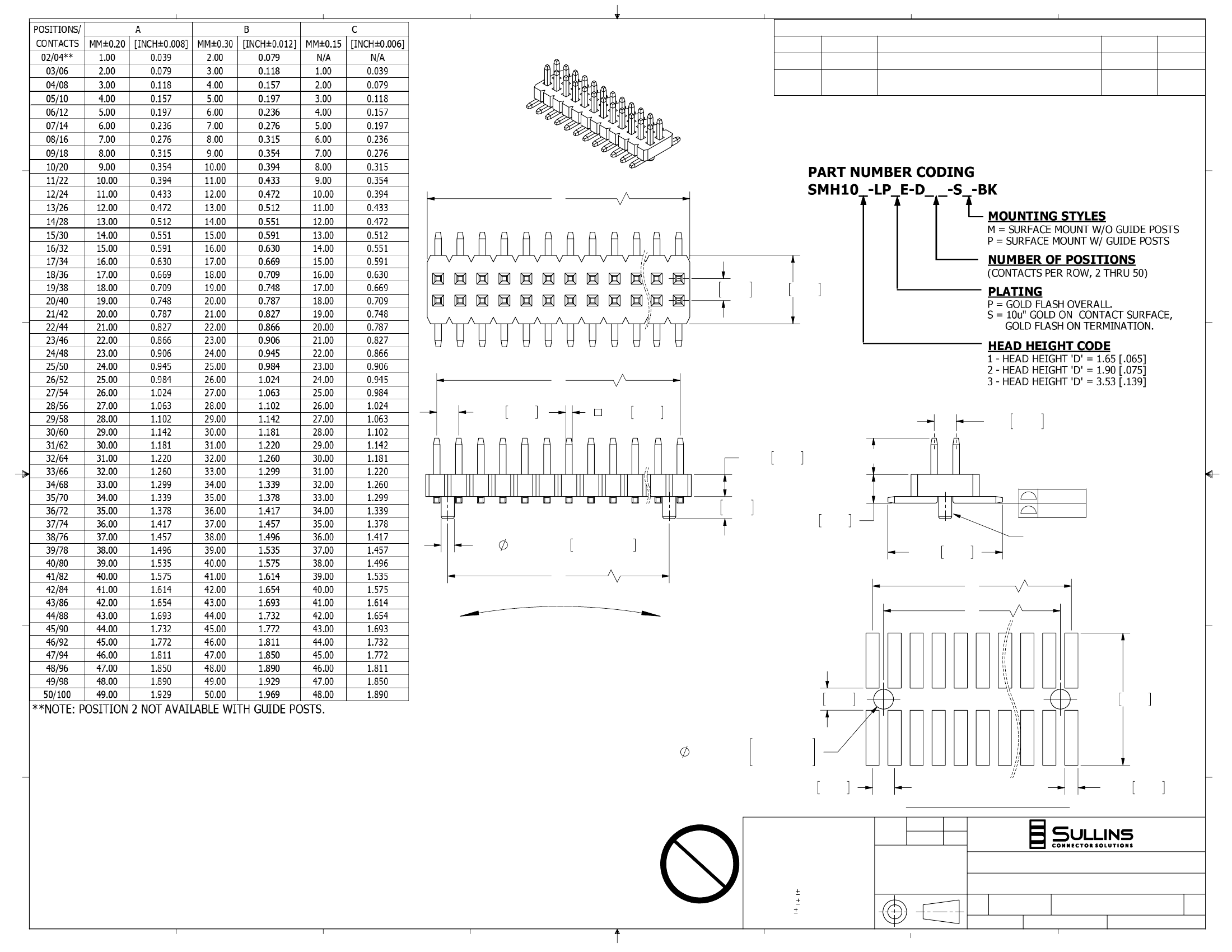

HEADER, MALE 1mm CC, 2 ROWS, SMT

C

CAGE CODE

TITLE

A

SMH10_-LP_E-D_ _-S_-BK

DWG. NO.

SCALE: 10:1

2

54453

11193

REV

SHEET 1 OF 1

1

D

FILE NAME: 11193, SMH10_-LP_E-D_ _-S_-BK
