DIM B±0.3
DIM C
DIM A±0.3
2.50±0.3
2.50
TYP
A
NOT ACCUMULATED TOLERANCE
∅
0
0
.9
1 POSITION
A
RECOMMEND PCB LAYOUT
(PCB THK=1.0~1.6)
FOR 2P ONLY
3.80±0.3
OBSOLETE
5.3±0.3
6.00±0.3
14.2
9.2
14.2
39.2
36.7
34.2
31.7
29.2
26.7
24.2
21.7
19.2
16.7
14.2
11.7
9.2
6.7
DIM C
0.64
TYP
(0.9)
KINKING FORMING
2 PLC
1.60±0.2
SECTION A-A
FOR 3P TO 15P
NOTE:
1. MATERIAL :
HOUSING : THERMOPLASTIC UL94V-0,
COLOR: SEE TABLE.
CONTACT : BRASS.
5. PART 5-440052-1 IS PART 440052-3 BUT 2ND PIN REMOVED.
6. PART 5-440052-2 IS PART 440052-5 BUT 4TH PIN REMOVED.
7. 0% MATERIAL REGRIND PARTS
15.0
10.0
15.0
40.0
37.5
35.0
32.5
30.0
27.5
25.0
22.5
20.0
17.5
15.0
12.5
10.0
7.5
DIM B
10.00
5.00
10.00
35.00
32.50
30.00
27.50
25.00
22.50
20.00
17.50
15.00
12.50
10.00
7.50
5.00
2.50
DIM A
4P
2P
3P
15P
14P
13P
12P
11P
10P
9P
8P
7P
6P
5P
4P
3P
2P
CIRCUITS
5-440052-2
5-440052-1
4-440052-5
3-440052-5
3-440052-4
3-440052-3
3-440052-2
3-440052-1
3-440052-0
2-440052-9
2-440052-8
2-440052-7
2-440052-6
2-440052-5
2-440052-4
2-440052-3
2-440052-2
YELLOW
1-440052-5
1-440052-4
1-440052-3
1-440052-2
1-440052-1
1-440052-0
440052-9
440052-8
440052-7
6-440052-6
440052-6
6-440052-5
440052-5
6-440052-4
440052-4
6-440052-3
440052-3
6-440052-2
440052-2
NATURAL
NATURAL
HOUSING COLOR
PART NUMBER
2. FINISH:
CONTACT : 80u" MIN. TIN PLATED ON CONTACT AREA.
3. WHEN EXTRACTING RECEPTACLE HOUSING FROM HEADER,
NOT WIRE BUT RECEPTACLE HOUSING SHOULD BE
CRIPED IN OEDER TO AVOID THE WIRE BREAKAGE.
4. PART 4-440052-5 IS PART 440052-5 WITH PIN 2 AND 4 REMOVED.
1.65±0.3
3.40±0.3
+
B±0.3
C
A±0.3
11.7
9.2
6.7
C
12.5
10.0
7.5
B
7.50
5.00
2.50
A
4P 8-440052-4 4-440052-4
3P 8-440052-3 4-440052-3
2P 8-440052-2 4-440052-2
POS
P/N
P/N
1ST POSITION
6.00±0.3
3.45±0.3
2.50±0.3
5.3±0.3
3.40±0.3
C
3.80±0.3
C
2POS
NOTE:
1. MATERIAL :
HOUSING : THERMOPLASTIC UL94V-0,
COLOR: NATURAL.
CONTACT : BRASS.
2. FINISH:
CONTACT : 80u" MIN. TIN PLATED ON CONTACT AREA.
3. WHEN EXTRACTING RECEPTACLE HOUSING FROM HEADER,
NOT WIRE BUT RECEPTACLE HOUSING SHOULD BE
CRIPED IN OEDER TO AVOID THE WIRE BREAKAGE.
16.9 REF
1.60±0.2
SECTION:C-C
4POS
3POS

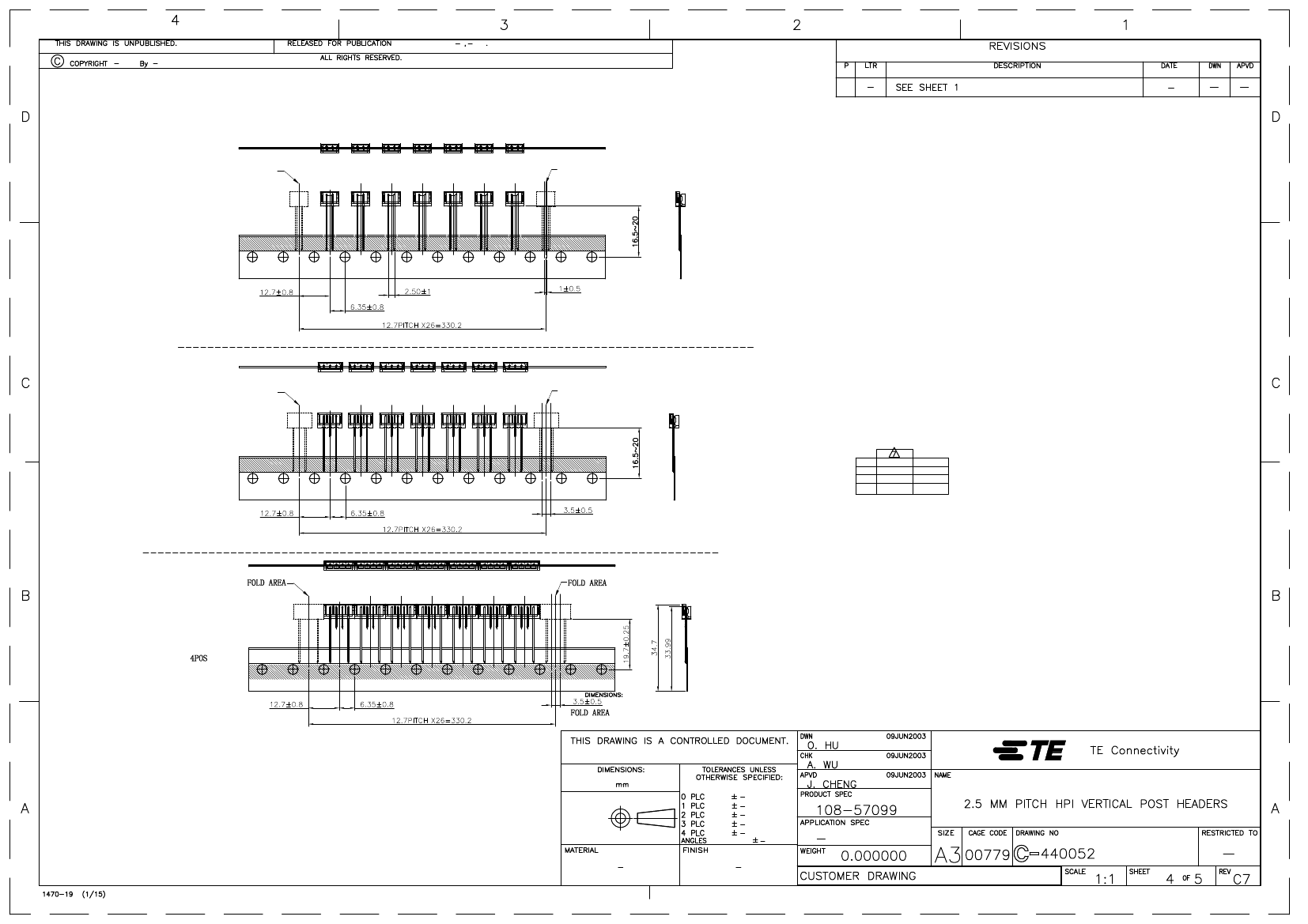

TRIANGLE BOARD
PLACEMENT DIRECTION：
PRODUCT UPSIDE，KRAFT DOWNSIDE
FOLD
START POSITION
PAPER BOARD
LABEL LOCATION AREA
2POS
3POS
4POS

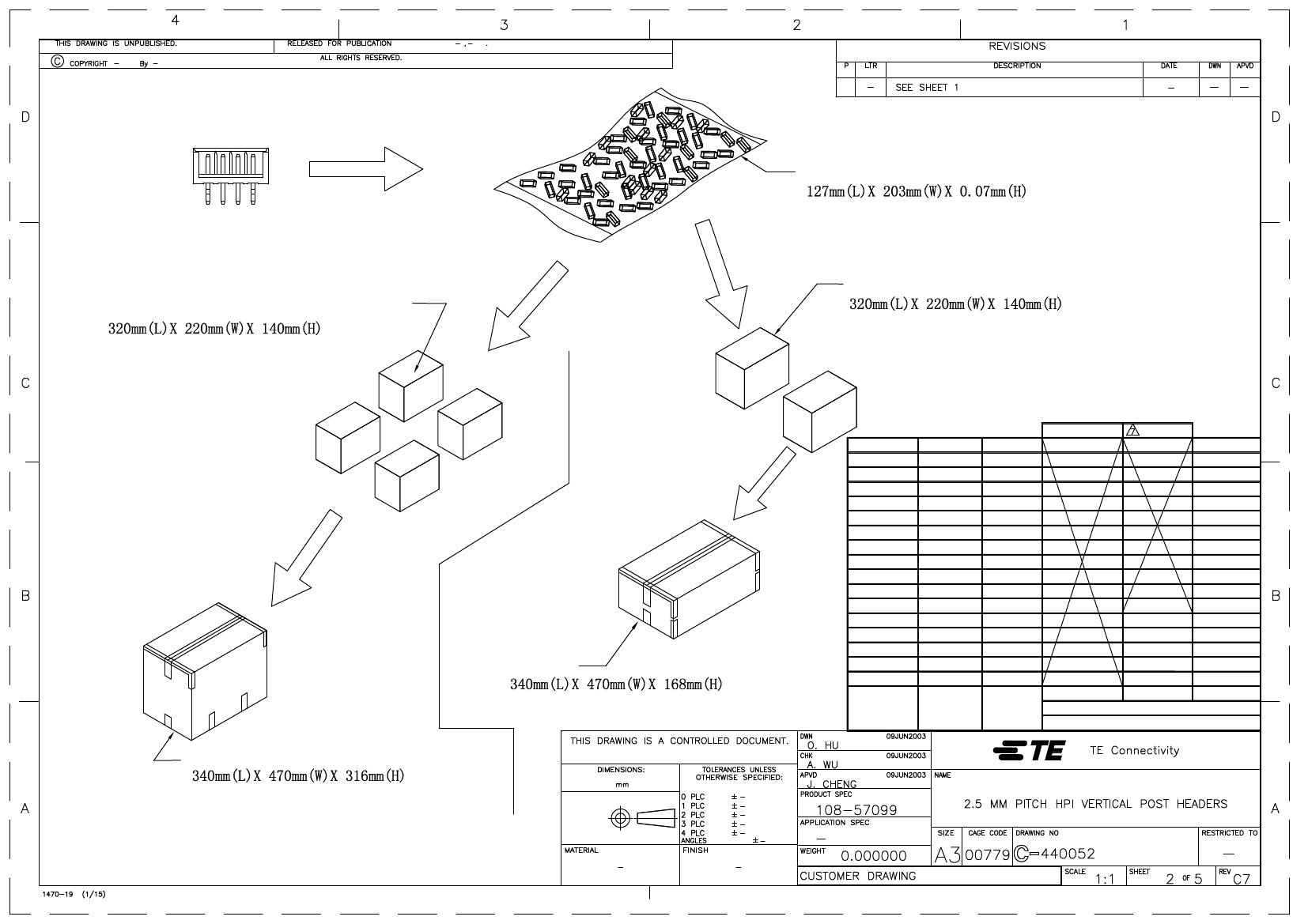

1、SPONGE:12.7PITCH*26=330.2
1、QUANTITY;2POS--1500pcs/BOX
3POS--1500pcs/BOX
4POS--720pcs/BOX
TOTAL 2 COLUMNS
QUANTITY：
DIM：
1 COLUMN
4P
3P
2P
POS
8-440052-4
8-440052-3
8-440052-2
P/N
4-440052-4
4-440052-3
4-440052-2
P/N
