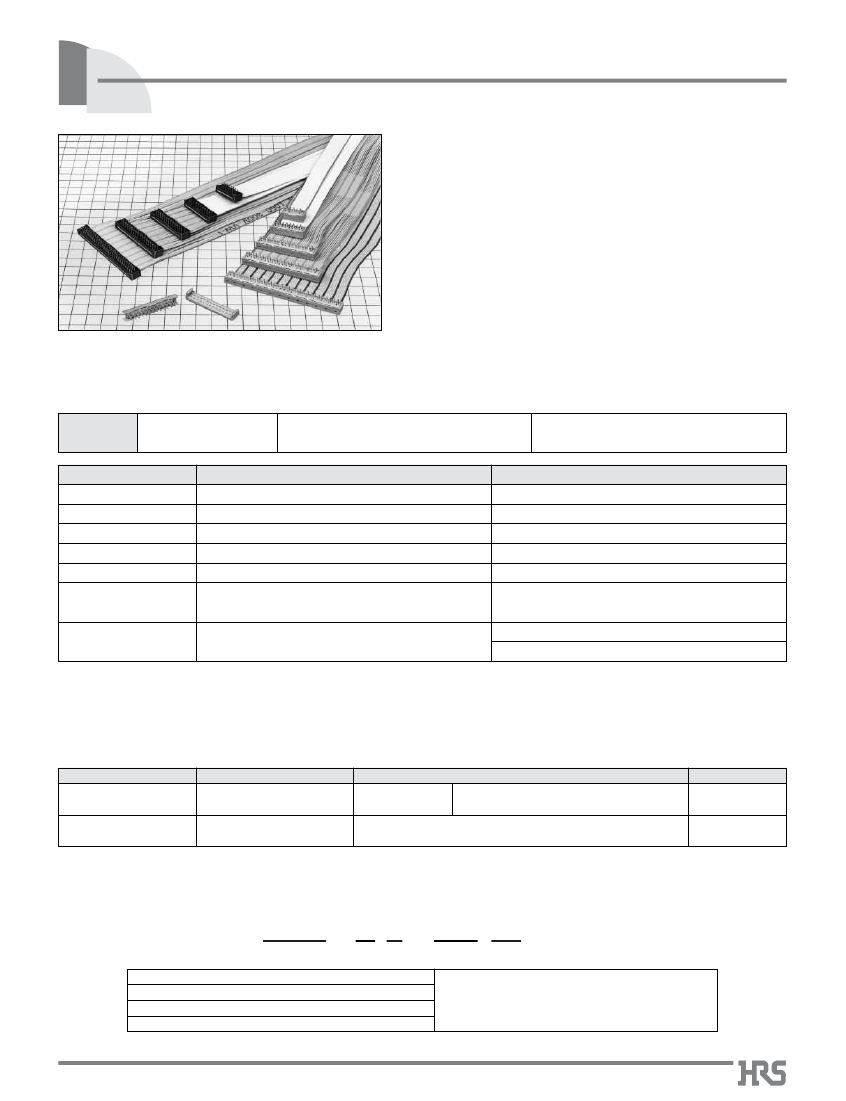

2.54mm Connector Directly Mounted on Board
HIF2E Series
■Features
1. Directly Mounted on Board
This connector can be directly mounted on the board using the
1.27mm pitch flat cable.
2. Variation in Number of Contacts
10, 14, 16, 20, 26, 30, 34, 40, 50, and 60 contacts, are available
3. Applicable Cable
The applicable cable is UL2651 AWG#28 flat cable
(7 cores/0.127mm, jacket dia. :0.8 to 1.0mm).
■Applications
Computers, terminal equipment, PPC, various kinds of electronic equipment, office automation machines, etc.
■Product
Specifications
Rating
Current rating : 1A
Operating Temperature Range :
–55 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range
Condition
500V DC
650V AC/1 minute
0.1A
: 40
to
70% (Note 2)
Voltage rating : 200V AC Operating Moisture Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M
ohms
min
Specification
No flashover or insulation breakdown.
15m
ohms
max
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç: 30 minutes
➝
15
to
35ç: 5 minutes max.
125ç: 30 minutes
➝
15
to
35ç: 5 minutes max.) 5 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Resistance to Soldering heat
No deformation of components affecting performance.
Solder bath:
260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and specifications for
a specific part number shown.
■Material
Part
Insulator
Contact
Material
PBT
Copper alloy
Black
Gray
Finish
HIF2E-*D-2.54R B
HIF2E-*D-2.54R A
Gold plated over nickel underplated
Remarks
UL94V-0
––––––
■Ordering
Information
HIF2E -
*
D - 2.54 RB
q
q
Series Name
w
Number of Contacts
e
Contact alignment
r
Contact Pitch
w
e
r
t
: HIF2E
t
Connection method and contact plating type
: 10, 14, 16, 20, 26, 30, 34, 40, 50, and 60
RB : Universal type circuit plated
RA : Hirose original circuit plated
: D : Double
: 2.54mm
B9
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Board
status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF2E Series●2.54mm Connector Directly Mounted on
products

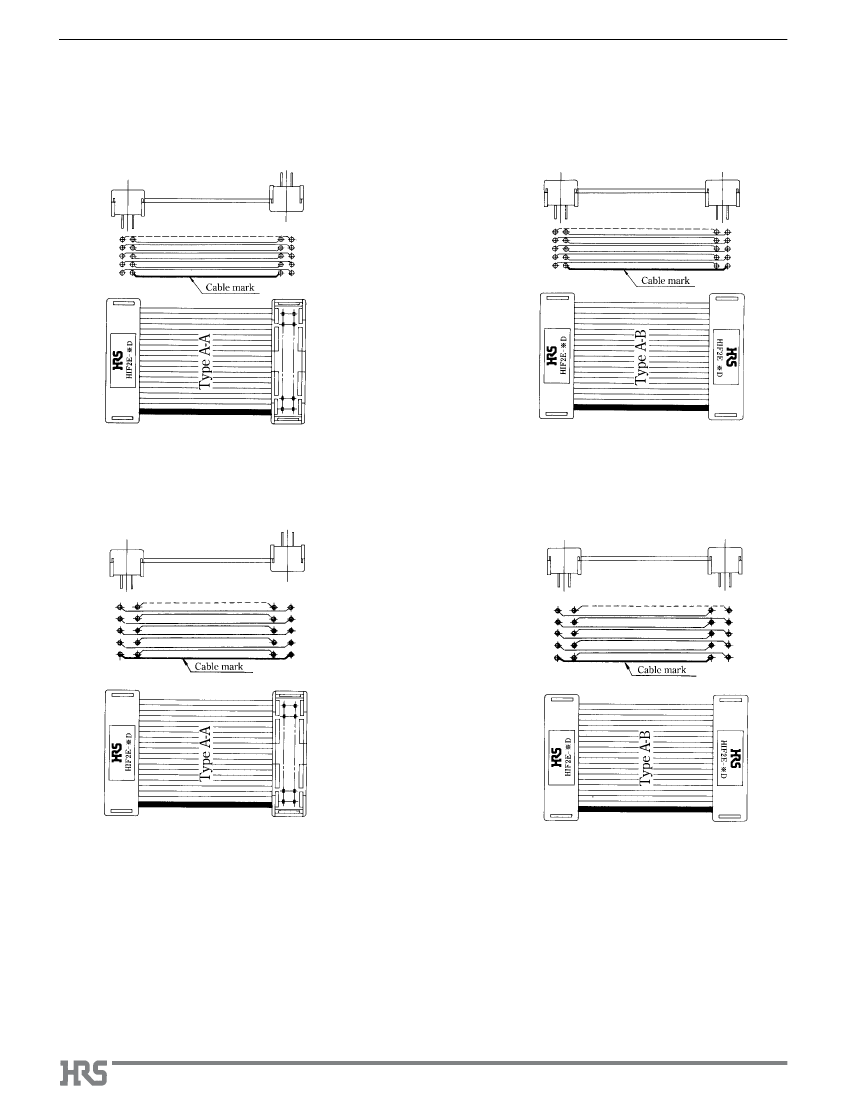

■Combination
Pattern
Unit: mm
10 contacts 14 contacts 16 contacts 20 contacts 26 contacts 30 contacts 34 contacts 40 contacts 50 contacts 60 contacts
A
B
17.17
10.16
22.25
15.24
24.79
17.78
29.87
22.86
37.49
30.48
42.57
35.56
47.65
40.64
55.27
48.26
67.97
60.96
80.67
73.66
BPCB
mounting pattern
A: Total pitch of connectors
n: Number of contacts
Through-hole finish hole diameter on printed board: 0.9
+0.1
+0
