PNI
CONNECTOR
2.0mm pitch/Disconnectable Crimp style wire-to-wire connectors
Specifications
–––––––––––––––––––
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 100 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 15 mΩ max.
After environmental tests/ 25 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: AWG #28 to #22
• Applicable panel thickness: 0.5 to 2.0 mm
This connector is a 2.0 mm pitch wire-to-wire
connector, having incomplete mating
prevention mechanism.
• Inertial lock structure
• Finger-friendly design
• Secure locking structure
• Mountable on a variety of panels
• Secondary retainer
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389

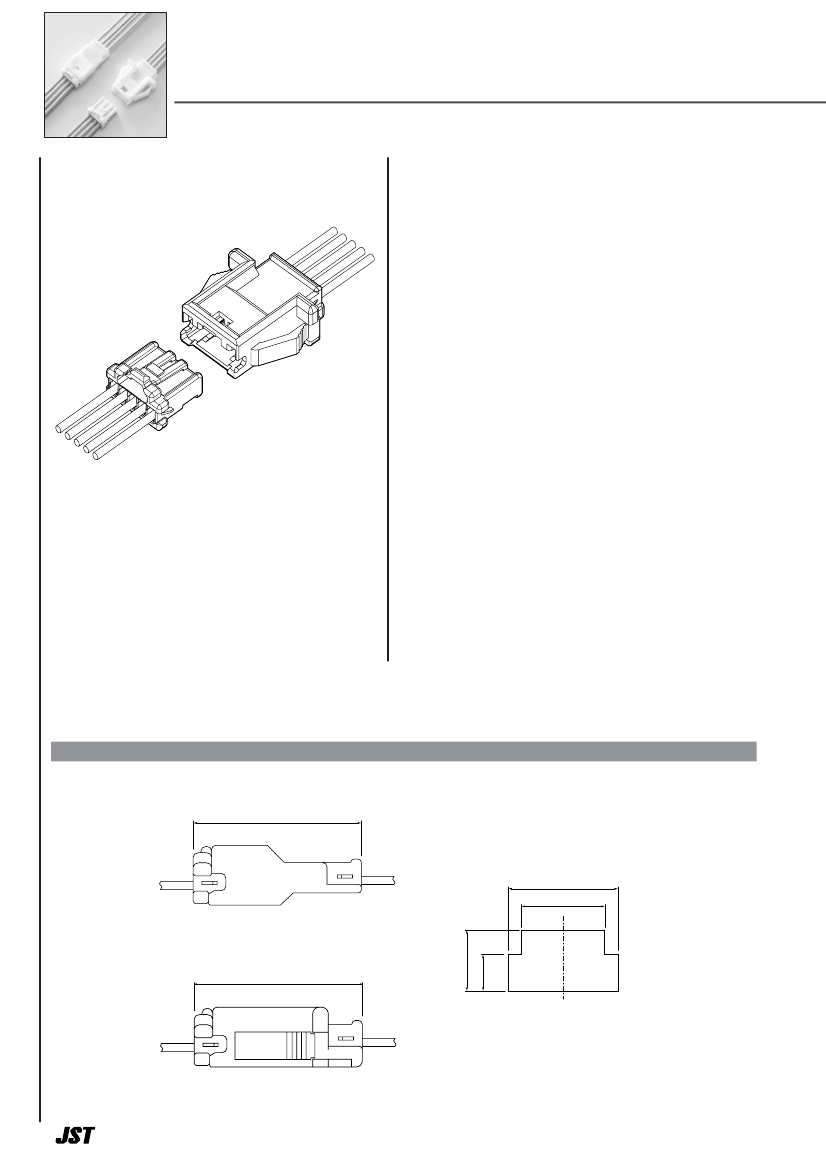

Panel layout and Assembly layout
Without panel locks
(21.35)
D
±
0.05
0.1
C
+
0
(21.35)
Note: C and D dimensions: Refer to receptacle housing.
1
4.65
±
0.05
With panel locks
0.1
7.65
+
0
PNI CONNECTOR

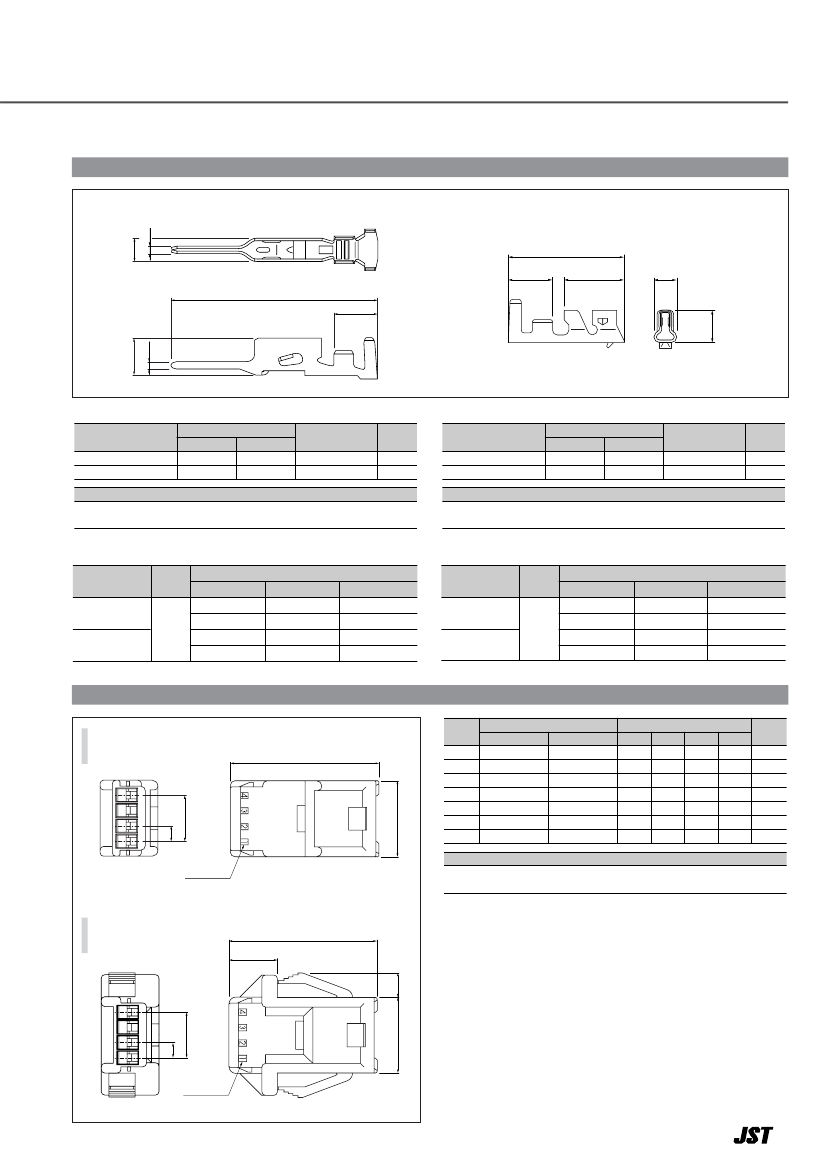

Contact
Pin contact
0.5
Socket contact
1.6
7.5
3
13.5
2.85
3.9
1.5
Pin contact
Model No.
SPNI-001T-P0.5
SPNI-002T-P0.5
Applicable wire
AWG#
mm
2
0.13
∼
0.33
0.08
∼
0.21
26
∼
22
28
∼
24
2.4
0.5
Socket contact
Insulation O.D.
(mm)
1.0
∼
1.5
0.9
∼
1.5
Q’ty/
reel
9,000
9,000
Model No.
SPND-001T-C0.5
SPND-002T-C0.5
Applicable wire
AWG#
mm
2
0.13
∼
0.33
0.08
∼
0.22
26
∼
22
28
∼
24
Insulation O.D.
(mm)
1.0
∼
1.5
0.8
∼
1.5
2.08
Q’ty/
reel
8,000
8,000
Material and Finish
Copper alloy, tin-plated (reflow treatment)
Material and Finish
Copper alloy, tin-plated (reflow treatment)
RoHS compliance
RoHS compliance
Contact
SPNI-001T-P0.5
Crimping
machine
Crimp applicator
MKS-L
AP-K2N
−
MKS-L
−
Applicator
Dies
−
Crimp applicator with dies
Contact
SPND-001T-C0.5
Crimping
machine
Crimp applicator
MKS-L
AP-K2N
*MKS-SC
MKS-L
−
Applicator
Dies
Crimp applicator with dies
MK/SPAL-001-05 APLMK SPAL001-05
−
MK/SPND-001-05 APLMK SPND001-05
SC/SPND-001-05 APLSC SPND001-05
MK/SPAD/ND-002-05 APLMK SPAD/ND002-05
−
−
SPNI-002T-P0.5
MK/SPAL-002-05 APLMK SPAL002-05
−
−
SPND-002T-C0.5
Note: *Strip-crimp applicator
Receptacle housing (for pin contact)
Without panel locks
19.3
Circuits
2
3
4
5
6
B
Model No.
Without panel locks With panel locks
PNIRR-02VF
PNIRR-03VF
PNIRR-04VF
PNIRR-05VF
PNIRR-06VF
PNIRR-08VF
PNIRR-10VF
PNIRR-02V
PNIRR-03V
PNIRR-04V
PNIRR-05V
PNIRR-06V
PNIRR-08V
PNIRR-10V
A
–
4.0
6.0
8.0
10.0
14.0
18.0
Dimensions (mm)
B
C
D
6.0
8.0
10.0
12.0
14.0
18.0
22.0
6.4
8.4
10.4
12.4
14.4
18.4
22.4
9.7
11.7
13.7
15.7
17.7
21.7
25.7
Q’ty/
bag
1,000
1,000
500
500
500
500
500
H JST
A
8
10
2
Material
Circuit No.1
PA 66, UL94V-0, natural (white)
With panel locks
19.3
(6.3)
(3.2)
RoHS compliance
Note: C and D dimensions: Panel layout dimensions
H JST
2
A
Circuit No.1
B
2

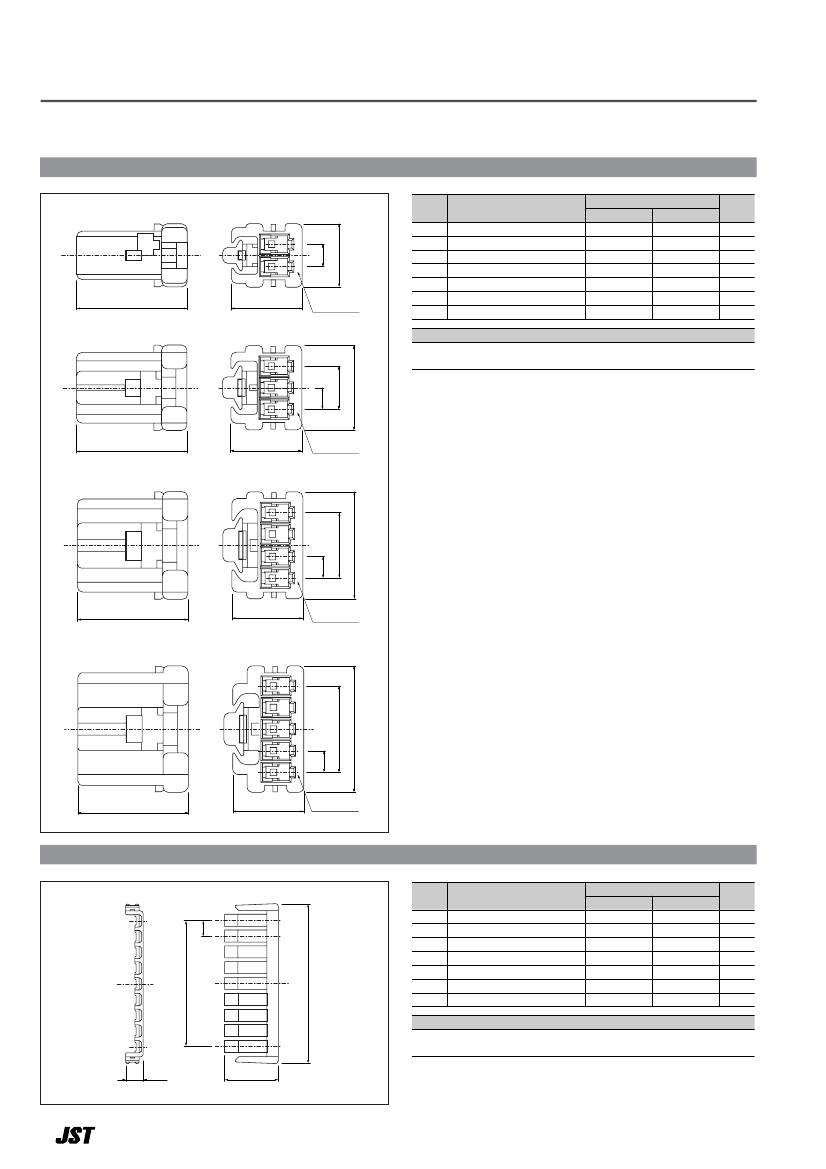

PNI CONNECTOR
Socket housing (for socket contact)
(2 circuits)
2
Circuits
2
3
2
B
Model No.
PNIRP-02V-S
PNIRP-03V-S
PNIRP-04V-S
PNIRP-05V-S
PNIRP-06V-S
PNIRP-08V-S
PNIRP-10V-S
Material
Dimensions (mm)
A
B
–
4.0
6.0
8.0
10.0
14.0
18.0
5.7
7.7
9.7
11.7
13.7
17.7
21.7
Q’ty/
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
4
5
6
8
10.05
6.45
1
Circuit No.1
10
(3 circuits)
3
Glass-filled PBT, UL94V-0, natural (white)
RoHS compliance
A
2
A
2
10.05
6.45
1
2
A
2
2
1
B
B
B
10.05
6.45
Circuit No.1
(4 circuits)
4
3
Circuit No.1
(5, 6, 8, 10 circuits)
5
10.05
6.45
1
Circuit No.1
Retainer
Circuits
2
2
2
3
4
Model No.
PNIS-02V
PNIS-03V
PNIS-04V
PNIS-05V
PNIS-06V
PNIS-08V
PNIS-10V
Material
Dimensions (mm)
A
B
–
4.0
6.0
8.0
10.0
14.0
18.0
6.3
8.3
10.3
12.3
14.3
18.3
22.3
Q’ty/
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
3
4
5
6
A
B
8
10
Glass-filled PA 66, UL94V-0, natural (ivory)
RoHS compliance
2.25
7
3
