PS23/A0630/2815: DescriptionMains Power Connector, 6A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size76KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

PS23/A0630/2815 Overview

Mains Power Connector, 6A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

PS23/A0630/2815 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1453245014
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.05
Other features	UL,VDE,CSA
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
insulator material	POLYCARBONATE
MIL compliance	NO
Power Connector Ratings	6A, 250VAC
Manufacturer's serial number	PS23
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

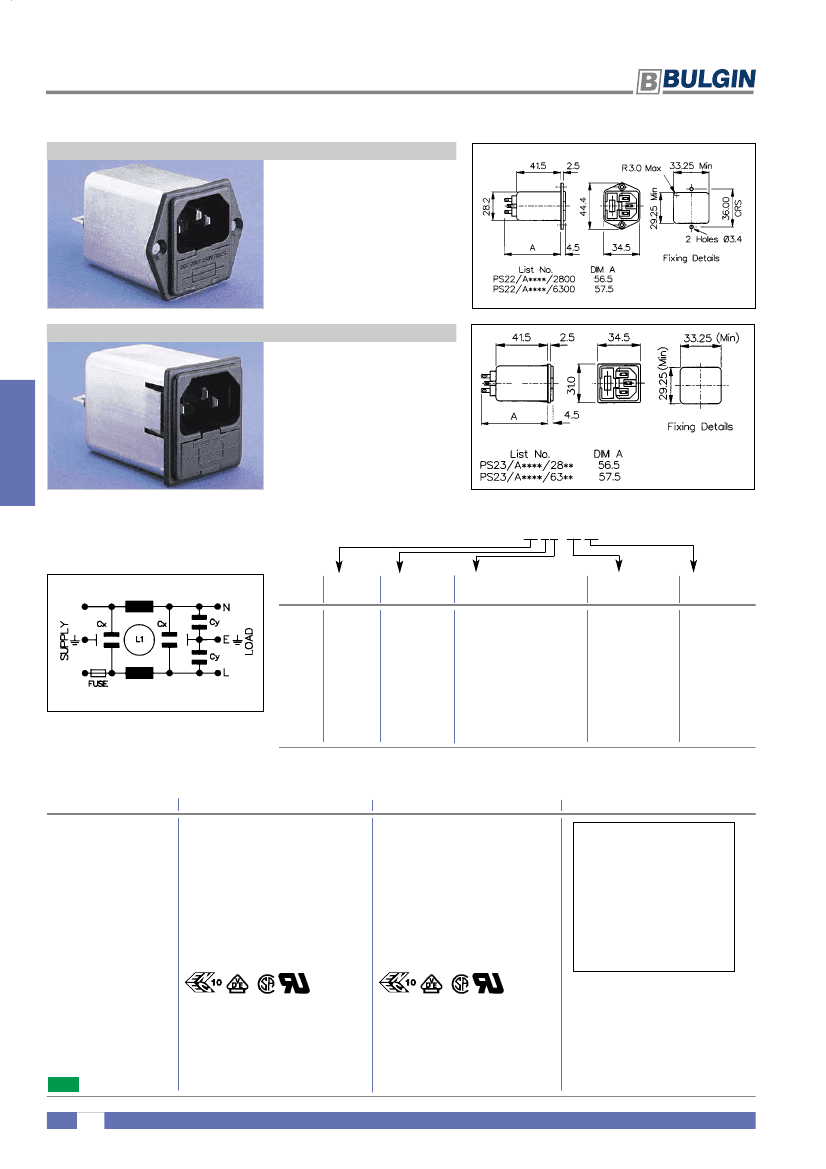

MAINS FILTERS

High Performance IEC Power Inlets Flange and Snap Fit (Single Fused)

PANEL MOUNTING

3 or 6 Amp Current Rating

Single Fused

High Performance

2.8 or 6.3mm tabs

PS22/A

SNAP FIT

3 or 6 Amp Current Rating

Single Fused

IEC CONNECTORS

High Performance

2.8 or 6.3mm tabs

1, 1.5, 2 or 3mm panels

PS23/A

PS22 or PS23/Axx x x /xx xx

Series

PS22/A

PS23/A

Rating

03 = 3A

06 = 6A

L/C Circuit

3 = Version 3

Additional

Components

0 = None

Tag Type and

Configuration

28 = 2.8mm

Panel

Thickness

Blank = Flange

63 = 6.3mm tabs 10 = 1.0mm

15 = 1.5mm

20 = 2.0mm

30 = 3.0mm

Specification

Max. Working Voltage:

Earth Leakage Current:

Temperature Range:

Max. Ambient Temp.:

(@ Full Load)

Test Voltage:

Approvals:

PS22/Axxx0/xx00

250V a.c. 50-400Hz

<0.35mA (250V, 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

PS23/Axxx0/xxxx

250V a.c. 50-400Hz

<0.35mA (250V, 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

Part No. Example

PS22/A0630/63 =

PS22 series, flange fitting, filtered

IEC power inlet, single fused,

rated at 6 amperes. L/C circuit

version 3, i.e L1 = 2 x 0.7mH,

Cx = 1 x 47nF, Cy = 2 x 2.2nF.

Without bleed resistor or surge

protection device fitted, with

6.3mm tabs.

Mating Connectors:

Accessories:

PX0587, PX0587/SE, PX0588

PZ0100, PZ0200

.No. 14340 (see page 82)

Compliant

PX0587, PX0587/SE, PX0588

PZ0100, PZ0200

.No. 14340 (see page 82)

Compliant

www.bulgin.co.uk

RoHS

130
