0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors
DF30 Series
Extremely small size
Header
(0.4
(0.90)
(3
.56
)
.76
0)
(4
)
(10.
22)
Receptacle
40 positions shown
■

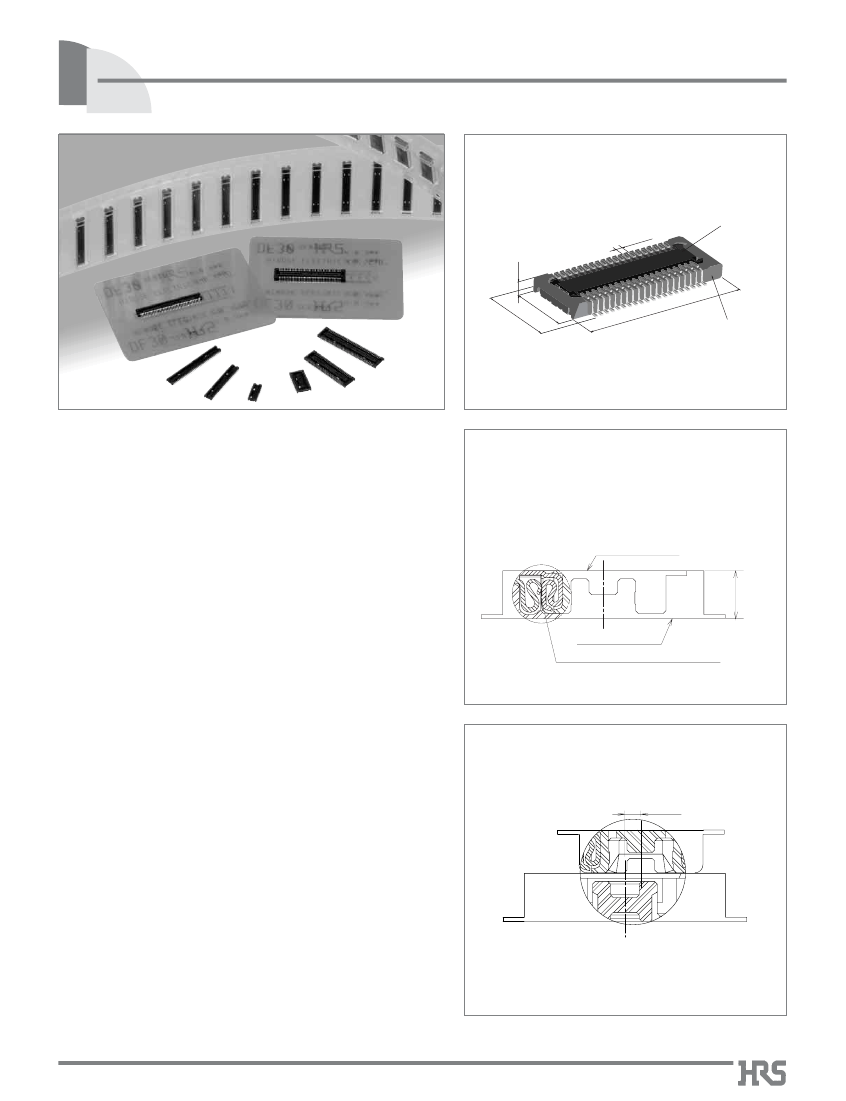

Overview
Continuous miniaturization and increased component
density on PCB created demand for extremely low profile
connectors. This series is addition of a new extremely low
profile connectors to Hirose's wide range of high reliability
board-to-board/board-to-FPC connection solutions.
■
Low profile
■
Increased mated retention
■
High contact reliability
Header
DF30*-*DP-0.4V
■
Features
1. Contact reliability
Concentration of the contact's normal forces at the single
point assures good contact wipe and electrical reliability,
while confirming the fully mated condition with a definite
tactile click.
0.9mm
Receptacle
DF30*-*DS-0.4V
Protrusion improves mated retention
2. Self alignment
Recognizing the difficulties of mating extremely small
connectors in limited spaces the connectors will self align
in horizontal axis within 0.3 mm.
3. Automatic board placement
Packaged on tape-and-reel the plug and headers have
sufficiently large flat areas to allow pick-up with vacuum
nozzles of automatic placement equipment.
Self alignment
4. Variety of contact positions and styles
Available in standard contact positions of: 20, 22, 24, 30,
34, 40, 50, 60, 70 and 80 with and without metal fittings.
Addition of metal fittings does not affect external
dimensionsof the connectors.
Smaller contact positions are also available.
0.3mm
5. Support for continuity test connector
Connectors which have increased insertion and removal
durability are available for continuity tests. Contact your
Hirose sales representative for details.
■
Applications
Cellular phones, PDA's, mobile computers, digital
cameras, digital video cameras, and other devices
demanding high reliability connections in extremely
limited spaces.
A283
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon.
Board-to-Board / Board-to-FPC Connectors
DF30 Series●0.4 mm Pitch, 0.9 mm Height,
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
■Product
Specifications
Rating
Rated current 0.3A
Operating temperature range : -35
ç
to 85
ç
(Note 1)
Storage temperature range -10
ç
to 60
ç
(Note 2)
Relative humidity 40% to 70% (Note 2)
Rated voltage 30V AC Operating humidity range
: Relative humidity 20% to 80% Storage humidity range
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity
50 Mø min.
Specification
100V DC
No flashover or insulation breakdown.
100 mø max.
No electrical discontinuity of 1 μs or more
Contact resistance: 100 mø max.
Insulation resistance: 25 Mø min.
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
Contact resistance: 100 mø max.
No deformation of components
affecting performance.
Conditions
100V AC / one minute
100 mA
Frequency: 10 to 55 Hz, single amplitude of 0.75mm, 2 hours, 3 axis
96 hours at temperature of 40
ç±
2
ç
and RH of
90% to 95%
Temperature: -55ç/+5ç
to +35ç/+85ç/+5ç to +35ç
Duration: 30/10/30/10(Minutes)
5 cycles
50 cycles(Connector for conductivity tests: 500 cycles)
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
6. Temperature cycle
7. Durability
(insertions/withdrawals)
8. Resistance to
soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating temperature range and
humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Materials
and Finishes
Connectors
Receptacles
and
Headers
Component
Insulator
Contacts
Metal fittings
Material
LCP
Phosphor bronze
Phosphor bronze
Finish
Color : Black
Gold plated
Tin plated
Remarks
UL94V-0
-------------
-------------
■Ordering
information
●
Receptacles and Headers
DF30 FC
*
DS - 0.4
1
1
Series name: DF30
2
Configuration
FB: With metal fittings, without bosses
FC: Without metal fittings, without bosses
CJ: Connector for conductivity tests
V
6
(
**
)
7
2
3
4
5
5
Contact pitch: 0.4 mm
6
Termination section
V: Straight SMT
7
Packaging
(81): Embossed tape packaging (5,000 pieces per reel)
(82): Embossed tape packaging (1,000 pieces per reel)
3
Number of positions: 20, 22, 24, 30, 34, 40, 50, 60, 70, 80
4
Connector type
DS: Double row receptacle
DP: Double row header
A284
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
mm Pitch, 0.9 mm Height, Board-to-Board /
or contact your Hirose sales representative.
DF30 Series●0.4
the Hirose website RoHS search at www.hirose-connectors.com,
Board-to-FPC Connectors

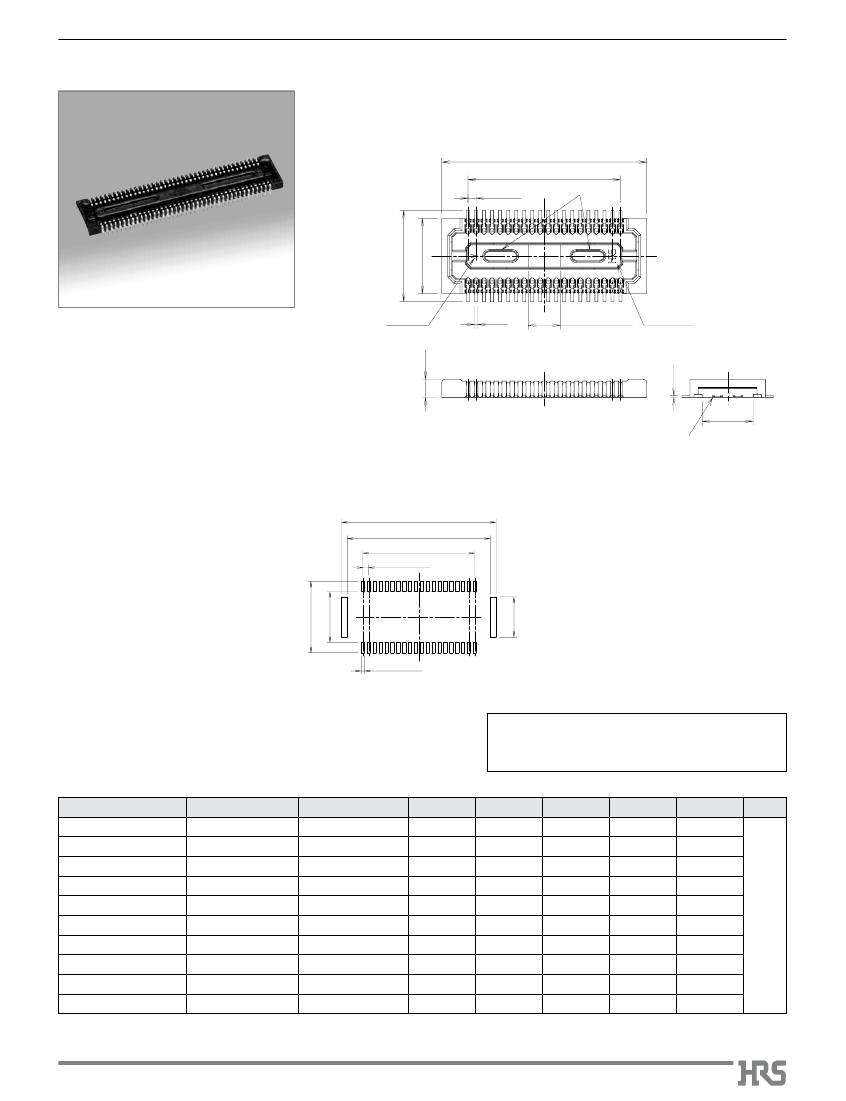

■Receptacles
(with metal fittings)
A
B
P=0.4
Note 2
4.56
3.76
CAV. NO.
0.15
C
Flat surface
HRS logo
0.9
0.08
2.54
Metal fittings
BRecommended
PCB mounting pattern
E
+0.05
0
0
D
-0.05
B±0.02
P=0.4±0.02
4.86
+0.05
0
0
3.46
-0.05
0.23±0.02
Recommended solder paste thickness: 120 μm
[Specification number -**, (
**
)
(81): Embossed tape packaging (5,000 pieces per reel)
(82): Embossed tape packaging (1,000 pieces per reel)
Unit: mm
Part Number
DF30FB-20DS-0.4V(
**
)
DF30FB-22DS-0.4V(
**
)
DF30FB-24DS-0.4V(
**
)
DF30FB-30DS-0.4V(
**
)
DF30FB-34DS-0.4V(
**
)
DF30FB-40DS-0.4V(
**
)
DF30FB-50DS-0.4V(
**
)
DF30FB-60DS-0.4V(
**
)
DF30FB-70DS-0.4V(
**
)
DF30FB-80DS-0.4V(
**
)
CL No.
CL684-1098-3-
**
CL684-1099-6-
**
CL684-1100-3-
**
CL684-1101-6-
**
CL684-1102-9-
**
CL684-1103-1-
**
CL684-1104-4-
**
CL684-1105-7-
**
CL684-1106-0-
**
CL684-1107-2-
**
Number of contacts
20
22
24
30
34
40
50
60
70
80
A
06.22
06.62
07.02
08.22
09.02
10.22
12.22
14.22
16.22
18.22
B
03.6
04.0
04.4
05.6
06.4
07.6
09.6
11.6
13.6
15.6
C
1.20
1.20
1.20
1.20
1.36
1.60
2.00
2.40
2.80
3.20
D
05.72
06.12
06.52
07.72
08.52
09.72
11.72
13.72
15.72
17.72
E
06.52
06.92
07.32
08.52
09.32
10.52
12.52
14.52
16.52
18.52
YES
RoHS
Note 1: Order by number of reels.
Note 2: Receptacles with 24 or fewer contacts positions will not have recessed areas.
2.74
+0.05
0
A285
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon.
Board-to-Board / Board-to-FPC Connectors
DF30 Series●0.4 mm Pitch, 0.9 mm Height,
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

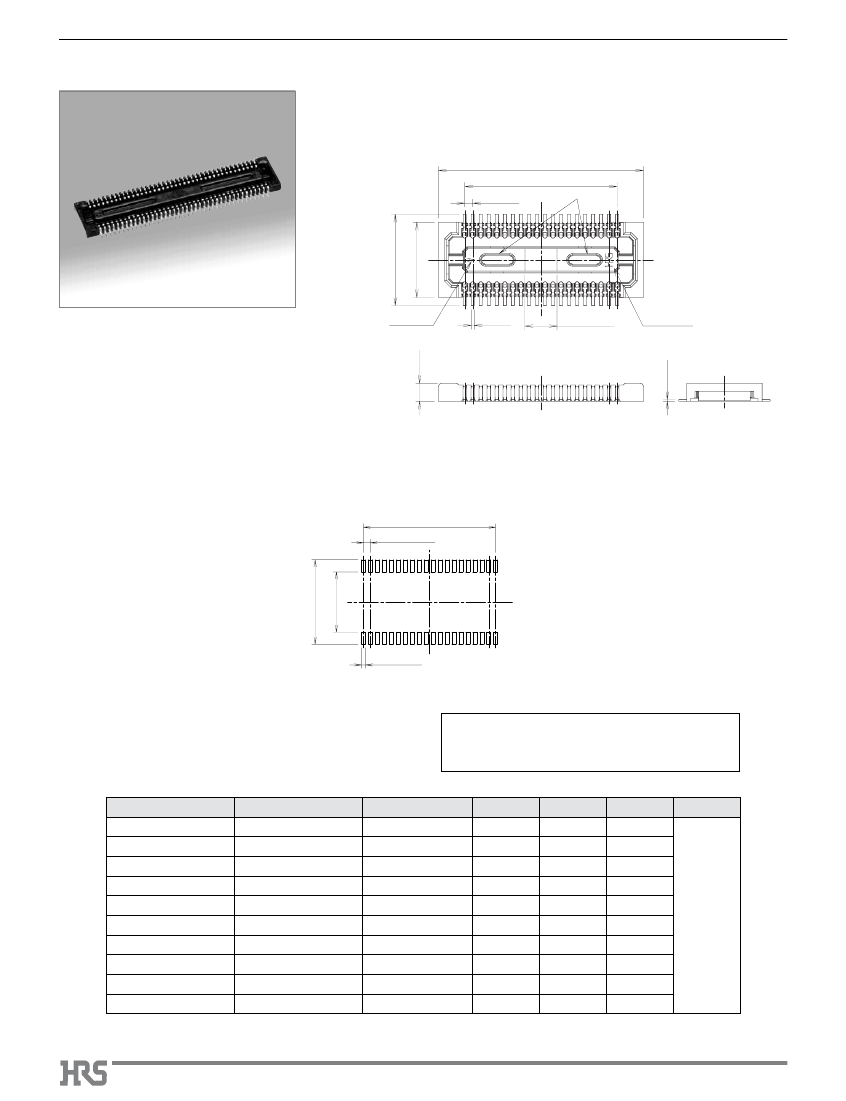

■Receptacles
(without metal fittings)
A
B
P=0.4
Note 2
4.56
3.76
CAV. NO.
0.15
C
Flat surface
HRS logo
0.9
BRecommended
PCB mounting pattern
B ±0.02
P=0.4 ±0.02
4.86
+0.05
0
0
3.46
-0.05
0.23 ±0.02
Recommended solder paste thickness: 120 μm
[Specification number] -**, (
**
)
(81): Embossed tape packaging (5,000 pieces per reel)
(82): Embossed tape packaging (1,000 pieces per reel)
Unit: mm
Part Number
CL No.
Number of contacts
A
06.22
06.62
07.02
08.22
09.02
10.22
12.22
14.22
16.22
18.22
B
03.6
04.0
04.4
05.6
06.4
07.6
09.6
11.6
13.6
15.6
C
1.20
1.20
1.20
1.20
1.36
1.60
2.00
2.40
2.80
3.20
0.08
RoHS
DF30FC-20DS-0.4V(
**
)
DF30FC-22DS-0.4V(
**
)
DF30FC-24DS-0.4V(
**
)
DF30FC-30DS-0.4V(
**
)
DF30FC-34DS-0.4V(
**
)
DF30FC-40DS-0.4V(
**
)
DF30FC-50DS-0.4V(
**
)
DF30FC-60DS-0.4V(
**
)
DF30FC-70DS-0.4V(
**
)
DF30FC-80DS-0.4V(
**
)
CL684-1109-8-**
CL684-1110-7-**
CL684-1111-0-**
CL684-1112-2-**
CL684-1113-5-**
CL684-1078-6-**
CL684-1114-8-**
CL684-1082-3-**
CL684-1115-0-**
CL684-1116-3-**
20
22
24
30
34
40
50
60
70
80
YES
Note 1: Order by number of reels.
Note 2: Receptacles with 24 or fewer contacts positions will not have recessed areas.
A286
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
mm Pitch, 0.9 mm Height, Board-to-Board /
or contact your Hirose sales representative.
DF30 Series●0.4
the Hirose website RoHS search at www.hirose-connectors.com,
Board-to-FPC Connectors

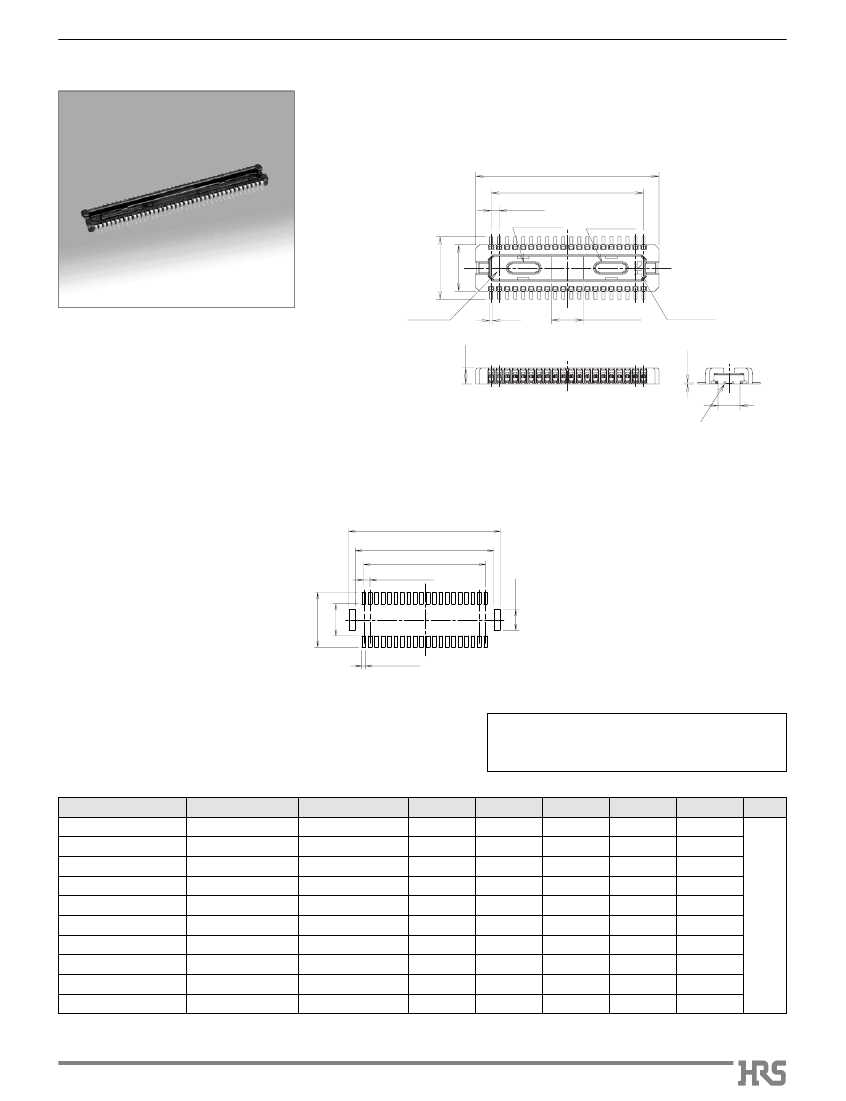

■Header
(with metal fittings)
A
B
P=0.4
Note 2
Note 2
3.12
2.32
A
CAV. NO.
0.15
C
Flat surface
HRS logo
0.8
0.08
1.1
Metal fittings
BRecommended
PCB mounting pattern
E
+0.05
0
0
D
-0.05
B ±0.02
3.42
+0.05
0
0
2
-0.05
0.23 ±0.02
Recommended solder paste thickness: 120 μm
[Specification number -**, (
**
)
(81): Embossed tape packaging (5,000 pieces per reel)
(82): Embossed tape packaging (1,000 pieces per reel)
Unit: mm
Part Number
CL No.
Number of contacts
A
B
C
D
E
RoHS
DF30FB-20DP-0.4V(
**
)
DF30FB-22DP-0.4V(
**
)
DF30FB-24DP-0.4V(
**
)
DF30FB-30DP-0.4V(
**
)
DF30FB-34DP-0.4V(
**
)
DF30FB-40DP-0.4V(
**
)
DF30FB-50DP-0.4V(
**
)
DF30FB-60DP-0.4V(
**
)
DF30FB-70DP-0.4V(
**
)
DF30FB-80DP-0.4V(
**
)
1.3
+0.05
0
P=0.4 ±0.02
CL684-1129-5-**
CL684-1130-4-**
CL684-1131-7-**
CL684-1132-0-**
CL684-1133-2-**
CL684-1134-5-**
CL684-1135-8-**
CL684-1074-5-**
CL684-1075-8-**
CL684-1136-0-**
20
22
24
30
34
40
50
60
70
80
05.14
05.54
05.94
07.14
07.94
09.14
11.14
13.14
15.14
17.14
03.6
04.0
04.4
05.6
06.4
07.6
09.6
11.6
13.6
15.6
1.20
1.20
1.20
1.20
1.36
1.60
2.00
2.40
2.80
3.20
04.64
05.04
05.44
06.64
07.44
08.64
10.64
12.64
14.64
16.64
05.44
05.84
06.24
07.44
08.24
09.44
11.44
13.44
15.44
17.44
YES
Note 1: Order by number of reels.
Note 2: Headers with 24 or fewer contacts positions will not have protruding areas.
First of all, I am a novice, a complete novice who has just come into contact with Protel. . . I would like to ask the buddies in the forum, the components I want to use cannot be found in Protel, wha...
Design for manufacturability has become increasingly important in the semiconductor industry's nanometer design process methodology. In the past, designers could only determine the manufacturing yield...
[i=s]This post was last edited by Gyroxp on 2015-1-25 11:30[/i] [align=left][font=宋体][Note:[/font][font=宋体][size=10.5pt]The author has recently had some time to learn embedded[/size][/font][size=10.5p...
1. Do you have anything to say about the understanding of kernel registers? I will copy a paragraph to find a topic for you: Register Set RS (Register Set or Registers) RS is essentially a place for t...
In PCB design, pad is a very important concept, and PCB engineers must be familiar with it. However, although they are familiar with it, many engineers have only a superficial understanding of pad.Tod...
1.1 Structure of EPS System According to the different installation positions of the motor, EPS can be divided into steering shaft power-assisted type, pinion power-assisted type and rack power-assist...
High efficiency and low standby power consumption are two major challenges in today's switching power supply design. Resonant topology or LLC topology is becoming increasingly popular because it ca...[Details]
In early 2002, I started to write a working program for an IC card prepaid electricity meter. The meter used Philips' 8-bit 51-expanded single-chip microcomputer
87LPC764
, and wa...[Details]
1. Introduction
Since the 1980s, with the continuous development of automotive electronic technology, there are more and more electronic control units in automobiles, such as electronic fuel i...[Details]
Abstract: In order to generate a stable excitation signal, the design of a digital frequency synthesizer is implemented on FPGA using Verilog hardware language. The design includes accumulator, wav...[Details]
Introduction
Power subsystems are becoming more and more integrated into the overall system. Power systems have moved from being separate "essential dangerous devices" to being monitorable...[Details]
Battery life is critical for portable applications. For applications such as smoke detectors, security devices, and thermostats, factory-installed batteries need to last for more than 10 years. The...[Details]
The data collector of the automatic weather station is generally designed based on a single-chip microcomputer or a PC/104 bus controller. It has the characteristics of good compatibility with PC, low...[Details]
With the development and widespread application of computer technology, especially in the field of industrial control, computer communication is particularly important. Although serial communication g...[Details]
This controller uses PIC16C54 single-chip microcomputer as the controller, and it is very easy to use: just connect a telephone line to the loudspeaker through the controller, and you can rem...[Details]
Problems such as the depletion of natural resources, air pollution, traffic congestion, and rising fossil fuel prices have forced societies and individuals to seek alternative means of transportati...[Details]
1. Disadvantages of choosing too high a voltage level
Choosing too high a voltage level will result in too high an investment and a long payback period. As the voltage level increases, the...[Details]
Motors, especially those with brushes, generate a lot of noise. This noise must be dealt with if the appliance is to meet the requirements of EMC standards. The means to solve EMC are nothing more ...[Details]
LED guardrail lights use fluorescent tubes or LEDs as light sources and continuous guardrails as carriers to form an approximately linear guardrail light strip. This article mainly introduces...[Details]
0 Introduction
Ultrasonic waves
are mechanical waves with a frequency of more than 20KHz, and the propagation speed in the air is about 340 m/s (at 20°C). Ultrasonic waves can be gene...[Details]
The above is to use MB1404 as a stereo composite signal transmitter. You can use the internal high-frequency amplifier and oscillator or not! According to my experience, I still recommend beginners...[Details]
_pdf/pg_0001.png)
PCB Design
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
