RAC648N1205%R

Description
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.063W, 120ohm, 50V, 5% +/-Tol, -200,200ppm/Cel, 2512,
CategoryPassive components    The resistor
File Size259KB,2 Pages
ManufacturerSEI(Stackpole Electronics Inc.)
Websitehttps://www.seielect.com/
Download Datasheet Parametric View All

RAC648N1205%R Overview

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.063W, 120ohm, 50V, 5% +/-Tol, -200,200ppm/Cel, 2512,

RAC648N1205%R Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid913428374
Reach Compliance Codeunknown
ECCN codeEAR99
structureChip
Network TypeBussed
Number of terminals10
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package height0.6 mm
Package length6.4 mm
Package formSMT
Package width3.1 mm
method of packingTape, Embossed
Rated power dissipation(P)0.063 W
resistance120 Ω
Resistor typeARRAY/NETWORK RESISTOR
seriesRAC648N(5%)
size code2512
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient200 ppm/°C
Tolerance5%
Operating Voltage50 V

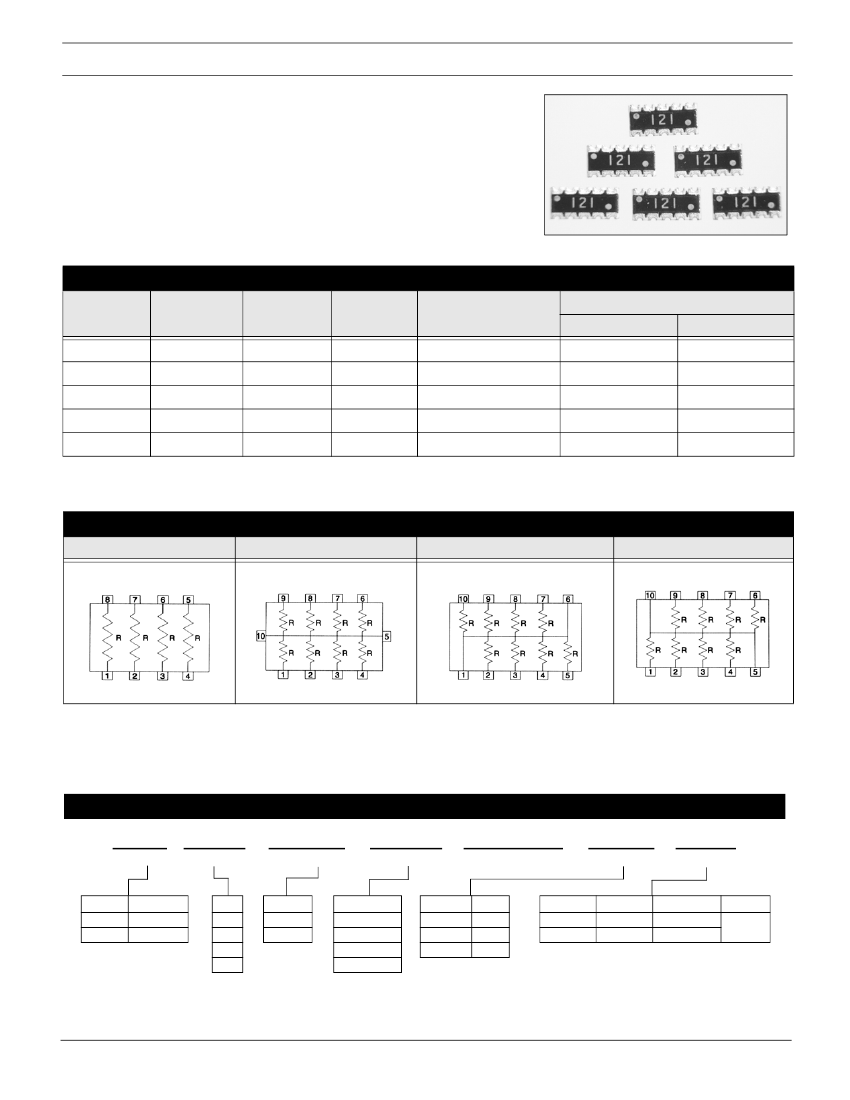

RAC Series — Concave Termination Chip Resistor Array
Features
• Thick film resistor element
• Zero ohm available
• Auto-placement capability
• Multiple circuit types available
• Ideal SMD substitute for leaded networks
• RoHS compliant / lead-free available (RACF)
Electrical Specifications
Type/Code/
# of Elements/
Circuit Type
RAC 16-4D
RAC 32-4D
RAC 40-8M
RAC 64-8N
RAC 64-8R
Power Rating
(per element)
@ 70°C
0.063W
0.125W
0.063W
0.063W
0.063W
Maximum
Working
Voltage*
50V
75V
25V
50V
50V
Maximum
Overload
Voltage
100V
150V
50V
100V
100V
Resistance Temperature
Coefficient
±200 ppm/°C
±200 ppm/°C
±200 ppm/°C
±200 ppm/°C
±200 ppm/°C
Ohmic Range and Tolerance
1%
22Ω – 1MΩ
22Ω – 1MΩ
5%
10Ω – 1MΩ
10Ω – 1MΩ
22Ω – 1MΩ
22Ω – 1MΩ
22Ω – 1MΩ
* Lesser of
√PR
or maximum working voltage.
Schematics
Isolated Circuit - D
Bussed Circuit - M
Bussed Circuit - N
Bussed Circuit - R
How to Order
RAC
SEI Type
16
Code
4
# of Elements
D
Circuit Type
10K
Nominal Resistance
5%
Tolerance
R
Packaging
SEI Type Description
RAC
RACF
Standard
RoHS
Code
16
32
40
64
Elements
4
8
Circuit Type
D = Isolated
M = Bussed
N = Bussed
R = Bussed
Tolerance Values
1%
2%
5%
E24
E24
E24
SEI Types
16
32, 40, 64
Pkg Qty
5,000
4,000
Description
Paper
Emboss
Code
R

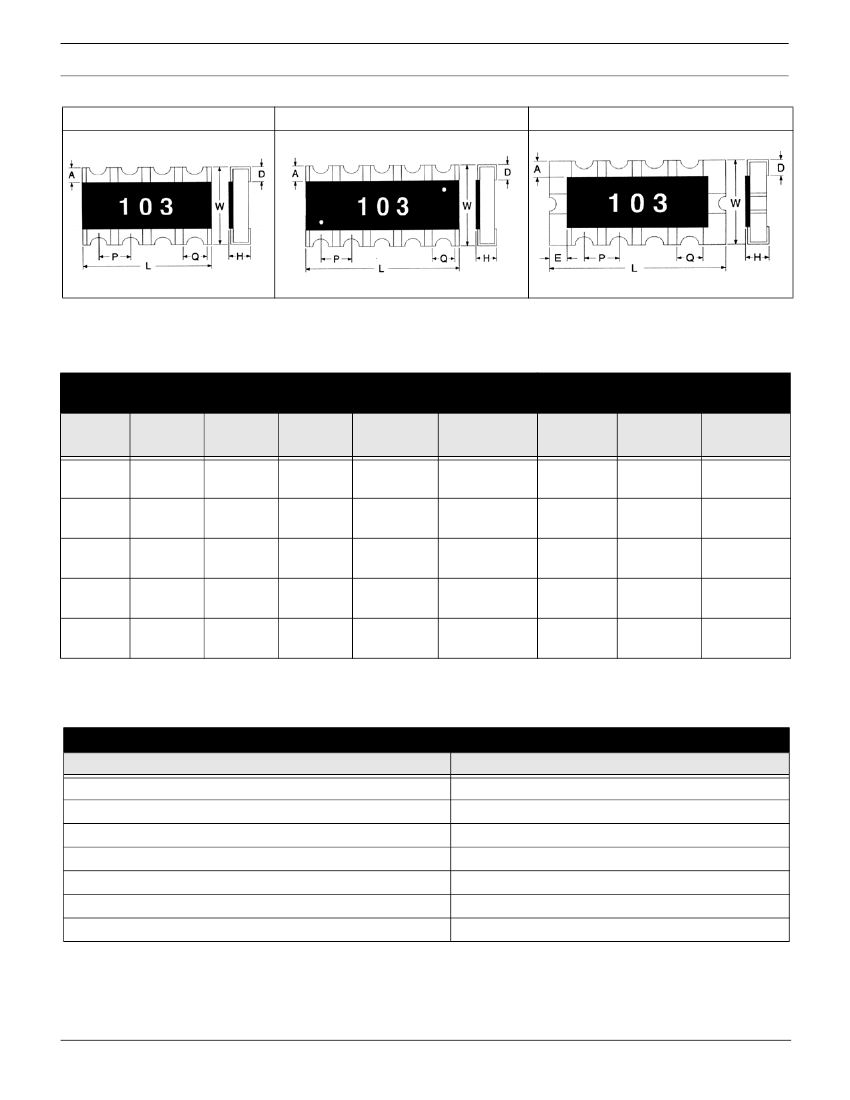

Toll Free: (888) SEI-SEIS
(888) 734-7347
www.seielect.com
21
email: marketing@seielect.com
Rev 02/07
