SPECIFICATIONS
Current rating:
1 amp
Contact material: Phosphor bronze
Contact plating:
Tin, selective gold,
gold
Contact resistance: 30 milliohms max.
Insulator material: PBT, glass rein-
forced, UL94V-0
Insul. resistance: 1,000 megohms min.
Withstanding:
250VAC for 1 min.
Operating temp.: -40°C to +105°C
A
C
Restricted part. Only available on
cables.
D
Poles
10
14
16
20
26
30
34
40
50
60
68
70
80
90
100
A
11.20
13.74
15.01
17.55
21.36
23.90
26.44
30.25
36.60
42.95
48.03
49.30
55.65
62.00
68.35
B
5.08
7.62
8.89
11.43
15.24
17.78
20.32
24.13
30.48
36.83
41.91
43.18
49.53
55.88
62.23
B
C
D
E
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Series
Contacts
Plating
Options
CFCA-LPHD2
XX
XX
XX
Low profile high
10, 14, 16, 20, 26, TN=Tin
P=Polarized
density IDC socket 30, 34, 40, 50, 60, SGXX=Selective gold NP=Not polarized
68, 70, 80, 90, 100 GDXX=Gold, flash if SR=Strain Relief
blank, 5,10,15,30u”
Date
08/10/99
08/10/99
08/10/99 Part No.:
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
CFCA-LPHD2-XX-XX-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

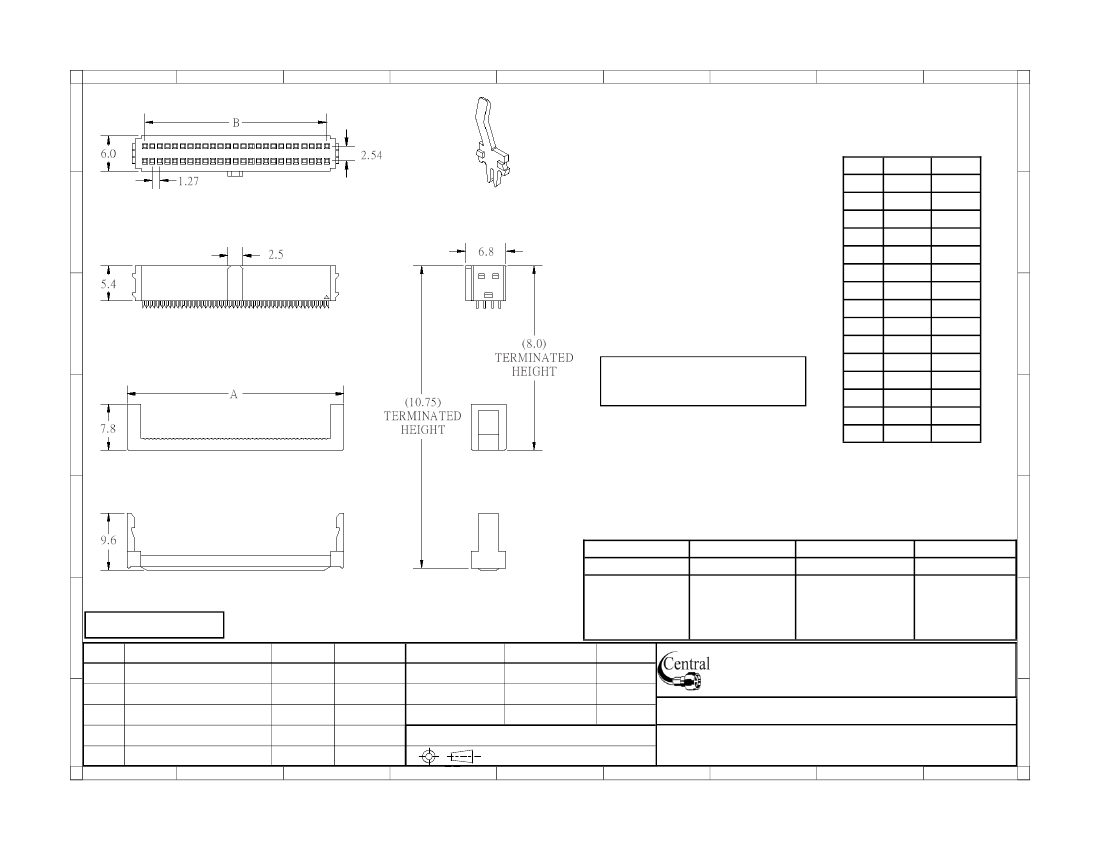

Description: 1.27mm pitch low profile high density IDC socket
G
