DWDM-116DC23207 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> DWDM-116DC23207

DWDM-116DC23207: DescriptionWavelength Division Mux/Demux, 100GHz, LC Connector, 150 X 95 MM, 20 MM HEIGHT, PACKAGE; CategoryWireless rf/communication Optical fiber; File Size156KB，2 Pages; ManufacturerLaser Components USA Inc.

Download Datasheet Parametric View All

DWDM-116DC23207 Overview

Wavelength Division Mux/Demux, 100GHz, LC Connector, 150 X 95 MM, 20 MM HEIGHT, PACKAGE

DWDM-116DC23207 Parametric

Parameter Name	Attribute value
Objectid	1320283877
Reach Compliance Code	unknown
channel spacing	100 GHz
Communication standards	GR-1221, ITU
Connection Type	LC CONNECTOR
Fiber optic equipment types	WAVELENGTH DIVISION MUX/DEMUX
Maximum insertion loss	4.5 dB
Minimum isolation	25 dB
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal operating wavelength	1589 nm
minimum return loss	45 dB

Preview

Download Datasheet

View All

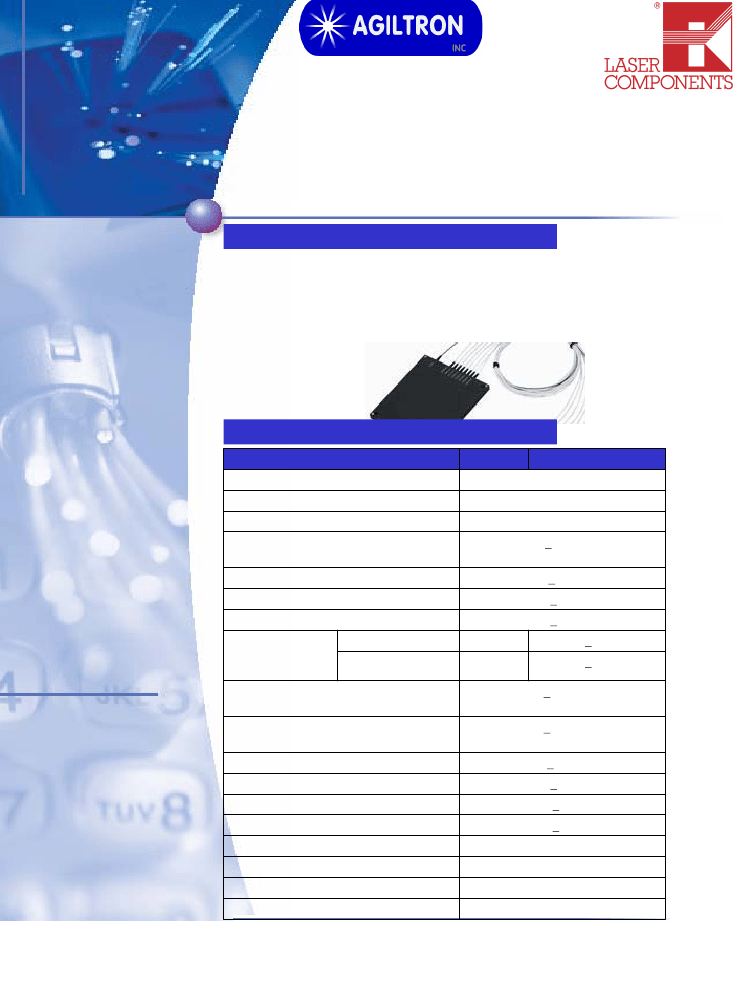

100GHz

16 Channel

Dense Wavelength Division

Multiplexer

(patent pending)

Product Description

Agiltron’s Wavelength Division Multiplexer (WDM) is based on thin film

filter technology. This proven technology offers wide channel bandwidth,

flexible channel configuration, low insertion loss, and high isolation. The

DWDM series modules are used to add or drop particular wavelengths

and are ideal for telecommunications and networking. Agiltron’s DWDM

modules are Bellcore GR -1221 qualification tested and are epoxy-free in

the optical path.

Features

•

100 GHz Channel Spacing

High Channel Isolation

Low Insertion Loss

Highly Stable & Reliable

Epoxy-Free Optical Path

Low Profile Packaging

Performance Specifications

Parameter

Channel Wavelength (nm)

Center Wavelength Accuracy (nm)

Minimum Channel Spacing (GHz)

Channel Passband (@-0.5dB

bandwidth) (nm)

Insertion Loss (dB)

Uniformity(dB)

Channel Ripple (dB)

Isolation

@Add/Drop

Channel (dB)

Adjacent

Non-adjacent

N/A

<0.005

<0.002

<0.15

<0.1

>50

>45

300

0 ~ +70

-40 ~ +85

L150xW95xH20

Mux

Demux

ITU 100 GHz Grid

0.05

100(0.8nm)

> 0.22

< 4.5

<1.5

<0.3

> 25

> 35

Applications

• Add/Drop Channels

• Dense WDM Systems

• CATV Fiberoptic Links

Insertion Loss Temperature Sensitivity

(dB/

C )

Wavelength Temperature Shifting

(nm/

C )

Polarization Dependent Loss (dB)

Polarization Mode Dispersion (ps)

Directivity (dB)

Return Loss (dB)

Power Handling (mW)

Operating Temperature (

Storage Temperature (

Dimension (mm)

LASER COMPONENTS GmbH

Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
