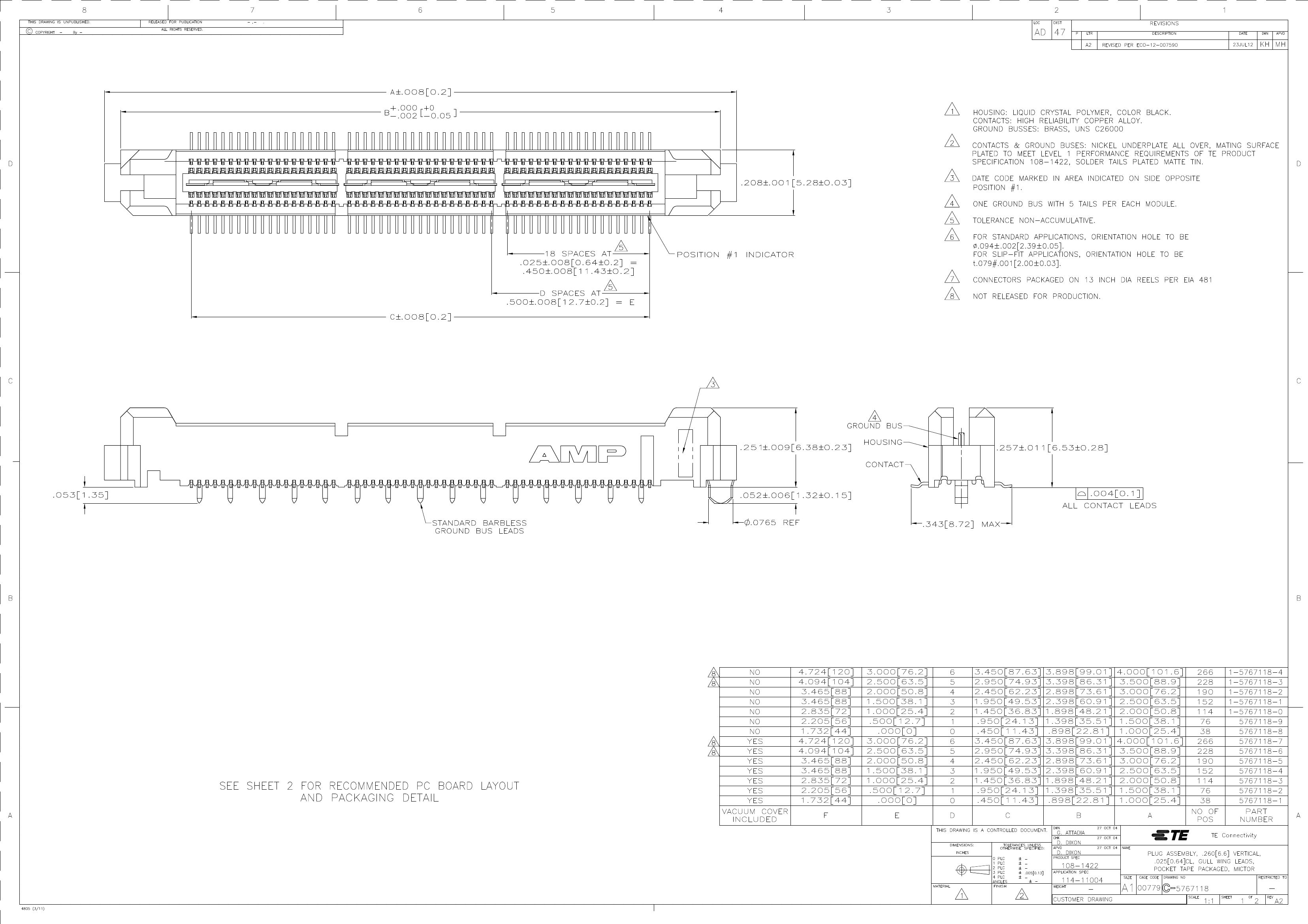

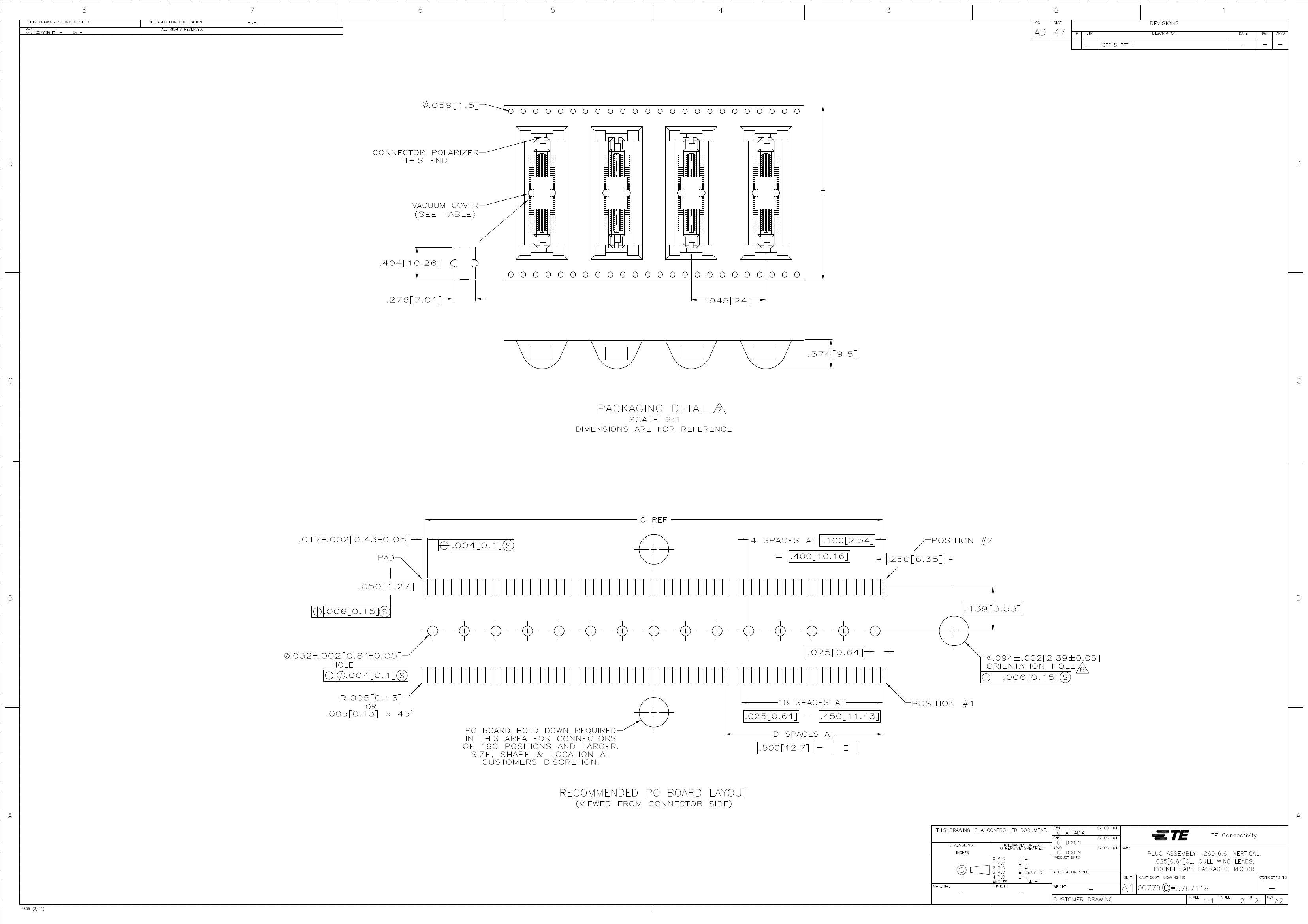

PDF
Preview

5767118-9

Description
conn plug 76pos .025 vert smd
CategoryThe connector
File Size337KB，2 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

5767118-9 Online Shopping

Suppliers Part Number Price MOQ In stock
5767118-9 - - View Buy Now

5767118-9 Overview

conn plug 76pos .025 vert smd

5767118-9 Parametric

Parameter NameAttribute value
Datasheets
5767118
RoHS Informati
5767118-9 Statement of Compliance
RoHS 2 Stateme
Standard Package504
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
PackagingTape & Reel (TR)
Connector TypePlug, Outer Shroud Contacts
Number of Positions76
Pitch0.025" (0.64mm)
Number of Rows2
Mounting TypeSurface Mou
FeaturesBoard Guide, Ground Bus (Plane)
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights6.6mm, 15.62mm
Height Above Board0.251" (6.38mm)
Mating ProductsA101823DKR-ND - CONN RCPT 76POS .025 VERT SMDA101823CT-ND - CONN RCPT 76POS .025 VERT SMD5767146-9-ND - CONN RCPT 76POS VERT .025 SMD767146-9-ND - CONN RCPT 76POS VERT .025 SMD5767146-2-ND - CONN RCPT 76POS VERT .025 SMD767146-2-ND - CONN RCPT 76POS VERT .025 SMD767094-2-ND - CONN RCPT 76POS VERT .025 SMD5767095-2-ND - CONN RCPT 76POS VERT .025 SMD767095-2-ND - CONN RCPT 76POS VERT .025 SMDA115512-ND - CONN RCPT 76POS VERT .025 SMDA115664-ND - CONN RCPT 76POS VERT .025 SMD5767178-2-ND - CONN RCPT 76POS VERT .025 SMD767178-2-ND - CONN RCPT 76POS VERT .025 SMDA115495-ND - CONN RCPT 76POS R/A .025 SMDA115651-ND - CONN RCPT 76POS R/A .025 SMD5767143-2-ND - CONN RCPT 76POS R/A .025 SMD767143-2-ND - CONN RCPT 76POS R/A .025 SMDA101817-ND - CONN RCPT 76POS .025 VERT SMDA115652-ND - CONN RCPT 76POS .025 VERT SMD5767061-2-ND - CONN RCPT 76POS .025 VERT SMD767061-2-ND - CONN RCPT 76POS .025 VERT SMDA115509-ND - CONN RCPT 76POS .025 VERT SMD767110-2-ND - CONN RCPT 76POS .025 VERT SMD5767114-9-ND - CONN RCPT 76POS .025 VERT SMD767114-9-ND - CONN RCPT 76POS .025 VERT SMD5767096-2-ND - CONN RCPT 76POS .025 VERT SMD767096-2-ND - CONN RCPT 76POS .025 VERT SMDA101823TR-ND - CONN RCPT 76POS .025 VERT SMD767096-9-ND - CONN RCPT 76POS .025 VERT SMDA101819-ND - CONN RCPT 76POS VERT .025 SMDA32309-ND - CONN RECEPT 76POS .025 VERT SMDA29125-ND - CONN RECEPT 76POS .025 VERT SMD

Preview

Download Datasheet

5767118-9 Related Products

5767118-9
Description conn plug 76pos .025 vert smd
Standard Package 504
Category Connectors, Interconnects
Family Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging Tape & Reel (TR)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 76
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mou
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30µin (0.76µm)
Mated Stacking Heights 6.6mm, 15.62mm
Height Above Board 0.251" (6.38mm)
Mating Products A101823DKR-ND - CONN RCPT 76POS .025 VERT SMDA101823CT-ND - CONN RCPT 76POS .025 VERT SMD5767146-9-ND - CONN RCPT 76POS VERT .025 SMD767146-9-ND - CONN RCPT 76POS VERT .025 SMD5767146-2-ND - CONN RCPT 76POS VERT .025 SMD767146-2-ND - CONN RCPT 76POS VERT .025 SMD767094-2-ND - CONN RCPT 76POS VERT .025 SMD5767095-2-ND - CONN RCPT 76POS VERT .025 SMD767095-2-ND - CONN RCPT 76POS VERT .025 SMDA115512-ND - CONN RCPT 76POS VERT .025 SMDA115664-ND - CONN RCPT 76POS VERT .025 SMD5767178-2-ND - CONN RCPT 76POS VERT .025 SMD767178-2-ND - CONN RCPT 76POS VERT .025 SMDA115495-ND - CONN RCPT 76POS R/A .025 SMDA115651-ND - CONN RCPT 76POS R/A .025 SMD5767143-2-ND - CONN RCPT 76POS R/A .025 SMD767143-2-ND - CONN RCPT 76POS R/A .025 SMDA101817-ND - CONN RCPT 76POS .025 VERT SMDA115652-ND - CONN RCPT 76POS .025 VERT SMD5767061-2-ND - CONN RCPT 76POS .025 VERT SMD767061-2-ND - CONN RCPT 76POS .025 VERT SMDA115509-ND - CONN RCPT 76POS .025 VERT SMD767110-2-ND - CONN RCPT 76POS .025 VERT SMD5767114-9-ND - CONN RCPT 76POS .025 VERT SMD767114-9-ND - CONN RCPT 76POS .025 VERT SMD5767096-2-ND - CONN RCPT 76POS .025 VERT SMD767096-2-ND - CONN RCPT 76POS .025 VERT SMDA101823TR-ND - CONN RCPT 76POS .025 VERT SMD767096-9-ND - CONN RCPT 76POS .025 VERT SMDA101819-ND - CONN RCPT 76POS VERT .025 SMDA32309-ND - CONN RECEPT 76POS .025 VERT SMDA29125-ND - CONN RECEPT 76POS .025 VERT SMD
