6600.3300.21: DescriptionV-lock pwr outlet screw-ON; CategoryThe connector The connector; File Size302KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

6600.3300.21 Overview

V-lock pwr outlet screw-ON

6600.3300.21 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks 2 days
Other features	STANDARDS: IEC/EN 60320-2-2/F, UL 94V-0; UL 498, CSA C22.2, VDE, QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/PG07

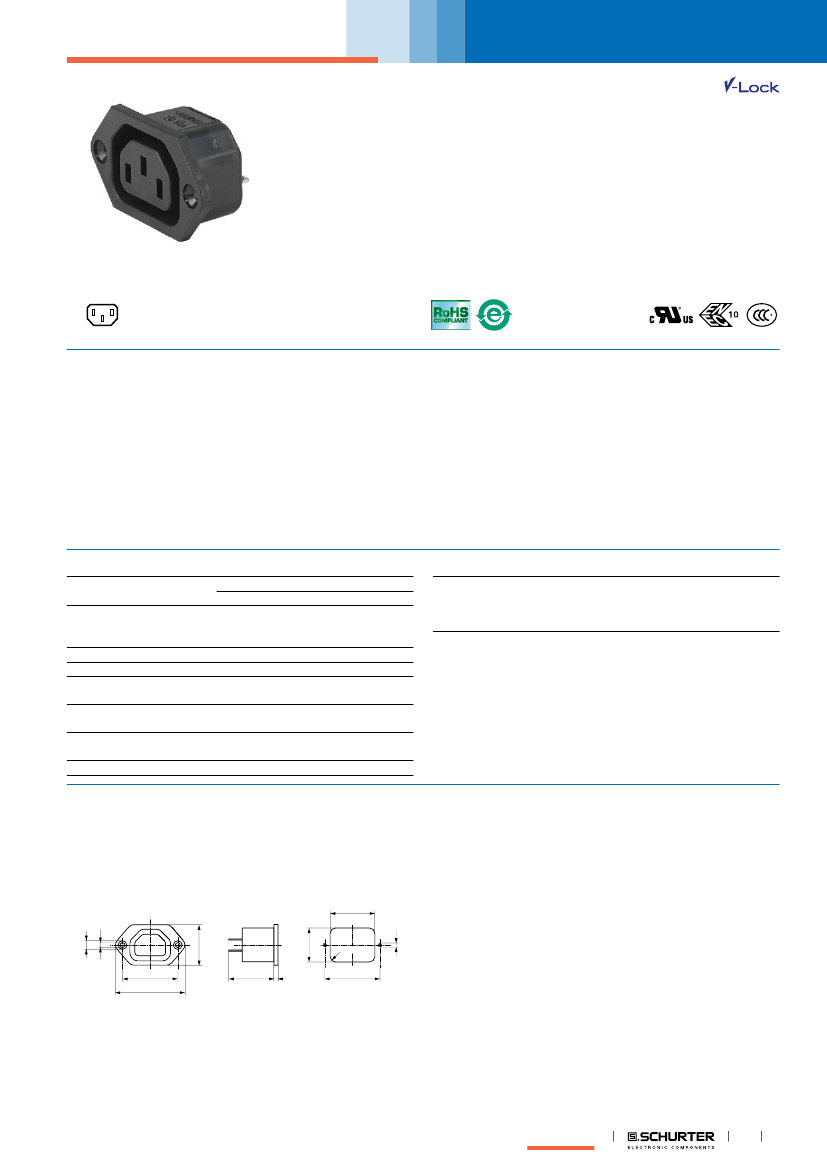

IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal

6600-3

70° C

Description

- Panel Mount:

Screw-on mounting from front side

- 1 Function:

- Connector, Pin temperature 70 °C, Protection class I

- Solder terminals or quick connect terminals

Other versions on request

- Types for rivet mounting available upon request

- Types for enhanced glow wire test requirements acc. IEC 60695-2-

12 and -13 for the use in unattended household equipment acc. IEC

60335-1

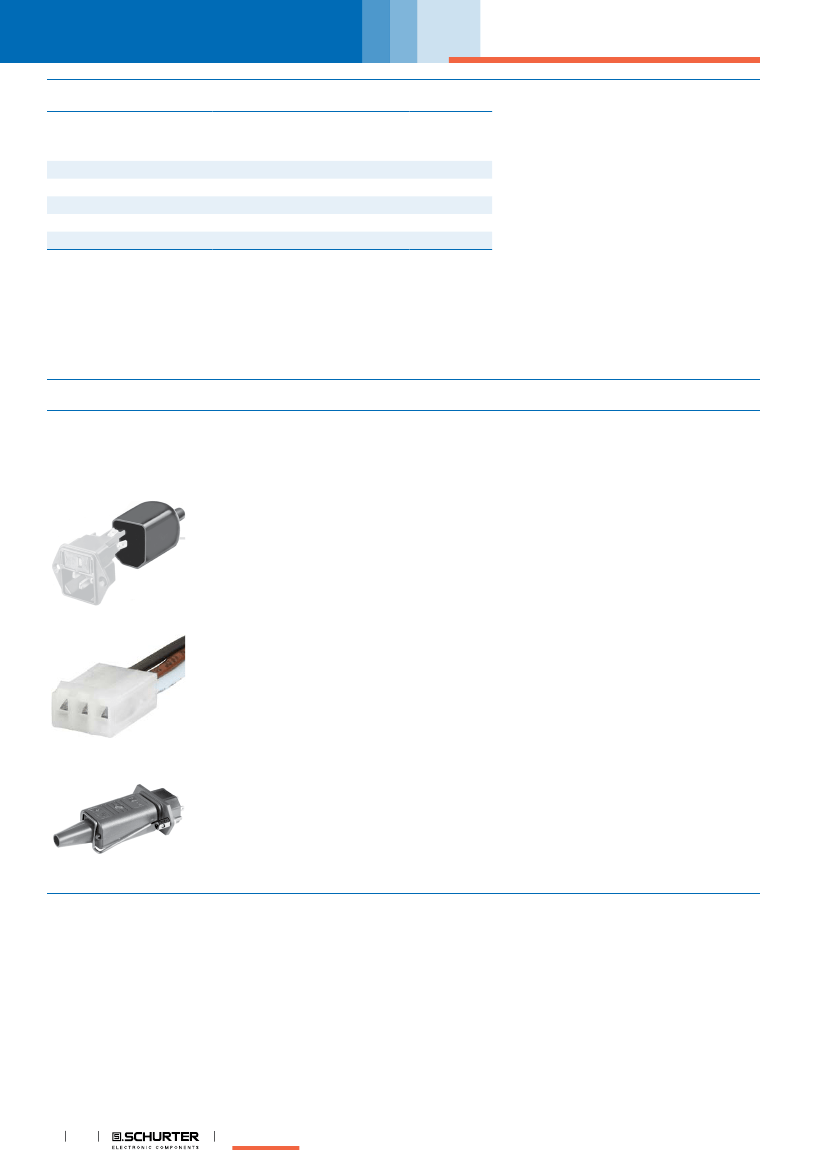

Weblinks

Approvals

- VDE Certificate Number: 40017345

- UL File Number: E103791

- CCC File Number: 2012010204546362

pdf-datasheet, html-datasheet, General Product Information, Approvals,

CE declaration of conformity, RoHS, CHINA-RoHS, REACH, Mating

Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-Stock-

Check, CAD-Drawings, Accessories, Wire Harnessing, Detailed request

for product

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.

The cord latching system prevents against accidental removal of the cordset.

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 2 kVAC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 30 acc. to IEC 60529

Suitable for appliances with protection

class I acc. to IEC 61140

Solder terminals or quick connect ter-

minals

Screw: max 8 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

Appliance Outlet

F acc. to IEC 60320,

UL 498, CSA C22.2 no. 182.3 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class I

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Dimensions

6600-3

32.5

6.3x90˚

3.5

24.8

+0.2

max.R4

E: Solder terminals: 24.1 mm

E: Quick connect terminals 4.8 x 0.8 mm: 26.5 mm

E: Quick connect terminals 6.3 x 0.8 mm: 27.5 mm
