336462-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 336462-1

Preview

336462-1: Descriptionconn mod plug 8p8c shielded; CategoryThe connector; File Size227KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

336462-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336462-1	-	-	View	Buy Now

336462-1 Overview

conn mod plug 8p8c shielded

336462-1 Parametric

Parameter Name	Attribute value
Datasheets
336462
RoHS Informati
336462-1 Statement of Compliance
RoHS 2 Stateme
Featured Produc
TE Connectivity - Modular Jack
Standard Package	5,000
Category	Connectors, Interconnects
Family	Modular Connectors - Plugs
Packaging	Bulk
Cable Type	Round Cable, Stranded Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Features	Molded B
Shielding	Shielded
Ratings	Cat5e
Ingress Protecti	-
Terminati	IDC
Length	0.925" (23.50mm)
Col	Translucent - Cle
Wire Gauge	24-26 AWG
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Contact Material	Phosphor Bronze
Current Rating	-
Voltage Rating	-
Housing Material	Polycarbonate (PC)
Shield Material	Brass
Associated Produc	791804-3-ND - TOOL TERMINATING MODULE 26-23AWG790163-6-ND - TOOL DIE SET ASSY 26-24AWG790163-5-ND - TOOL HAND CRIMPER 24-26AWG ASSY354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE

Preview

Download Datasheet

View All

4

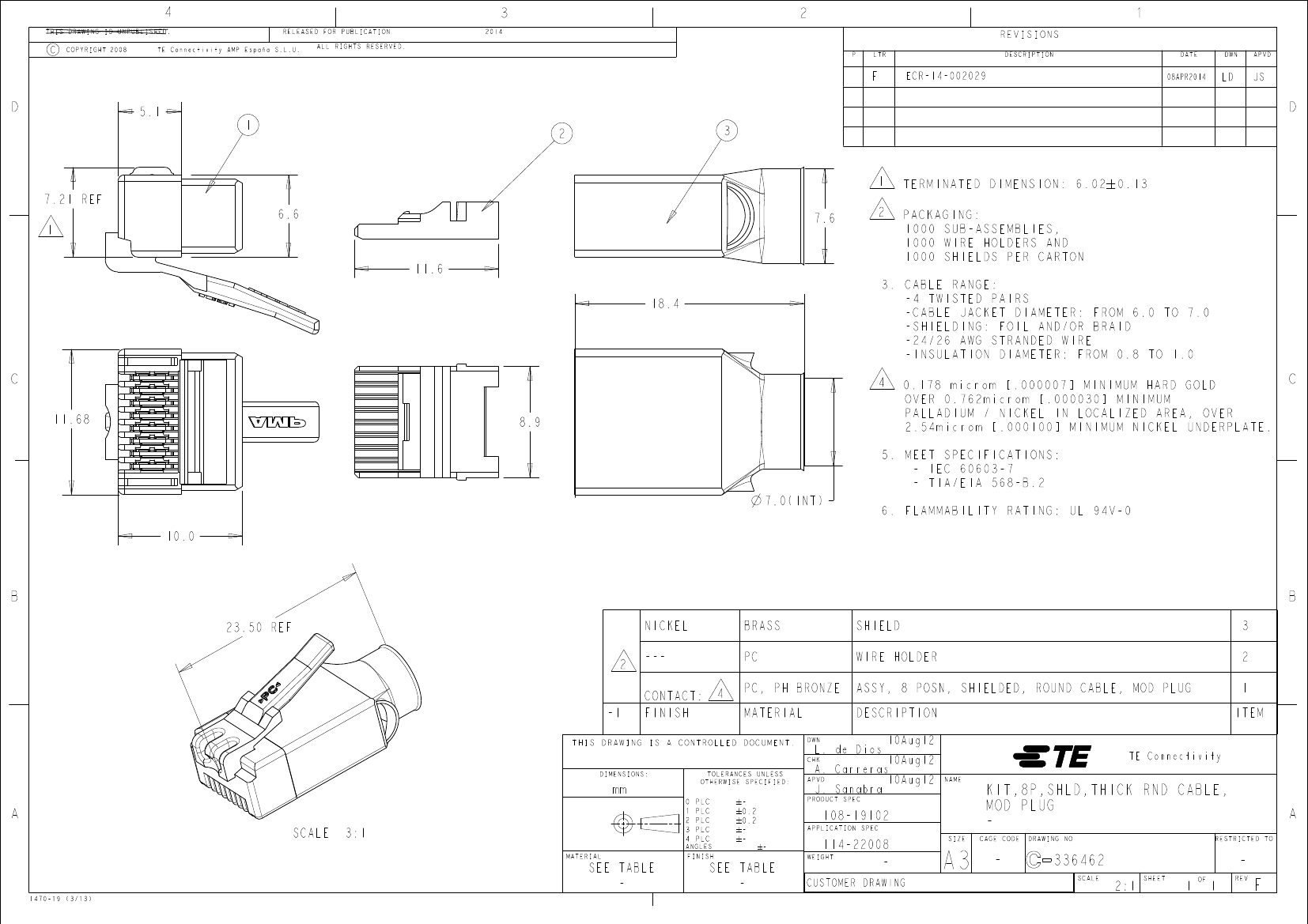

THIS DRAWING IS UNPUBLISHED.
