3965R-17TW-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3965R-17TW-L

3965R-17TW-L: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size708KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

3965R-17TW-L Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking

3965R-17TW-L Parametric

Parameter Name	Attribute value
Objectid	308885139
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.3 inch
subject depth	0.638 inch
body length	2.65 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2200VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	3965
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	17

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel:+49 (0) 5741 23661-0

Fax:+49 (0) 5741 23661-20

Ratioplast-Electronics

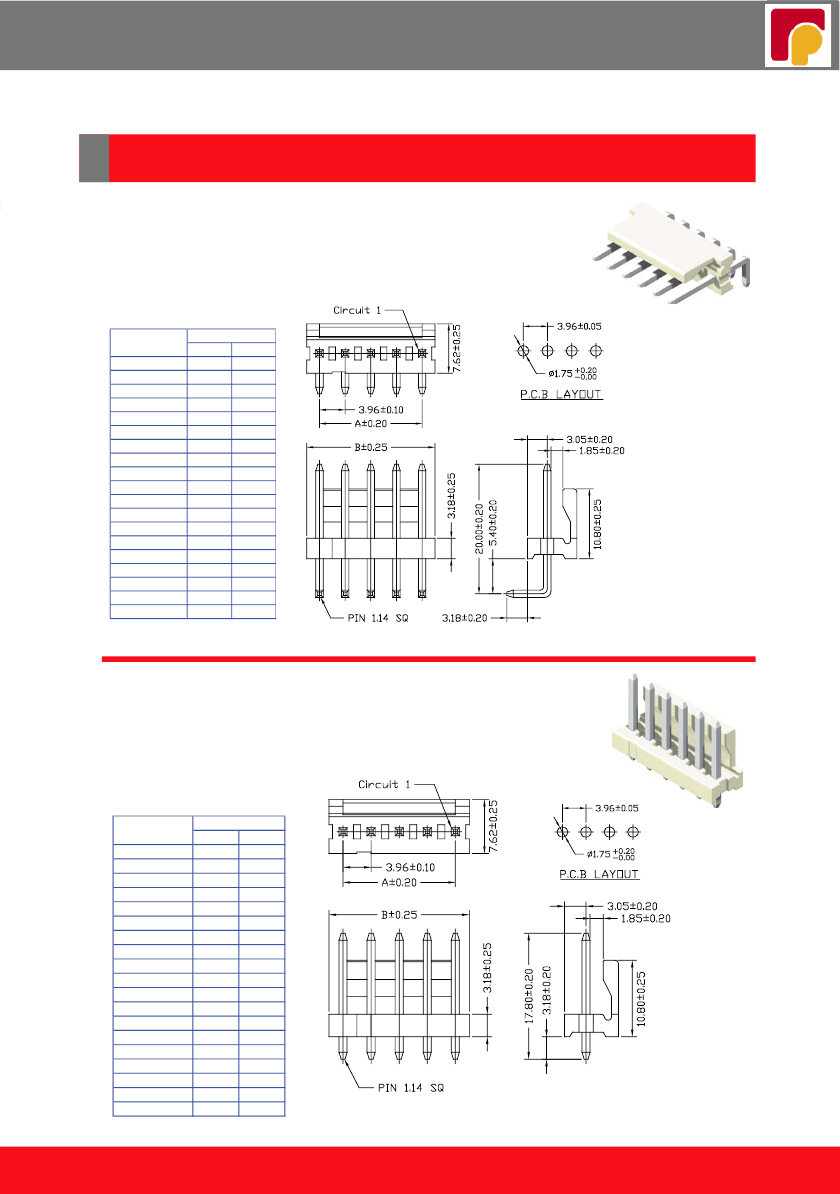

3.96mm Wafer Right Angle / Straight Type

Current Rating: 7A AC,DC

Voltage Rating: 600V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 3m

Max

Insulation Resistance: 5000M

Min

Withstanding Voltage: 2200V AC/minute

Terminal: Brass / Tin Plated

Material: Nylon 66,UL94V-0

P art N o.

3 9 6 5 R -0 2 TW -L

3 9 6 5 R -0 3 TW -L

3 9 6 5 R -0 4 TW -L

3 9 6 5 R -0 5 TW -L

3 9 6 5 R -0 6 TW -L

3 9 6 5 R -0 7 TW -L

3 9 6 5 R -0 8 TW -L

3 9 6 5 R -0 9 TW -L

3 9 6 5 R -1 0 TW -L

3 9 6 5 R -1 1 TW -L

3 9 6 5 R -1 2 TW -L

3 9 6 5 R -1 3 TW -L

3 9 6 5 R -1 4 TW -L

3 9 6 5 R -1 5 TW -L

3 9 6 5 R -1 6 TW -L

3 9 6 5 R -1 7 TW -L

3 9 6 5 R -1 8 TW -L

3 9 6 5 R -1 9 TW -L

3 9 6 5 R -2 0 TW -L

D im e n sio n s

3 .9 6

7 .9 2

1 1 .8 8

1 5 .8 4

1 9 .8 0

2 3 .7 6

2 7 .7 2

3 1 .6 8

3 5 .6 4

3 9 .6 0

4 3 .5 6

4 7 .5 2

5 1 .4 8

5 5 .4 4

5 9 .4 0

6 3 .3 6

6 7 .3 2

7 1 .2 8

7 5 .2 4

7 9 .2 0

Specifications

Part No.:3965R-XXTW-L

Current Rating: 7A AC,DC

Voltage Rating: 600V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 3m

Max

Insulation Resistance: 5000M

Min

Withstanding Voltage: 2200V AC/minute

Terminal: Brass / Tin Plated

Material: Nylon 66,UL94V-0

D im e n sio n s

3 .9 6

7 .9 2

1 1 .8 8

1 5 .8 4

1 9 .8 0

2 3 .7 6

2 7 .7 2

3 1 .6 8

3 5 .6 4

3 9 .6 0

4 3 .5 6

4 7 .5 2

5 1 .4 8

5 5 .4 4

5 9 .4 0

6 3 .3 6

6 7 .3 2

7 1 .2 8

7 5 .2 4

7 9 .2 0

Specifications

P art N o.

3 9 6 5 S -0 2 TW -L

3 9 6 5 S -0 3 TW -L

3 9 6 5 S -0 4 TW -L

3 9 6 5 S -0 5 TW -L

3 9 6 5 S -0 6 TW -L

3 9 6 5 S -0 7 TW -L

3 9 6 5 S -0 8 TW -L

3 9 6 5 S -0 9 TW -L

3 9 6 5 S -1 0 TW -L

3 9 6 5 S -1 1 TW -L

3 9 6 5 S -1 2 TW -L

3 9 6 5 S -1 3 TW -L

3 9 6 5 S -1 4 TW -L

3 9 6 5 S -1 5 TW -L

3 9 6 5 S -1 6 TW -L

3 9 6 5 S -1 7 TW -L

3 9 6 5 S -1 8 TW -L

3 9 6 5 S -1 9 TW -L

3 9 6 5 S -2 0 TW -L

Part No.:3965S-XXTW-L

www.amtek-co.com.tw

www.ratioplast.com
