REVISION
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REV.
B
C
DESCRIPTION
RoHS Compliancy
Updated Approvals
DATE
06-01-06
08-21-08
APPROVED
DP
LY
19.8 ±
0.2
0
27.2 ±
0.2
0

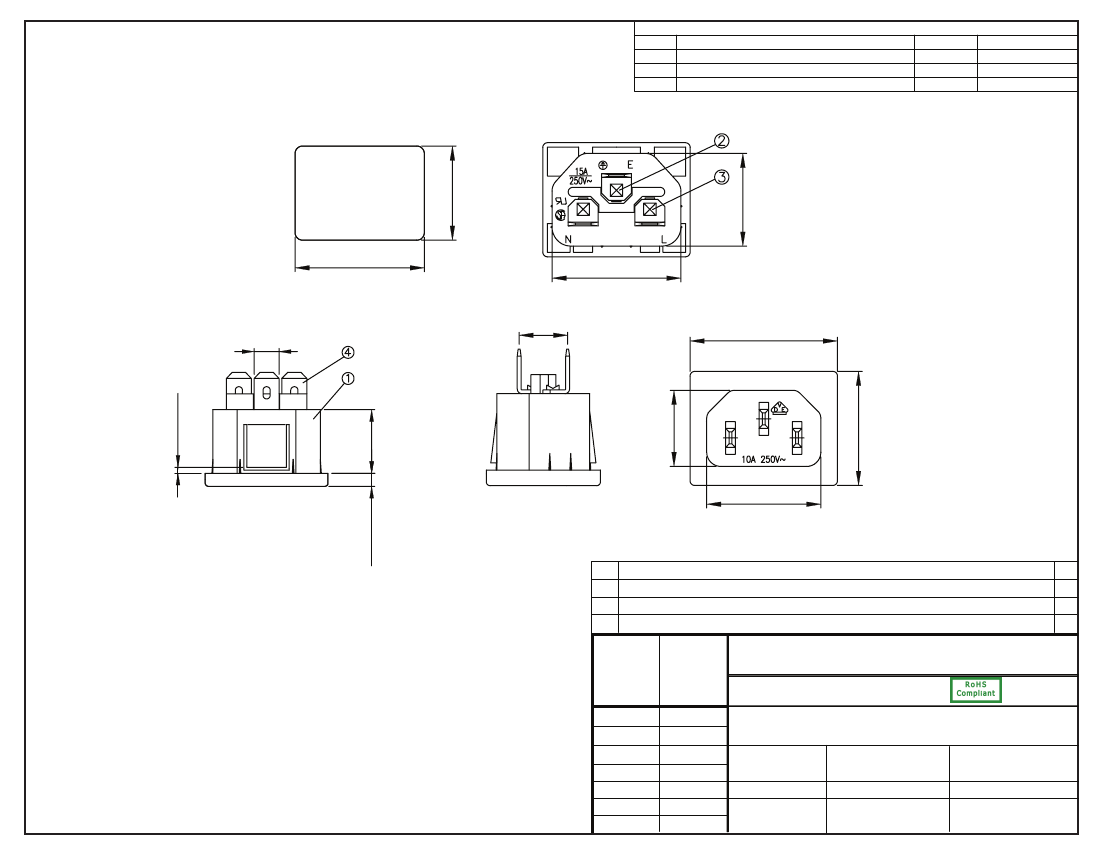

PANEL CUTOUT
10.2
6.3
27 ± 0.15
30.9 ± 0.2
1.5 ±
0.3
0
19.5 ± 0.2
1.5
3.3 ± 0.1
24 ±
0.5
0
24.1 ± 0.15
16
16 ±
0.5
0
CONTROLLED
4
3
2
1
Soldering PIN Bronze Strip t=0.8mm Tin-Plated
Contact PIN Bronze Strip t=2mm Ni-Plated
Contact PIN Bronze Strip t=2mm Ni-Plated
Body Insulator PC 940 Black Color
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Drawn / Date
B.Zhang
06-17-02
3
2
1
1
Qualtek Electronics Corp.
Part Number:
Description:
NOTES:
RATING:
UL, CSA: 15A 250V AC
VDE, CCC: 10A 250V AC
APPROVALS: UL,CSA, VDE, CCC
PANEL THICKNESS: 1.5mm
RoHS COMPLIANT
PPC DIVISION
701W-15/44
AC RECEPTACLE
UNIT: mm
Checked / Date
06-17-02
REV. C
Approved / Date
JJH / 06-17-02
