5-1375202-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-1375202-1

5-1375202-1: Descriptionconn mod plug 8p8c shielded; CategoryThe connector; File Size364KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1375202-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1375202-1	-	-	View	Buy Now

5-1375202-1 Overview

conn mod plug 8p8c shielded

5-1375202-1 Parametric

Parameter Name	Attribute value
Datasheets
1375202 Drawing
RoHS Informati
5-1375202-1 Statement of Compliance
RoHS 2 Stateme
Featured Produc
TE Connectivity - Modular Jack
Standard Package	1,000
Category	Connectors, Interconnects
Family	Modular Connectors - Plugs
Packaging	Bulk
Cable Type	Round Cable, Stranded Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Features	Molded B
Shielding	Shielded
Ratings	Cat6
Ingress Protecti	-
Terminati	IDC
Length	-
Col	Translucent - Cle
Wire Gauge	24-26 AWG
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Contact Material	Phosphor Bronze
Current Rating	-
Voltage Rating	-
Housing Material	Polycarbonate (PC)
Shield Material	Brass
Associated Produc	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK791804-1-ND - TOOL TERMINATING MODULE 26-23AWG354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE

Preview

Download Datasheet

View All

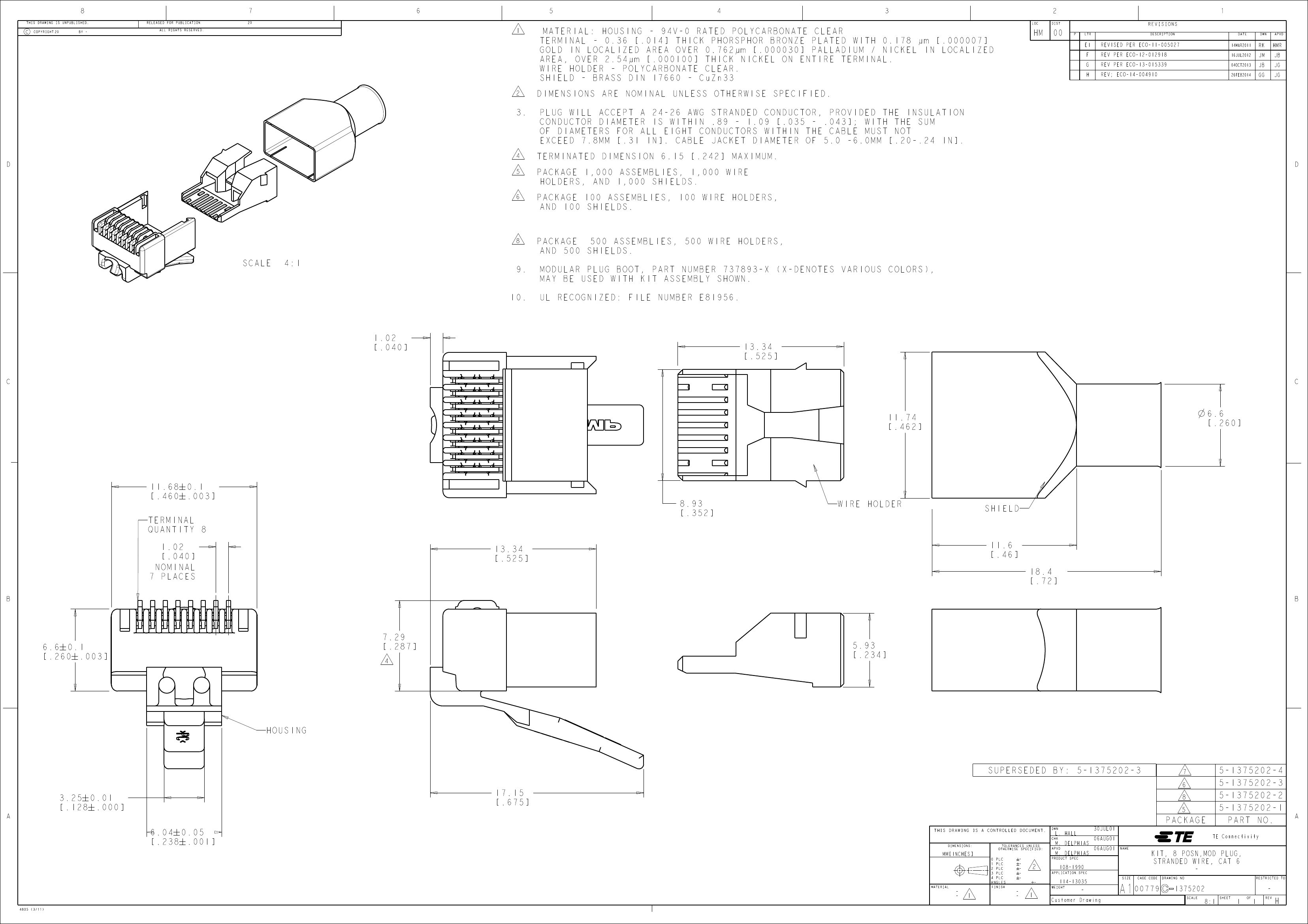

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

MATERIAL: HOUSING - 94V-0 RATED POLYCARBONATE CLEAR

TERMINAL - 0.36 [.014] THICK PHORSPHOR BRONZE PLATED WITH 0.178 µm

GOLD IN LOCALIZED AREA OVER 0.762µm [.000030] PALLADIUM / NICKEL IN

AREA, OVER 2.54µm [.000100] THICK NICKEL ON ENTIRE TERMINAL.

WIRE HOLDER - POLYCARBONATE CLEAR.

SHIELD - BRASS DIN 17660 - CuZn33

DIMENSIONS ARE NOMINAL UNLESS OTHERWISE SPECIFIED.

PLUG WILL ACCEPT A 24-26 AWG STRANDED CONDUCTOR, PROVIDED THE INSULATION

CONDUCTOR DIAMETER IS WITHIN .89 - 1.09 [.035 - .043]; WITH THE SUM

OF DIAMETERS FOR ALL EIGHT CONDUCTORS WITHIN THE CABLE MUST NOT

EXCEED 7.8MM [.31 IN]. CABLE JACKET DIAMETER OF 5.0 -6.0MM [.20-.24 IN].

TERMINATED DIMENSION 6.15 [.242] MAXIMUM.

PACKAGE 1,000 ASSEMBLIES, 1,000 WIRE

HOLDERS, AND 1,000 SHIELDS.

PACKAGE 100 ASSEMBLIES, 100 WIRE HOLDERS,

AND 100 SHIELDS.

[.000007]

LOCALIZED

REVISED PER ECO-11-005027

REV PER ECO-12-012918

REV PER ECO-13-015339

REV; ECO-14-004910

14MAR2011

16JUL2012

04OCT2013

26FEB2014

HMR

SCALE

4:1

PACKAGE 500 ASSEMBLIES, 500 WIRE HOLDERS,

AND 500 SHIELDS.

MODULAR PLUG BOOT, PART NUMBER 737893-X (X-DENOTES VARIOUS COLORS),

MAY BE USED WITH KIT ASSEMBLY SHOWN.

UL RECOGNIZED: FILE NUMBER E81956.

10.

1.02

[ .040 ]

13.34

[ .525 ]

11.74

[ .462 ]

6.6

[ .260 ]

11.68

[ .460

0.1

.003 ]

TERMINAL

QUANTITY 8

1.02

[ .040 ]

NOMINAL

7 PLACES

8.93

[ .352 ]

WIRE HOLDER

SHIELD

13.34

[ .525 ]

11.6

[ .46 ]

18.4

[ .72 ]

6.6 0.1

[ .260 .003 ]

7.29

[ .287 ]

5.93

[ .234 ]

HOUSING

SUPERSEDED BY: 5-1375202-3

3.25 0.01

[ .128 .000 ]

6.04 0.05

[ .238 .001 ]

17.15

[ .675 ]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

5-1375202-4

5-1375202-3

5-1375202-2

5-1375202-1

PART NO.

TE Connectivity

L. HALL

M. DELPHIAS

108-1990

30JUL01

06AUG01

NAME

PACKAGE

MM[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13035

Customer Drawing

00779

SIZE

CAGE CODE

KIT, 8 POSN,MOD PLUG,

STRANDED WIRE, CAT 6

DRAWING NO

RESTRICTED TO

1375202

SCALE

4805 (3/11)

8:1

SHEET

REV

5-1375202-1 Related Products

	5-1375202-1	5-1375202-3
Description	conn mod plug 8p8c shielded	conn mod plug 8p8c shielded
Standard Package	1,000	100
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Modular Connectors - Plugs	Modular Connectors - Plugs
Packaging	Bulk	Bulk
Cable Type	Round Cable, Stranded Wires	Round Cable, Stranded Wires
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Features	Molded B	Molded B
Shielding	Shielded	Shielded
Ratings	Cat6	Cat6
Terminati	IDC	IDC
Col	Translucent - Cle	Translucent - Cle
Wire Gauge	24-26 AWG	24-26 AWG
Contact Finish	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)
Contact Material	Phosphor Bronze	Phosphor Bronze
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Shield Material	Brass	Brass
Associated Produc	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK791804-1-ND - TOOL TERMINATING MODULE 26-23AWG354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE	5-737893-6-ND - CONN ACCY BOOT YELLOW4-737893-6-ND - CONN ACCY BOOT YELLOW5-737893-1-ND - CONN ACCY BOOT WHITE4-737893-1-ND - CONN ACCY BOOT WHITE5-737893-3-ND - CONN ACCY BOOT RED4-737893-3-ND - CONN ACCY BOOT RED5-737893-2-ND - CONN ACCY BOOT GRAY4-737893-2-ND - CONN ACCY BOOT GRAY5-737893-5-ND - CONN ACCY BOOT GREEN4-737893-5-ND - CONN ACCY BOOT GREEN5-737893-4-ND - CONN ACCY BOOT BLUE4-737893-4-ND - CONN ACCY BOOT BLUEA106453-ND - CONN ACCY BOOT BLACK4-737893-7-ND - CONN ACCY BOOT BLACK791804-1-ND - TOOL TERMINATING MODULE 26-23AWG354711-3-ND - TOOL CRIMPER MODULAR 8-POSITIONA9900-ND - TOOL CRIMP MOD 8POS WITH DIE
