MINI 9 - 2.54 MM PITCH
MINI 9
connector is :
• Miniature connector 2 rows - 4.9 thickness
• Issued from HE 809 connector series and offering the same technical characteristics
• Strong male contact
• Accepting connector separation without contact interruption > 1.5 mm
• Excellent performance in vibration environment
Materials
• Insulator body : Thermoplastic class UL 94 VO
• Contacts : Stamped, copper alloy
• Guides : Stainless steel
Plating
• Gold on contact side - Tin alloy on termination side
Characteristics
Mechanical
• Mechanical endurance : 500 mating/unmating operations min.
• Sinusoïdal vibrations: 0/2000 Hz – 20 g efficace - disturbance < 2 ns
• Random vibrations: 0/2000 Hz – 9 g efficace - disturbance < 2 ns
• Mating/unmating forces : 0,14 to 0.7 N per contact
• Climatic category : - 55° C to + 125° C
Electrical
• Working voltage : 150 Veff. 50 Hz
• Proof voltage : 750 Veff. 50 Hz
• Nominal current : 3 A
• Contact resistance : 12 mΩ max.
• Insulation resistance : 5000 MΩ min.
>>

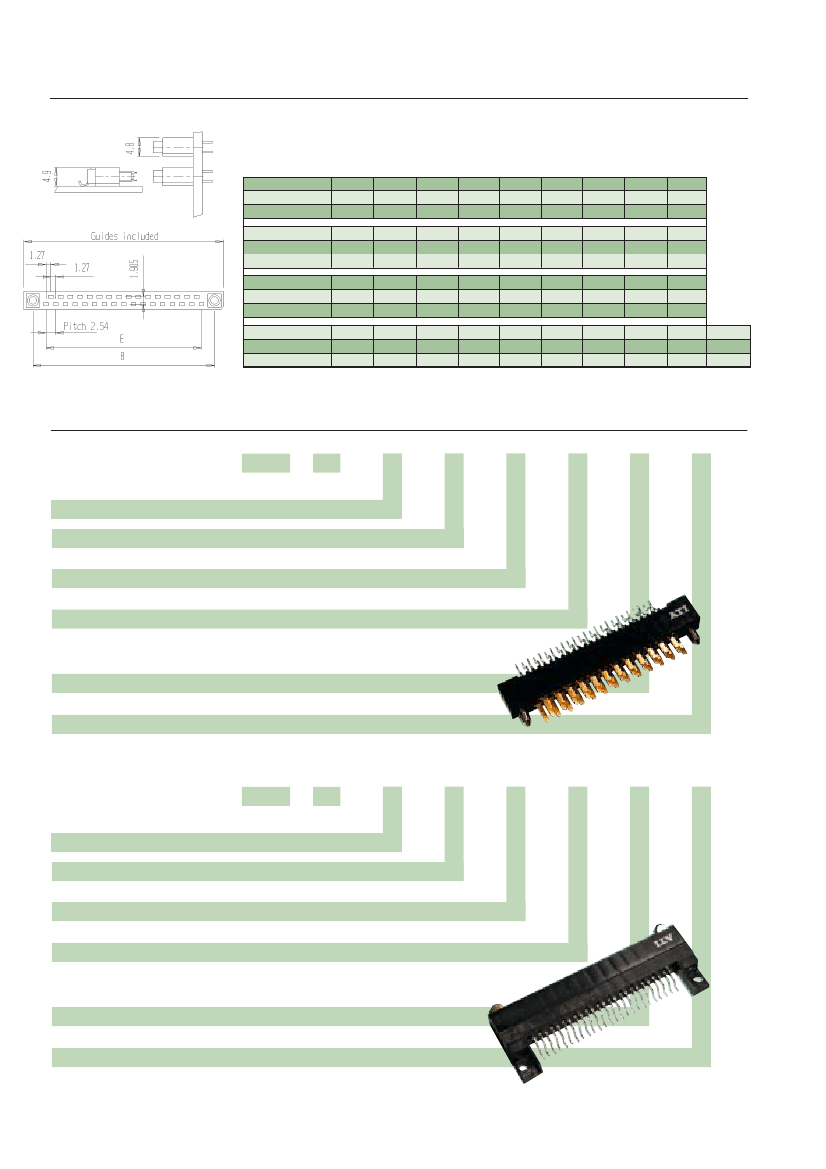

2
>>
MOULD SIZES
Nb of contacts
A±0.3
B
Nb of contacts
3
14.2
9.34
21
37.0
32.20
39
59.9
55.06
57
82.8
77.92
5
16.7
11.88
23
39.6
34.74
41
62.4
57.60
59
85.3
80.46
7
19.3
14.42
25
42.1
37.28
43
65.0
60.14
61
87.8
83.00
9
21.8
16.96
27
44.7
39.82
45
67.5
62.68
63
90.4
85.54
11
13
24.3
26.9
19.50 22.04
29
31
47.2
49.7
42.36 44.90
47
49
70.1
72.6
65.22 67.76
65
67
92.9
95.5
88.08 90.62
15
29.4
24.58
33
52.3
47.44
51
75.1
70.30
69
98.0
93.16
17
32.0
27.12
35
54.8
49.98
53
77.7
72.84
71
100.5
95.70
19
34.5
29.66
37
57.7
52.52
55
80.2
75.38
73
75
103.1 105.6
98.24 100.78
A±0.3
B
Nb of contacts
A±0.3
B
Nb of contacts
A±0.3
B
ORDERING INFORMATION
MALE CONNECTOR
Mini 9
FM
33
000
R3
A
3
0.8
Number of contacts
Option
Without : standard product = 000
Termination styles
R1, R3, V1, V2,Y1, Y2, Y3
Guide styles
A, B, C, E, F, G, H
J, K, FE, GE, HE, S, V
AS
(guide without coding)
(threaded guide)
(metal solder lock)
Termination plating
Tin alloy = 3
Contacts area plating
Standard : 0.8 micron min. gold thickness = 0.8
Other* : 1.27 micron min. gold thickness = 1.2
FEMALE CONNECTOR
Mini 9
EF
33
000
Y3
Q
3
0.8
Number of contacts
Option
Without : standard product = 000
Termination styles
C1, R1, R2, R3, V1, V2, V3, Y1, Y2, Y3
Guide styles
P Q, R, T, TS, U
,
Z
RS
(guide without coding)
(threaded guide)
(metal solder lock)
Termination plating
Tin alloy = 3
Contacts area plating
Standard : 0.8 micron min. gold thickness = 0.8
Other* : 1.27 micron min. gold thickness = 1.2
* Non standard plating can be supplied but a minimum contacts quantity is required : please contact us.
>>
2
>>

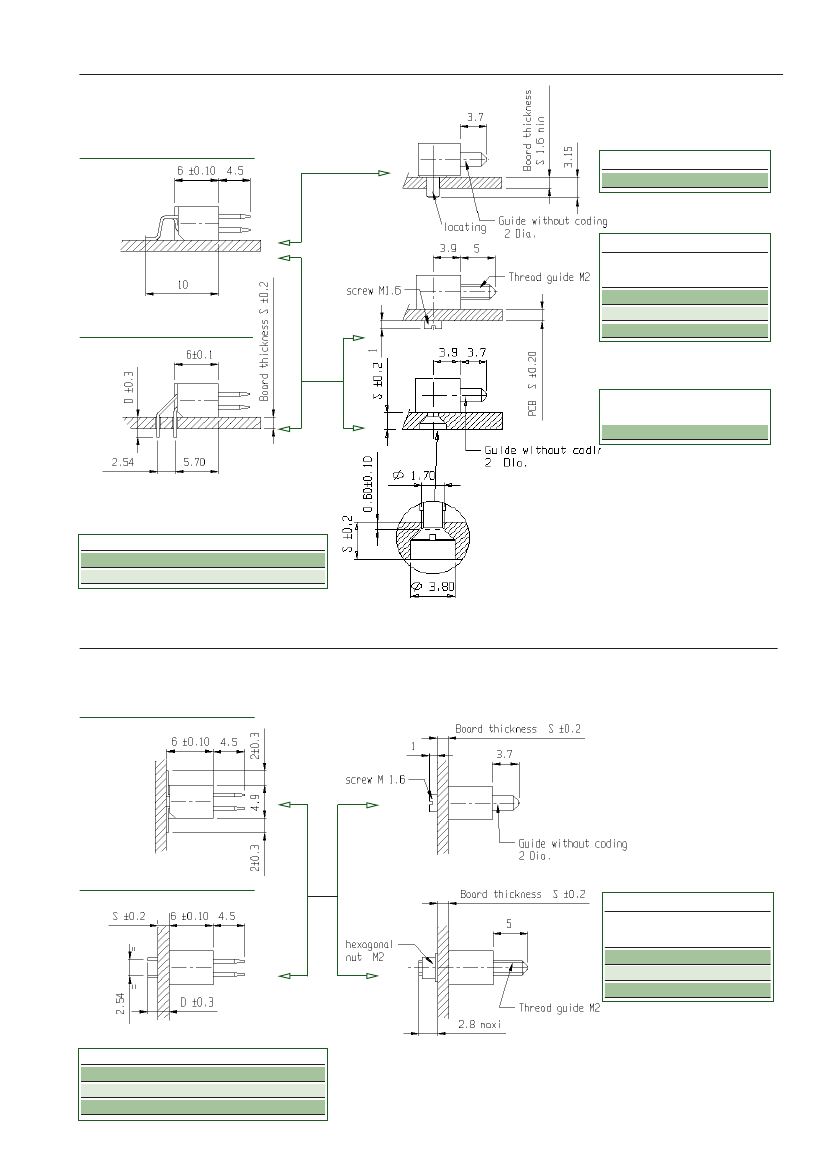

MALE CONNECTOR / RIGHT ANGLE MOUNTING
s
Termination styles
s
Guides
SMT
Solder on p.c.b.
AS
R1
Lockable on p.c.b.
P.c.b.
thickness
S
0.8
1.6 to 2.4
Guide
without
coding
Threaded
guide
Through p.c.b. mounting
3.2 to 4
A
B
C
J
K
S
V
Lockable on p.c.b.
Flat head screw
1.6 min.
E
V
P.c.b. thickness S
1.6
2.4
Depass
t
D
2.9
3.7
Contact ref.
V1
V2
MALE CONNECTOR / STRAIGHT MOUNTING
s
Termination styles
s
Guides
CMS
R3
Through p.c.b. mounting
Lockable on p.c.b.
P.c.b.
thickness
S
1.6
2.4
Guide
without
coding
Threaded
guide
Y
3.2
F
G
H
FE
GE
HE
P.c.b. thickness S
1.6
2.4
3.2
Depass
t
D
2.9
3.7
4.5
Contact ref.
Y1
Y2
Y3
>>
3
>>

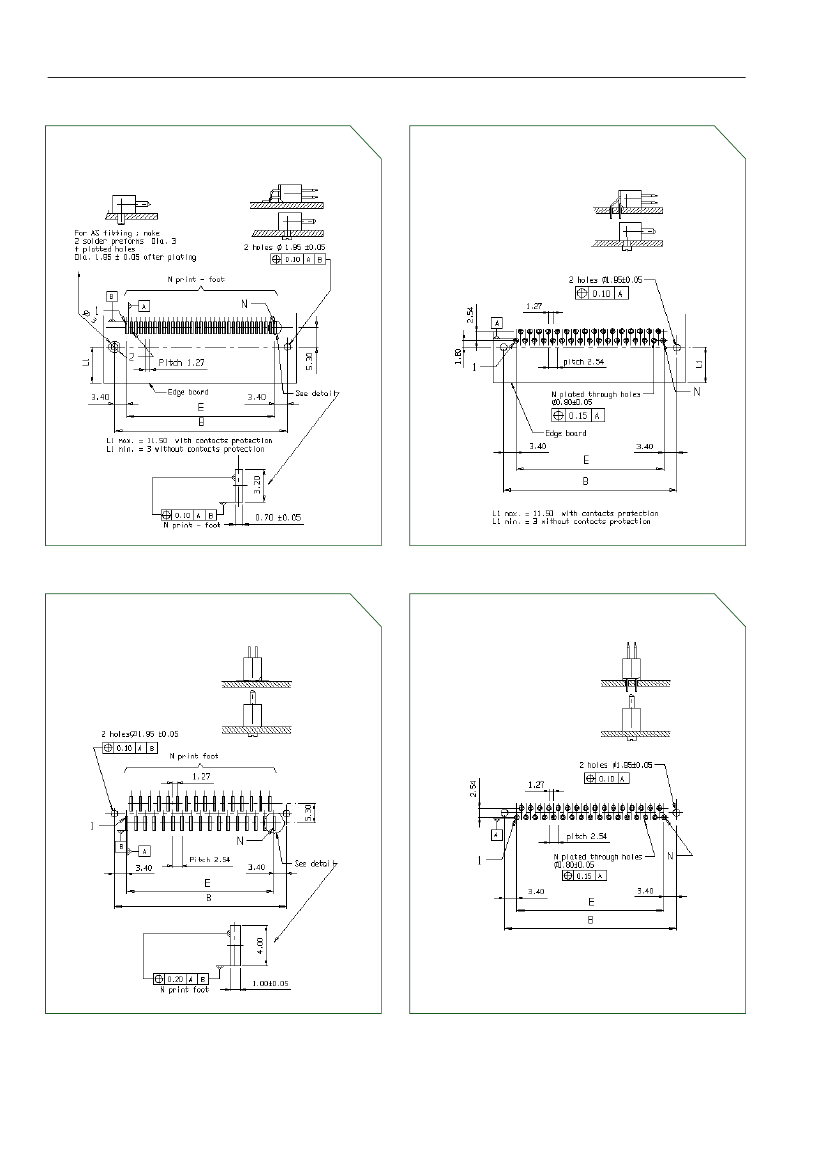

MALE P.C.B. LAYOUT
Termination style
R1
Termination style
V
Termination style
R3
Termination style
Y
>>
4
>>

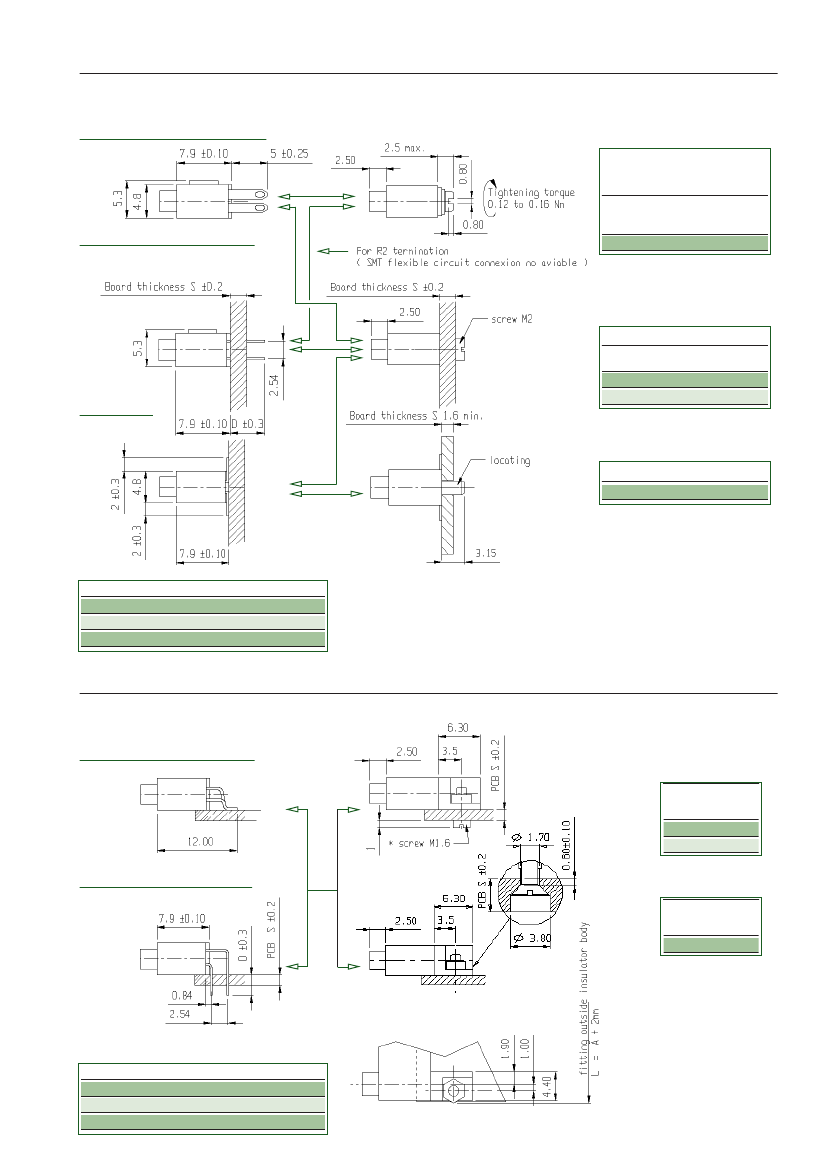

FEMALE CONNECTOR / STRAIGHT MOUNTING
s
Termination styles
s
Guides
Solder wire AWG 24
C1
Guide without
coding for free
connector (no fixed)
Guide
without
coding
Threaded
guide*
*
Through p.c.b. mounting
P
Z
*
Y
Lockable on p.c.b.
P.c.b.
thickness S
1.6 to 2.4
SMT
3.2 to 4
Q
R
R3
Solder on p.c.b.
1.6 mini
RS
P.c.b. thickness S
1.6
2.4
3.2
Depass
t
D
2.9
3.7
4.5
Contact ref.
*
For C1 and Y termination styles, the stiffening bar is obligatory above
size 33 and is included in connector part number.
For specific requests without stiffening bar, consult us.
Y1
Y2
Y3
FEMALE CONNECTOR / RIGHT ANGLE MOUNTING
s
Termination styles
s
Guides
SMT
P.c.b.
thickness
S
1.6 to 2.4
3.2 to 4
R1
T
U
Through p.c.b. mounting
P.c.b.
thickness
S
1.6 min.
TS
V
P.c.b. thickness S
1.6
2.4
3.2
Depass
t
D
2.9
3.7
4.5
Contact ref.
V1
V2
V3
5
>>
>>
