5-146493-6

Description
conn headr 12pos .100" dual row
CategoryThe connector
File Size241KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

5-146493-6 Online Shopping

Suppliers Part Number Price MOQ In stock
5-146493-6 - - View Buy Now

5-146493-6 Overview

conn headr 12pos .100" dual row

5-146493-6 Parametric

Parameter NameAttribute value

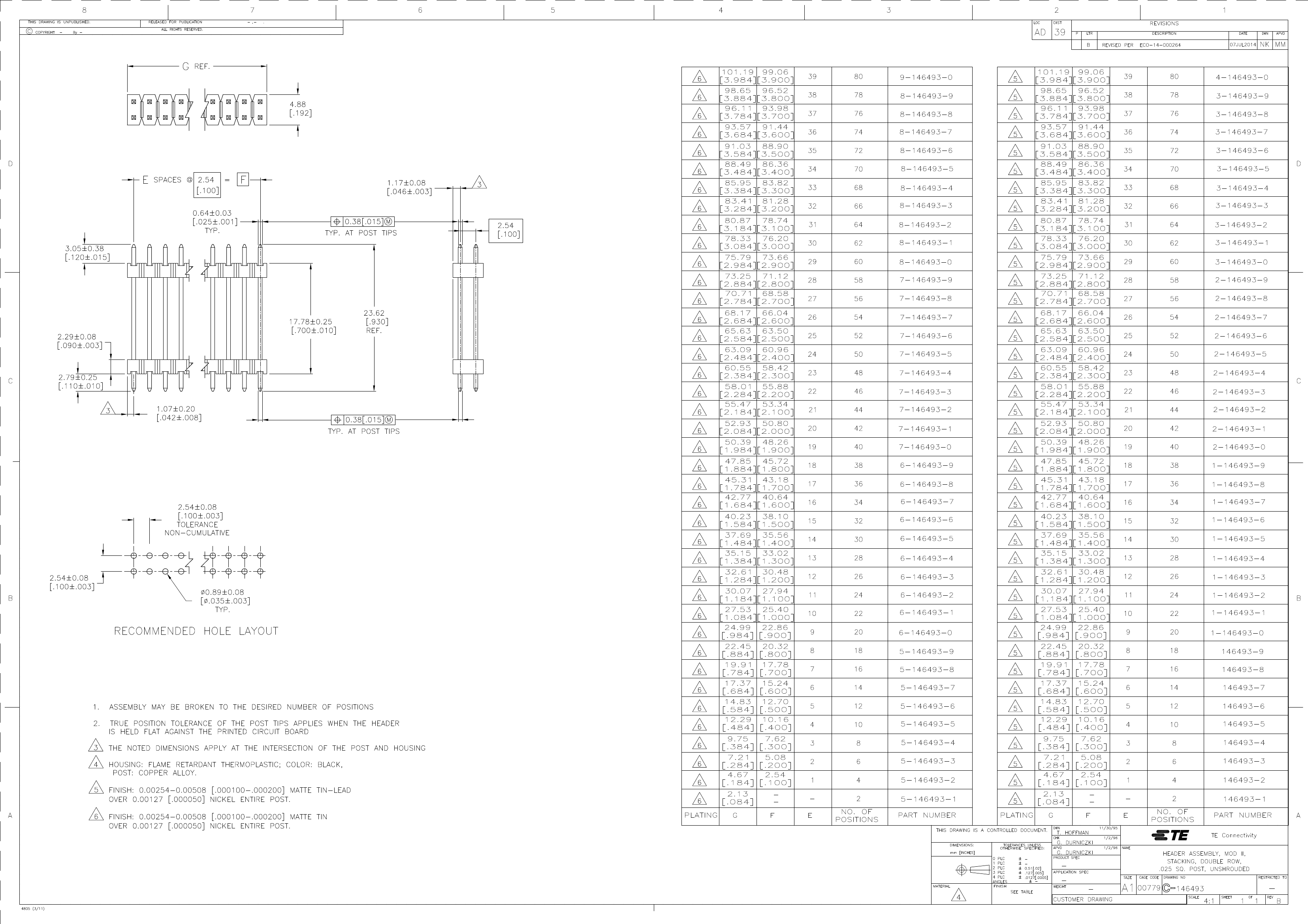

Datasheets
146493
RoHS Informati
5-146493-6 Statement of Compliance
RoHS 2 Stateme
Standard Package120
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Board Spacers, Stackers
PackagingBulk
Number of Positions12
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Length - Overall0.930" (23.5mm)
Length - Post (Mating)0.120" (3.05mm)
Length - Stack Heigh0.700" (17.78mm)
Length - Tail0.110" (2.79mm)
Mounting TypeThrough Hole
TerminatiSolde
Contact Finish - Post (Mating)Ti
Contact Finish Thickness - Post (Mating)-
ColBlack
