0553943070 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0553943070

0553943070: Description0.4 btb plg assy W/nail 30ckt; CategoryThe connector; File Size340KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0553943070 Overview

0.4 btb plg assy W/nail 30ckt

0553943070 Parametric

Parameter Name	Attribute value
Datasheets
553943070
RoHS Informati
553943070 Cert of Compliance
3D Model
55394-3070.s
Standard Package	1,500
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine

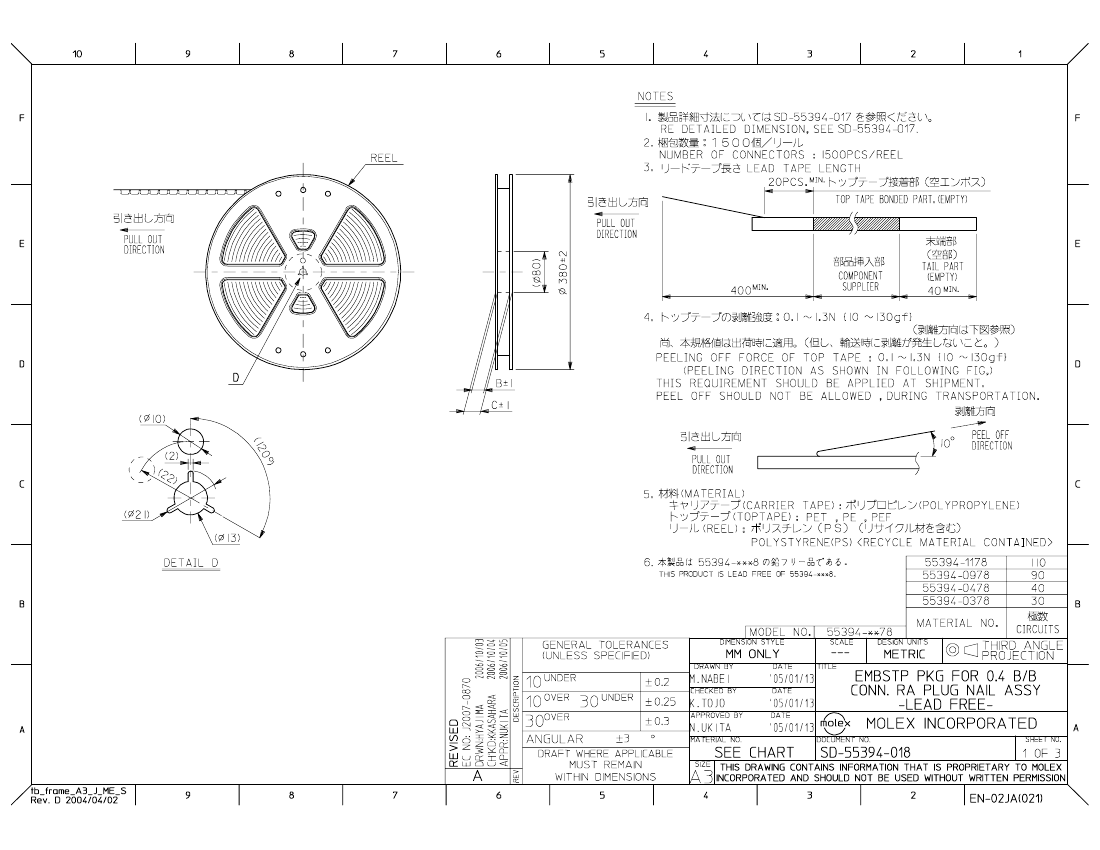

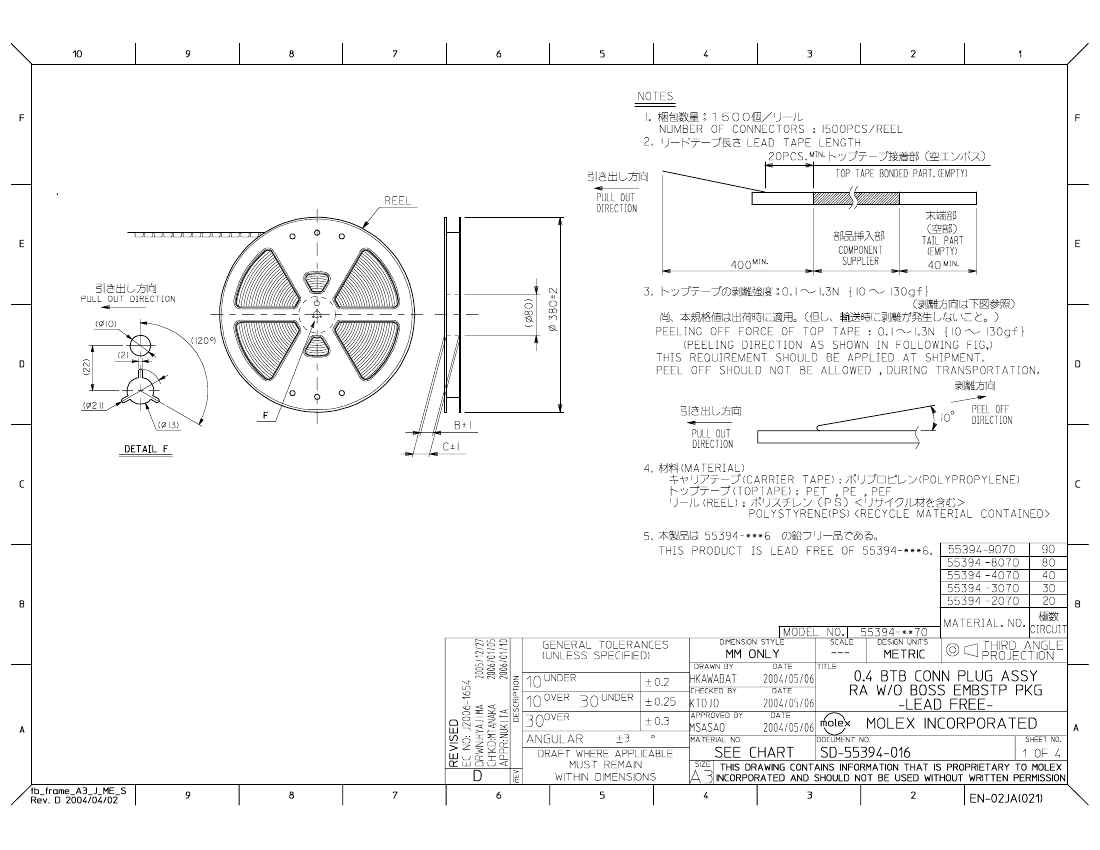

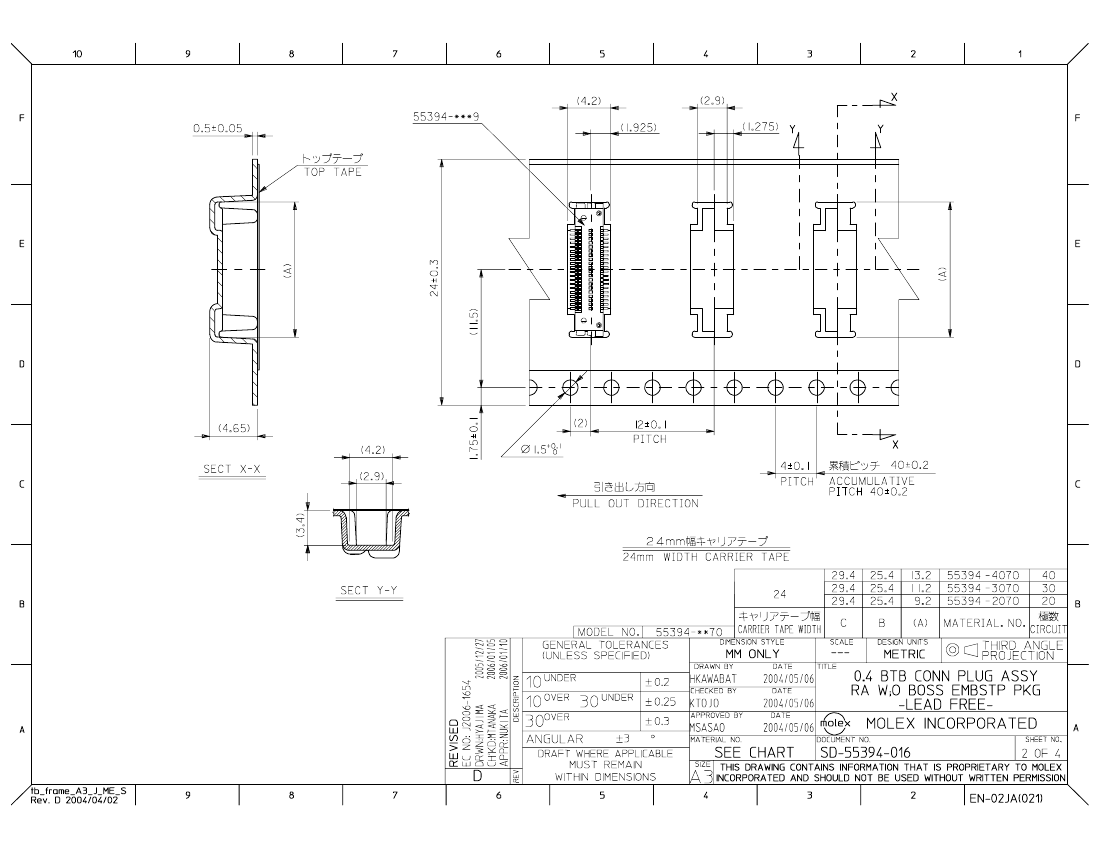

Packaging	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	30
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount, Right Angle
Features	Solder Retenti
Contact Finish	Gold
Contact Finish Thickness	10µin (0.25µm)
Mated Stacking Heights	-
Height Above Board	0.124" (3.15mm)
Mating Products	WM8808DKR-ND - CONN RCPT BTB 30POS DL R/A SMDWM8803DKR-ND - CONN RCPT BTB 30POS DL R/A SMDWM8808CT-ND - CONN RCPT BTB 30POS DL R/A SMDWM8803CT-ND - CONN RCPT BTB 30POS DL R/A SMDWM8808TR-ND - CONN RCPT BTB 30POS DL R/A SMDWM8803TR-ND - CONN RCPT BTB 30POS DL R/A SMD
Other Names	055394-307055394-3070553943070

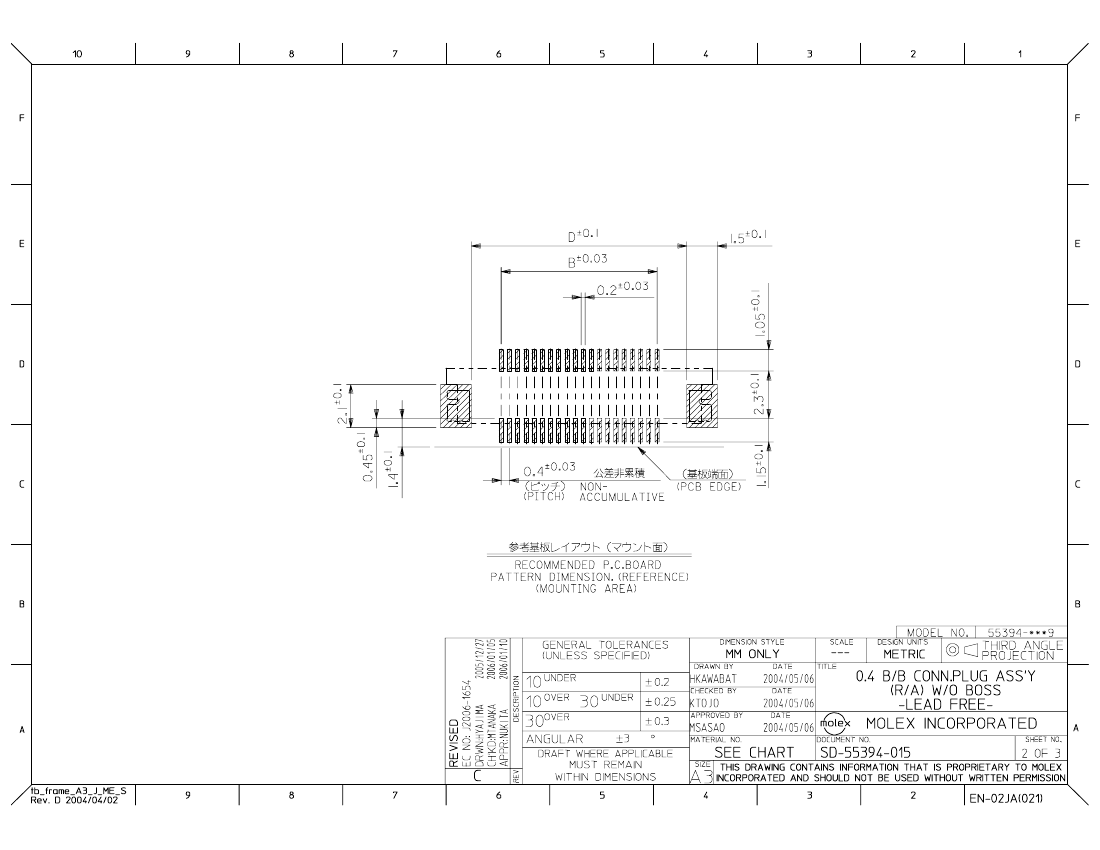

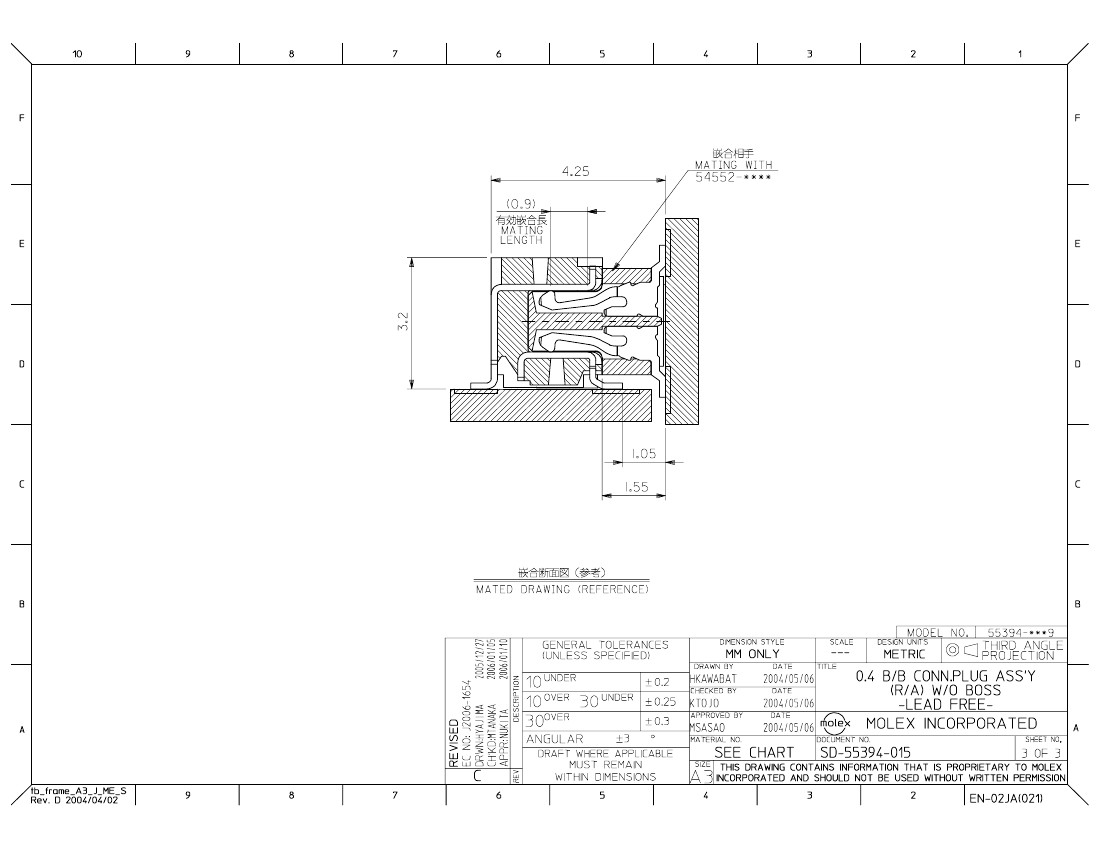

Preview

Download Datasheet

View All

0553943070 Related Products

	0553943070	0553948070	0553944070
Description	0.4 btb plg assy W/nail 30ckt	0.4 btb plg assy W/nail 80ckt	0.4 btb plg assy W/nail 40ckt
Standard Package	1,500	1,500	1,500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts
Number of Positions	30	80	40
Pitch	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)
Number of Rows	2	2	2
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Features	Solder Retenti	Solder Retenti	Solder Retenti
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	10µin (0.25µm)	10µin (0.25µm)	10µin (0.25µm)
Height Above Board	0.124" (3.15mm)	0.124" (3.15mm)	0.124" (3.15mm)
Mating Products	WM8808DKR-ND - CONN RCPT BTB 30POS DL R/A SMDWM8803DKR-ND - CONN RCPT BTB 30POS DL R/A SMDWM8808CT-ND - CONN RCPT BTB 30POS DL R/A SMDWM8803CT-ND - CONN RCPT BTB 30POS DL R/A SMDWM8808TR-ND - CONN RCPT BTB 30POS DL R/A SMDWM8803TR-ND - CONN RCPT BTB 30POS DL R/A SMD	WM8800DKR-ND - CONN RCPT BTB 80POS DL R/A SMDWM8800CT-ND - CONN RCPT BTB 80POS DL R/A SMDWM8800TR-ND - CONN RCPT BTB 80POS DL R/A SMD	WM8806DKR-ND - CONN RCPT BTB 40POS DL R/A SMDWM8802DKR-ND - CONN RCPT BTB 40POS DL R/A SMDWM8806CT-ND - CONN RCPT BTB 40POS DL R/A SMDWM8802CT-ND - CONN RCPT BTB 40POS DL R/A SMDWM8806TR-ND - CONN RCPT BTB 40POS DL R/A SMDWM8802TR-ND - CONN RCPT BTB 40POS DL R/A SMD
Other Names	055394-307055394-3070553943070	055394-807055394-8070553948070	055394-407055394-4070553944070
