2225X154MC201T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 2225X154MC201T

Preview

2225X154MC201T: DescriptionCeramic Capacitor, Ceramic, 200V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.15uF, Surface Mount, 2225, CHIP; CategoryPassive components capacitor; File Size600KB，2 Pages; ManufacturerPassive Plus Inc; Environmental Compliance

Download Datasheet Parametric View All

2225X154MC201T Overview

Ceramic Capacitor, Ceramic, 200V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.15uF, Surface Mount, 2225, CHIP

2225X154MC201T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8158962803
package instruction	, 2225
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.15 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e4
Manufacturer's serial number	2225X
Installation features	SURFACE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
size code	2225
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Silver/Palladium (Ag/Pd)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

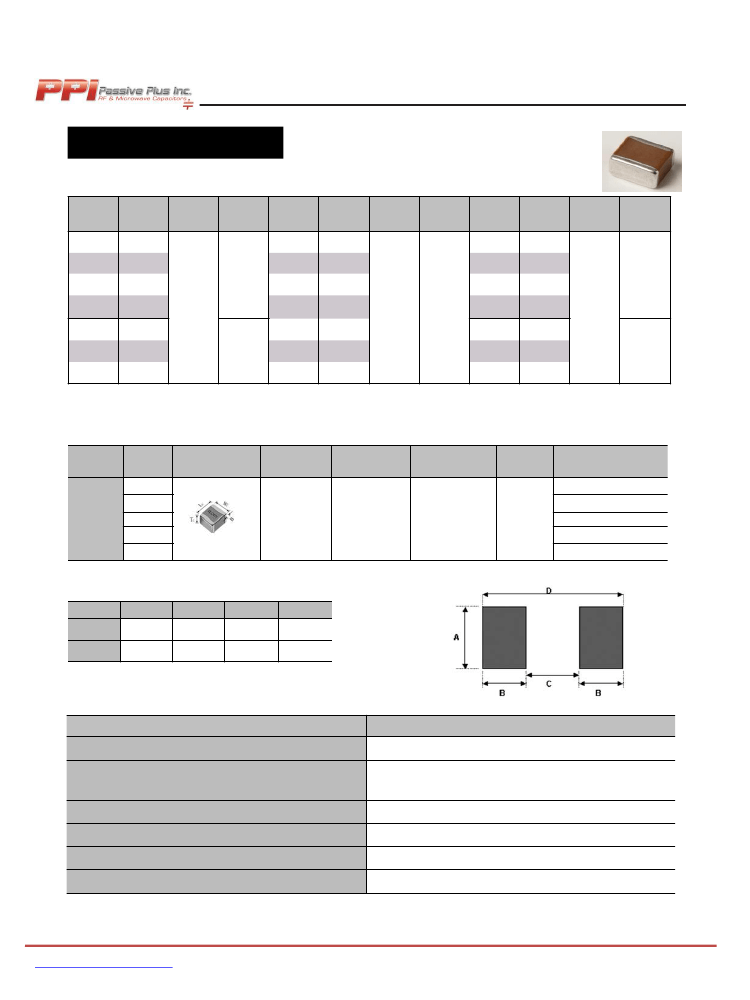

2225 X7R RF By-Pass Capacitors

2225X (.220" x .250")

2225X (.220” x .250”)



2225X Capacitance & Rated Voltage Table

Cap.

uF

0.010

0.012

0.015

0.022

0.033

0.047

0.068

Code

103

123

153

223

333

473

683

K,M

250V

Code

251

300V

Code

301

Tol.

Rated

WVDC

Cap.

uF

0.082

0.100

0.120

0.150

0.220

Code

823

104

124

154

224

K,M

200V

Code

201

Tol.

Rated

WVDC

Cap.

uF

0.330

0.470

0.560

0.680

0.820

1.000

Code

334

474

564

684

824

105

K,M

100V

Code

101

150V

Code

151

Tol.

Rated

WVDC

Remark: special capacitance, tolerance and WVDC are available, consult with PASSIVE PLUS.



2225X Dimensions

unit:inch(millimeter)

Series

Term.

Code

W

P

L

C

CA

Type/Outlines

Length (Lc)

.220+.020

~ -.010

(5.59+0.508

~ -0.254)

Width (Wc)

Thickness (Tc)

B

.030

±.015

(0.762

±0.38)

Plated Material

Sn/Ni (RoHS)

.250±.015

(6.35±0.38)

.165

(4.19)

Max

Cu (RoHS)

Sn (90%)/Pb(10%)

Ag/Pb

Au/Ni

2225X

Chip



2225X Recommended Mounting Pads

Size

VERT

HORIZ

A Min.

.185"

.280"

B Min.

.050"

C Min.

.200"

D Min.

.300"

VERT= Vertical Mount, HORIZ = Horizontal Mount



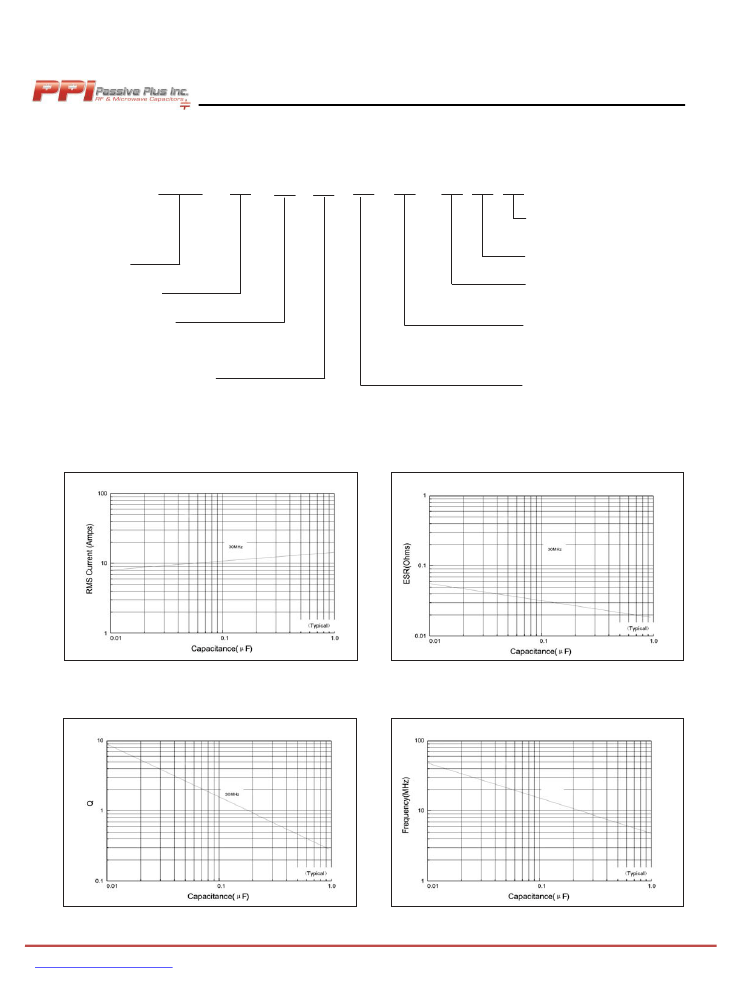

Performance

Item

Operating Temperature Range

Insulation Resistance (IR)

Temp Voltage Coefficient

Dielectric Withstanding Voltage (DWV)

Max Dissipation Factor

Test Parameters

-55℃to +125℃

Insulation resistance @ +25℃ >1000ΩF

Insulation resistance @ +125℃ >100ΩF

±15%Maximum

2.5X WVDC, 5 seconds.

.025(2.5%)Max

1KHz,1.0VRMS,25℃

Specifications

www.passiveplus.com

(631) 425-0938

sales@passiveplus.com
