SPR1CLT52R242G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SPR1CLT52R242G

SPR1CLT52R242G: DescriptionFixed Resistor, Carbon Film, 1W, 2400ohm, 500V, 2% +/-Tol, -350,350ppm/Cel,; CategoryPassive components The resistor; File Size59KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric View All

SPR1CLT52R242G Overview

Fixed Resistor, Carbon Film, 1W, 2400ohm, 500V, 2% +/-Tol, -350,350ppm/Cel,

SPR1CLT52R242G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	906189383
Reach Compliance Code	compliant
YTEOL	6.2
structure	Flameproof
JESD-609 code	e2
Lead diameter	0.8 mm
Lead length	24 mm
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package diameter	3.5 mm
Package length	9 mm
Package form	Axial
method of packing	TR
Rated power dissipation(P)	1 W
resistance	2400 Ω
Resistor type	FIXED RESISTOR
series	SPR1(F/G TOL)
technology	CARBON FILM
Temperature Coefficient	350 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Tolerance	2%
Operating Voltage	500 V

Preview

Download Datasheet

View All

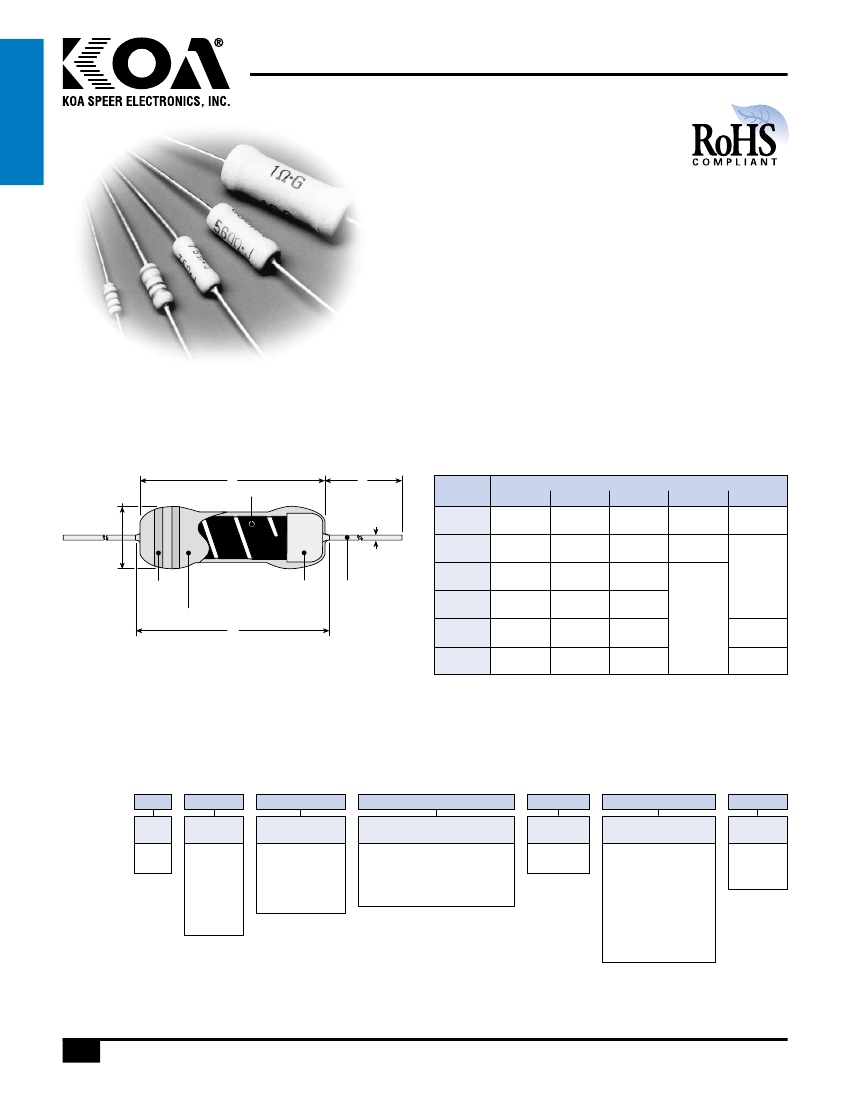

SPR

resistors

power carbon film leaded resistor

features

Fixed metal film resistor available (specify “SPRX”)

Flameproof silicone coating (UL94V0)

High reliability performance

Suitable for automatic machine insertion

Marking: Light green body color

Color-coded bands on 1/2W - 1W

Alpha-numeric black marking on 2W - 5W

•

Products with lead-free terminations meet

RoHS requirements

•

dimensions and construction

Ceramic Body

Type

SPR1/4

SPRX1/4

SPR1/2

SPRX1/2

Marking

Flame Retardant Coating

End

Cap

Lead

Wire

SPR1

SPRX1

SPR2

SPRX2

SPR3

SPRX3

SPR5

SPRX5

.13±.012

(3.3±0.3)

.244±.02

(6.2±0.5)

.354±.039

(9.0±1.0)

.472±.039

(12.0±1.0)

.610±.039

(15.5±1.0)

.965±.039

(24.5±1.0)

Dimensions

inches

(mm)

C (max.)

.138

(3.5)

.280

(7.1)

.437

(11.1)

.591

(15.0)

.709

(18.0)

1.10

(28.0)

.067±.012 .018±.002 .787 Min.

(1.7±0.3) (0.45±0.05) (20.0 Min.)

.098±.02

(2.5±0.5)

.138±.02

(3.5±0.5)

.024±.002

(0.6±0.05)

.945 Min.

(24.0 Min.)

.165±.031

(4.2±0.8)

.031±.002

.236±.039

(0.8±0.05)

1.18±.118

(30.0±3.0)

(6.0±1.0)

.354±.039

(9.0±1.0)

1.50±.118

(38.0±3.0)

ordering information

New Part #

SPR

Type

SPR

SPRX

1/2

Power

Rating

1/4: 0.25W

1/2: 0.5W

1: 1W

2: 2W

3: 3W

5: 5W

Termination

Material

C: SnCu

(Other termination

styles available,

contact factory

for options)

T52

Taping and Forming

Axial: T26, T52, T521, T631

Stand-off Axial: L52, L521, L631

Radial: VT, VTP, VTE, GT

L, U, M Forming

Packaging

A: Ammo

R: Reel

103

Nominal

Resistance

±2%, ±5%:

2 significant figures

+ 1 multiplier

“R” indicates decimal

on value <10Ω

±1%: 3 significant

figures + 1 multiplier

“R” indicates decimal

on value <100Ω

Tolerance

F: ±1%

G: ±2%

J: ±5%

For further information

on packaging, please

refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/22/05

102

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
