Datasheet> All Categories > The connector> 5-146471-8

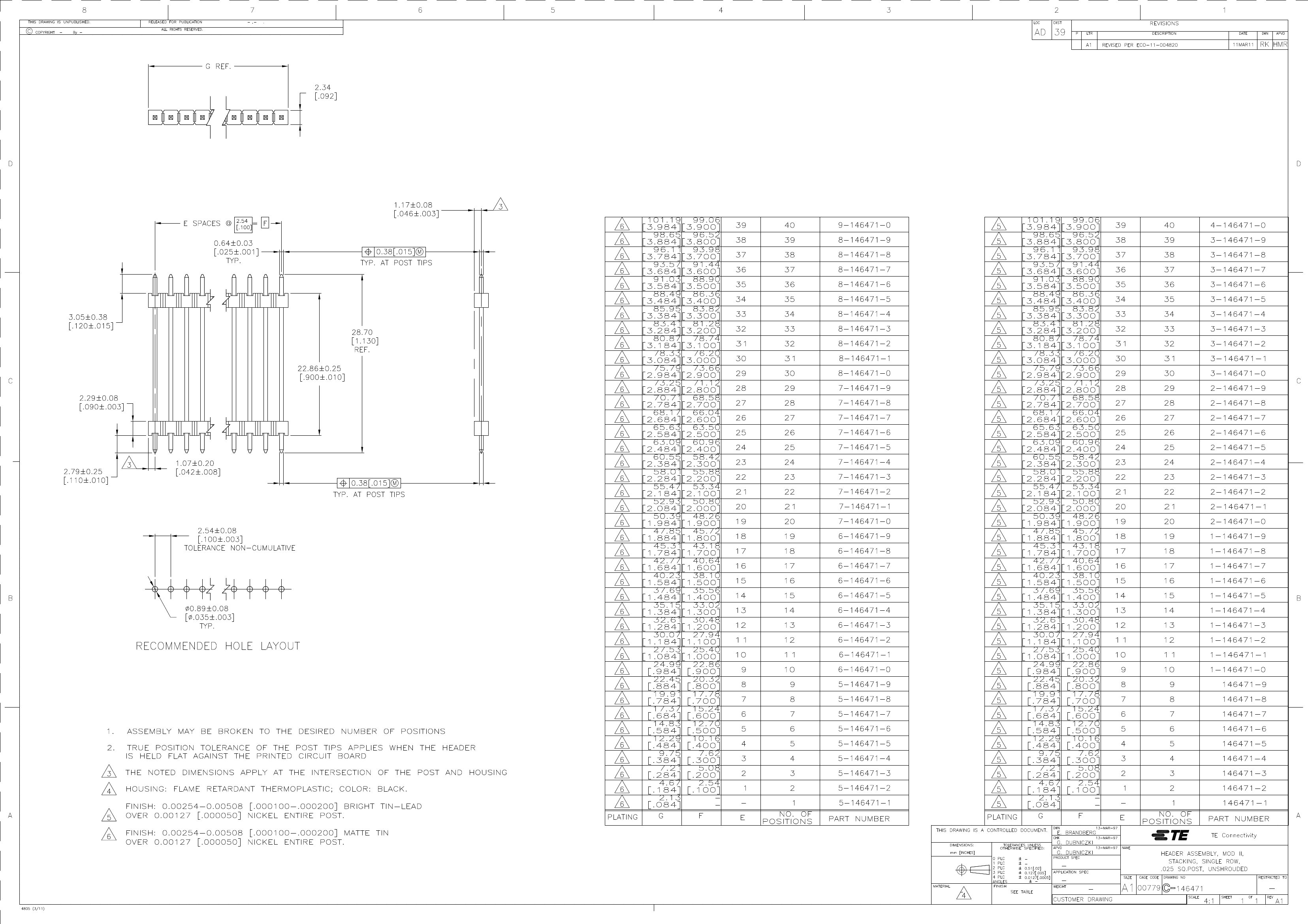

Preview

5-146471-8: Descriptionconn header 8pos .100" stacker; CategoryThe connector; File Size237KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-146471-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146471-8	-	-	View	Buy Now

5-146471-8 Overview

conn header 8pos .100" stacker

5-146471-8 Parametric

Parameter Name	Attribute value
Datasheets
146471
RoHS Informati
5-146471-8 Statement of Compliance
RoHS 2 Stateme
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Board Spacers, Stackers
Packaging	Bulk
Number of Positions	8
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Length - Overall	1.130" (28.70mm)
Length - Post (Mating)	0.120" (3.05mm)
Length - Stack Heigh	0.900" (22.86mm)
Length - Tail	0.110" (2.79mm)
Mounting Type	Through Hole
Terminati	Solde
Contact Finish - Post (Mating)	Ti
Contact Finish Thickness - Post (Mating)	-
Col	Black

Preview

Download Datasheet

View All

5-146471-8 Related Products

	5-146471-8	5-146471-4	5-146471-2	5-146471-3	5-146471-6	5-146471-7	5-146471-9	6-146471-0
Description	conn header 8pos .100" stacker	conn header 4pos .100" stacker	conn header 2pos .100" stacker	conn header 3pos .100" stacker	conn header 6pos .100" stacker	conn header 7pos .100" stacker	conn header 9pos .100" stacker	conn header 10pos .100" stacker
Standard Package	1	30,000	1	1	1	1	1	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers	Rectangular - Board to Board Connectors - Board Spacers, Stackers
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Number of Positions	8	4	2	3	6	7	9	10
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1	1	1	1
Length - Overall	1.130" (28.70mm)	1.130" (28.70mm)	1.130" (28.70mm)	1.130" (28.70mm)	1.130" (28.70mm)	1.130" (28.70mm)	1.130" (28.70mm)	1.130" (28.70mm)
Length - Post (Mating)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.120" (3.05mm)
Length - Stack Heigh	0.900" (22.86mm)	0.900" (22.86mm)	0.900" (22.86mm)	0.900" (22.86mm)	0.900" (22.86mm)	0.900" (22.86mm)	0.900" (22.86mm)	0.900" (22.86mm)
Length - Tail	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish - Post (Mating)	Ti	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Col	Black	Black	Black	Black	Black	Black	Black	Black
