Datasheet> All Categories > The connector> 4-647002-4

Preview

4-647002-4: Description14p mta100 pstd conn assy LF; CategoryThe connector; File Size264KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

4-647002-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-647002-4	-	-	View	Buy Now

4-647002-4 Overview

14p mta100 pstd conn assy LF

4-647002-4 Parametric

Parameter Name	Attribute value
Datasheets
647002
RoHS Informati
4-647002-4 Statement of Compliance
RoHS 2 Stateme
3D Model

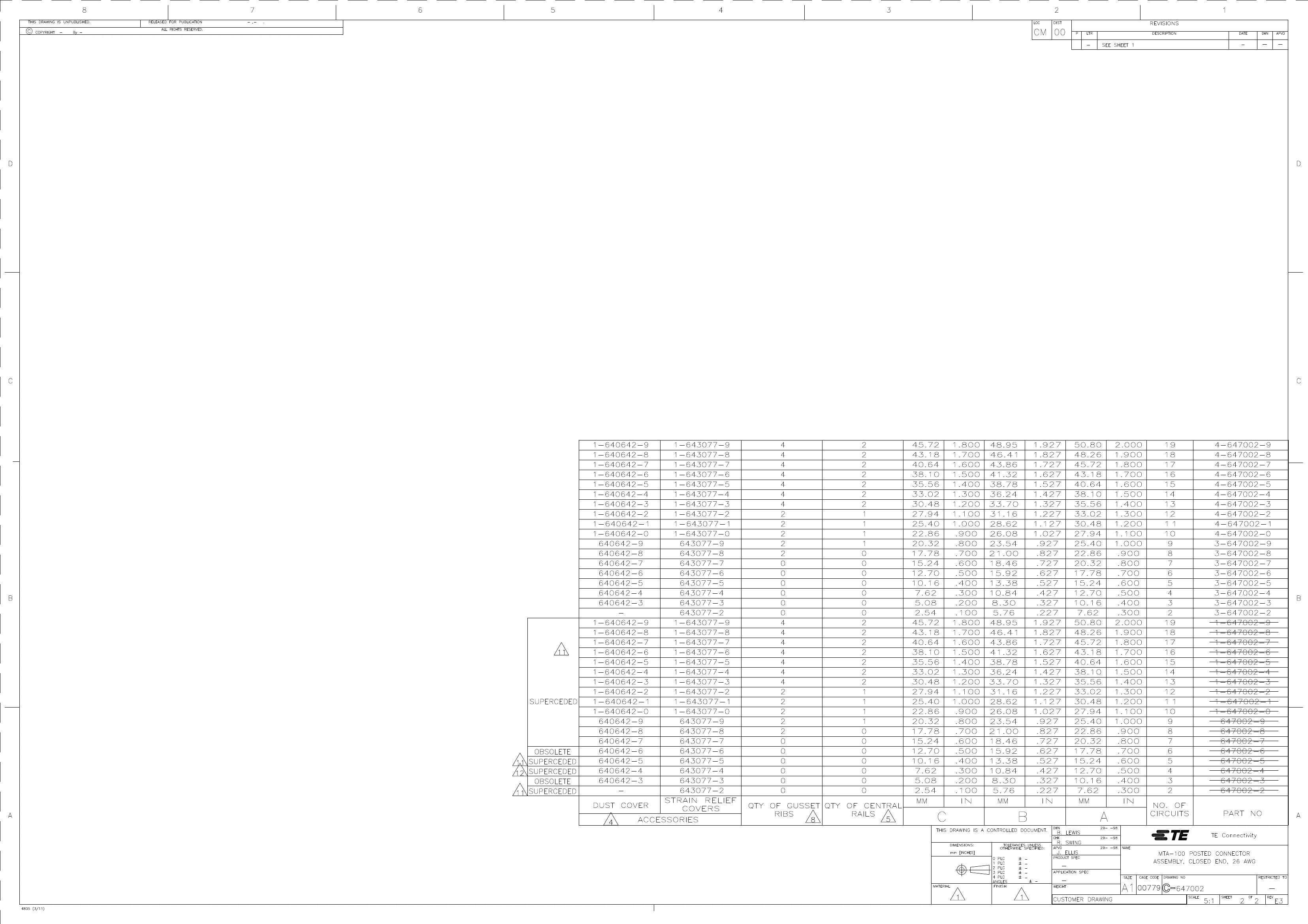

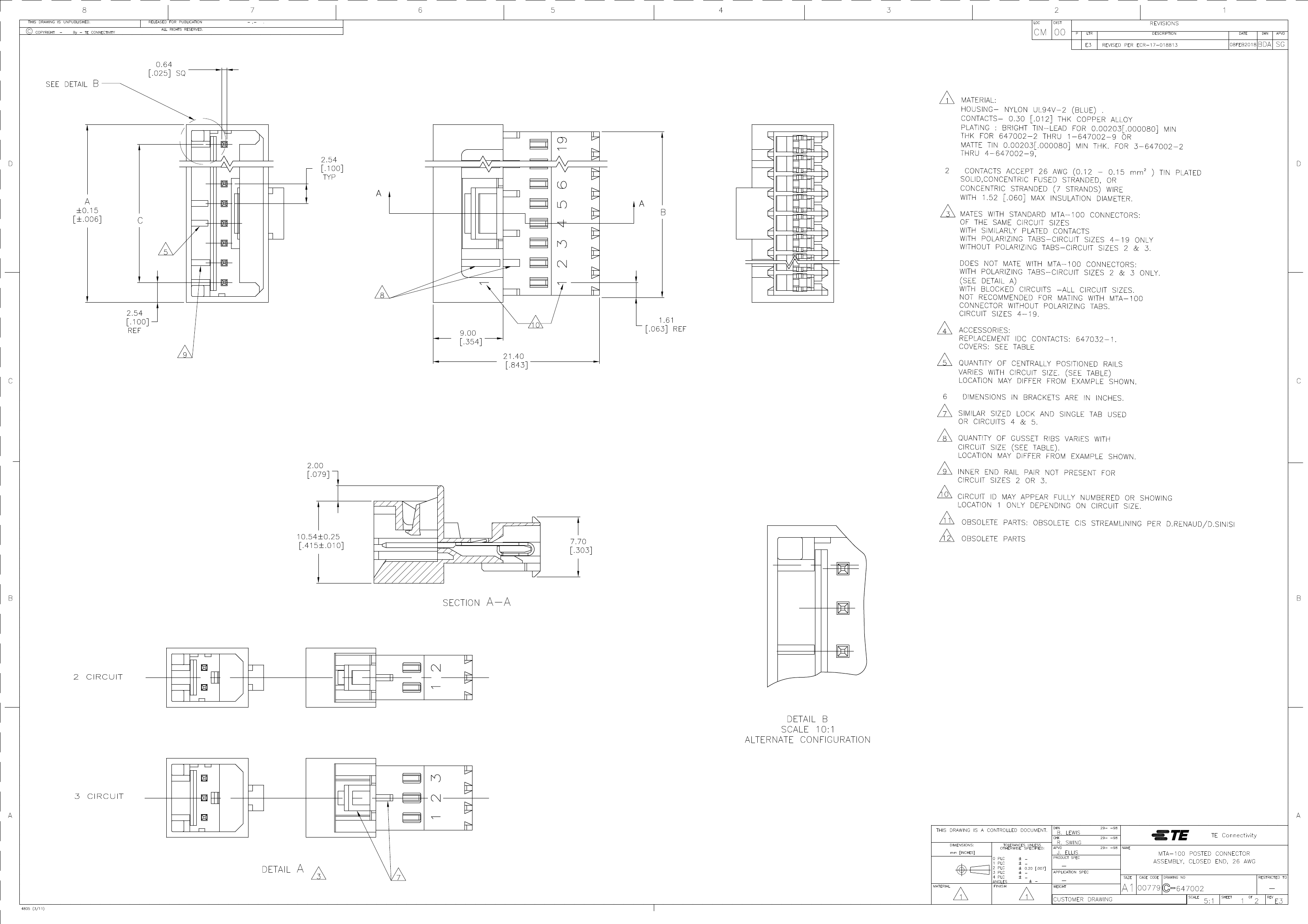

4-647002-4.pdf
Standard Package	500
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Male Pi
Number of Positions	14
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Terminati	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	26 AWG
Features	Closed End
Contact Finish	Ti
Contact Finish Thickness	80µin (2.03µm)
Col	Blue

Preview

Download Datasheet

View All

4-647002-4 Related Products

	4-647002-4	4-647002-0	4-647002-1	4-647002-6	4-647002-7	4-647002-5
Description	14p mta100 pstd conn assy LF	conn rcpt 10pos 26awg mta-100	11p mta100 pstd conn assy LF	16p mta100 pstd conn assy LF	17p mta100 pstd conn assy LF	15p mta100 pstd conn assy LF
Standard Package	500	750	525	500	500	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Number of Positions	14	10	11	16	17	15
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Cable Terminati	IDC	IDC	IDC	IDC	IDC	IDC
Wire Type	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable	Discrete or Ribbon Cable
Wire Gauge	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Features	Closed End	Closed End	Closed End	Closed End	Closed End	Closed End
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti
Contact Finish Thickness	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)	80µin (2.03µm)
Col	Blue	Blue	Blue	Blue	Blue	Blue
