62400821722 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 62400821722

Preview

62400821722: Descriptionconn headr 8pos 2mm R/A T/H; CategoryThe connector; File Size829KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

62400821722 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	62400821722	-	-	View	Buy Now

62400821722 Overview

conn headr 8pos 2mm R/A T/H

62400821722 Parametric

Parameter Name	Attribute value
Datasheets

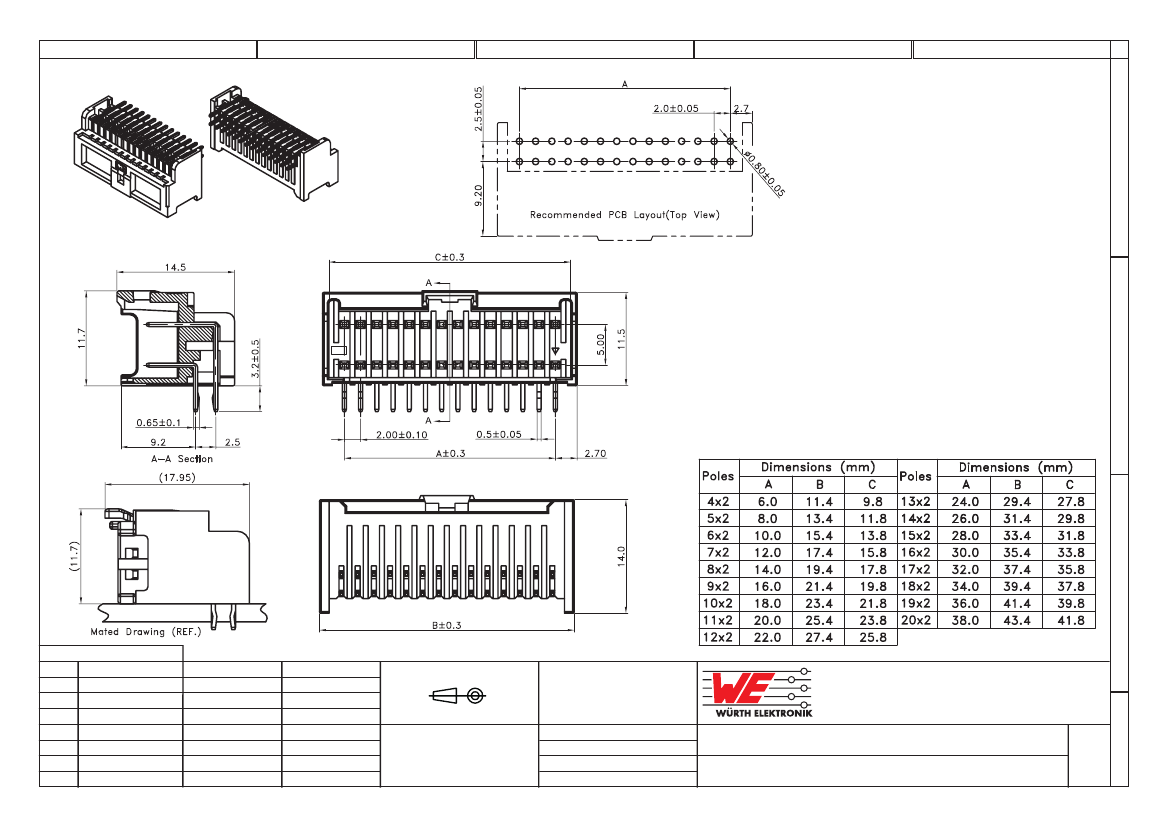

6240xx21722 Drawing
Product Photos
62400821722
Featured Produc
WR-WTB Connectors with Locking Mechanism
3D Model
62400821722.igs
62400821722.s
62400821722.wrl
Standard Package	47
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tube
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	8
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.197" (5.00mm)
Contact Mating Length	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	Latch Holde
Features	-
Contact Finish	Ti
Contact Finish Thickness	-
Col	White
Dynamic Catalog	WR-WTB Series
Mating Products	732-4346-ND - CONN FEM HSING 8POS 2MM DL ROW
Other Names	732-4312

Preview

Download Datasheet

View All

1

2

3

4

5

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PBT

FLAMABILITY RATING: UL94-V0

COLOR: WHITE

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 2.00MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -25 UP TO 85°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC/MN

CONTACT RESISTANCE: 20 mOHM MAX

SOLDERING

SOLDER TEMP.: JEDEC LEAD FREE WAVE SOLDERING

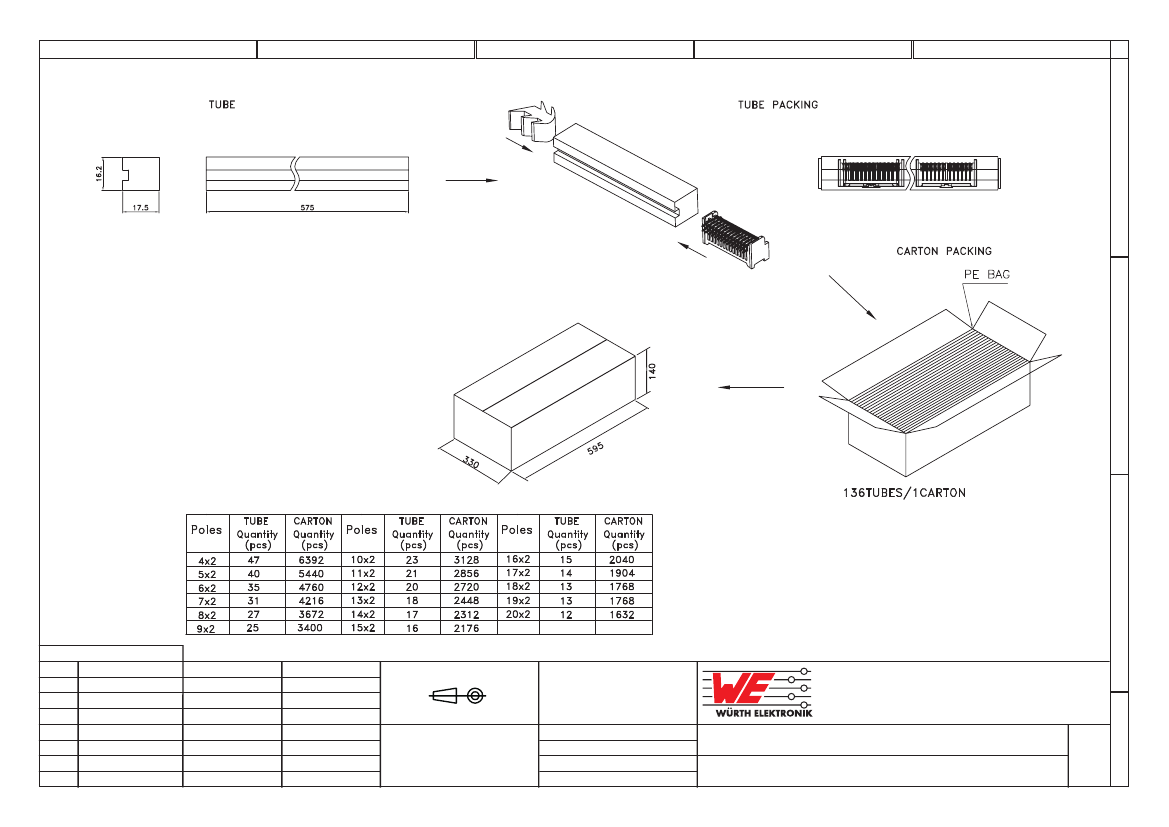

PACKAGING

TUBE

A

B

C

G

F

E

D

C

B

A

REV

PROJECTION:

25-JAN-16

06-DEC-13

27-NOV-13

06-AUG-13

18-JUL-13

15-MAY-12

DATE

TPK UPDATE

P20 QTY UPDATE

TPK CORRECTION

CHARACTERISTIC

TOLERANCE

PDF

FILE

AK

QL

GG

BY

APPROVAL: BBu

GENERAL TOLERANCE

.X = +/- 0.3

.XX = +/- 0.2

UNIT: MM

SCALE:

SHEET: 1/3

DRAW: MIKE

DESCRIPTION: 2.00 MM DUAL ROW MALE HORIZONTAL SHROUDED

HEADER

WERI PART NO: 624 0xx 217 22

SIZE

A4

D

62400821722 Related Products

	62400821722	62401821722	62402021722	62402221722	62401021722	62403621722	62403021722
Description	conn headr 8pos 2mm R/A T/H	conn headr 18pos 2mm R/A T/H	conn headr 20pos 2mm R/A T/H	conn headr 22pos 2mm R/A T/H	conn headr 10pos 2mm R/A T/H	conn headr 36pos 2mm R/A T/H	conn headr 30pos 2mm R/A T/H
Standard Package	47	25	23	21	41	13	16
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Tube	Tube	Tube	Tube	Tube	Tube	Tube
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	8	18	20	22	10	36	30
Number of Positions Loaded	All	All	All	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2	2	2
Row Spacing	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde
Fastening Type	Latch Holde	Latch Holde	Latch Holde	Latch Holde	Latch Holde	Latch Holde	Latch Holde
Contact Finish	Ti	Ti	Ti	Ti	Ti	Ti	Ti
Col	White	White	White	White	White	White	White
Dynamic Catalog	WR-WTB Series	WR-WTB Series	WR-WTB Series	WR-WTB Series	WR-WTB Series	WR-WTB Series	WR-WTB Series
Mating Products	732-4346-ND - CONN FEM HSING 8POS 2MM DL ROW	732-4351-ND - CONN FEM HSING 18POS 2MM DL ROW	732-4352-ND - CONN FEM HSING 20POS 2MM DL ROW	732-4353-ND - CONN FEM HSING 22POS 2MM DL ROW	732-4347-ND - CONN FEM HSING 10POS 2MM DL ROW	732-4360-ND - CONN FEM HSING 36POS 2MM DL ROW	732-4357-ND - CONN FEM HSING 30POS 2MM DL ROW
Other Names	732-4312	732-4322	732-4324	732-4326	732-4314	732-4340	732-4334
