AWP2-08-7241-T-R: Descriptionconn socket idc 8pos W/str gold; CategoryThe connector; File Size67KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

AWP2-08-7241-T-R Overview

conn socket idc 8pos W/str gold

AWP2-08-7241-T-R Parametric

Parameter Name	Attribute value
Datasheets
AWP2-08-7241-T-R
Featured Produc
IDC Connectors and Cables
Standard Package	252
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Tray
Connector Type	Socke
Contact Type	Female Socke
Number of Positions	8
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Terminati	IDC
Wire Type	Ribbon Cable
Wire Gauge	-
Features	Feed Through, Strain Relief
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	-
Other Names	HSE08H

Preview

Download Datasheet

View All

1

4.15

A

2

3

13.25±0.2

4

5

6

7

A

10.98

1.40

B

SR

B

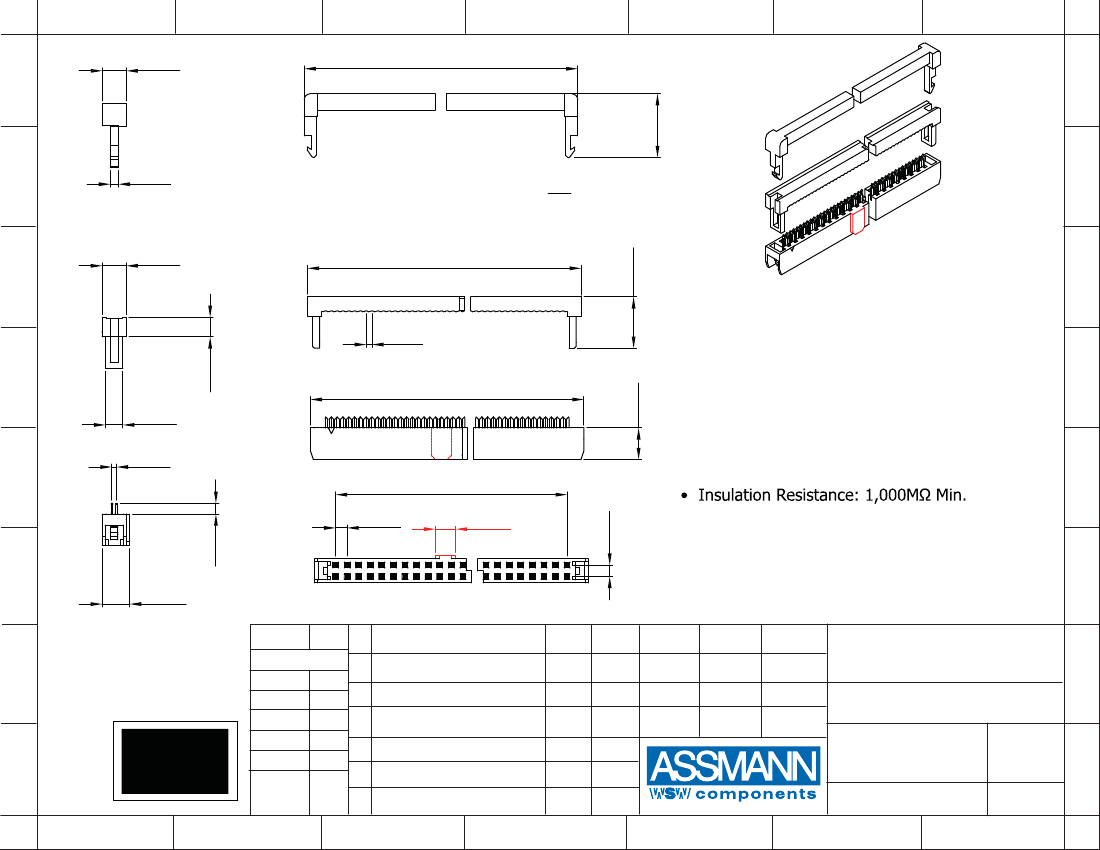

I.D.C SOCKET DUAL-ROW

4.15

C

13.25±0.2

8.85

C

Material:

• Insulator: P.B.T. 30% Glass Fiber, UL 94V-0

13.25±0.2

5.45

• Contact Material: Phosphor Bronze, Gold flash

over Nickel

Electrical:

6.00±0.1

2.00

1.90

2.00

3.50

1.00

3.40

D

3.00

0.80

E

D

• Current Rating: 1Amp DC

• Dielectric Withstanding: 500V AC

• Operating Temperature: -55°C ~ +105°C

E

F

4.75

Scale

1:1

Drawn

Approved

10.19.11

Name

Chappell

Item No.

F

Unit: MM±0.30MM

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

G

AWP2-08-7241-T-R

Title

IDC-Socket - 2.00MM Pitch,

Gold Flash, Central Lug w/Strain Relief,

8 Contacts

Drawing No.

G

H

RoHS

Complaint

1

2

Angle

rev00

H

Modification

Date

Name

Replace

Sheet

3
