3-178139-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-178139-2

3-178139-2: Descriptionconn hdr 6pos R/A key-XY 15gold; CategoryThe connector; File Size73KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-178139-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-178139-2	-	-	View	Buy Now

3-178139-2 Overview

conn hdr 6pos R/A key-XY 15gold

3-178139-2 Parametric

Parameter Name	Attribute value
Datasheets

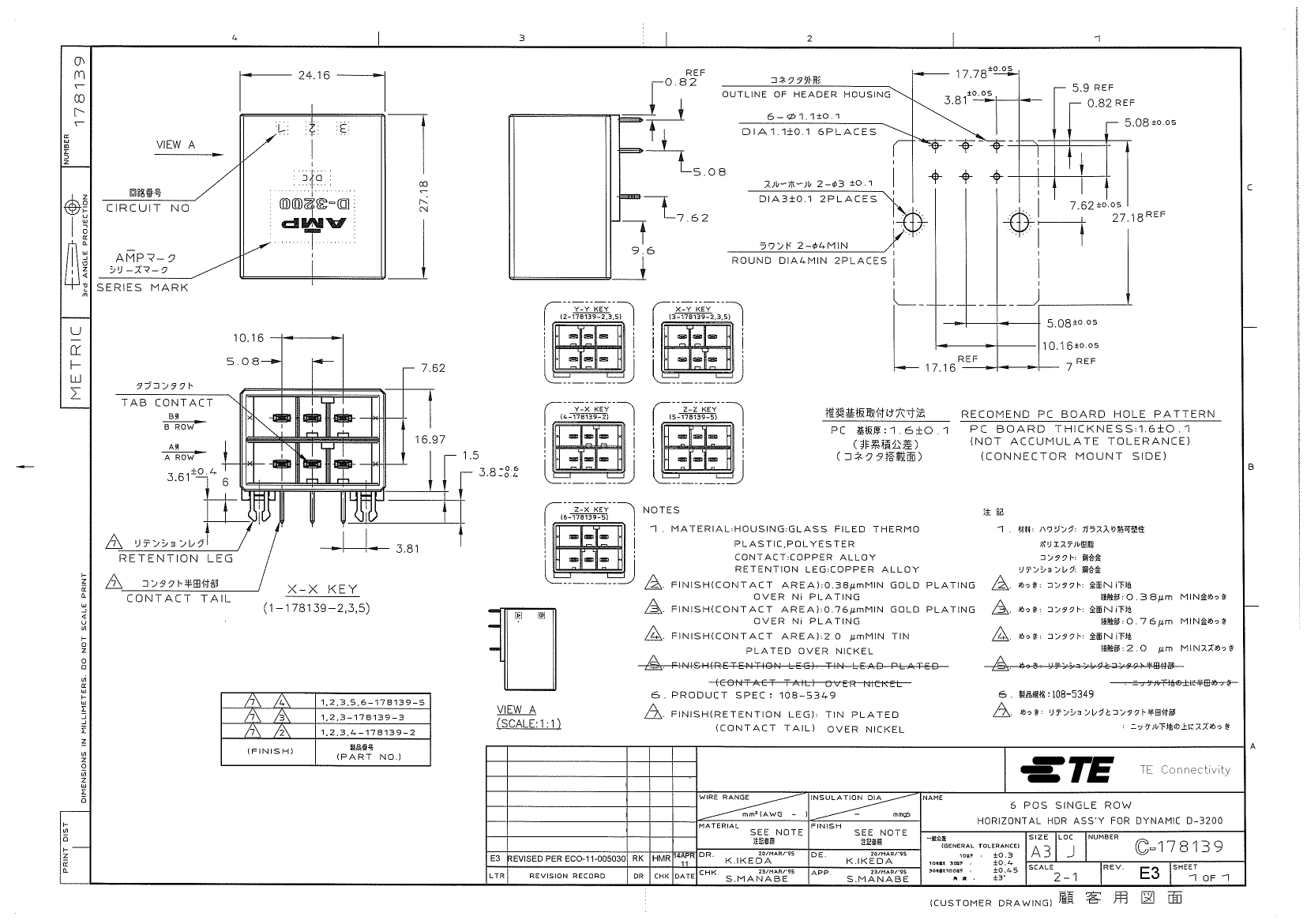

178139 Drawing
Product Photos
3-178139-2
Product Training Modules
Dynamic Series Connector Solutions
RoHS Informati
3-178139-2 Statement of Compliance
RoHS 2 Stateme
Featured Produc
AMP Dynamic Series Connectors
3D Model
3-178139-2.pdf
Standard Package	20
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	6
Number of Positions Loaded	All
Pitch	0.200" (5.08mm)
Number of Rows	2
Row Spacing	0.300" (7.62mm)
Contact Mating Length	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Fastening Type	-
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	150µin (3.81µm)
Col	Black
Dynamic Catalog	Dynamic 3200 and 3500 Series
Mating Products	A29369-ND - CONN RECEPT 5.08 6POS KEY-XY
Other Names	31781392A29393

Preview

Download Datasheet

View All

3-178139-2 Related Products

	3-178139-2	9-178139-2	3-178139-3	2-178139-5	3-178139-5	2-178139-3
Description	conn hdr 6pos R/A key-XY 15gold	conn hdr 6pos R/A key-XX 15gold	conn hdr 6pos R/A key-XY 30gold	conn hdr 6pos R/A key-YY tin	conn hdr 6pos R/A key-XY tin	conn hdr 6pos R/A key-YY 30gold
Standard Package	20	1	1,000	1,000	1,000	1,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Connector Type	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded	Header, Shrouded
Number of Positions	6	6	6	6	6	6
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)	0.200" (5.08mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Features	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock	Board Lock
Contact Finish	Gold	Gold	Gold	Ti	Ti	Gold
Contact Finish Thickness	150µin (3.81µm)	150µin (3.81µm)	30µin (0.76µm)	78.7µin (2.00µm)	78.7µin (2.00µm)	30µin (0.76µm)
Col	Black	Black	Black	Black	Black	Black
Other Names	31781392A29393	A119657	A29397	A29399	A29400	A29396
Mating Products	A29369-ND - CONN RECEPT 5.08 6POS KEY-XY	-	A29369-ND - CONN RECEPT 5.08 6POS KEY-XY	A29368-ND - CONN RECEPT 5.08 6POS KEY-YY	A29369-ND - CONN RECEPT 5.08 6POS KEY-XY	A29368-ND - CONN RECEPT 5.08 6POS KEY-YY
