TMM-128-01-G-S-SM

Description
conn header 28pos sngl 2mm smd
CategoryThe connector
File Size734KB，1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

TMM-128-01-G-S-SM Online Shopping

Suppliers Part Number Price MOQ In stock
TMM-128-01-G-S-SM - - View Buy Now

TMM-128-01-G-S-SM Overview

conn header 28pos sngl 2mm smd

TMM-128-01-G-S-SM Parametric

Parameter NameAttribute value
Datasheets
TMM Series SMT Spec Shee
TMM-1XX-XX-XX-X-SM-XX-X Drawing
TMM Single Row SMT Footpri
Product Training Modules
Rugged/Power Connectors
Board-to-Board Connectors
Catalog Drawings
TMM Series Single SMT
Featured Produc
Hi Reliability, Rugged Tiger Eye System
Standard Package1
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
PackagingBulk
Contact TypeMale Pi
Connector TypeHeader, Unshrouded
Number of Positions28
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.126" (3.20mm)
Mounting TypeSurface Mou
TerminatiSolde
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness20µin (0.51µm)
ColBlack
Dynamic CatalogTMM Series
Mating ProductsSAM1248-28-ND - CONN RCPT 2MM 28POS SGL R/A PCBSAM1247-28-ND - CONN RCPT 2MM 28POS SGL VERT PCBSAM1244-28-ND - CONN RCPT 2MM 28POS SGL GOLD SMDSAM1242-28-ND - CONN RCPT 2MM 28POS SGL VERT SMDSAM1241-28-ND - CONN RCPT 2MM 28POS SGL HORZ SMDSAM1238-28-ND - CONN RCPT 2MM 28POS SGL VERT SMDSAM1237-28-ND - CONN RCPT 2MM 28POS SGL HORZ SMDSAM1234-28-ND - CONN RCPT 2MM 28POS SGL VERT PCBSAM1233-28-ND - CONN RCPT 2MM 28POS SGL HORZ PCBSAM1230-28-ND - CONN RCPT 2MM 28POS SGL VERT PCBSAM1229-28-ND - CONN RCPT 2MM 28POS SGL HORZ PCB
Other NamesSAM1168-28

Preview

Download Datasheet

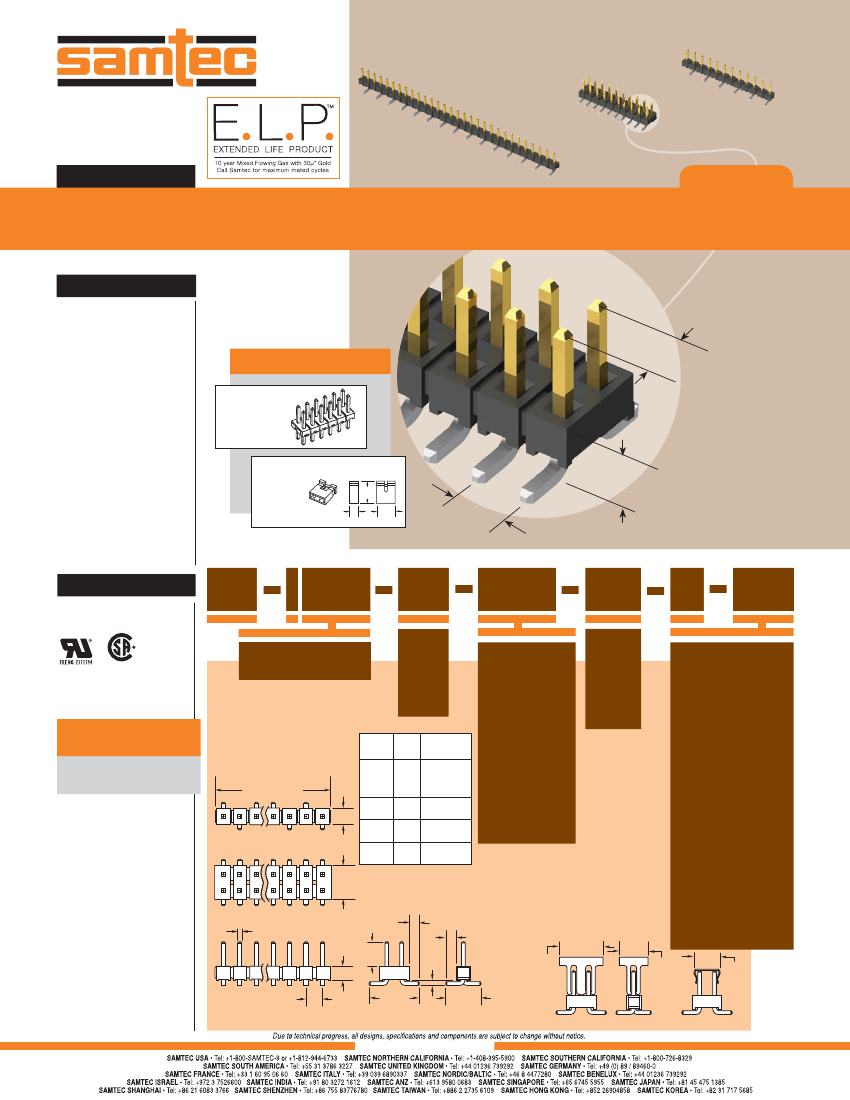

F-214 (REV 01APR14)
TMM–110–01–S–D–SM
TMM–112–01–F–S–SM
TMM–130–05–L–S–SM
(2,00 mm) .0787"
TMM SERIES
LOW PROFILE SMT HEADER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?TMM
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over
50µ" (1,27 µm) Ni
Current Rating:
3.2 A per pin
(1 pin powered per row)
Operating Temp Range:
-55°C to +105°C with Tin;
-55°C to +125°C with Gold
Voltage Rating:
500 VAC mated with SQW
450 VAC mated with SQT
RoHS Compliant:
Yes
Mates with:
CLT, SQT, SQW, ESQT,
TLE, SMM, MMS, TCSD
OTHER SOLUTIONS
(2,00 mm)
.0787" pitch
Through-
Hole
2 mm Shunt
Specify
2SN–BK–G
for 2 mm
shunt with
Gold plating.
(4,45)
.175
(1,95)
.077
(3,99)
.157
Available with optional
• Pick & Place Pads
• Alignment pins
• Tape & reel packaging
(2,77 mm)
.109" Low Profile
(2,00 mm)
.0787"
pitch
Processing:
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0,15 mm) .006" max
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
TMM
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
SM
OTHER
OPTION
FILE NO: 090871_0_000
02 thru 40
Specify
LEAD
STYLE
from
chart
below.
LEAD
STYLE
–F
= Gold flash on post,
Matte Tin on tail
–S
= Single
Row
–A
= Alignment Pin
(Metal or plastic at
Samtec’s discretion)
(5 positions minimum)
(–D only)
–L
= 10µ" (0,25 µm)
Gold on post,
Matte Tin on tail
–D
= Double
Row
ALSO AVAILABLE
(MOQ Required)
• Other platings
Contact Samtec.
No. of positions x
(2,00) .0787
(1,97)
.078
A
MATES
WITH
–“XXX”
= Polarized Position
(Specify position of
omitted pin)
–01
–04
SQT, SQW,
(3,20) ESQT, TLE,
.126 SMM, MMS,
TCSD
(1,91)
.075
(1,65)
.065
(4,27)
.168
CLT
CLT-BE
–S
= 30µ" (0,76 µm)
Gold on post,
Matte Tin on tail
–M
= Metal Pick & Place Pad
(4 positions minimum)
(-T plating not available)
(–D only)
40
02
01
80
–05
–06
(3,94)
.155
–T
= Matte Tin
–P
= Pick & Place Pad
(3 positions minimum)
01
79
(1,27)
.050 TYP
(1,50)
.059
–TR
(1,27)
.050
(1,27)
.050
TYP
(5,00)
.197
x
(8,00)
.315
(0,50) .020 SQ
= Tape & Reel Packaging
(3 thru 36 positions only)
(5,08)
.200
x
(10,16)
.400
(5,72)
.225
x
(3,56)
.140
A
(6,60)
.260
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(2,00)
.0787
(4,83)
.190
–D
–S
–P
–M
WWW.SAMTEC.COM
